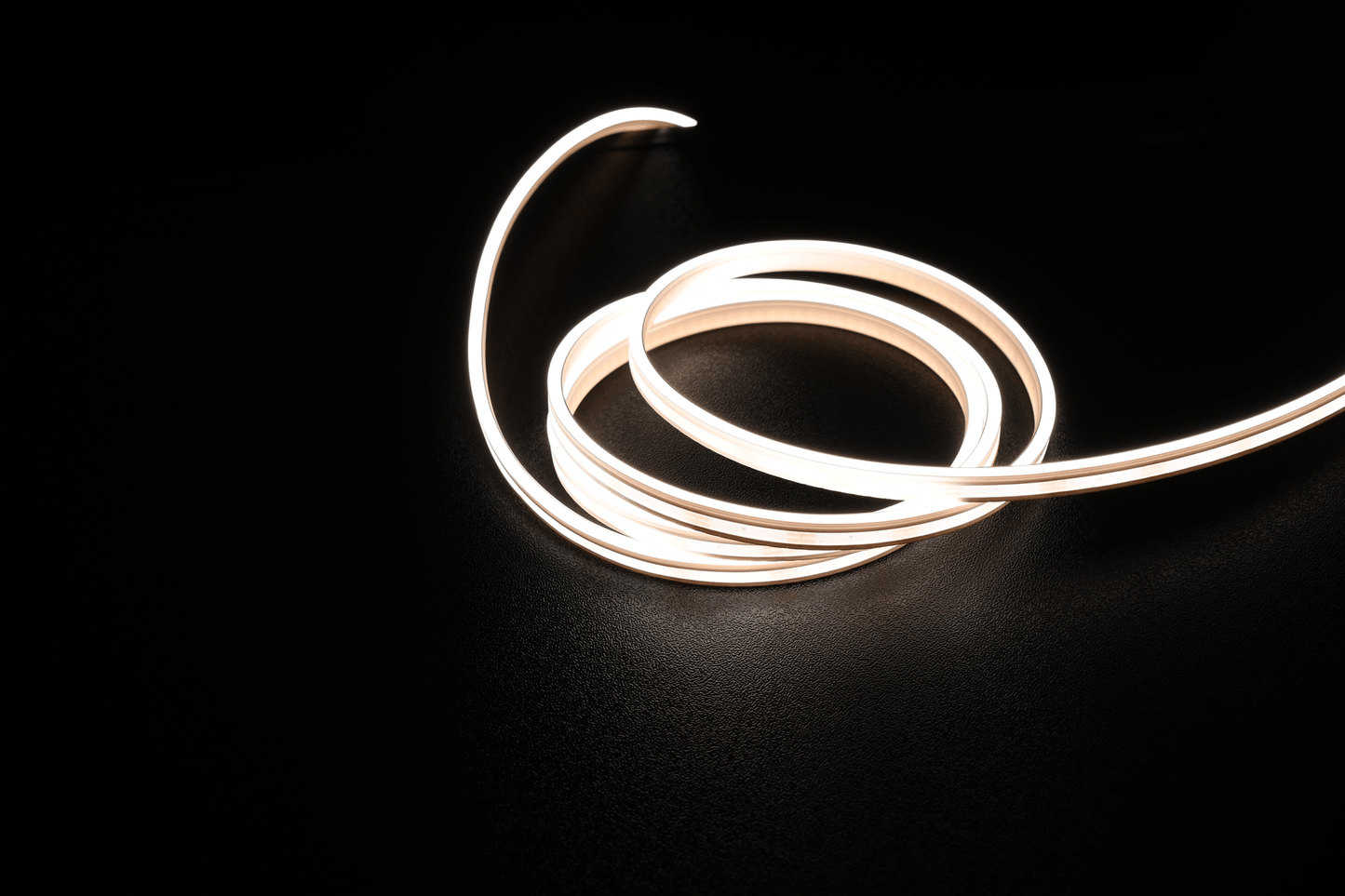

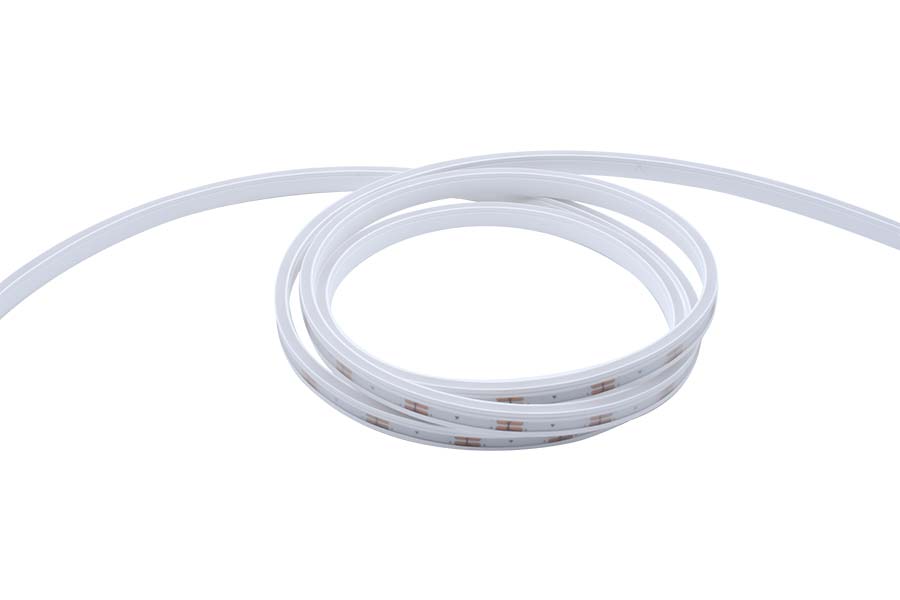

NeoVision Mini 24V Tape
The NeoVision Mini LED Tape is a 24VDC flexible linear lighting solution with a slim 4mm profile. Designed for applications that demand ultra-rich light and color saturation, it features horizontal Side-Flex bending, allowing it to conform seamlessly to curvilinear surfaces and intricate designs. Available in 2700K, 3000K, and 4000K color temperatures, it delivers well-diffused, soft illumination with IP65-rated waterproofing for both indoor and outdoor use.
- 24VDC operation
- 2.0 watts per foot
- Wet location – IP65
- Multiple power feed options
- Tape encased in UV stable silicone (UV protected)
- Dimmable
- Wireless control with LUXcontrol App and controller
- 2700K, 3000K or 4000K / Amber, Blue, Green, Orange or Red
- 120° viewing angle
- Maximum run: 16’4”, custom cuts available
- Field cuttable and joinable in 1-inch increments while retaining IP65
- Tools required for capping and joining
- Mounting clips included
Spec Sheets
Spec Sheet
Sell Sheet
Installation Instructions
Info
Catalog No. | Lumens per Foot | Color Temp. | Max. Run |
---|---|---|---|
NVM24S-2W-27K-16 | 70 | 2700K | 16' 4" |
NVM24S-2W-30K-16 | 68 | 3000K | 16' 4" |
NVM24S-2W-40K-16 | 59 | 4000K | 16' 4" |
NVM24S-2W-AM-16 | 14 | AMBER | 16' 4" |
NVM24S-2W-BL-16 | 13 | BLUE | 16' 4" |
NVM24S-2W-GR-16 | 59 | GREEN | 16' 4" |
NVM24S-2W-RD-16 | 7 | RED | 16' 4" |
NVM24S-2W-OR-16 | 15 | ORANGE | 16' 4" |
*4' power feed at each end. 2x feeds. 2 end caps.
Accessories
Catalog No. | Description |
---|---|

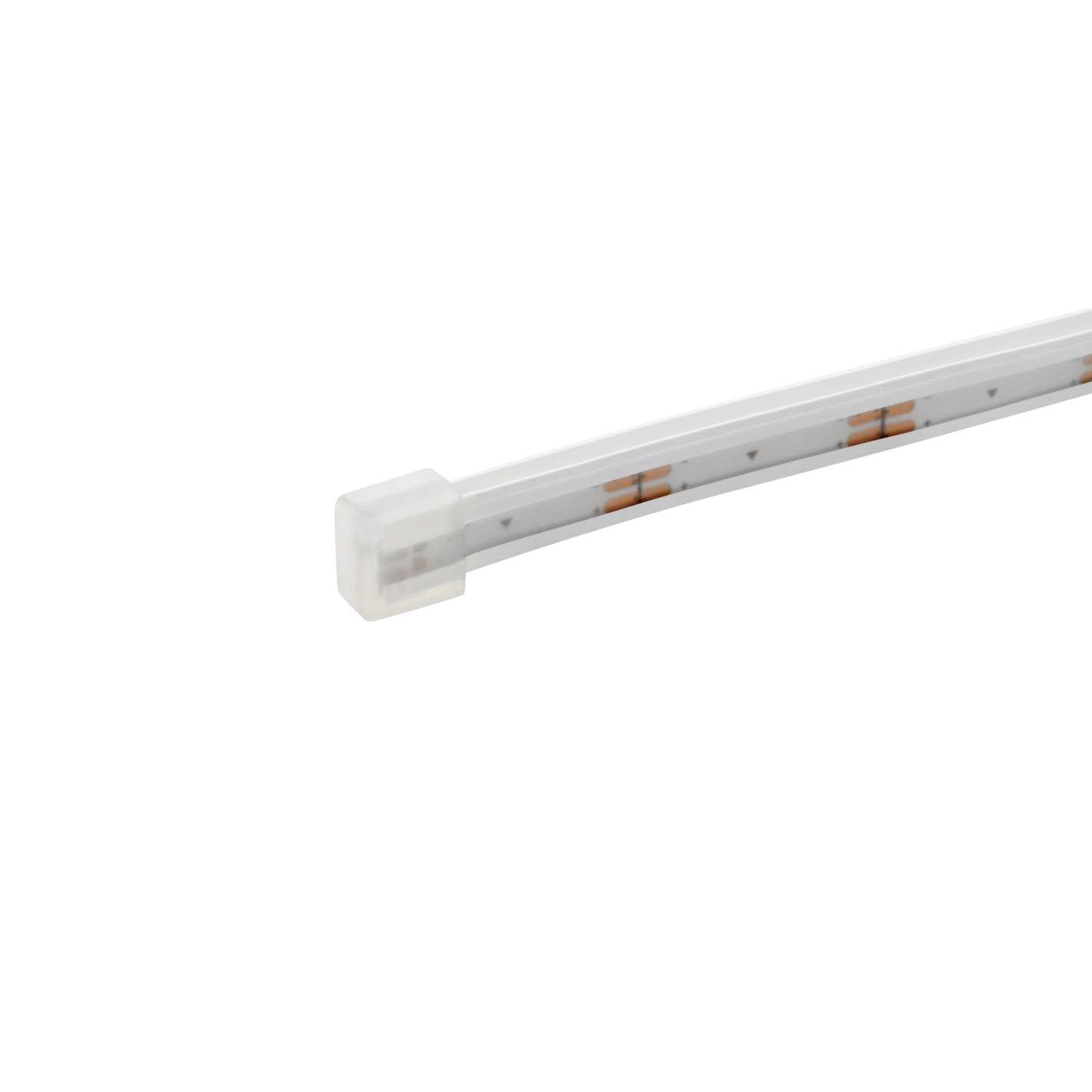

NVM24S-EC | End Cap, Molded Silicone (sealant not included) |
NVM24S-MC-A | Back Mounting Clips, Aluminum (20 clips, 20 SS screws) |
NVM24S-CHL-A4 | Rigid Channel, Aluminum, 4ft |
NVM24S-FLEX-CHL | Flexible Channel, Stainless Steel, 1m 105 holes & screws |
TAPE-DS-VHB-4MMW | 4mm wide x 6m VHB tape |
TOOL-PH0-HEX | PH0 Philips head, 1/4" hex drive bit |
