GM Lighting

GM Lighting NVM24S NeoVision Mini Accessories

$1.80

Sale Sold out

Shipping calculated at checkout.

Style End Cap Molded Silicone (sealant not included) NeoVision Mini End feed end cap NeoVision Mini Aluminum mounting clip - set of 20 4ft Rigid Channel Aluminum 1M NeoVision Mini Flexible mounting channel NeoVision Mini VHB 2-sided tape, 20ft. 1/4" hex drive bit

Quantity

NeoVision Mini 24V Tape

The NeoVision Mini LED Tape is a 24VDC flexible linear lighting solution with a slim 4mm profile. Designed for applications that demand ultra-rich light and color saturation, it features horizontal Side-Flex bending, allowing it to conform seamlessly to curvilinear surfaces and intricate designs. Available in 2700K, 3000K, and 4000K color temperatures, it delivers well-diffused, soft illumination with IP65-rated waterproofing for both indoor and outdoor use.

24VDC operation
2.0 watts per foot
Wet location – IP65
Multiple power feed options
Tape encased in UV stable silicone (UV protected)
Dimmable
Wireless control with LUXcontrol App and controller
2700K, 3000K or 4000K / Amber, Blue, Green, Orange or Red
120° viewing angle
Maximum run: 16’4”, custom cuts available
Field cuttable and joinable in 1-inch increments while retaining IP65
Tools required for capping and joining
Mounting clips included

Info

Catalog No.	Description

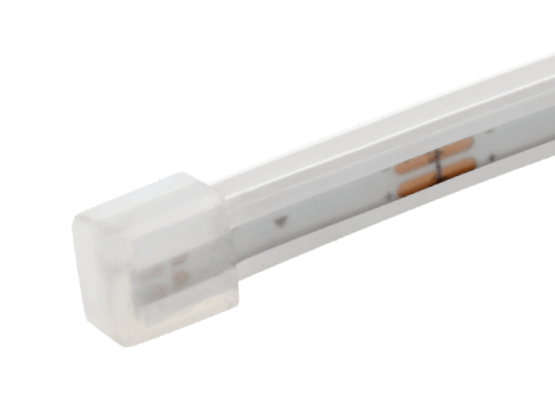

NVM24S-EC	End Cap, Molded Silicone (sealant not included)

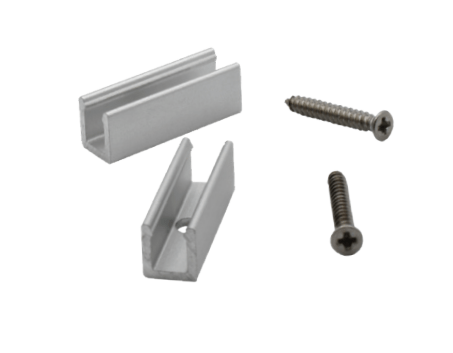

NVM24S-MC-A	Back Mounting Clips, Aluminum (20 clips, 20 SS screws)

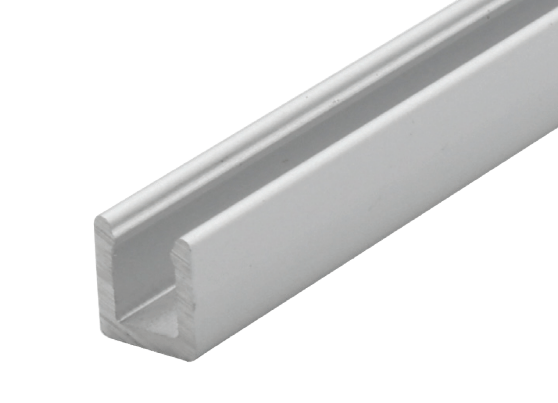

NVM24S-CHL-A4	Rigid Channel, Aluminum, 4ft
NVM24S-FLEX-CHL	Flexible Channel, Stainless Steel, 1m 105 holes & screws
TAPE-DS-VHB-4MMW	4mm wide x 6m VHB tape
TOOL-PH0-HEX	PH0 Philips head, 1/4" hex drive bit

Accessories

Catalog No.	Lumens per Foot	Color Temp.	Max. Run
NVM24S-2W-27K-16	70	2700K	16' 4"
NVM24S-2W-30K-16	68	3000K	16' 4"
NVM24S-2W-40K-16	59	4000K	16' 4"
NVM24S-2W-AM-16	14	AMBER	16' 4"
NVM24S-2W-BL-16	13	BLUE	16' 4"
NVM24S-2W-GR-16	59	GREEN	16' 4"
NVM24S-2W-RD-16	7	RED	16' 4"
NVM24S-2W-OR-16	15	ORANGE	16' 4"
