GM Lighting PL24V 3" 2.2W 24V LED Round Recessed Puck Lights 27K/30K

$22.50

Sale Sold out

Shipping calculated at checkout.

Size 3"

Color Black Brushed Nickel Bronze White

Color Temperature 27K 30K

Quantity

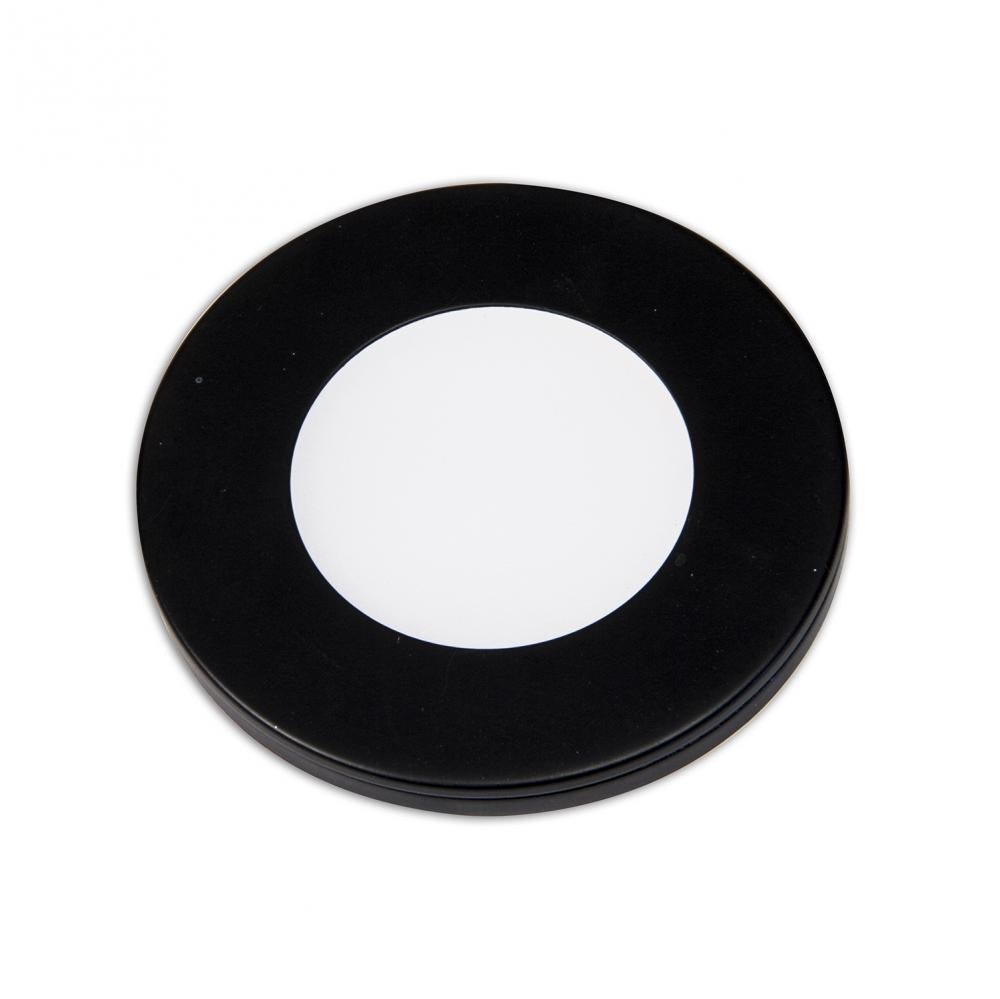

24VDC Surface/Recess Mount LED Slim Puck

A 3” (75mm) diameter circular surface (with mounting ring) or recessed (without mounting ring) puck. Constructed of a high-quality aluminum body with a white polycarbonate diffuser lens for low glare. Available in White, Black, Bronze, and Brushed Nickel trim.

24VDC operation
2.2W
2700K / 3000K
Multiple finishes
Dimmable w/ ELV drivers
Surface or recess mount
Magnetic cover plates
5-year warranty when used with GM power supplies
Ambient Operating Temperature: -4°F to 113°F

NOTE: Use electronic power supplies only (PSD15-24, PSD24-24, PSD60-24 or LineDrive). Magnetic power supplies are not compatible with this fixture.

Spec Sheets

Spec Sheet

Installation Instructions

Info

Catalog No.	Color Temp.	LED Wattage	Lumens	Finish
PL24V-27-W	2700K	2.2W	165	White
PL24V-27-B	2700K	2.2W	165	Black
PL24V-27-BZ	2700K	2.2W	165	Bronze
PL24V-27-BNK	2700K	2.2W	165	Brushed Nickel
PL24V-30-W	3000K	2.2W	170	White
PL24V-30-B	3000K	2.2W	170	Black
PL24V-30-BZ	3000K	2.2W	170	Bronze
PL24V-30-BNK	3000K	2.2W	170	Brushed Nickel
