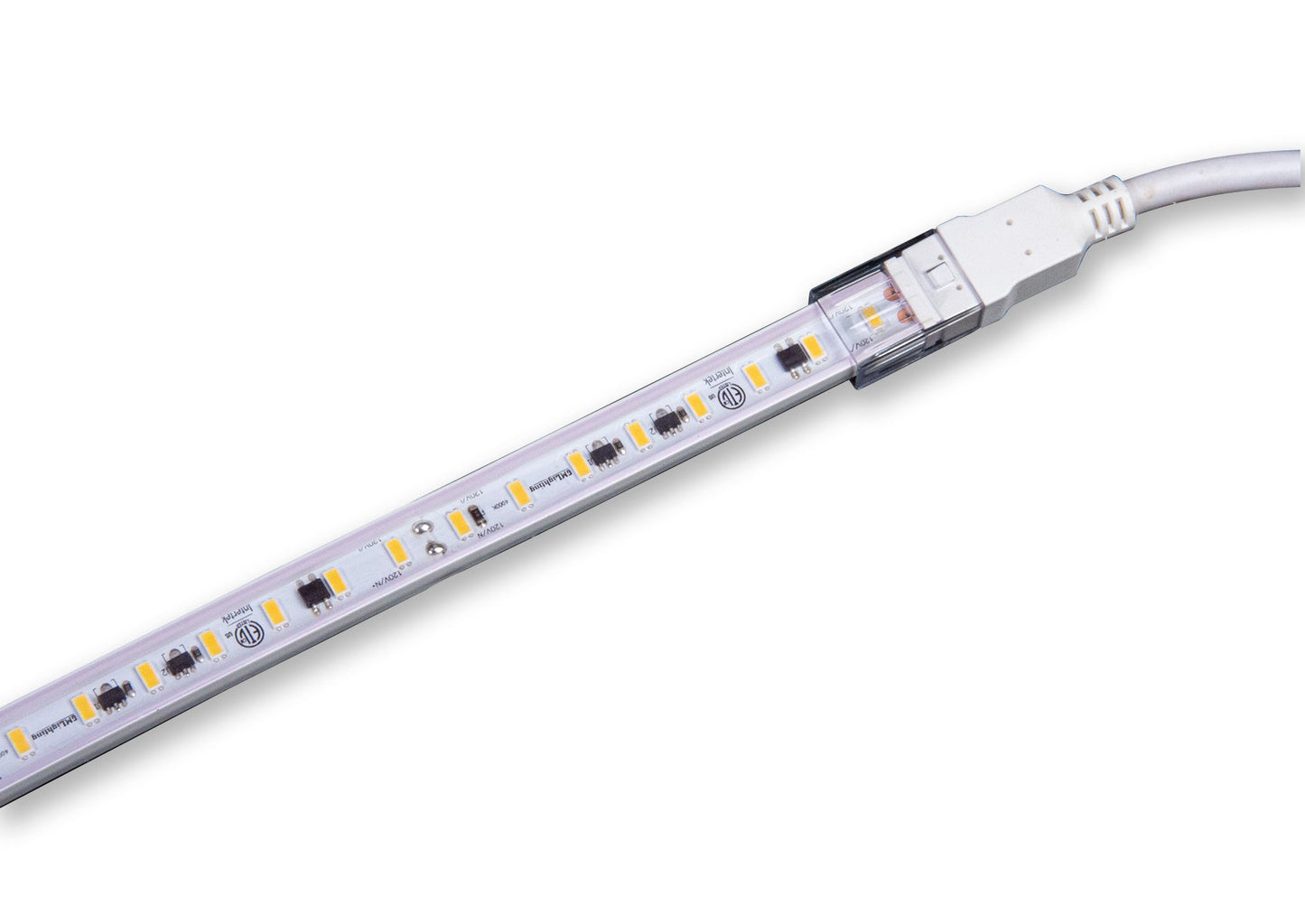

Vision120™ 120V Standard and High Output Wet Location LED Tape
Please contact us before placing an order for this item.
This Item is a custom setup. We need to configure everything before an order is placed.
It’s always been our vision to provide the simplest solution to linear LED lighting. Vision120 is a factory cut, to your specifications, wet location flexible LED tape that comes available in standard or high output, in a variety of colors and color temperatures. Perfect for architectural coves, indoor or exterior recesses, steps, banisters, light edging or other constructs where even, energy efficient LED illumination is specified.
- 120V operation (no power supply required)
- Wet location – IP65
- 90+ CRI
- Cord and plug or hardwire power connector
- Tape encased in water resistant clear poly flexible sheath
- Dimmable with ELV/Triac
- 2700K, 3000K or 4000K
- Amber, Blue, Green or Red colors available (standard output only)
- Standard output (specified in 4 inch increments)
- High output (specified in 4 inch increments)
- Standard output and colors maximum run: 164′
- High output maximum run: 150′
- Uses mounting clips, PVC channels or aluminum channels (frosted lens available)
- ETL
- 5 year warranty
NOTE: VISION120 is factory cut to your specification. Do not cut in field. All orders for multiple length runs must be accompanied by a layout form. Download a super high output layout form.
Spec Sheet
Vision120 Standard Spec Sheet
Vision120 High Output Spec Sheet
Installation Instructions
Info
Catalog No. | Output | Color Temp. / Color | Watts/Foot | Length |
---|---|---|---|---|
V120-SO-27-XX-X | Standard | 2700K | 2W | Custom to 164′ Max. |
V120-SO-30-XX-X | Standard | 3000K | 2W | Custom to 164′ Max. |
V120-SO-40-XX-X | Standard | 4000K | 2W | Custom to 164′ Max. |
V120-SO-RD-XX-X | Standard | Red | 2W | Custom to 164′ Max. |
V120-SO-GR-XX-X | Standard | Green | 2W | Custom to 164′ Max. |
V120-SO-BL-XX-X | Standard | Blue | 2W | Custom to 164′ Max. |
V120-SO-AM-XX-X | Standard | Amber | 2W | Custom to 164′ Max. |
V120-HO-27-XX-X | High | 2700K | 4W | Custom to 150′ Max. |
V120-HO-30-XX-X | High | 3000K | 4W | Custom to 150′ Max. |
V120-HO-40-XX-X | High | 4000K | 4W | Custom to 150′ Max |
Accessories
LUXcontrol CONTROLLERS
MODEL | DESCRIPTION |
---|---|
SHWC-V120 | Smart 2.4GHz WiFi Controller, 120V High Voltage, IP65, 1-Channel / 2-Wire |
GM-WPSC | Universal Wet Location 3-wire splice connector |
Catalog No. | Description |
---|---|
V120-PC-8 | 8′ Power connector – cord and plug |
V120-TTC-6 | 6″ Tape to tape flexible connector |
V120-TTC-12 | 12″ Tape to tape flexible connector |
V120-TTC-18 | 18″ Tape to tape flexible connector |
V120-TTC-24 | 24″ Tape to tape flexible connector |
V120-3M-VHB-15 | 15′ Long x 1/2″ wide double-sided mounting tape |
V120-CHL-4 | 4′ Aluminum mounting channel. Lens sold separately |
V120-CHL-4-LENS | Frosted lens for 4′ aluminum mounting channel |
V120-CHL-8 | 8′ Aluminum mounting channel. Lens sold separately |
V120-CHL-P-4 | 4′ PVC mounting channel (lens not available) |
V120-CHL-P-8 | 8′ PVC mounting channel (lens not available) |
V120-ECC | End cap covers (2) for aluminum channel (V120-CHL-4 / 8) with lens. White |
V120-MC | Bag of 10 mounting clips (use 1 per foot, minimum) |
V120-CHL-8-LENS | Frosted lens for 8′ aluminum mounting channel |
V120-90L | 90° left connector |
V120-90R | 90° right connector |
V120-PC-4 | 4′ power connector – cord and plug |
V120-PCHW-4 | 4′ Power connector – hardwire |
V120-PCHW-8 | 8′ Power connector – hardwire |
