GM Lighting LD-E-UNV LineDRIVE 12VDC/24VDC Electronic LED Non-Dimmable Power Supplies

GM Lighting LD-E-UNV LineDRIVE 12VDC/24VDC Electronic LED Non-Dimmable Power Supplies

$59.85
$59.85
Sale Sold out
Shipping calculated at checkout.
Wattage
Volt

LineDRIVE 12VDC/24VDC Electronic LED Non-Dimmable Power Supplies


LineDRIVE Series 12VDC / 24VDC Electronic LED Power Supplies are Class 2 rated and are designed to work with select LED fixtures that do not require dimming.

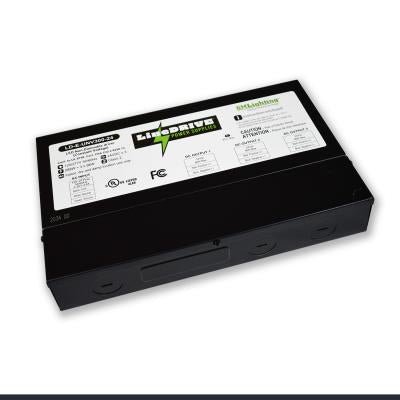

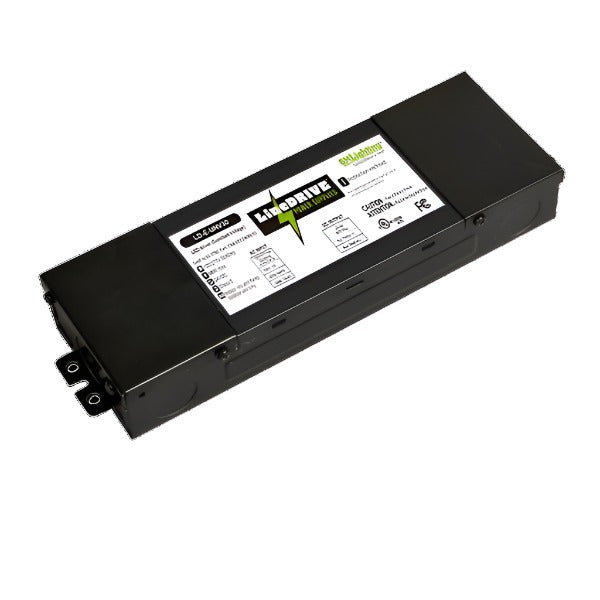

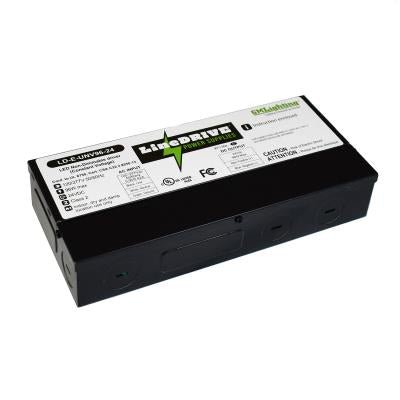

Encased in a low profile powder coated steel enclosure that includes 4 knock-outs to enable easy installation, these LineDRIVE power supplies are especially suitable for LTR-S RGBW tape.



  • 30W/60W drivers are dual 12/24V
  • 96W/192W/288W drivers are 24V
  • FCC compliant
  • 120V/277V ± 10%
  • 50/60 Hz. frequency
  • ± 5% voltage tolerance at full load
  • Over voltage protection
  • Short circuit protection
  • 5 year warranty
  • UL listed
     Spec Sheet
    Electronic Non-Dimmable SPEC SHEET
     Info
    Catalog No. Watts Amps Description Weight Dimensions
    LD-E-UNV30 30W 12V/2.5A
    24V/1.25A    		 12VDC / 24VDC - 120V or 277 50/60Hz - Class 2 - Auto Reset 1.0 lbs. 6.10"L x 3.35"W x 1.33"H
    LD-E-UNV60 60W 12V/5A
    24V/2.5A    		 12VDC / 24VDC - 120V or 277V/60Hz - Class 2 - Auto Reset 2.5 lbs. 8.25"L x 4.10"W x 1.56"H
    LD-E-UNV96-24 96W 4A 24VDC - 120V or 277V/60Hz - 50/60Hz - Class 2 - Auto Reset 2.5 lbs. 8.25"L x 4.10"W x 1.56"H

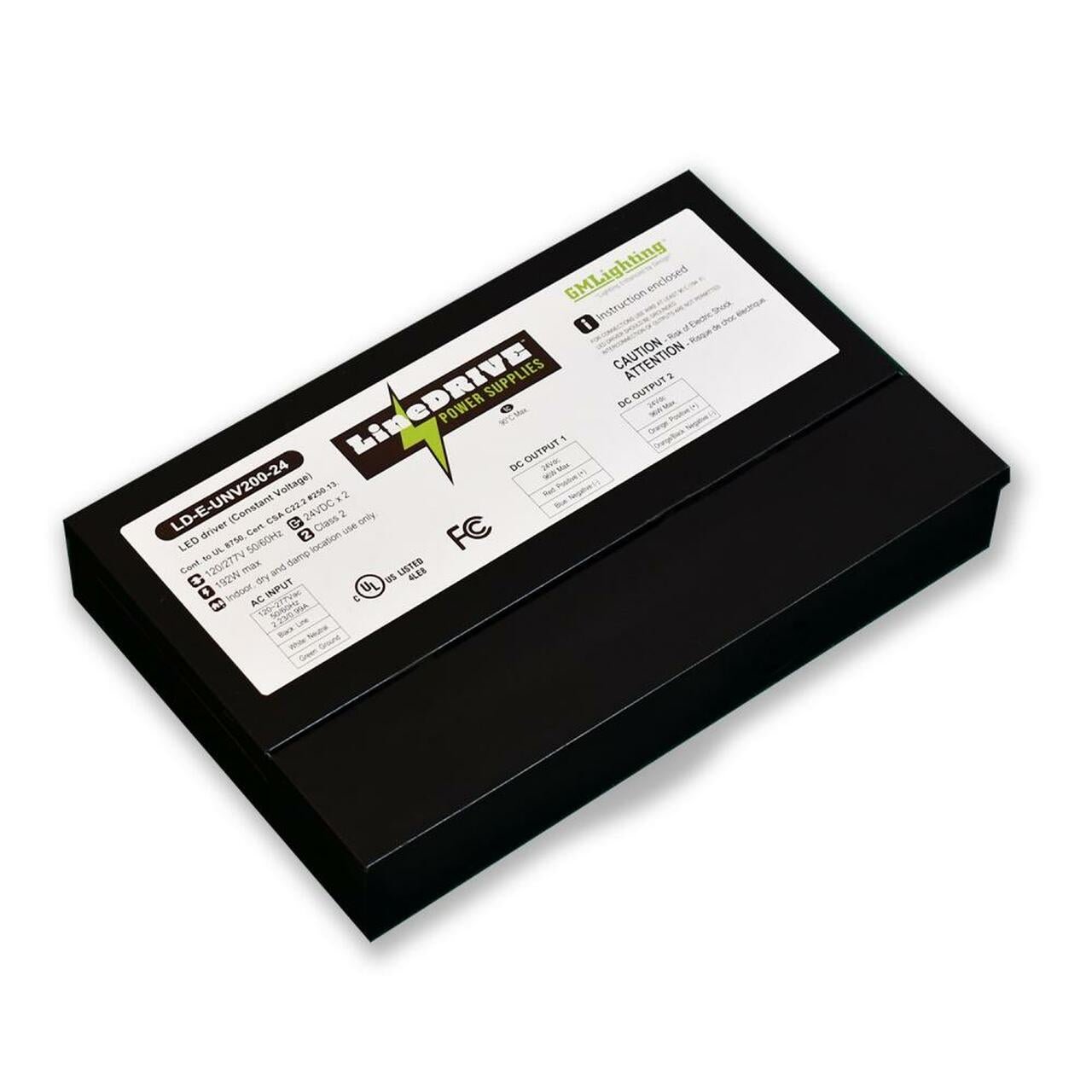

    LD-E-UNV200-24 192W 4A per channel (2) 24VDC - 120V or 277V/60Hz - 50/60Hz - Class 2 - Auto Reset - 2 x 96W per channel 4.7 lbs. 9.50"L x 6.35"W x 1.56"H
    LD-E-UNV300-24 288W 4A per channel (3) 24VDC - 120V or 277V/60Hz - 50/60Hz - Class 2 - Auto Reset - 3 x 96W per channel 4.7 lbs. 9.50"L x 6.35"W x 1.56"H
