• GML-LD-ED010-UNV60-12GM Lighting LD-ED010-UNV 12VDC / 24VDC Electronic 0-10V Dimmable LED Power Supplies
1 2

GM Lighting

GM Lighting LD-ED010-UNV 12VDC / 24VDC Electronic 0-10V Dimmable LED Power Supplies

GM Lighting LD-ED010-UNV 12VDC / 24VDC Electronic 0-10V Dimmable LED Power Supplies

$270.00
$270.00
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

LineDRIVE 12VDC / 24VDC Electronic 0-10V Dimmable LED Power Supplies



GM Lighting's LineDRIVE 0-10V dimmable 60W and 96W LED driver is a compact and light-weight powerhouse that features high efficiency performance which reduces total power consumption.



  • 120V/277V input
  • Soft start feature
  • Constant voltage output - 0-10V dimming (switch by others)
  • Overload / short circuit / over-voltage / thermal protection
  • High efficiency performance for lower total power consumption
  • Compact size and light weight
  • Indoor only
  • Recommended load: min. 40% to max. 85% for optimal performance
  • 5 year warranty
Spec Sheets

Spec Sheet

60W Installation Instructions

90W Installation Instructions

Info
    Catalog No. Watts Amps Description

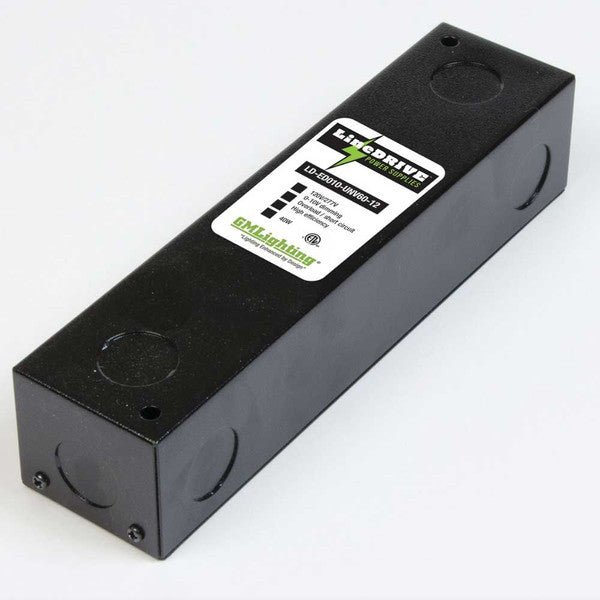

    LD-ED010-UNV60-12 60W 5 12VDC - 0-10V Control - Dimmable - Class 2 - 120VAC/277VAC

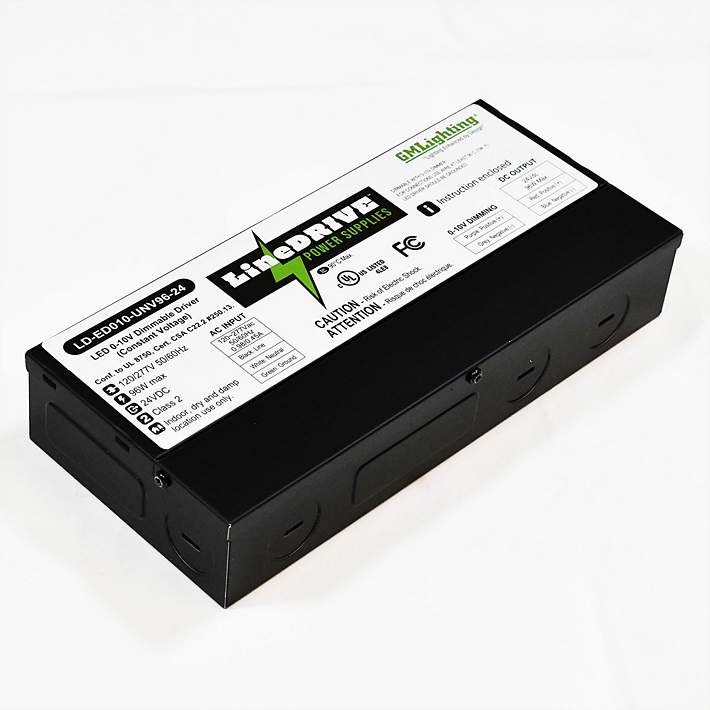

    LD-ED010-UNV96-24 96W 4 24VDC - 0-10V Control - Dimmable - Class 2 - 120/277VAC input
    Dimensions
    60W 96W
    Length (In.) 7.93" 8.25"
    Width (In.) 3.35" 4.10"
    Height (In.) 1.32" 1.56"
    Weight (Lbs.) 2.90 lbs 3.15 lbs


    View full details
