LineDRIVE 12VDC / 24VDC Magnetic LED Dimmable Power Supplies



LineDRIVE Series 12VDC / 24VDC Magnetic LED Power Supplies are Class 2 rated and designed to operate with standard MLV dimmers. For vertical mounting only.

Encased in a low profile powder coated steel enclosure that includes 2 knock-outs to enable easy installation, these LineDRIVE power supplies are the perfect choice GM Lighting products.

See website and spec sheets for dimmer compatibility.



  • 30W/60W drivers are dual 12/24V
  • 150W driver is 12V
  • 96W/192W/288W drivers are 24V
  • Universal Input and Output
  • 120V/277V dual input
  • 12V/24V output
  • Dimmable (MLV)
  • Dims down to 5%
  • Steel case
  • NEMA 3R for outdoor use
  • Auto-reset protection for short circuits and over voltage
  • 5 year warranty
  • ETL for indoor and outdoor use
 Spec Sheet
MAGNETIC SPEC SHEET
 Info
Catalog No. Watts Volt
 Description Weight Dimensions

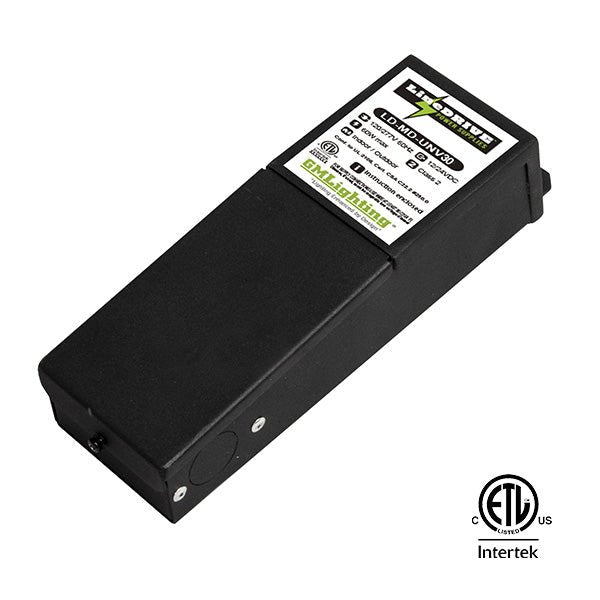

LD-MD-UNV30 30W 12/24V (Dual) 12V / 24V - 120V or 277V/60Hz - Class 2 - Auto Reset 2.5 lbs. 8.27"L x 2.5"W x 1.95"H

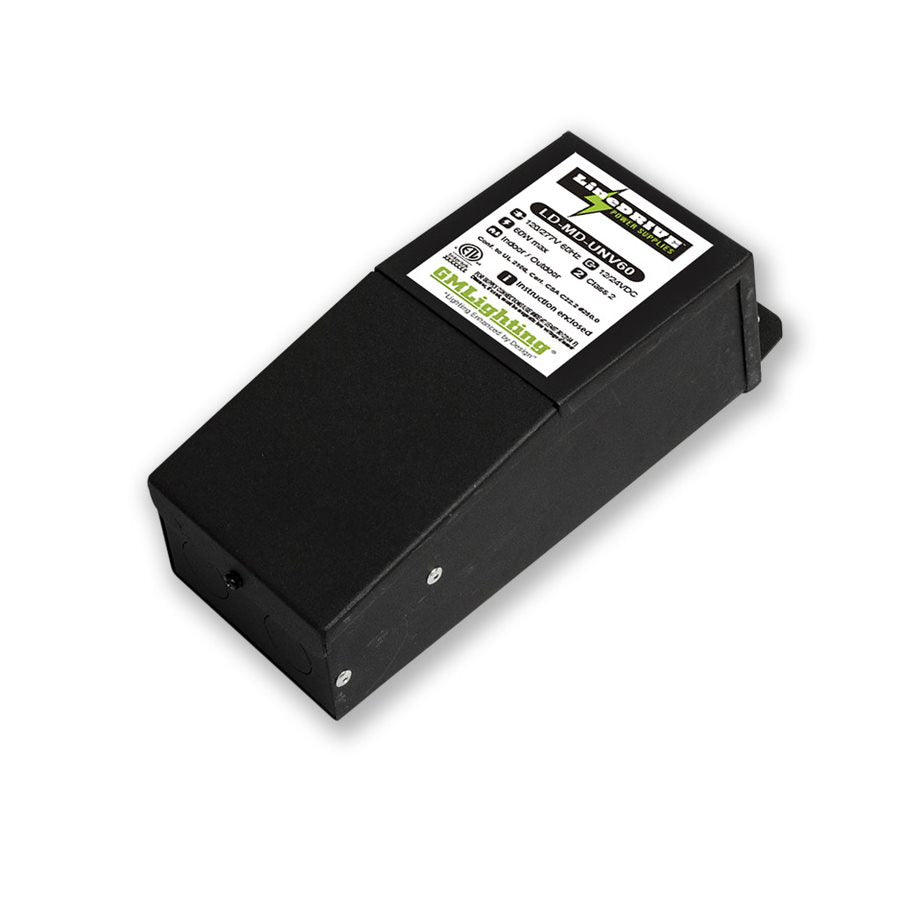

LD-MD-UNV60 60W 12/24V (Dual) 12V / 24V - 120V or 277V/60Hz - Class 2 - Auto Reset 4.5 lbs. 8.86"L x 3.31"W x 2.89"H
LD-MD-UNV96-24 96W 24V
 24V - 120V or 277V/60Hz - Class 2 - Auto Reset 5.1 lbs. 8.86"L x 3.31"W x 2.89"H
LD-MD-UNV150-12 150W 12V
 12V - 120V or 277V/60Hz - Class 2 - Auto Reset - 3 x 50W per channel 9.0 lbs. 11.02"L x 4.88"W x 3.62"H
LD-MD-UNV200-24 192W 24V 24V - 120V or 277V/60Hz - Class 2 - Auto Reset - 2 x 96W per channel 10.0 lbs. 11.02"L x 4.88"W x 3.62"H
LD-MD-UNV300-24 288W 24V 24V - 120V or 277V/60Hz - Class 2 - Auto Reset - 3 x 96W per channel 10.5 lbs. 11.02"L x 4.88"W x 3.62"H
