GM Lighting

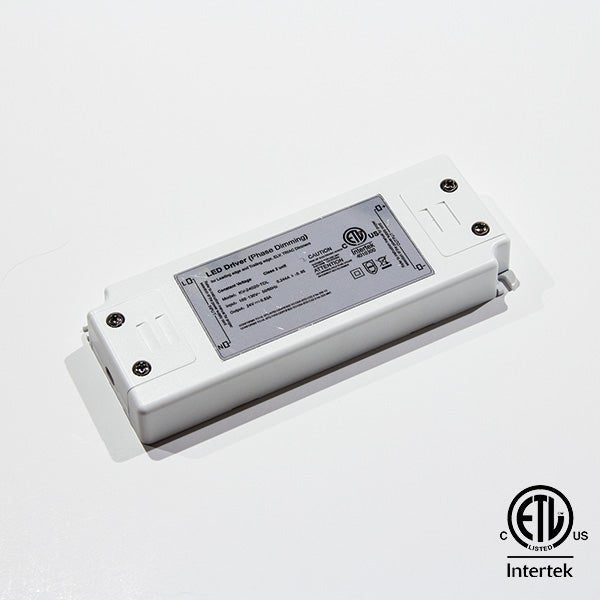

GM Lighting LTHE-20-DIM 20W 12VDC/24VDC Compact LED Electronic Dimmable Class 2
GM Lighting LTHE-20-DIM 20W 12VDC/24VDC Compact LED Electronic Dimmable Class 2
Regular price
$64.80
Regular price
Sale price
$64.80
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
12VDC/24VDC Compact LED Electronic Dimmable Class 2
Two new additions to our line of electronic dimmable Class 2 power supplies are these two hardwire 12VDC and 24VDC LED dimming power supplies that works with conventional TRIAC wall dimmers.
- 120V
- Compact design allows for under cabinet mounting
- Dimmable with standard TRIAC dimmers
- Class 2
- Auto reset
- ETL listed
NOTE: Not for use with GMR4, GMR6 or SDP pucks
Spec Sheet
| Catalog No. | Watts | Amps | Description | Weight | Dimensions |
|---|---|---|---|---|---|
| LTHE-20-DIM-12 | 20W | 1.67 | 12VDC - High Efficiency (>84%) - 120V/60Hz - Class 2 | 0.41 lbs. | 5-3/4"L x 2-3/8"W x 13/16"H |
| LTHE-20-DIM-24 | 20W | 0.83 | 24VDC - High Efficiency (>84%) - 120V/60Hz - Class 2 | 0.41 lbs. | 5-3/4"L x 2-3/8"W x 13/16"H |
