GM Lighting

GM Lighting NV24S-3W NeoVISION24™ SideFlex Neon Tape 16FT/32FT

GM Lighting NV24S-3W NeoVISION24™ SideFlex Neon Tape 16FT/32FT

$450.00
$450.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

NeoVISION24™ SideFlex Neon Tape

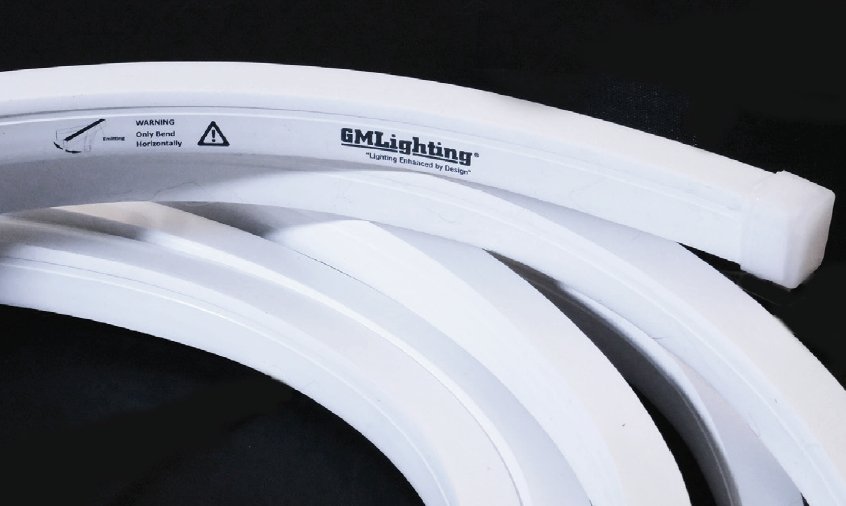

A 24VDC flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.

  • 24VDC operation
  • 3.0 watts per foot
  • Wet location - IP65
  • Multiple power feed options
  • Tape encased in UV stable silicone (UV protected)
  • Dimmable
  • Wireless control with LUXcontrol App and controller

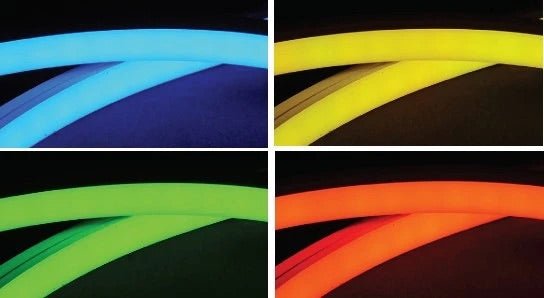

  • 3000K or 4000K / Amber, Blue, Green or Red
  • 120° viewing angle
  • Maximum run: 32’-8”
  • Field cuttable and joinable in 2-inch increments while retaining IP65
  • No tools required for capping and joining
  • Mounting clips included (recommend use 1 per foot)
Spec Sheets

NeoVISION24™ SideFlex SPEC SHEET


Info
Catalog No. Length Lumens per Foot CRI Color Temp. Max. Run
NV24S-3W-30K-16 16’-4” 128 90+ 3000K 32’-8”
NV24S-3W-30K-32  32’-8” 128  90+  3000K  32’-8”
NV24S-3W-40K-16  16’-4” 128  90+  4000K  32’-8”
NV24S-3W-40K-32  32’-8” 128  90+  4000K  32’-8”
NV24S-3W-AM-16  16’-4” N/A  90+  AMBER  32’-8”
NV24S-3W-AM-32  32’-8” N/A  90+  AMBER  32’-8”
NV24S-3W-BL-16  16’-4” N/A  90+  BLUE  32’-8”
NV24S-3W-BL-32  32’-8” N/A  90+  BLUE  32’-8”
NV24S-3W-GR-16  16’-4” N/A  90+  GREEN  32’-8”
NV24S-3W-GR-32  32’-8” N/A  90+  GREEN  32’-8”
NV24S-3W-RD-16  16’-4” N/A  90+  RED  32’-8”
NV24S-3W-RD-32  32’-8” N/A  90+  RED  32’-8”

Kelvin temperature (color) ±100K.  Every reel includes (1) NV24S-PF-EF (tape to power feed with 48” of lead.). 16’ reel includes (16) NV24S-MC-A mounting clips and screws. 32’ reel comes with (32) NV24S-MC-A mounting clips and screws. Operating temp.: -4° - 130°F.



Accessories

LUXcontrol CONTROLLERS

MODEL DESCRIPTION
SHWC Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire
SHWC-RGBW-RPT Universal Smart Power Repeater


Catalog No. Description
NV24T-PF-EF8 Tape to power flexible end feed - 8 ft. length
NV24T-PF-BF8 Tape to power flexible bottom feed - 8 ft. length
NV24T-SP Tape to tape splice connector
NV24T-CHL-A4 Aluminum channel - 4 ft. length
NV24T-CHL-A8 Aluminum channel - 8 ft. length
NV24T-MC-A Aluminum mounting clips (set of 20)
NV24T-TTC6 Tape to tape 6” flexible connector
NV24T-TTC12 Tape to tape 12” flexible connector
NV24T-TTC24 Tape to tape 24” flexible connector
NV24T-FLEX-CHL Flexible mounting channel - 39.5”
NV24-CT Tape cutting tool
NV24T-EC End cap
