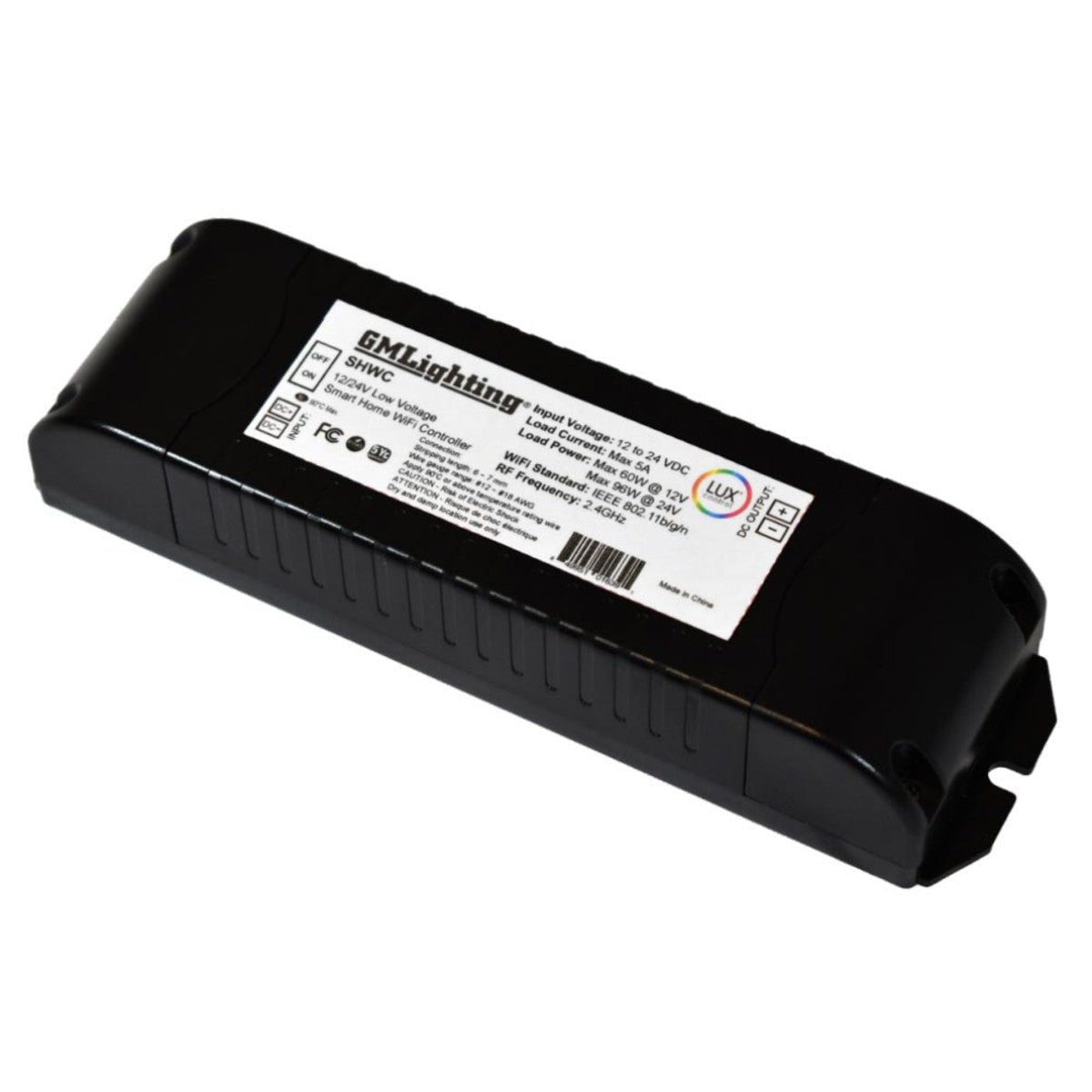

LUXcontrol™ SMART STANDARD CONTROLLER (12V/24V)
Smart 2.4 WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire

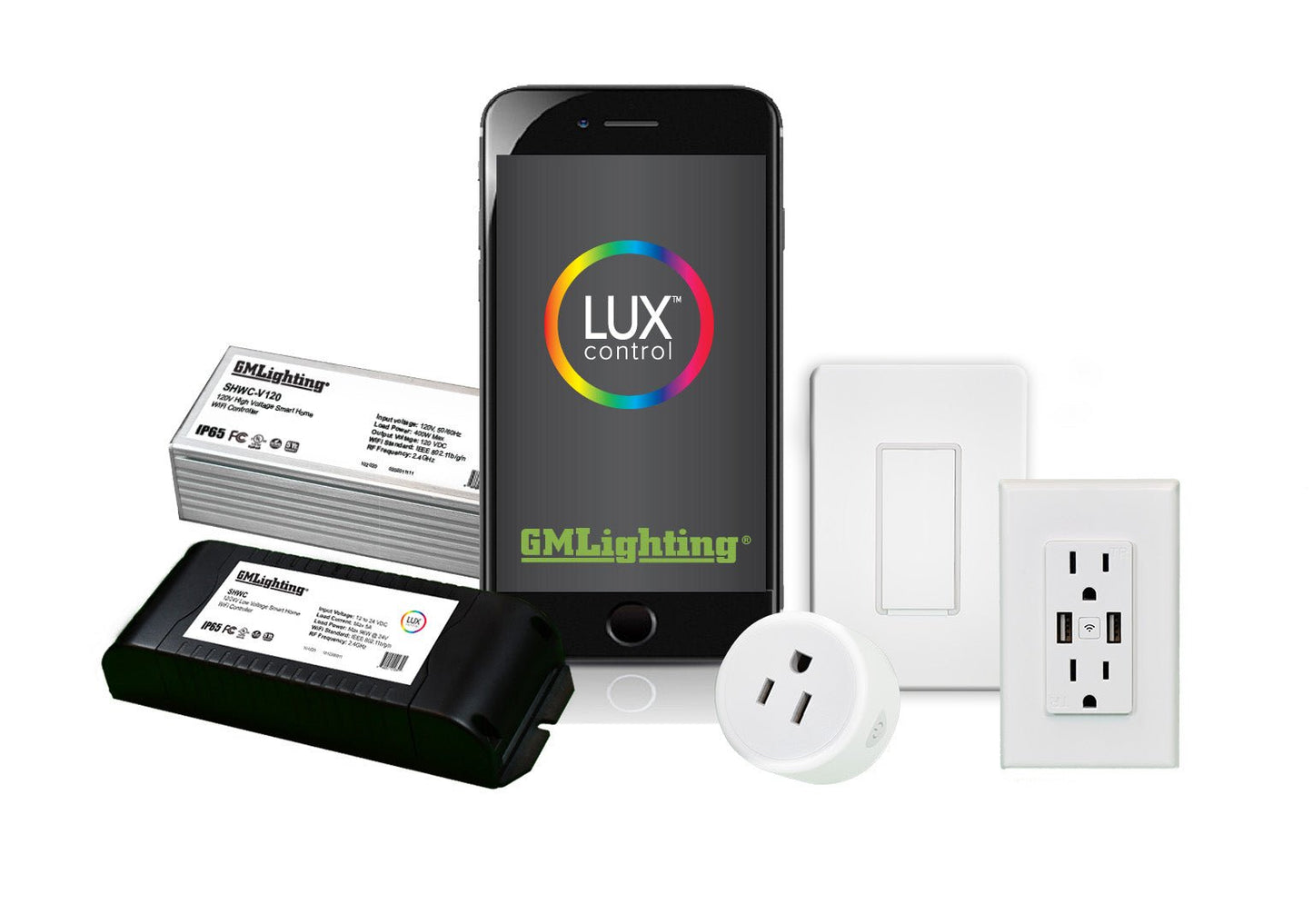

Our 12VDC and 24VDC low voltage controllers provide easy and reliable control of your tape light via GM’s LUXcontrol™ App. Connect your low voltage single color luminaires to control dimming, set schedules, turn the lights ON and OFF and preset timers and scenes from the convenience of your smartphone or tablet.
- 12VDC or 24VDC input
- 2.4GHz WiFi required
- Single color control
- Dimming
- Compact size and light weight
- Recommended for indoor use or requires a NEMA box for outdoor use (by others)
- Android™ and iOS® compatible
- Works with Google Assistant™ and Amazon Alexa™
- Use with LD-ED (dimmable) and LD-E (non-dimmable) LineDRIVE™ drivers
- 3-year warranty
Spec Sheet
SHWC Spec Sheet
Installation Instructions
LUXcontrol Catalog
Info
| Model | Description |
|---|---|
| SHWC | Smart 2.4 WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire |
Accessories
Repeater
| Catalog No. | Description |
|---|---|
| SHWC-RGBW-RPT | Universal Smart Power Repeater |
Power Supply
| Catalog No. | Watts | Amps | Description |
|---|---|---|---|
| LD-E-UNV30 | 30W | 12V/2.5A 24V/1.25A |
12VDC / 24VDC - 120V or 277 50/60Hz - Class 2 - Auto Reset |
| LD-E-UNV60 | 60W | 12V/5A 24V/2.5A |
12VDC / 24VDC - 120V or 277V/60Hz - Class 2 - Auto Reset |
| LD-E-UNV96-24 | 96W | 4A | 24VDC - 120V or 277V/60Hz - 50/60Hz - Class 2 - Auto Reset |
| LD-E-UNV200-24 | 192W | 4A per channel (2) | 24VDC - 120V or 277V/60Hz - 50/60Hz - Class 2 - Auto Reset - 2 x 96W per channel |
| LD-E-UNV300-24 | 288W | 4A per channel (3) | 24VDC - 120V or 277V/60Hz - 50/60Hz - Class 2 - Auto Reset - 3 x 96W per channel |
