• GML-SWD-40W-12VDC-DIMGM Lighting SWD-12VDC-DIM SwitchLD™ 12VDC / 24VDC LED Wall Dimmer / Power Supply
1 1

GM Lighting

GM Lighting SWD-12VDC-DIM SwitchLD™ 12VDC / 24VDC LED Wall Dimmer / Power Supply

GM Lighting SWD-12VDC-DIM SwitchLD™ 12VDC / 24VDC LED Wall Dimmer / Power Supply

$171.45
$171.45
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

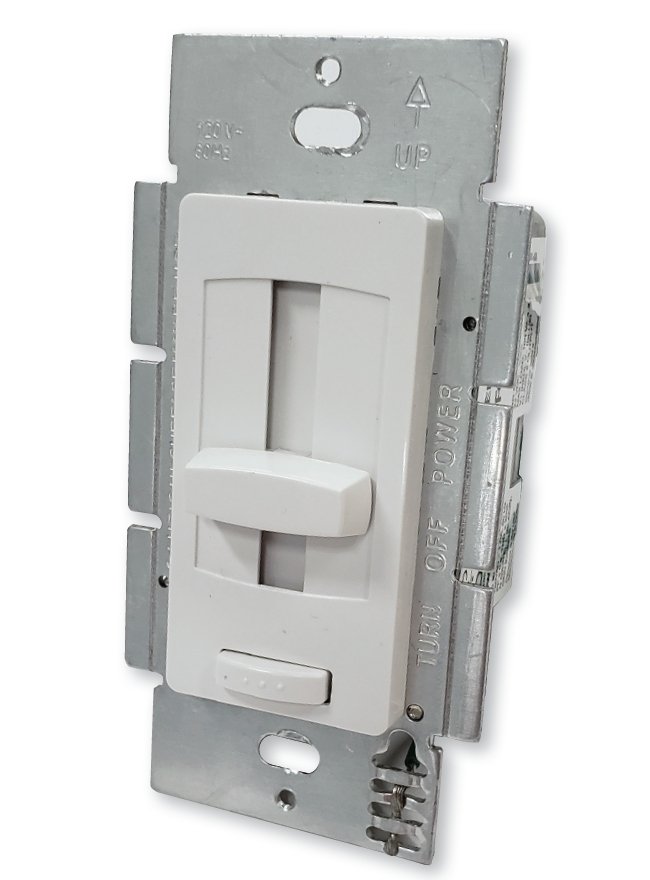

SwitchLD™ 12VDC / 24VDC LED Wall Dimmer / Power Supply



SwitchLD is a driver and dimmer in one reliable wall switch. SwitchLD drives and dims either 12VDC or 24VDC LED tape and lightbars from your 120VAC current. Available with three interchangeable face plate finishes, SwitchLD fits standard electrical boxes.



  • All in one power supply and wall dimmer
  • Eliminates compatibility issues found in other dimmers
  • Fits in standard recessed electrical box
  • 100% -10%
  • Single pole
  • Controls constant voltage light fixtures
  • Driver integrated within dimmer switch
  • Eliminates the compatibility issues between driver and dimmer switch
  • Preset dimmer with on/off switch
  • Optional face plates available - see below
  • Input Voltage: 120VAC (108 - 132VAC), 50/60Hz (47-63Hz)
  • Power Factor: >0.9 @ 120VAC 60Hz max. load
  • UL listed and FCC approved
  • 5 year warranty
Spec Sheet
SWITCHLD SPEC SHEET
Info

Catalog No. Voltage In Voltage Out Watts Face Plate Finishes
SWD-40W-12VDC-DIM 120VAC 12VDC 40W Gloss White
SWD-60W-12VDC-DIM 120VAC 12VDC 60W Gloss White
SWD-60W-24VDC-DIM 120VAC 24VDC 60W Gloss White
SWD-100W-24VDC-DIM 120VAC 24VDC 100W Gloss White

Accessories

Catalog No. Description
SWD-ALM Glossy Light Almond Trim and Face Plate
SWD-BRN Glossy Dark Brown Trim and Face Plate
SWD-BK Glossy Black Trim and Face Plate
SWD-WH Glossy White Trim Plate (only)
