Goodlite

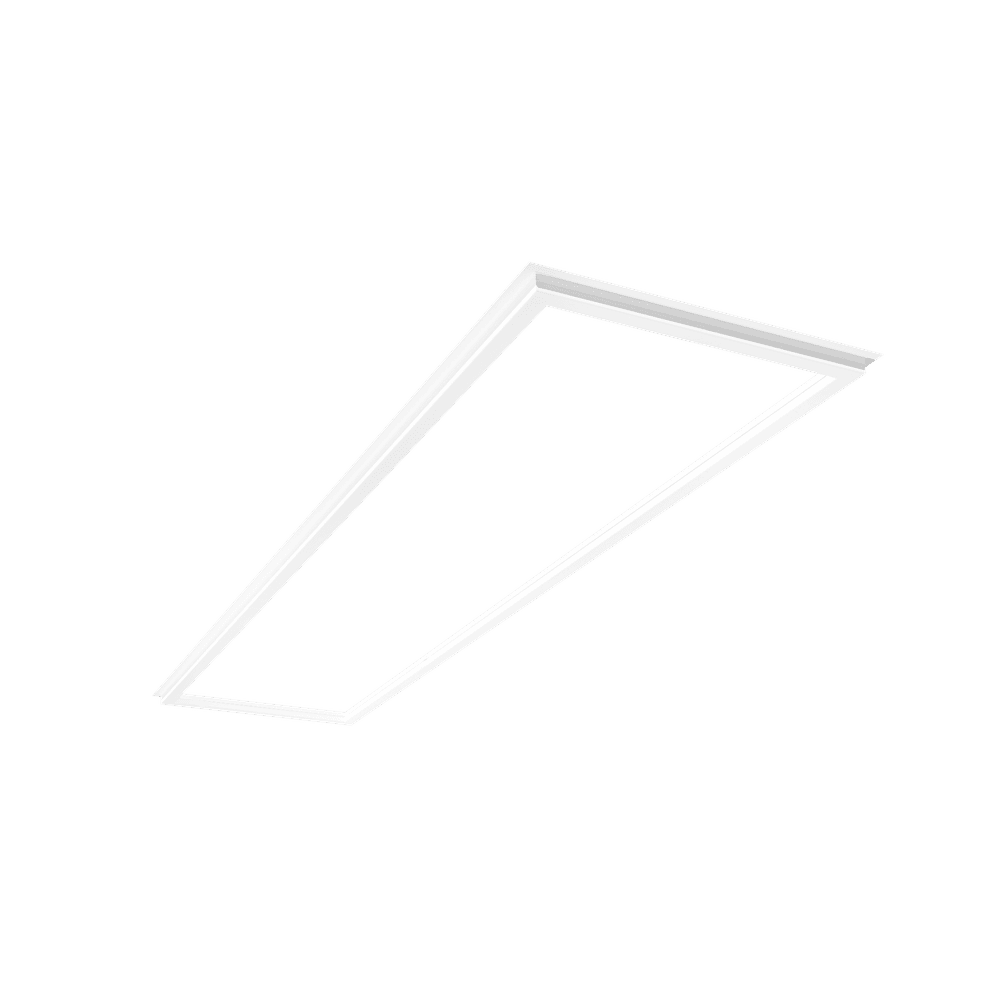

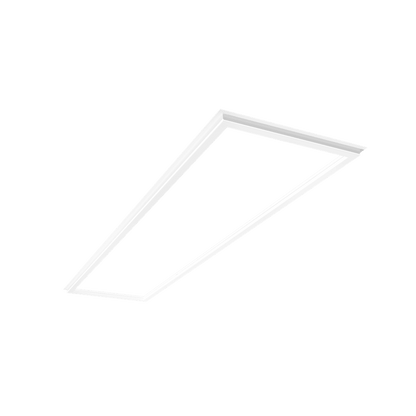

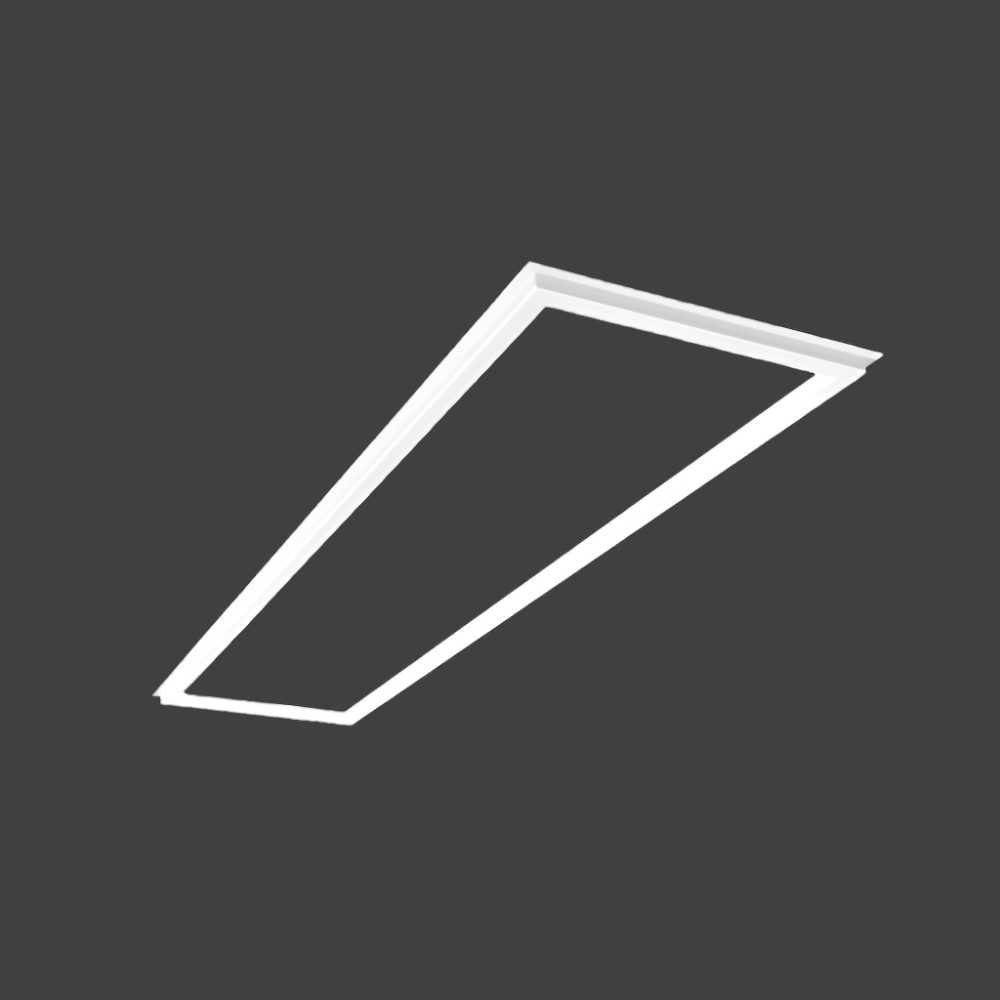

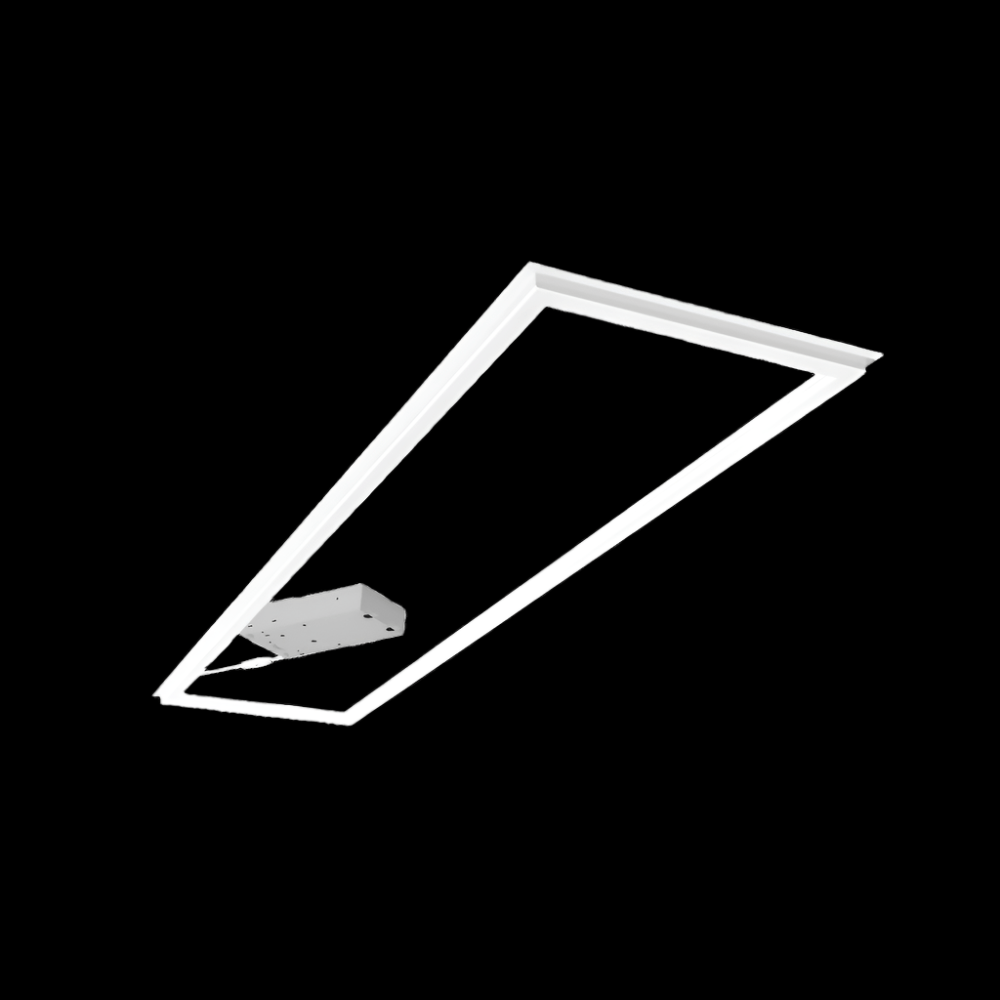

Goodlite Equator G-12120 40W LED 1X4 Frame Panel Selectable CCT/Wattage

Goodlite Equator G-12120 40W LED 1X4 Frame Panel Selectable CCT/Wattage

$83.99
$83.99
Sale Sold out
Shipping calculated at checkout.
Size
Wattage

1X4 Frame Panel Selectable CCT/Wattage

The Goodlite Equator G-12120 40W LED 1X4 Frame Panel Selectable CCT/Wattage is a versatile, high-performing, low-profile panel perfect for commercial and residential drop ceilings. With the ability to select wattage and color temperature, these panels provide unrivaled adaptability for all your lighting needs.

  • Wattage Selectable: 2x4: 20W / 30W / 40W (up to 5200 lumens)
  • 5CCT Switchable: 3000K / 3500K / 4100K / 5000K / 6500K
  • 0-10V Dimmable
  • Low Profile: Ultra-slim 1.2mm height
  • 120–277V Universal Input
  • CRI 80 for balanced color rendering
  • Optional Emergency Backup (EM models)


Dimensions

Length (in.) 11.95”
Width (in.) 47.75”
Height (in.) 0.54"
Spec Sheets

Spec Sheet

Info


Wattage 20/30/40W
Lumen 2600/3900/5200
Color Temp. 3000K-6500K
Voltage 120-277V
CRI 80>
L70 Lifespan 50,000 Hours
Finish  Formulated for high durability and long-lasting color
Lens Frosted
Mounting Surface Mount
Housing Plastic frame & galvanized steel back housing

Additional Info
Model Number G-12120
Safety Listings ETL, DLC Listed, TITLE 24
Location Rating Wet Location
Warranty 5 Years

View full details
