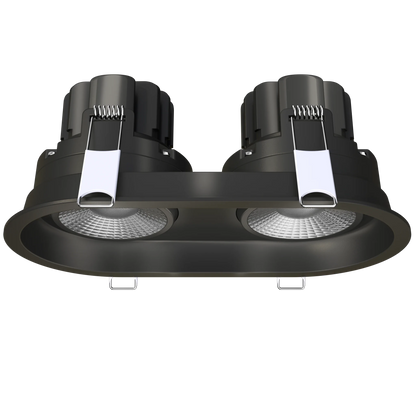

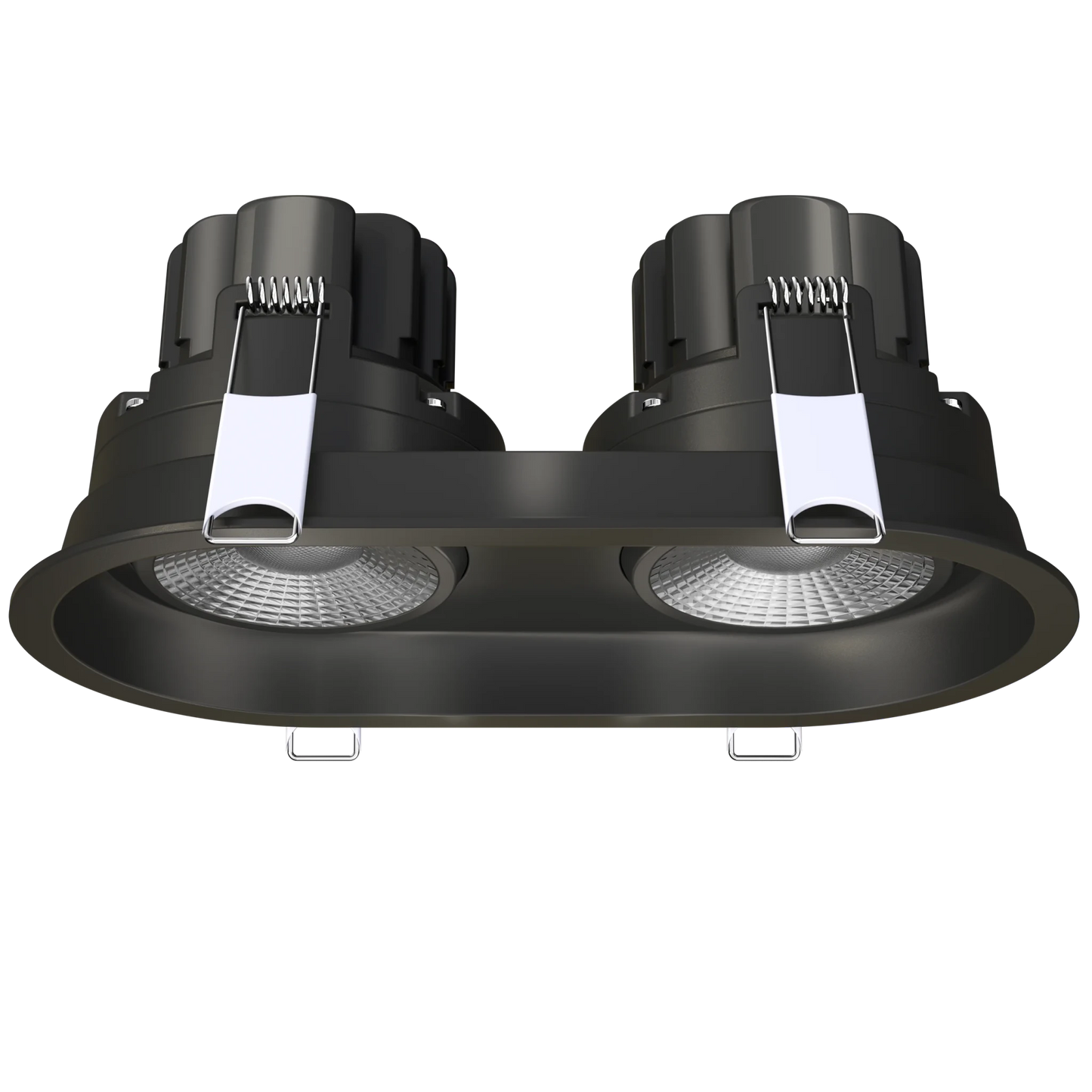

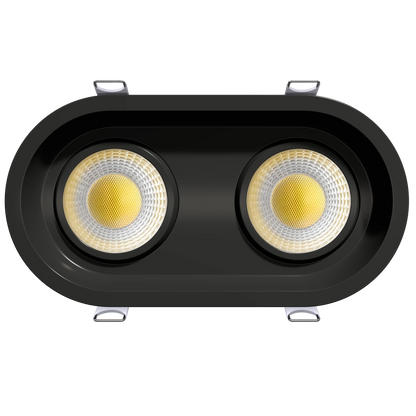

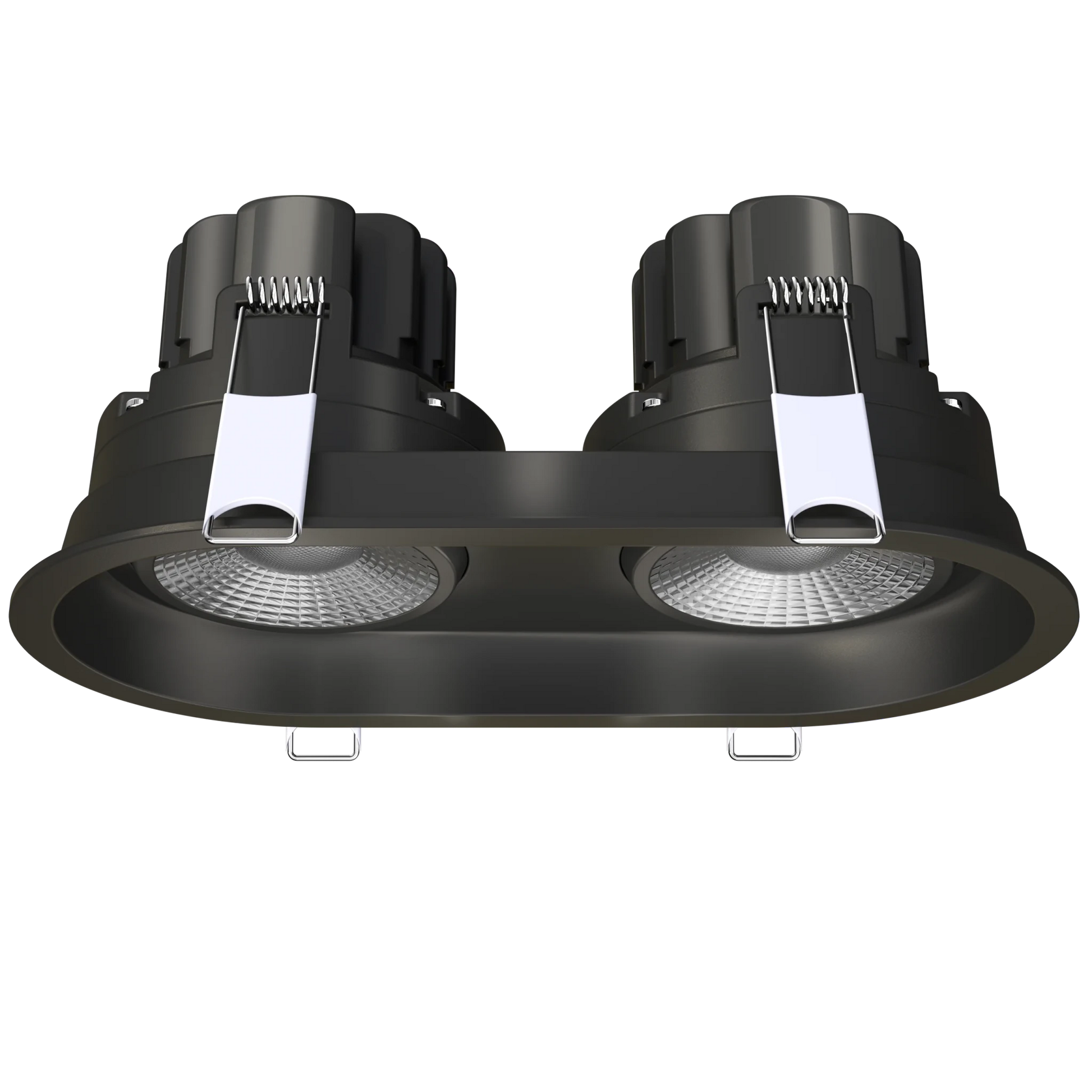

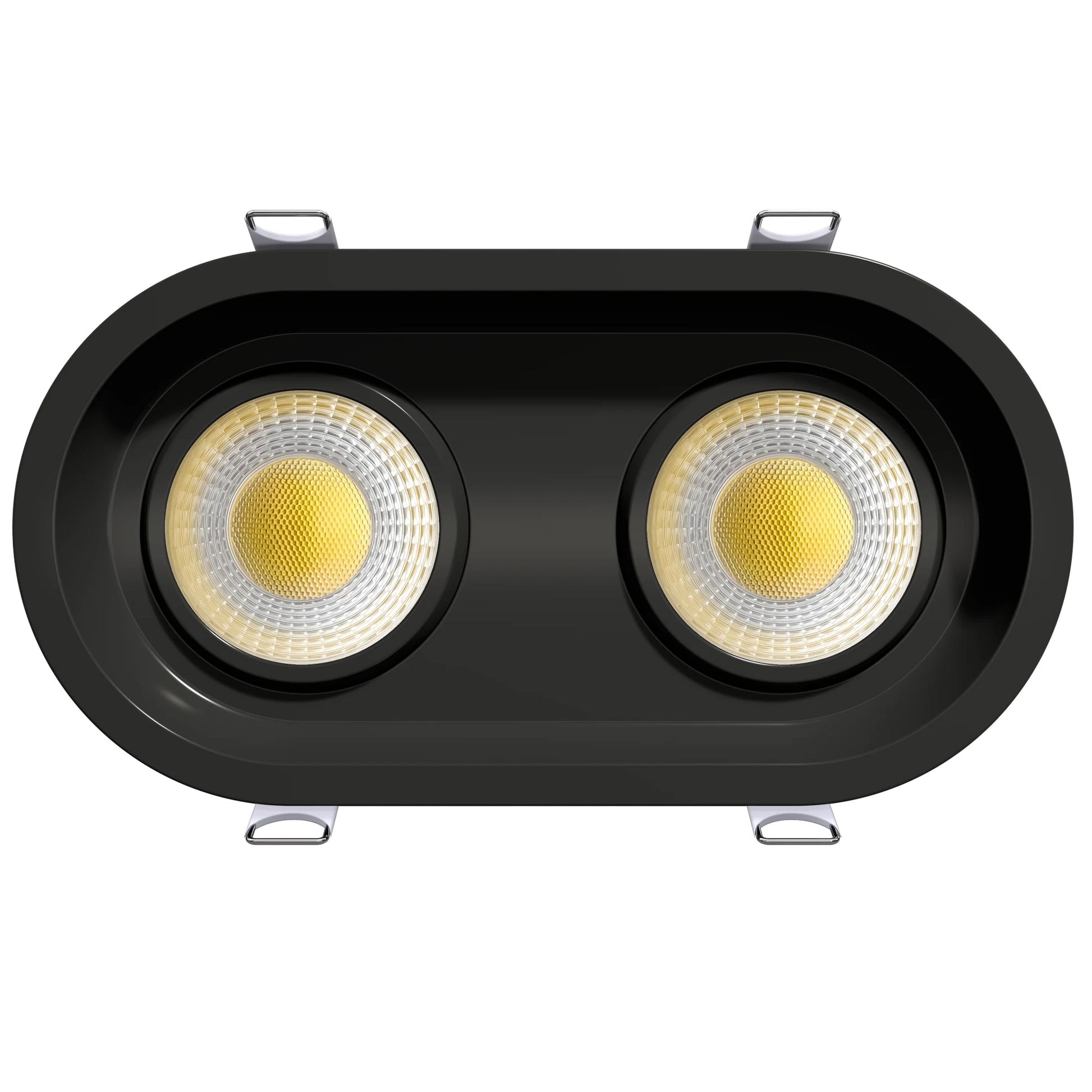

3.5" 28W Narrow Trim Gimbal Selectable CCT

The Ellipse 3.5” Regressed Two Head LED Downlight from Goodlite Products delivers high performance in a compact, modern design. Featuring a deep regressed lens for reduced glare and enhanced visual comfort, this 3.5 inch fixture provides a clean architectural look ideal for residential and commercial applications.

With selectable 5CCT color temperatures (2700K, 3000K, 3500K, 4100K, 5000K), you can adjust the lighting tone on site to match any environment. The fixture produces 2700 lumens at just 28 watts and operates on 120–277V, making it suitable for a wide range of projects.

This IC-rated and airtight downlight is safe for direct contact with insulation and meets Title 24 compliance requirements. It offers smooth dimming via Triac or 0-10V systems for flexible control options.

• 3.5” regressed LED downlight
• 5 selectable color temperatures (2700K–5000K)
• 28W / 2700 lumens
• 120–277V universal voltage
• 60° standard beam angle
• CRI 90+ for accurate color rendering
• IC Rated & Airtight
• Title 24 compliant
• Triac or 0-10V dimmable
• Cutout: 3.70" X 7.48" Oval | OD: 4.13" X 7.87" | Height: 3.25”

Optional lens options available in 40°, and 60° beam spreads.

Ideal for hallways, kitchens, soffits, retail displays, and general downlighting where a low-glare architectural finish is desired.
