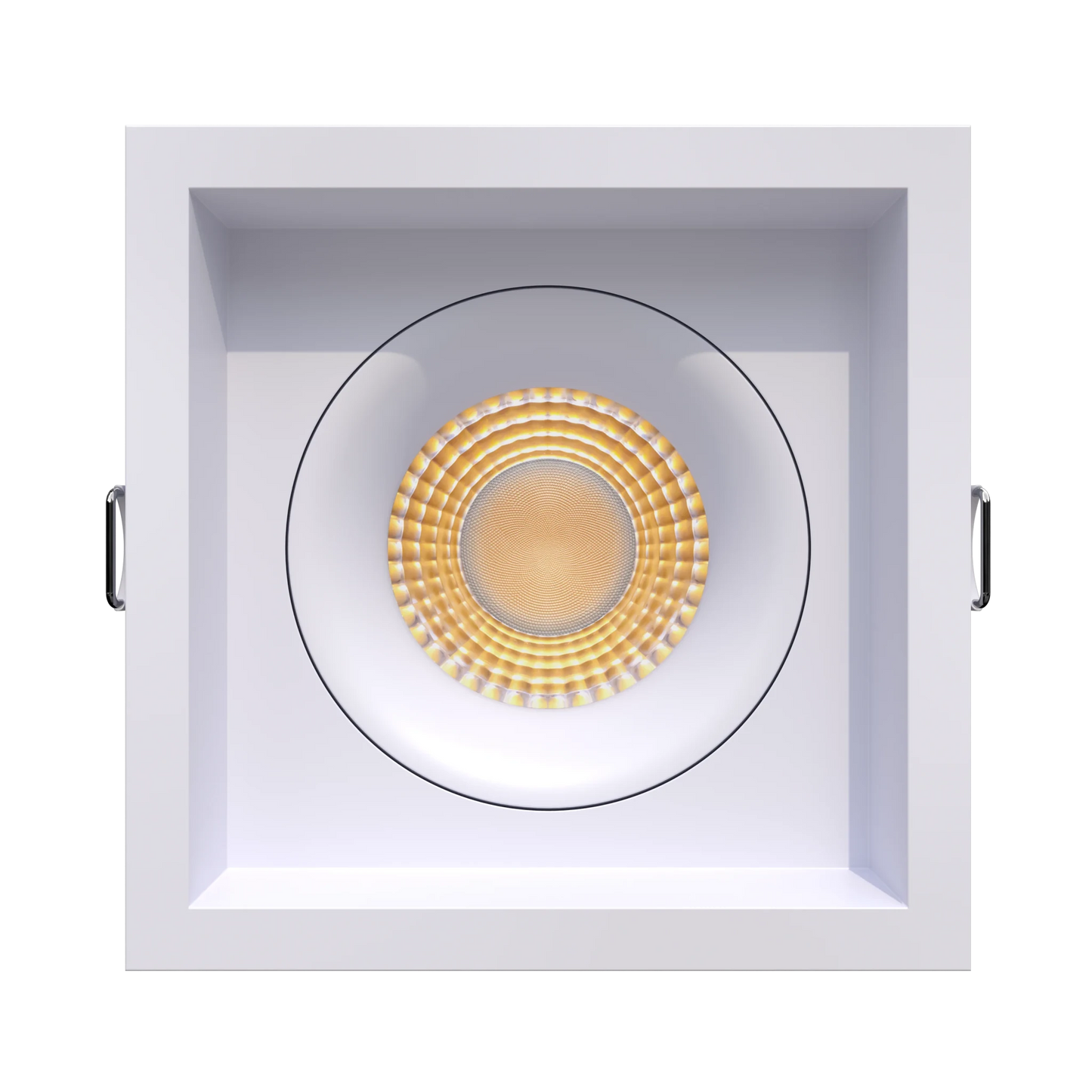

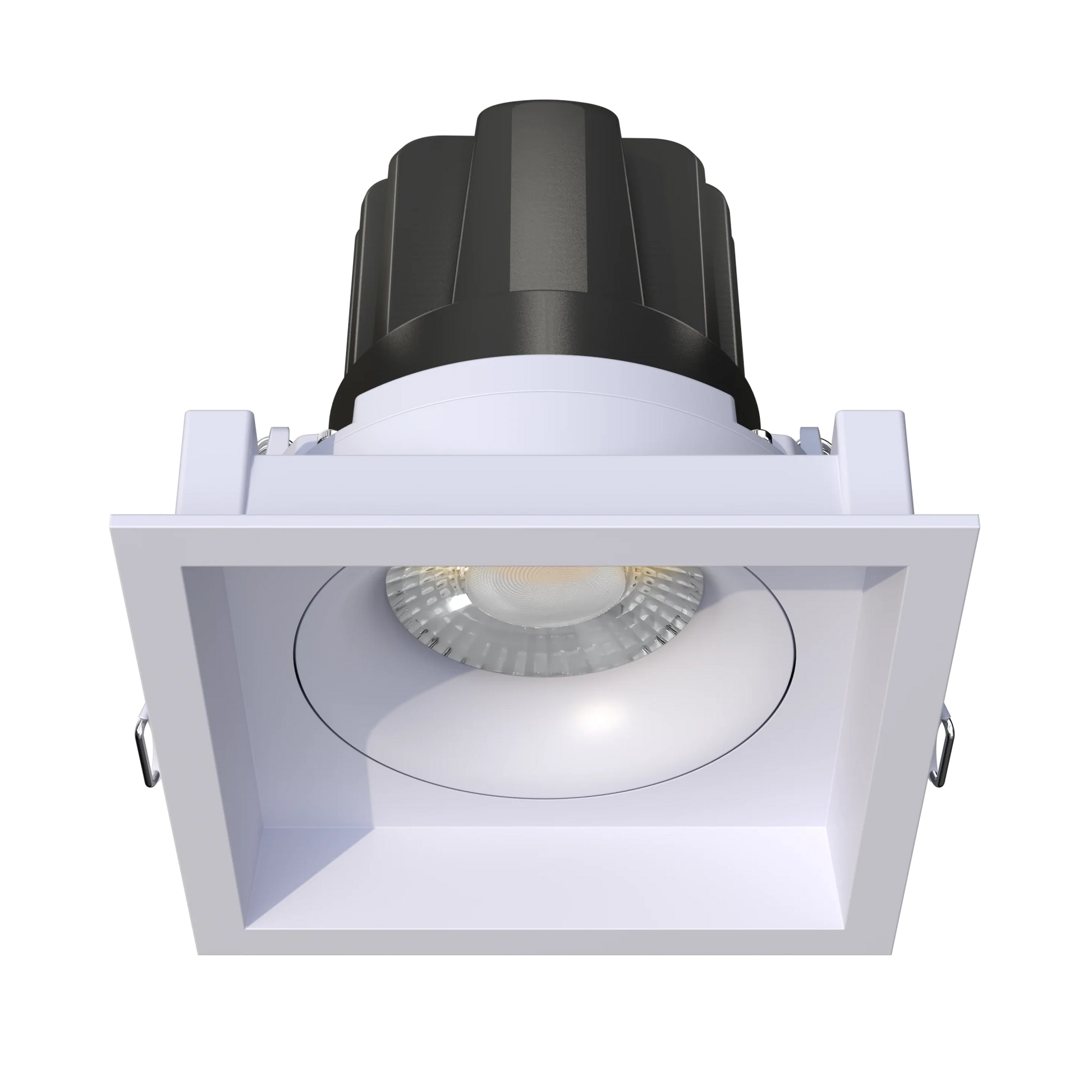

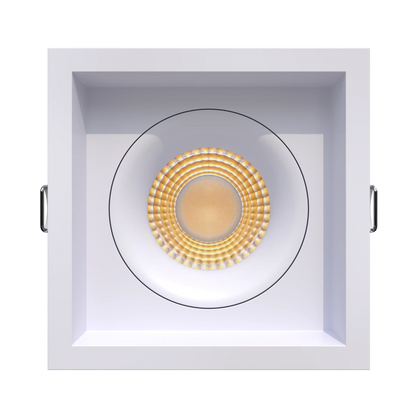

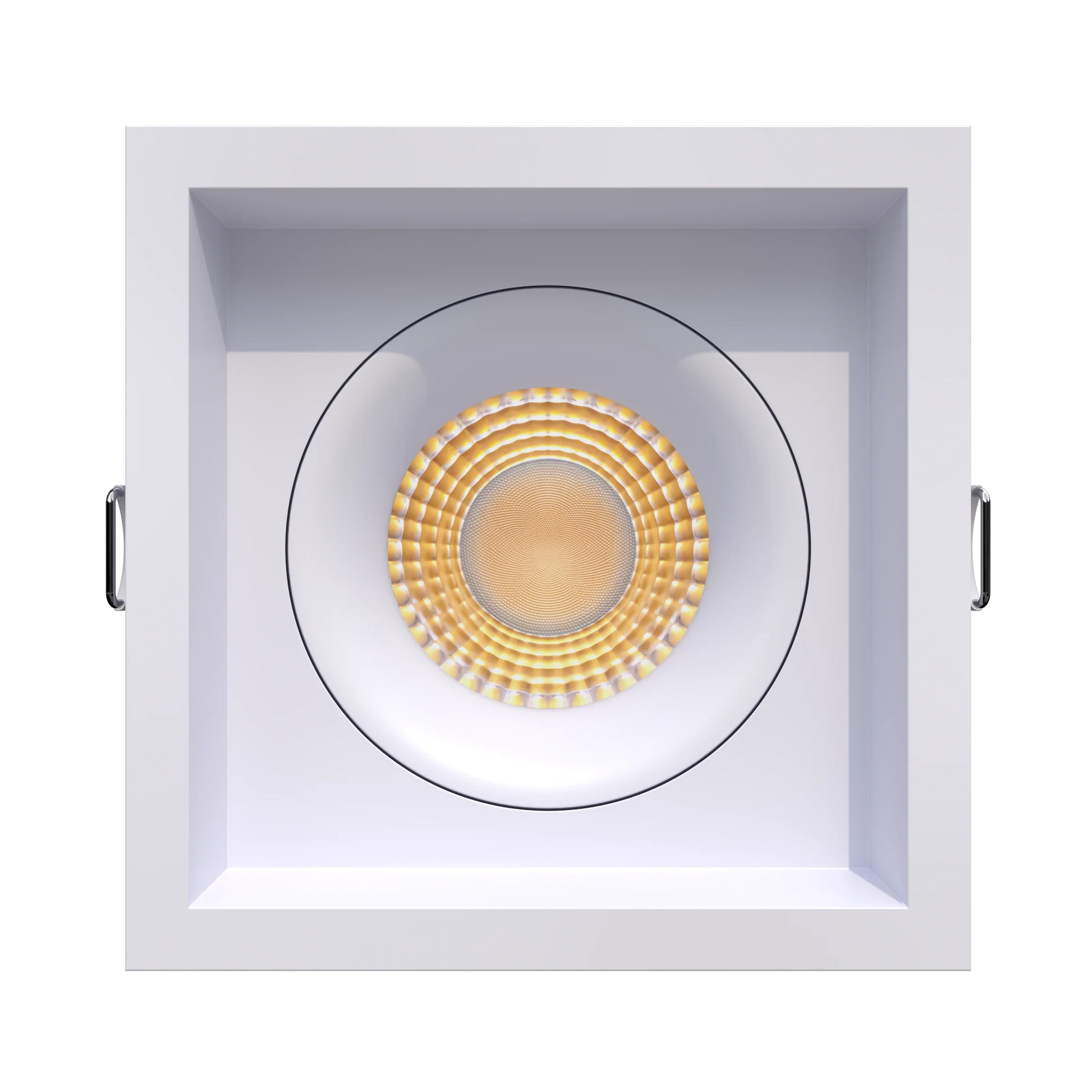

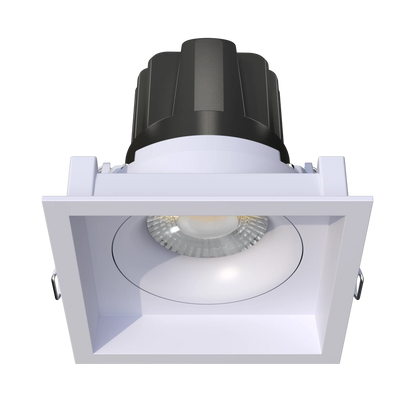

3.5" 14W Narrow Trim Gimbal Selectable CCT

The Altair 3.5” Trimmed LED Downlight (G-98741) from Goodlite Products delivers high-performance architectural lighting in a compact, modern design. This fixture features selectable wattage (14W/20W) with output up to 1850 lumens, allowing flexibility for a variety of residential and commercial applications.

With 5CCT selectable color temperatures (2700K–5000K) and 90+ CRI, the Altair provides accurate, high-quality light that enhances any space. The 40° beam angle offers focused yet even illumination, ideal for general downlighting, kitchens, hallways, and retail environments.

Engineered for versatility, this fixture operates on 120–277V, is IC rated, airtight, and plenum rated (FT6), and supports both Triac and 0-10V dimming. Its compact 3.5” aperture with trimmed finish delivers a clean architectural look while maintaining easy installation and long-term reliability.

• 3.5” regressed LED downlight
• 5 selectable color temperatures (2700K–5000K)
• 14/20W / 1400/1850 lumens
• 120–277V universal voltage
• 40° standard beam angle
• CRI 90+ for accurate color rendering
• IC Rated & Airtight
• Title 24 compliant
• Triac or 0-10V dimmable

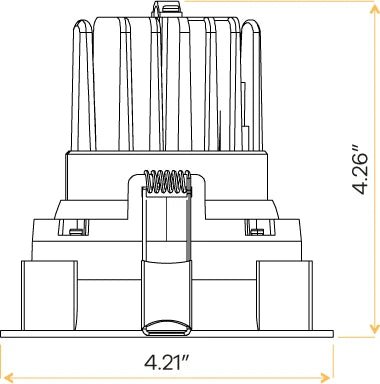

• Cutout: 3.77”X3.77" | OD: 4.13” | Height: 4.26”

Optional lens options available in 24°, 40°, and 60° beam spreads.

Ideal for hallways, kitchens, soffits, retail displays, and general downlighting where a low-glare architectural finish is desired.
