3.5" 40W Dual Head Gimbal Selectable CCT

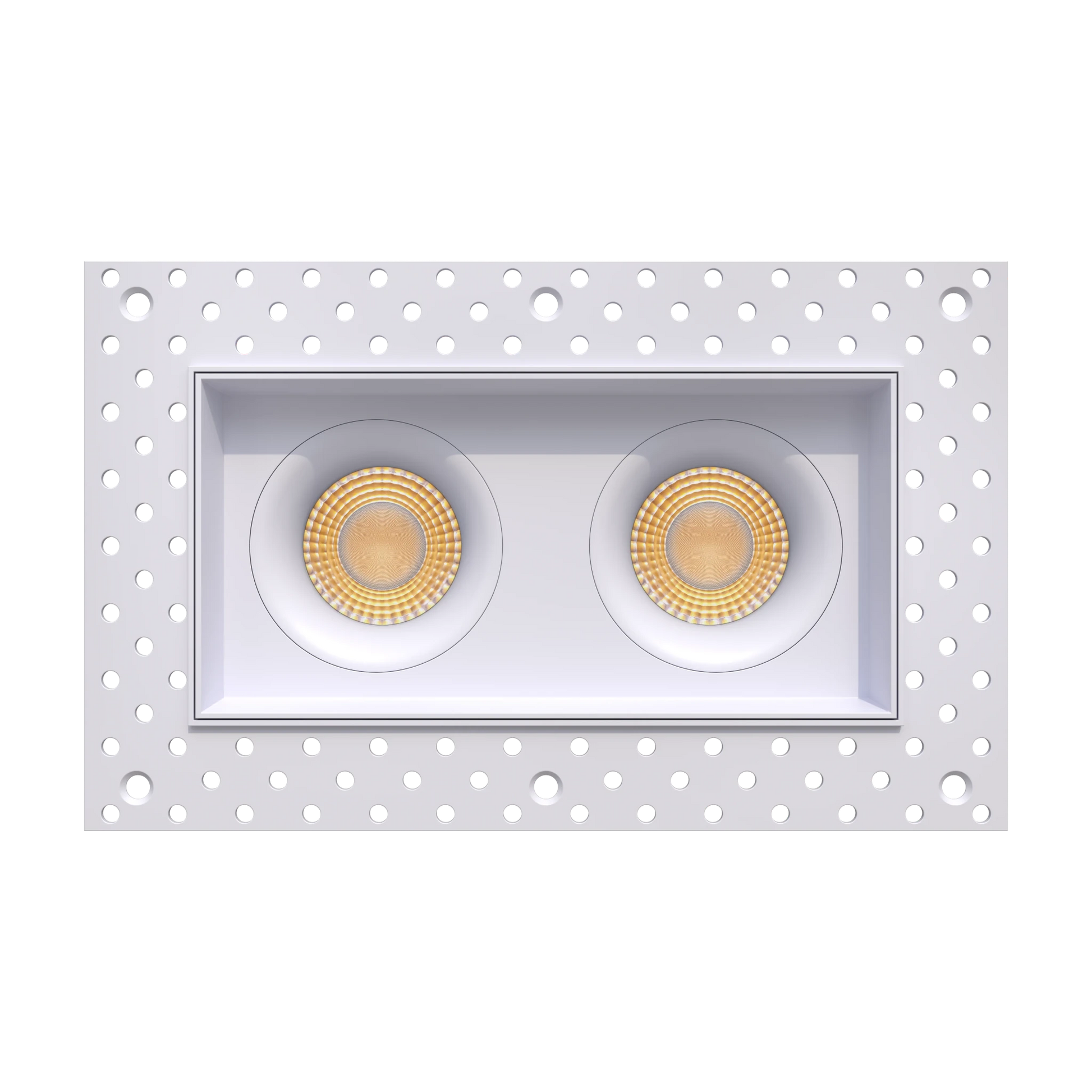

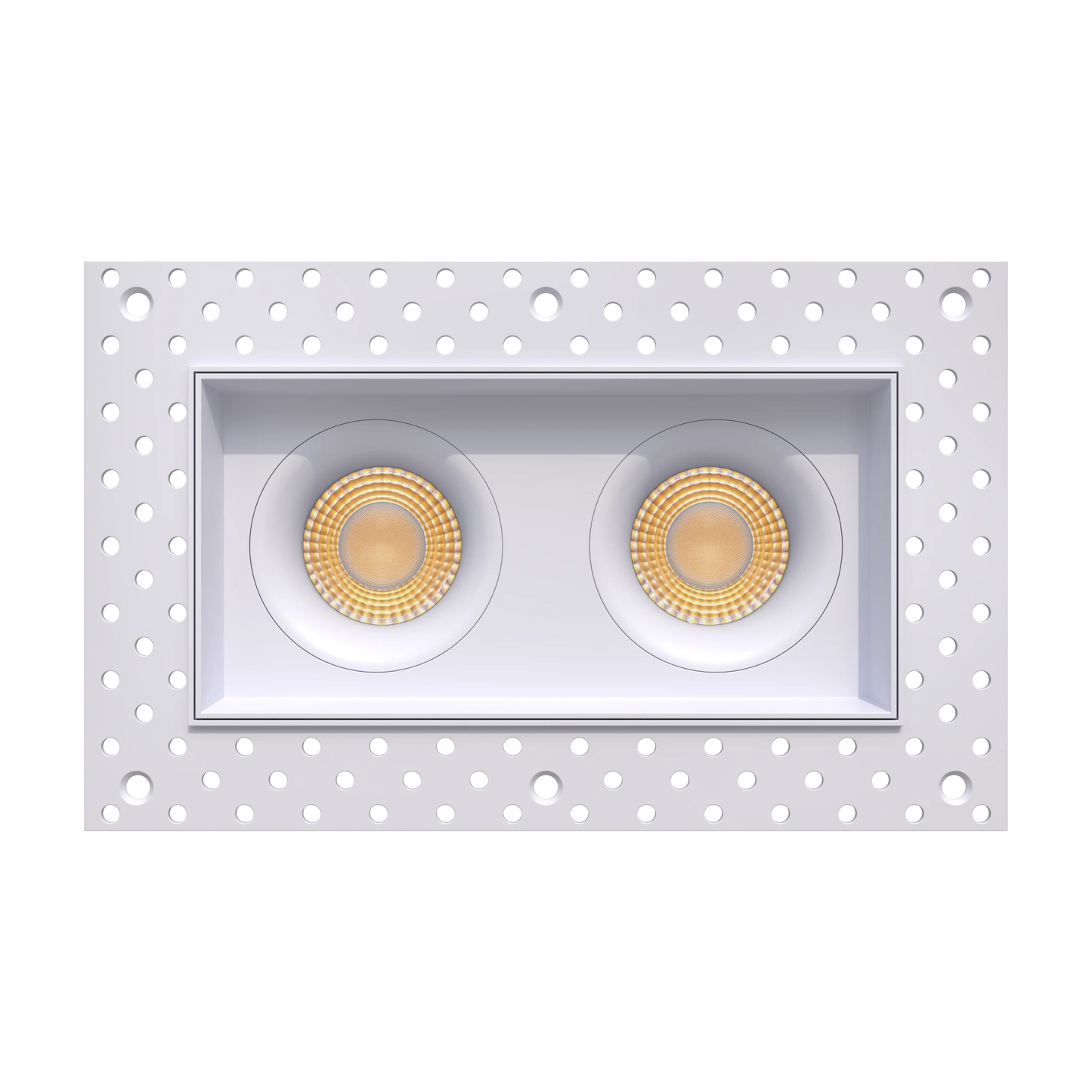

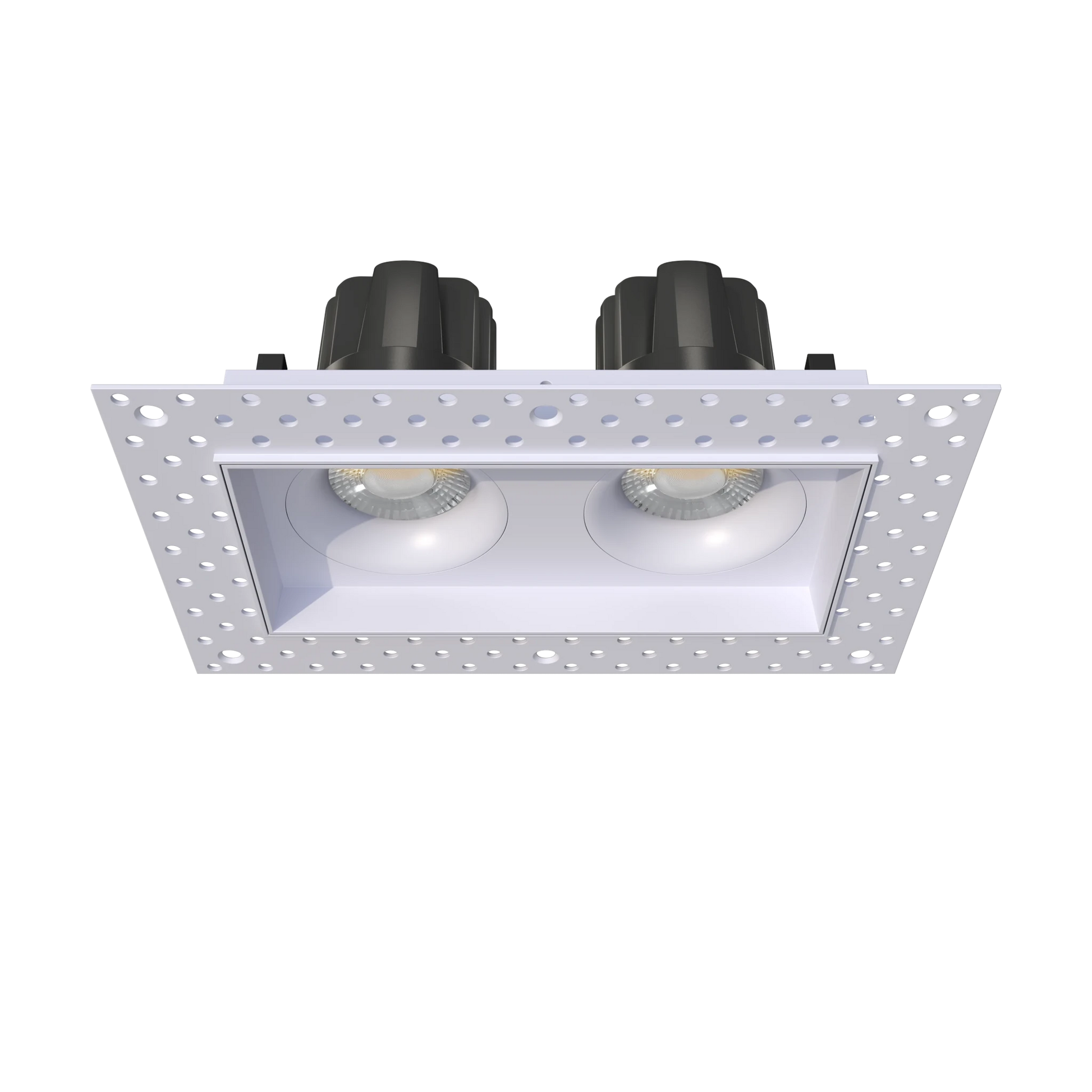

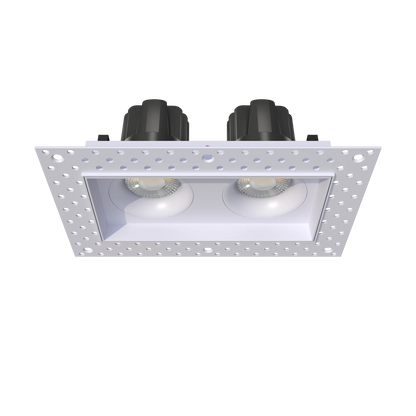

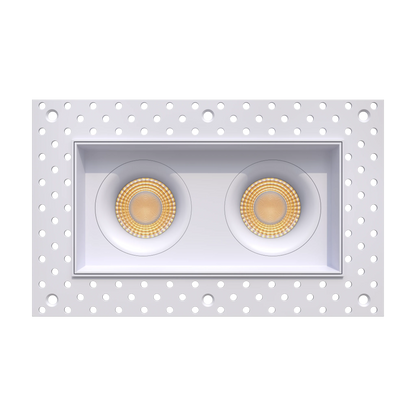

The Altair 3.5” Dual Head Trimless LED Downlight (G-98762) from Goodlite Products is a powerful multi-light solution designed for modern architectural spaces. Featuring selectable wattage (27W/40W) in a trimless housing and delivering up to 3600 lumens, this dual-head configuration provides enhanced light output and coverage while maintaining a sleek, low-profile design.

Equipped with 5CCT selectable color temperatures (2700K–5000K) and 90+ CRI, the Altair ensures accurate color rendering and adaptable lighting for any environment. The 40° beam angle offers controlled, efficient distribution—ideal for kitchens, retail displays, offices, and hospitality settings.

Built for performance, this fixture supports 120–277V, is IC rated, airtight, and plenum rated (FT6), and offers smooth Triac or 0-10V dimming. The elongated dual-head design allows for broader light coverage while maintaining a clean trimmed architectural finish.

• 3.5” regressed LED downlight
• 5 selectable color temperatures (2700K–5000K)
• 27/40W / 2600/3600 lumens
• 120–277V universal voltage
• 40° standard beam angle
• CRI 90+ for accurate color rendering
• IC Rated & Airtight
• Title 24 compliant
• Triac or 0-10V dimmable
• Cutout: 3.94” x 7.70”” | OD: 6.02" X 9.76” | Height: 4.26”

Optional lens options available in 24°, 40°, and 60° beam spreads.

Ideal for hallways, kitchens, soffits, retail displays, and general downlighting where a low-glare architectural finish is desired.
