Green Beam

GreenBeam EXILINE 8" NYC Approved Edge-Lit LED Exit Sign, Red

$159.89

Sale Sold out

Shipping calculated at checkout.

Finish Brushed Nickel Black White

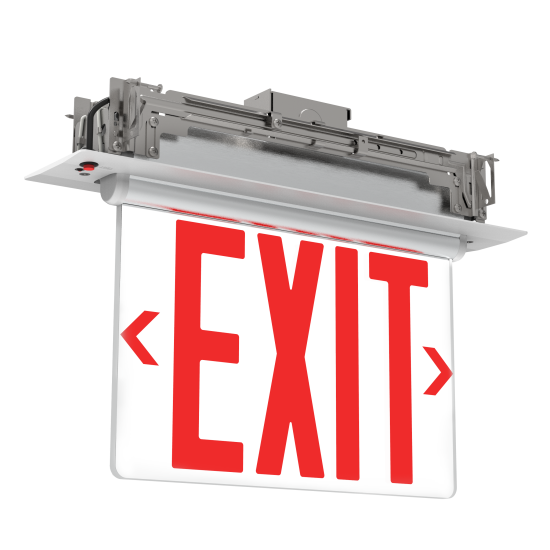

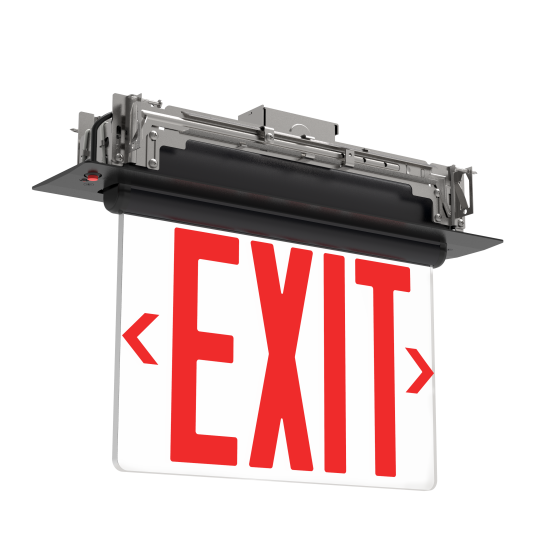

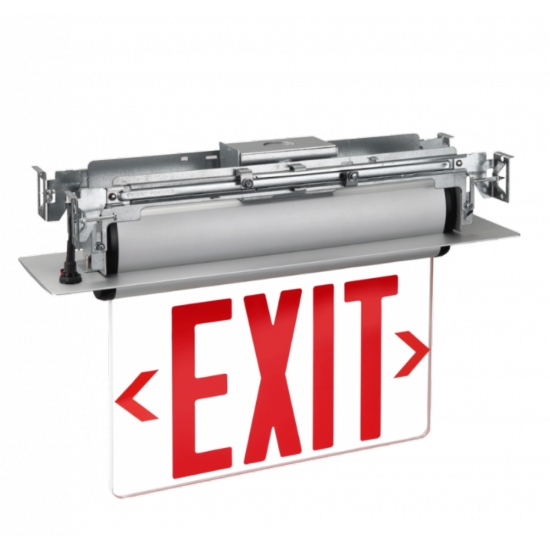

EXILINE 8" NYC Approved Edge-Lit LED Exit Sign, Red

ExiLine edge-lit exit signs are designed for multiple installation applications with a pivot housing design that allows surface ceiling, wall and end mount plus recessed wall, recessed ceiling and sloped ceiling installations. Each sign ships with a surface mount canopy, a recessed box for universal mounting, a single-sided clear background lens panel and a double-sided mirror lens panel.

NYC approved; red 8" letters, 1" stroke
Surface ceiling, wall, end mount, recessed wall, recessed ceiling or sloped ceiling installation
Single-face clear acrylic and double-face mirror panels included
UL 924 listed for damp location applications
Maintenance-free Ni-cad battery, 90 minute emergency run time, 24 hour recharge time
Brownout protection, low voltage, overload and short circuit disconnect, solid state transfer
Test switch and charge indicator light
Available in brushed aluminum, black and white finish
3 year limited warranty

Dimensions

Recessed (L x H x D)	15.5" x 13" x 4"
Surface Ceiling (L x H x D)	14.625" x 12.125" x 4.25"
Surface Wall (L x H x D)	15.25" x 13.25" x 4.25"

Spec Sheets

Spec Sheet

Info

Product Type	NYC Approved Edge-Lit LED Exit Sign
Model	NYEX603
Letter Illumination Wattage	2.5W
Lettering	Red, 8" height, 1" stroke
Battery	Ni-cad, 90 minute run time
Rated Life	50,000 hours
Construction	Extruded aluminum, clear acrylic panel or double-face mirror panel

Additional Info

Compliance

Certifications	UL 924 Listed, UL, OSHA
Location	IP20 Damp Location
Warranty	3 year limited

Electrical

Input Voltage	120-277V ac
Input Frequency	50/60 Hz
Operating Temperature	-13°F to 122°F
