Cooper Lighting Solutions

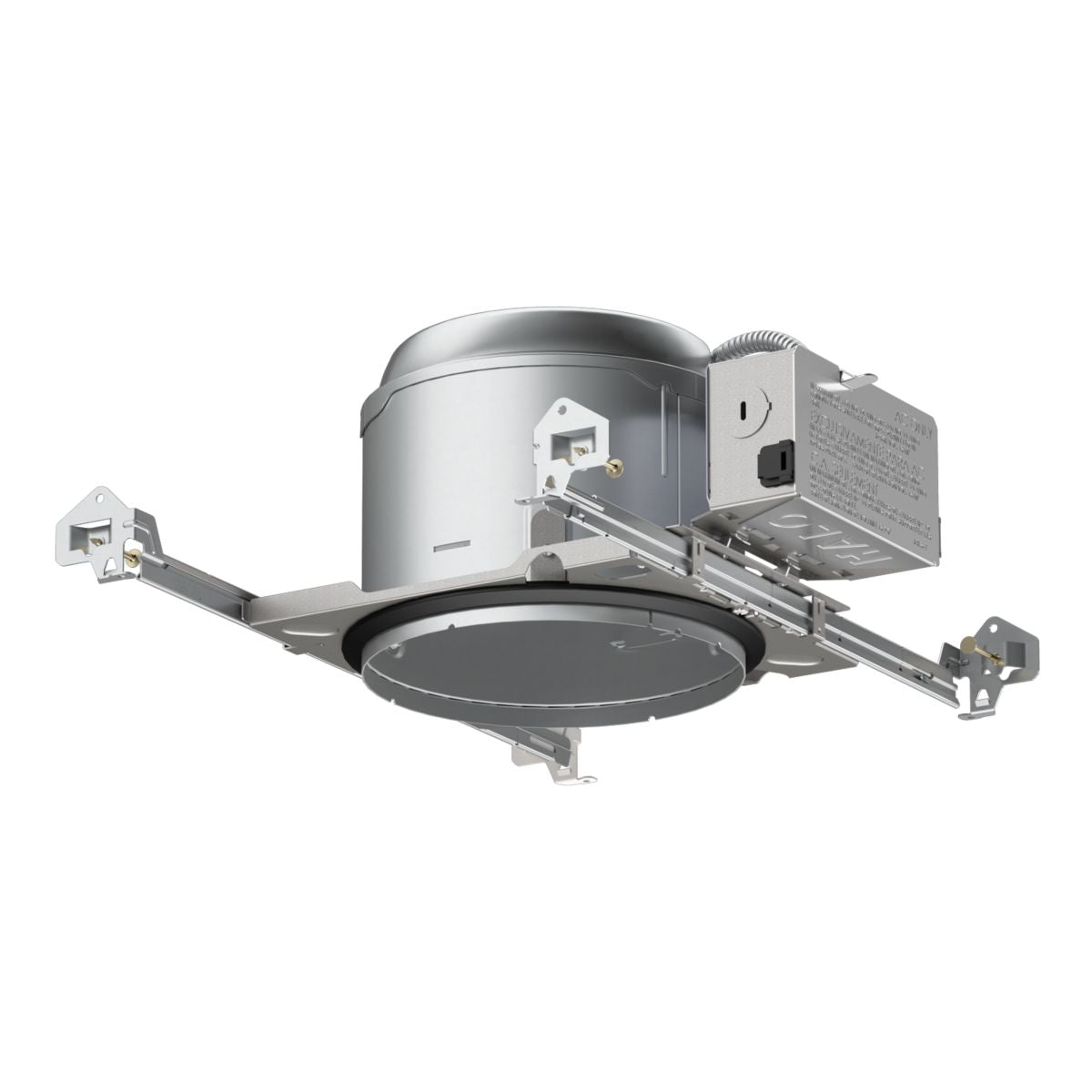

HALO E27ICAT 6" IC Air-Tite Shallow New Construction Housing 120V

HALO E27ICAT 6" IC Air-Tite Shallow New Construction Housing 120V

$15.99
$15.99
Sale Sold out
Shipping calculated at checkout.

6" IC, Air-Tite, New Construction Housing, 120V

The E27ICAT is a compact and efficient shallow recessed remodel housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial shallow ceiling applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems.

  • For use in shallow insulated ceilings
  • Air-Tite exclusive housing gasket
  • Air-Tite tested per ASTM E 283
  • All-Nail bar hangers with preinstalled nail and integral T-grid clip
  • q-channel interlocking hanger bars
  • Hanger bars feature Pass-N-Thru tool-less shortening
  • Quick connect push-in wire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
    Lamp Type Halogen, Incandescent, LED, CFL (Not Included)
    Amperage Rating 0.75 at (120V)
    Aperture 6 Inch
    Mounting Recessed
    Range of Motion N/A
    Voltage Rating 120V



    Additional Info
    Housing Single wall die-formed shallow aluminum housing. Housing features a precision rolled interlocking collar which maintains aperture geometry for greater assurance of installation results. Integral Air-Tite gasket for code required gasket between fixture and finished ceiling - seals aperture without need for additional caulk. Shipped with socket overspray protector installed. May be removed from the plaster frame to provide access to junction box
    Plaster Frame
    		 Galvanized steel frame. Housing adjusts in plaster frame to accommodate up to 3/8” - 1” ceiling thickness. Regressed locking screw for securing hanger bars. Integral Air-Tite gasket seals housing and meets code-required gasket between fixture and finished ceiling
    Socket Plate
    		 Rigid construction. Adjusts and locks without tools for various lamp sizes. Socket plate and bracket may be removed when using socket supporting trims
    Socket  Porcelain socket with nickel plated brass screw shell. Snap-in springs secure socket to socket plat, and may be detached when using socket supporting trims. Overspray protector included
    Thermal Protector Self-resetting. Deactivates fixture if overheating occurs due to improper lamping or misapplied insulation
    Slide-N-Side™ Repositioning Junction Box (4) ½” conduit pry-outs. (3) Slide-N-Side™ Non-Metallic (NM) wire traps, allow wiring outside the box. For 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian. Hinged door for easy access. Box is repositionable 90˚ on frame to avoid obstructions
    Includes
    Bar Hangers
    All Nail!™ Integral precisely positioned nail for engineered and natural framing. Mini-foot leveling flange. Integral T-Grid Clip, no accessory clips required
    q-Channel bars with Pass-N-Thru™ Unique inverted “q” interlocking channel for rigidity and stability. Pass-N-Thru™ feature allows bars to cross-over for tool-less shortening in tight spaces
    Quick Connect™ (3) Push wire nuts included, for speed & reliability. Clear caps for wire connection visibility
    Universal Locking Screw Two locking screw accessible from below the ceiling. Universal screw head (hex, slot or Phillips)



    Compliance
    cULus Listed 1598 Luminaire
    cULus listed for damp locations
    cULus listed for wet locations, covered ceiling with select trims
    cULus Listed for direct contact with insulation and combustible material *Not for use in direct contact with spray foam insulation(Consult NEMA LSD57-2013)
    Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
    RoHS compliant
