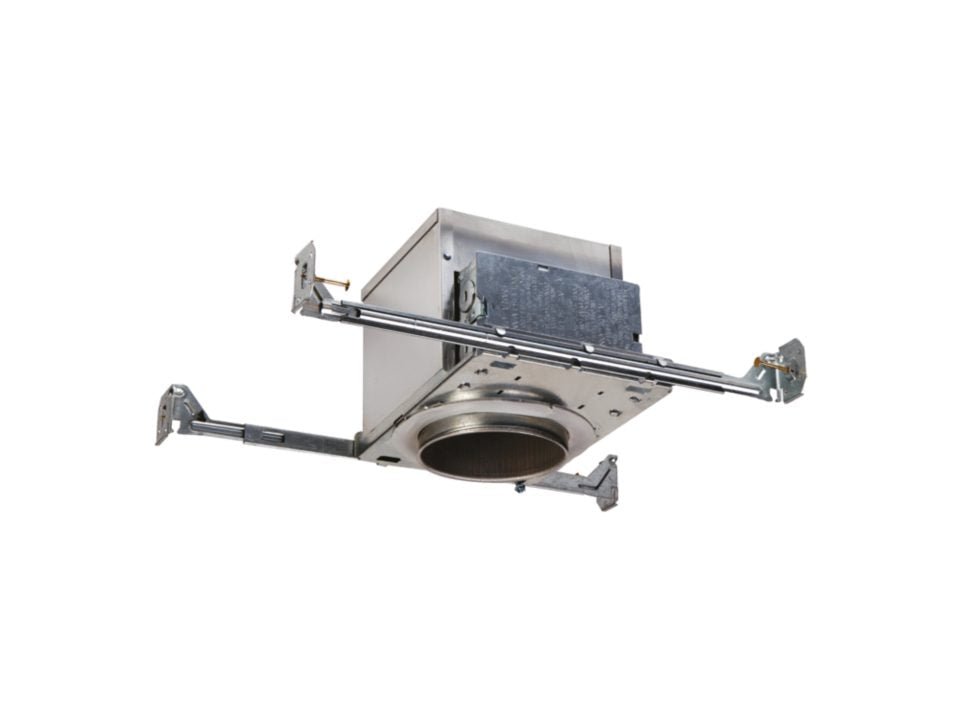

HALO E4ICATSB 4" IC Air-Tite New Construction Housing 120V w/ Socket Bracket

HALO E4ICATSB 4" IC Air-Tite New Construction Housing 120V w/ Socket Bracket

$19.99
$19.99
Sale Sold out
Shipping calculated at checkout.

4" IC, Air-Tite, New Construction Housing, 120V w/ Socket Bracket

The E4ICATSB is an IC Air-TiteTM housing optimized and listed for EISA compliant tungsten-halogen lamps, CFL and LED lamps as well as incandescent. Housing features an adjustable socket bracket, and is suitable for residential or commercial applications. Installation in insulated ceilings* and non-insulated ceilings with Air-Tite code compliant construction. May be retrofit with compatible Halo LED lighting systems.

  • For use in insulated ceilings
  • Air-Tite exclusive housing gasket
  • Air-Tite tested per ASTM E 283
  • All-Nail bar hangers with preinstalled nail and integral T-grid clip
  • q-channel interlocking hanger bars
  • Hanger bars feature Pass-N-Thru tool-less shortening
  • Quick connect push-in wire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
Click Here for Video
    Spec Sheets

    Spec Sheet

    Info
    Housing Outer Housing-Aluminum construction. Inner Housing-Double wall aluminum construction helps dissipate heat. The inner housing can be removed from the plaster frame to provide access to the junction box. For insulated ceilings in direct contact with insulation.* (May also be installed in non-insulated ceilings.) *Not to be used in direct contact with spray foam insulation (consult NEMA LSD57-2013)
     Plaster Frame Plaster frame includes locking screw for hanger bars and cutouts for crimping hanger bars in position. Air-Tite gasket is pre-installed
    Junction Box Positioned to accommodate straight conduit runs. Seven conduit knockouts are uniform 1/2” size with true pry-out slots. Compact galvanized steel junction box with xxin³ internal volume. Listed for (10) #12 AWG 90°C splice conductors. (7) ½” conduit pry-outs positioned to allow straight conduit runs. (3) Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box. Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable. (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections. Three quick connect wire connectors included
    Socket Adjustable position bracket with porcelain socket and nickel plated brass screw shell provides flexibility in lamp positioning
    Thermal Protector Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
    Trims Halo Fit-All concept offers multiple trim options in a variety of design styles, and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types
    Additional Info
    Includes
    All Nail!™ Integral precisely positioned nail for engineered and natural framing. Mini-foot leveling flange. Integral T-Grid Clip, no accessory clips required
    Quick Connect™ (3) Push wire nuts included, for speed & reliability. Clear caps for wire connection visibility n
    Air-Tite™ code compliant  ASTM E283 compliant
    Compliance
     cULus Listed 1598 Luminaire
    cULus Damp Location Listed
    cULus Listed for Wet Location, covered ceiling, with select trims
    cULus listed for direct contact with insulation and combustible material*
    RoHS Compliant
    Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
    *Not to be used in direct contact with spray foam insulation (consult NEMA LSD57-2013)
