HALO E4TATSB 4" Non IC Air-Tite New Construction Housing 120V w/ Socket Bracket

HALO E4TATSB 4" Non IC Air-Tite New Construction Housing 120V w/ Socket Bracket

$19.99
$19.99
Sale Sold out
Shipping calculated at checkout.

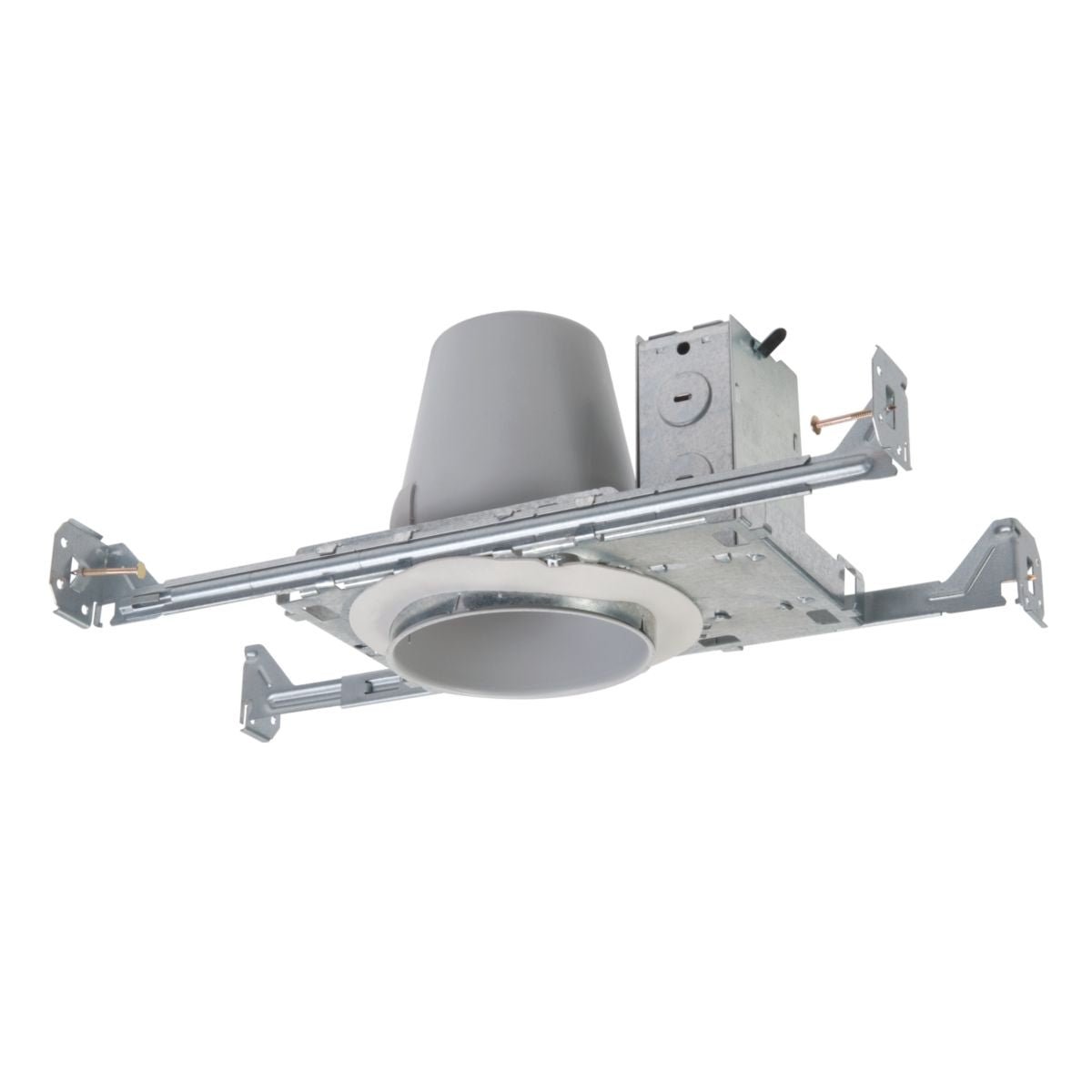

4" Non IC, Air-Tite, New Construction Housing, 120V w/ Socket Bracket

The E4TATSB is a Non-IC Air-Tite™ housing optimized and listed for EISA compliant tungsten-halogen lamps, CFL and LED lamps, as well as incandescent. Housing features an adjustable socket bracket, and is suitable for residential or commercial applications. Installation in non-insulated ceilings with Air-Tite code compliant construction. If insulation is present it must be kept 3” from all sides of the housing. May be retrofit with compatible Halo LED lighting systems

  • For use in non-insulated ceilings
  • Air-Tite exclusive housing gasket
  • Air-Tite tested per ASTM E 283
  • All-Nail bar hangers with preinstalled nail and integral T-grid clip
  • q-channel interlocking hanger bars
  • Hanger bars feature Pass-N-Thru tool-less shortening
  • Quick connect push-in wire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
Click Here for Video
    Spec Sheets

    Spec Sheet

    Info
    Housing Die-formed CRS
     Plaster Frame Housing is secured in plaster frame with spring barbs. The housing can be removed from the plaster frame to provide access to the junction box. Air-Tite gasket pre-installed on plaster frame
    Junction Box Seven conduit knockouts are uniform 1/2” size with true pry-out slots. Compact galvanized steel junction box with xxin³ internal volume. Listed for (10) #12 AWG 90°C splice conductors. (7) ½" conduit pry-outs positioned to allow straight conduit runs. (3) Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box. Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable. (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections. Three quick connect wire connectors included
    Socket Adjustable position bracket with porcelain socket and nickel plated brass screw shell provides flexibility in lamp positioning
    Thermal Protector Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
    Trims Halo Fit-All concept offers multiple trim options in a variety of design styles, and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types
    Additional Info
    Includes
    All Nail!™ Integral precisely positioned nail for engineered and natural framing. Mini-foot leveling flange. Integral T-Grid Clip, no accessory clips required
    Quick Connect™

    (3) Push wire nuts included, for speed & reliability. Clear cap
    Air-Tite™ code compliant

    ASTM E283 compliant

    Compliance
     cULus Listed 1598 Luminaire
    cULus Damp Location Listed
    cULus Listed for Wet Location, covered ceiling, with select trims
    RoHS Compliant
    Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
