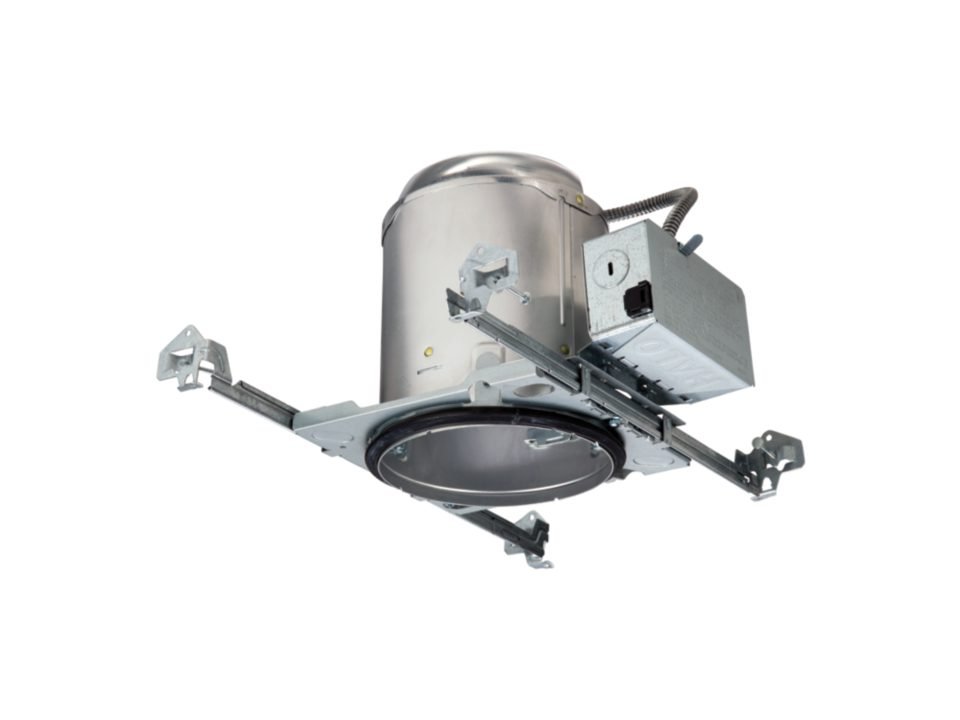

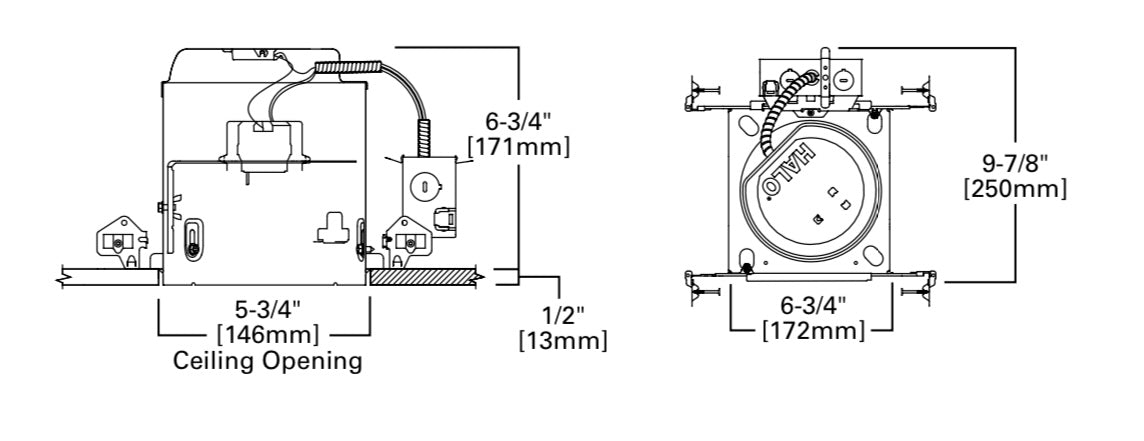

The Halo E5 series consists of compact and efficient recessed housings optimized and listed for PAR20 and PAR30, EISA compliant, tungsten-halogen, CFL and LED lamps as well as incandescent. The Halo E5 housing is suitable for residential or light commercial applications. For installation in insulated ceilings* and non-insulated ceilings; with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with HALO LED lighting systems.
For use in insulated ceilings
Air-Tite exclusive housing gasket
Air-Tite tested per ASTM E 283
All-Nail bar hangers with preinstalled nail and integral T-grid clip
Single wall die-formed aluminum housing. Housing features a precision rolled interlocking collar which maintains aperture geometry for greater assurance of installation results. Integral Air-Tite gasket for coderequired gasket between fixture and finished ceiling - seals aperture without need for additional caulk. Shipped with socket overspray protector installed. May be removed from the plaster frame to provide access to junction box
Plaster Frame
Galvanized steel frame. Housing adjusts in plaster frame to accommodate up to 3/8” - 1” ceiling thickness. (2) Regressed locking screws for securing hanger bars. Integral Air-Tite gasket seals housing and meets code-required gasket between fixture and finished ceiling
Socket Plate
Rigid socket plate adjusts and locks without tools for various lamp sizes. Socket plate and bracket may be removed when using socket supporting trims
Socket
Porcelain socket with nickel plated brass screw shell. Snap-in springs secure socket to socket plate, and may be detached when using socket supporting trims
Thermal Protector
Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation
Trims
Halo Fit-All concept offers multiple trim options in a variety of design styles, and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types including Halogen, CFL and LED
Includes
Bar Hangers
All Nail!™
Integral precisely positioned nail for engineered and natural framing. Mini-foot leveling flange. Integral T-Grid Clip, no accessory clips required
q-Channel bars with Pass-N-Thru™
Unique inverted “q” interlocking channel for rigidity and stability. Pass-N-Thru™ feature allows bars to cross-over for tool-less shortening in tight spaces
Hinged junction box w/ Slide-N-Side™
(4) ½” conduit pry-outs. (3) Slide-N-Side™ Non-Metallic (NM) wire traps, allow wiring outside the box. For 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian. Hinged door for easy access. Box is repositionable 90˚ on frame to avoid obstructions
Quick Connect™
(3) Push wire nuts included, for speed & reliability. Clear caps for wire connection visibility
cULus Listed
Compact 16 in3 volume. Listed for max. (10) No. 12 AWG or (14) No. 14 AWG 90˚ C splice conductors in box
Air-Tite™ code compliant
Certified under ASTM E283. Exclusive gasket seals aperture, frame & ceiling. No additional caulk required
Compliance
cULus Listed 1598 Luminaire
cULus listed for damp locations
cULus listed for wet locations
cULus Listed for direct contact with insulation and combustible material *Not for use in direct contact with spray foam insulation(Consult NEMA LSD57-2013)
Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
