Cooper Lighting Solutions

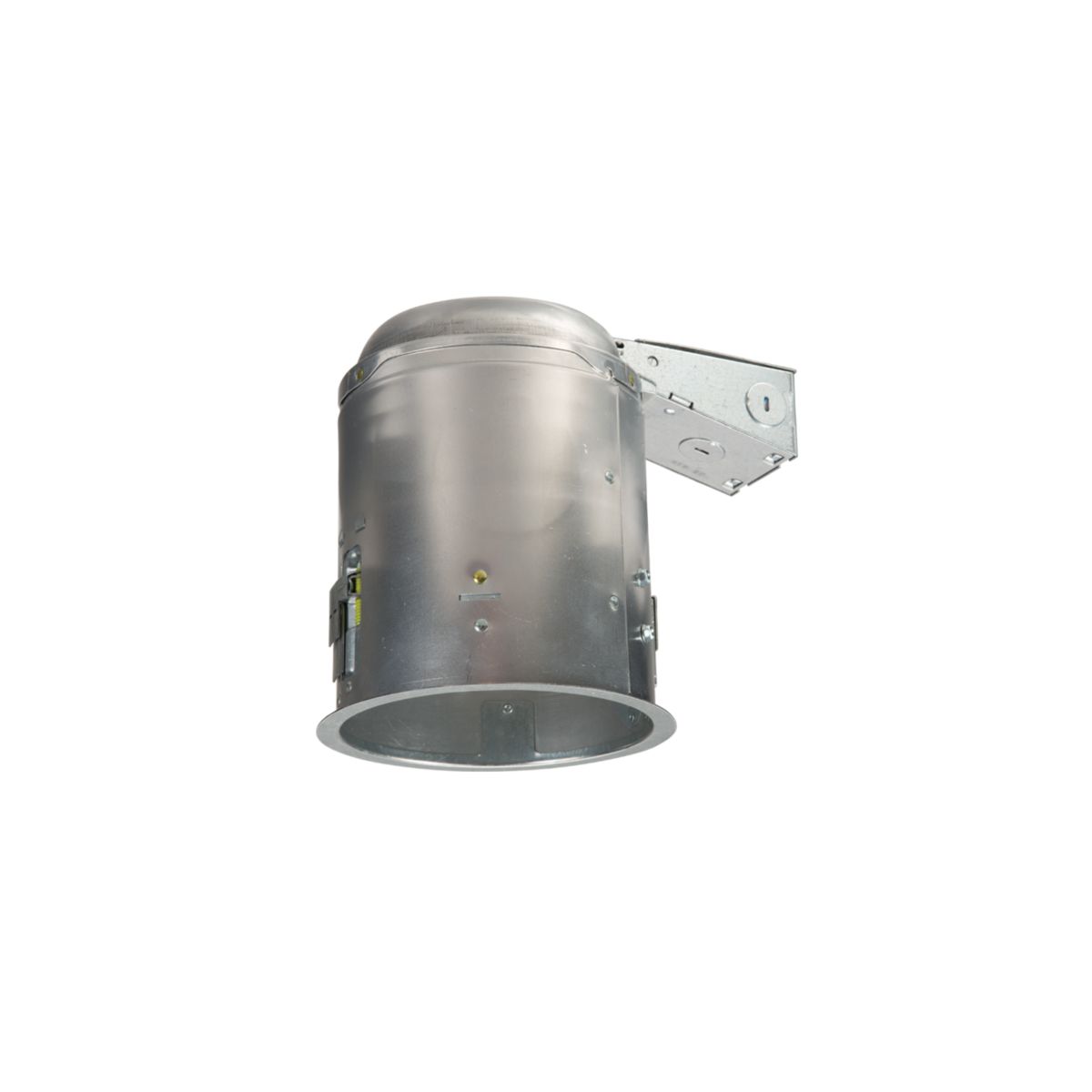

HALO E5RICAT 5" IC Air-Tite Remodel Housing 120V

HALO E5RICAT 5" IC Air-Tite Remodel Housing 120V

$15.49
$15.49
Sale Sold out
Shipping calculated at checkout.

5" IC, Air-Tite, New Construction Housing, 120V

The E5RICAT is a compact and efficient recessed remodel housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems.

  • For use in insulated ceilings
  • Remodel housing design installs from below the finished ceiling
  • Exclusive remodel speed clamps securely lock from 3/8" to 2" ceilings
  • Air-Tite housing flange gasket
  • Air-Tite tested per ASTM E 283
  • Quick connect wiring tray with push-in wire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
    Lamp Type PAR20, PAR30 Halogen, Incandescent, LED, CFL (Not Included)
    Amperage Rating 0.625 at (120V)
    Aperture 5 Inch
    Mounting Recessed
    Range of Motion N/A
    Voltage Rating 120



    Additional Info
    Housing Single wall die-formed aluminum housing. Housing features a precision rolled interlocking collar which maintains aperture geometry for greater assurance of installation results. Integral Air-Tite gasket for coderequired gasket between fixture and finished ceiling - seals aperture without need for additional caulk. Shipped with socket overspray protector installed. For installation from below the finished ceiling. Integral flange secures fixture against ceiling
    Remodel Retention System - Speed Clamps
    		 Exclusive two integral speed clamps securely lock housing to ceiling, accommodating 3/8” to 2” ceiling materials. Use screwdriver to set clamps – hand tighten
    Socket Plate
    		 Rigid socket plate adjusts and locks without tools for various lamp sizes. Socket plate and bracket may be removed when using socket supporting trims
    Socket Porcelain socket with nickel plated brass screw shell. Snap-in springs secure socket to socket plate, and may be detached when using socket supporting trims
    Thermal Protector Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation
    Trims Halo Fit-All concept offers multiple trim options in a variety of design styles, and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types including Halogen, CFL and LED
    Includes
    Bar Hangers
    Remodel Speed Clamps (2) Exclusive integral speed clamps. Speed clamp tabs securely lock to ceiling. Speed clamps can be loosened for easy repositioning. Speed clamps feature internal drive screws. Two-tier tabs adjust for 3/8” to 2” of various ceiling materials
    Attached-Arm Design Attached arm gets into tight spaces. Ease of installing through the ceiling aperture. Smaller footprint for packing and distributor shelf space
    Hinged junction box w/ Slide-N-Side™  (4) ½” conduit pry-outs. (2) Slide-N-Side™ Non-Metallic (NM) wire traps, allow wiring outside the box. For 14-2, 14-3, 2-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian. Hinged door for easy access
    Quick Connect™ Wiring Tray (3) Color coded push wire nuts in captive tray for one-handed connection. Aids in speed & reliability. Clear caps for wire connection visibility
    cULus Listed Compact 10 in3 box volume. Listed for maximum (6) No. 12 AWG or (8) No. 14 AWG 90˚ C splice conductors in box
    Remodel Flange Die formed flange maintains precise whole circumference. Integral flange secures fixture against the ceiling
    Air-Tite™ code compliant Certified under ASTM E283. Exclusive gasket seals aperture, frame & ceiling. No additional caulk required


    Compliance
    cULus Listed 1598 Luminaire
    cULus listed for damp locations
    cULus listed for wet locations
    cULus Listed for direct contact with insulation and combustible material *Not for use in direct contact with spray foam insulation(Consult NEMA LSD57-2013)
    Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
    RoHS compliant
