Cooper Lighting Solutions

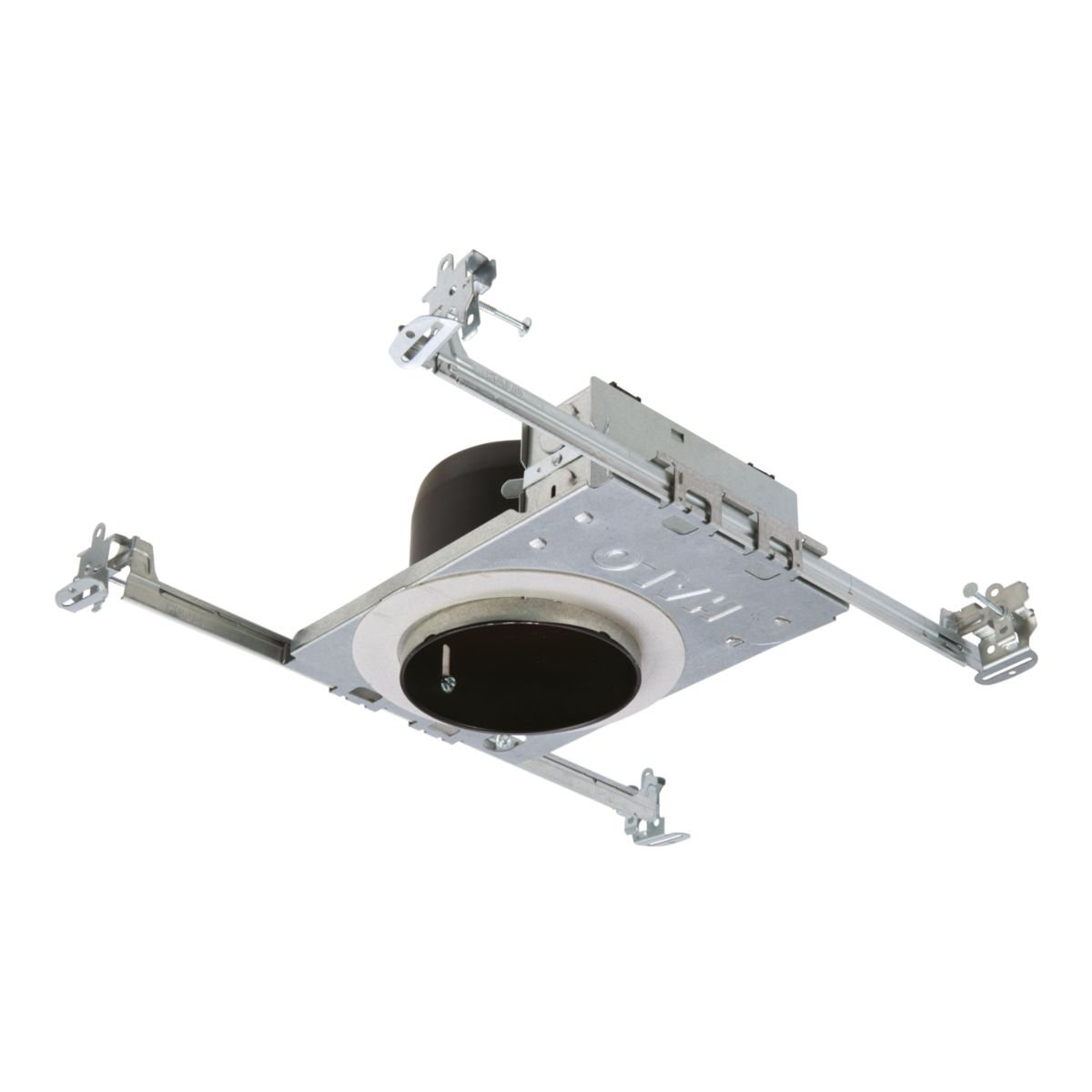

HALO H245ICAT 4" IC Airtight Ultra-Shallow New Construction LED Housing

HALO H245ICAT 4" IC Airtight Ultra-Shallow New Construction LED Housing

Regular price $18.19
Regular price Sale price $18.19
Sale Sold out
Shipping calculated at checkout.

4" IC, Airtight, Ultra-Shallow New Construction, LED Housing, 120/277V

Recessed 4" aperture ultra-shallow new construction housing for use with LED integrated trims. Suitable for 2x4 residential framing or shallow plenum commercial construction, type IC rated and can be used in direct contact with insulation. Airtight rating reduces airflow between living spaces and unconditioned areas providing additional energy savings. Use with Halo LT4, RL4, RA4, SMD4, SLD4 LED integrated trims and the ML4 LED modular recessed lighting system

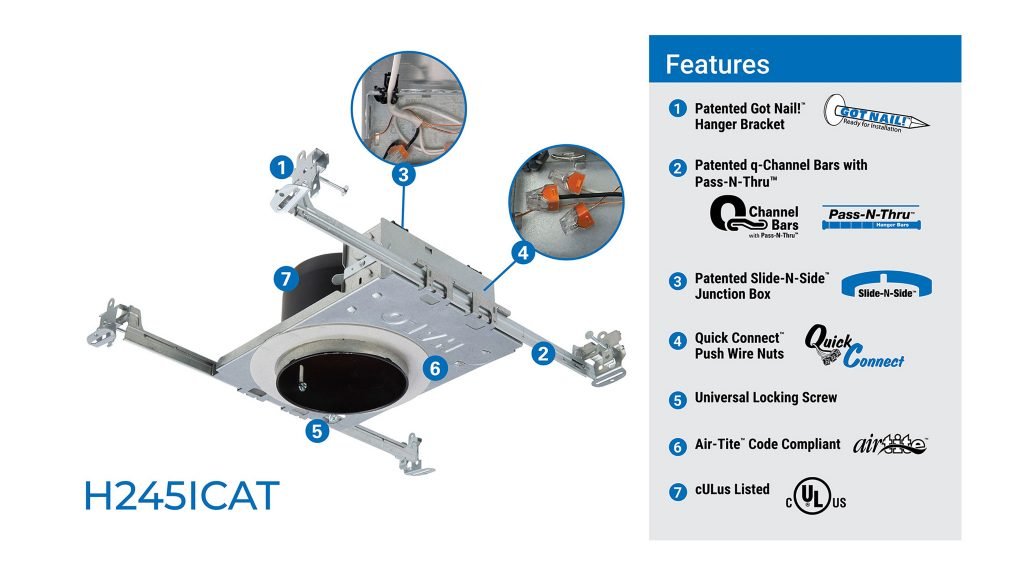

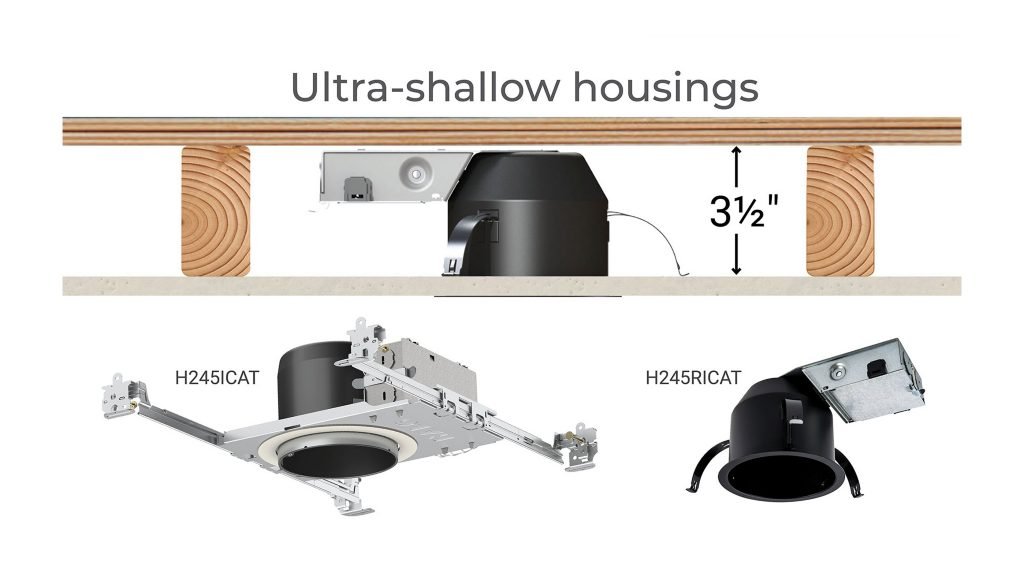

  • Ultra-shallow housing, Compatible with HALO 4" LED modules/trims
  • Suitable for 2x4 framing or shallow plenum construction
  • Insulated Ceiling (IC) rated to be in direct contact with insulation
  • Got Nail!™ bar hangers, Slide-N-Side™ wire traps
  • Pass-N-Thru™ tool-less shortening of bar hangers
  • AIR-TITE™ reduces airflow between unconditioned and conditioned spaces
  • Quick Connect™ remodel wiring tray

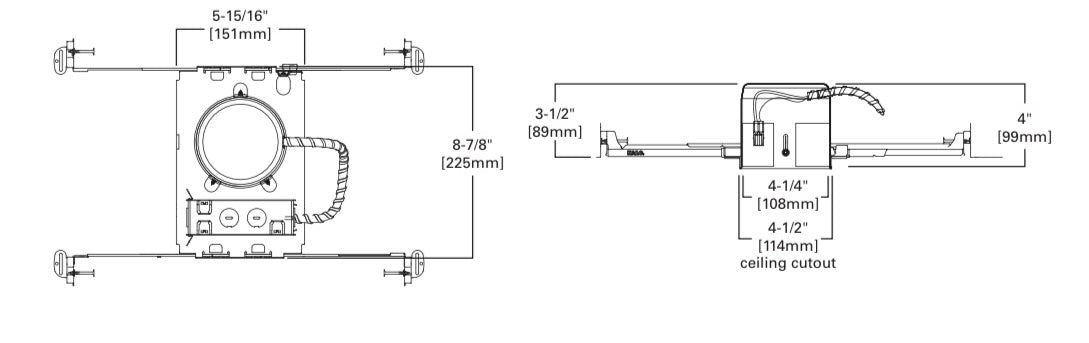

  • Housing adjusts for 1/2" to 1-1/4" ceiling thickness
  • Single wall deep drawn aluminum housing painted matte black
  • Slide-N-Side™ wire traps
    Spec Sheets

    Spec Sheet

    Installation Instructions

    Lamp Type LED
    Amperage Rating 0.054 at 277V
    Aperture 4 Inch
    Mounting Recessed
    Voltage Rating 120/277V
    Wattage 15 W


    Additional Info
    Housing Single wall deep drawn aluminum housing painted matte black for a visually dark interior. Adjusts vertically to accommodate 1/2” to 1-1/4” thick ceilings and locks in position with (3) setscrews. V notches on plaster lip facilitate use of guide strings or laser lines for precise positioning. Integral gasket provides for airtight compliance. Shipped with overspray protector installed. Housing can be removed from below the ceiling for service or splice inspection.
    Plaster Frame
    Compact galvanized steel plaster frame with integral bar hanger receivers. Regressed screw provide positive horizontal bar hanger locking from below the ceiling. Crimp points also provide for horizontal bar hanger locking.
    Bar Hangers Captive preinstalled Got-Nail™ bar hangers support housing at any point along span. Pass-N-Thru™ feature adjust from 8” to 24” wide without removal. Score lines allow “tool-less” shortening for 12˝ joists. Captive nail penetrates standard and engineered lumber. Safety and guidance system prevents snagging, ensures smooth straight nail penetration and allows bar hangers to be easily removed and repositioned. Leveling flange aligns plaster frame with structure. Integral clip attaches directly to tee-bar
    Junction Box
    Compact galvanized steel junction box with 15in3 internal volume. Listed for (10) #12 AWG 90˚ C splice conductors. (5) ½” conduit pry-outs positioned to allow straight conduit runs. (3) Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box • Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable. (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
    Two-conductor wire mount connector is rated for 120/277V and mates with Halo LT4, RL4, RA4, SLD, SMD and ML4 family of LED integrated trims. CAUTION: verify LED module input voltage is compatible with the input voltage of the housing. If uncertain, consult a qualified electrician
    Air-Tite™ code compliant  ASTM E283 compliant
    Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations
    Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
    Wet location listed in covered ceilings and IP66 certified with select trims
    Can be used for State of California Title 24 high efficacy luminaire compliance
    Airtight per ASTM-E283
    Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
    Contains no mercury or lead and RoHS compliant
