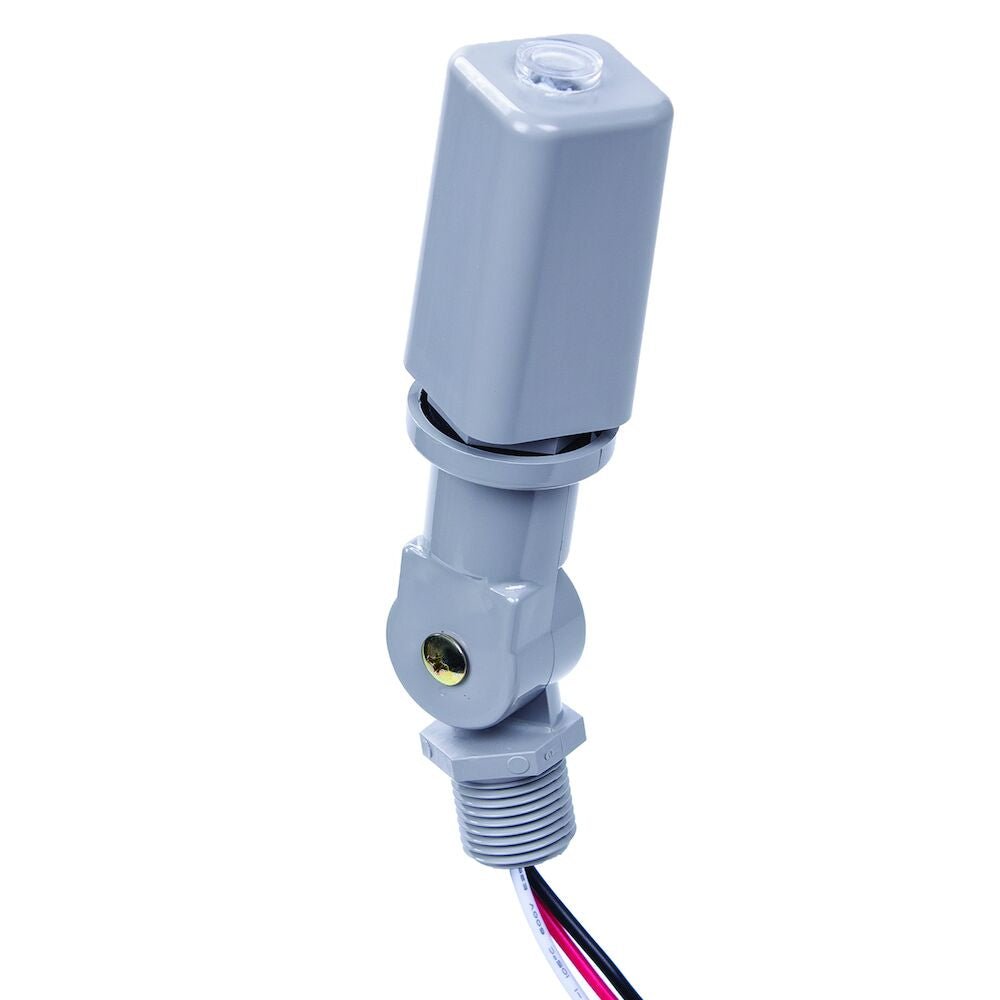

Intermatic EK4736S Nightfox™ Top Lens Stem and Swivel Mount Electronic Photocontrol

Intermatic EK4736S Nightfox™ Top Lens Stem and Swivel Mount Electronic Photocontrol

$28.69
$32.99 $28.69
Sale Sold out
Shipping calculated at checkout.
 More payment options
Description

Nightfox™ Electronic Photocontrol

NightFox™ electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads.

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multi fixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 255 J MOV surge protection element

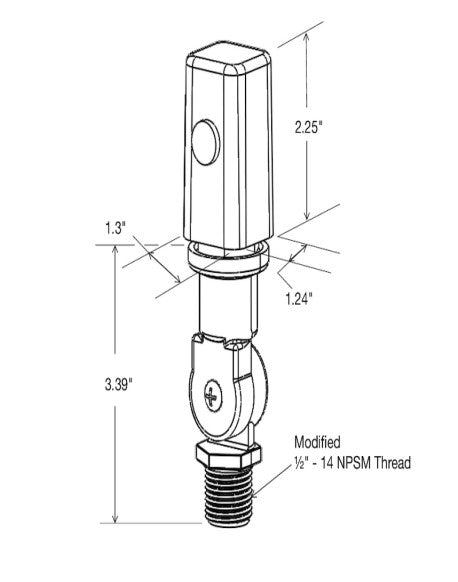

  • 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
  • #18 AWG wire leads
    Length (in.) 5-5/8"
    Width (in.) 1-5/16"
    Depth (in.) 1-1/4"
    Lead Wire (In.) 6.00"
    Weight (lbs) Each .25 lbs
