Intermatic

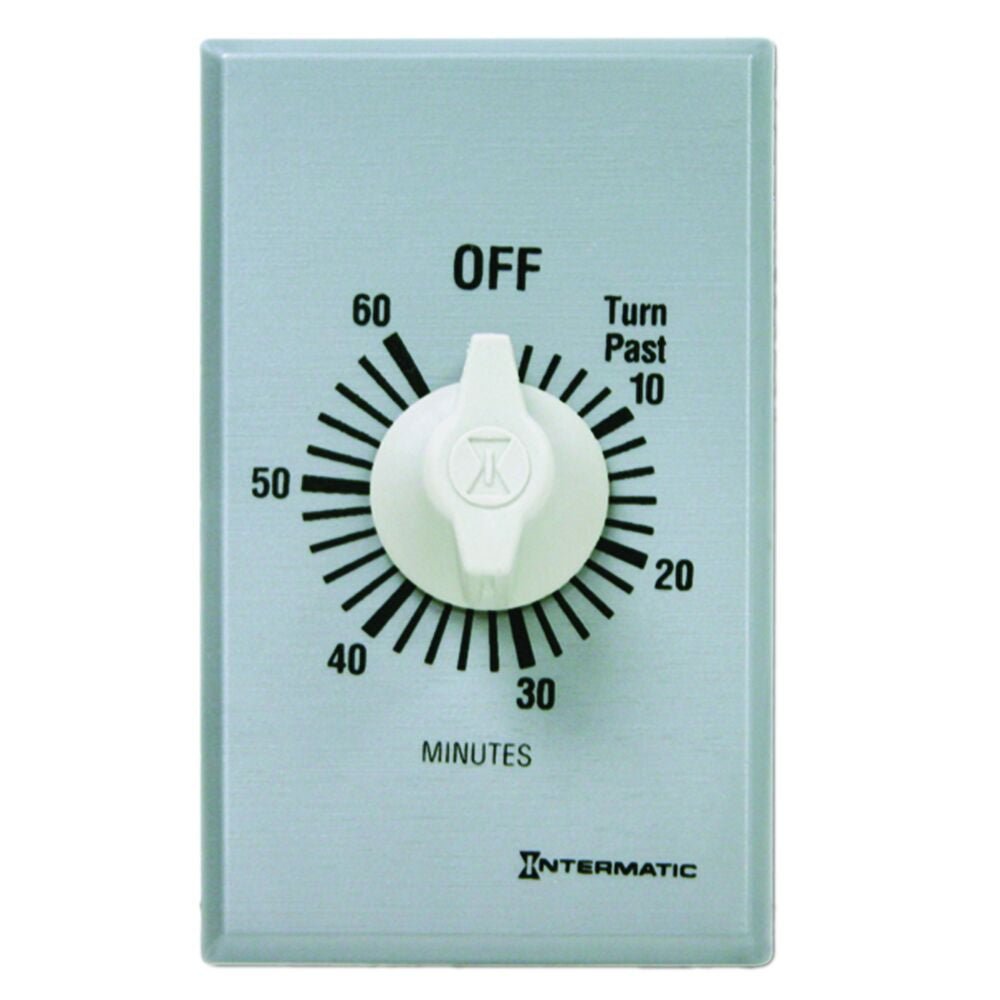

Intermatic FF360M Commercial Countdown Timer

Intermatic FF360M Commercial Countdown Timer

Regular price $69.99
Regular price $79.99 Sale price $69.99
Sale Sold out
Shipping calculated at checkout.

Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPDT, 60 Minute Max

The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

  • 60-Minute timer
  • SPDT (Single-Pole Double-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Brushed metal look switch plate meets NEC requirements (plate is included)
  • Incandescent/fluorescent/CFL/LED compatible
    Length (in.) 4.175"
    Width (in.) 1.75"
    Depth (in.) 1.25"
    Weight (lbs) Each .29 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Type Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPDT, 60 Minute Max, Without Hold, Silver
    Certifications cSA Certified
    Operation Mode Countdown
    Countdown Time 60 min
    Hold Mode Included No
    Mechanism Type Analog/Mechanical
    Color Silver (Faceplate Included)
    Warranty 1 Year Limited



    Additional Info
     Load Ratings
    Resistive Heater  20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
    Tungsten (Incandescent) Range(s)  7 A, 125 VAC, 50/60 Hz, 875 W
    Motor Load Ratings Ranges 1 HP, 125 VAC; 2 HP, 250 VAC
     Electrical Specifications
    Wiring Configurations
    Single
    Switch Type  SPDT
    Input Voltage Range(s) 125-277 VAC, 50/60 Hz
    Neutral Connection Required  No
