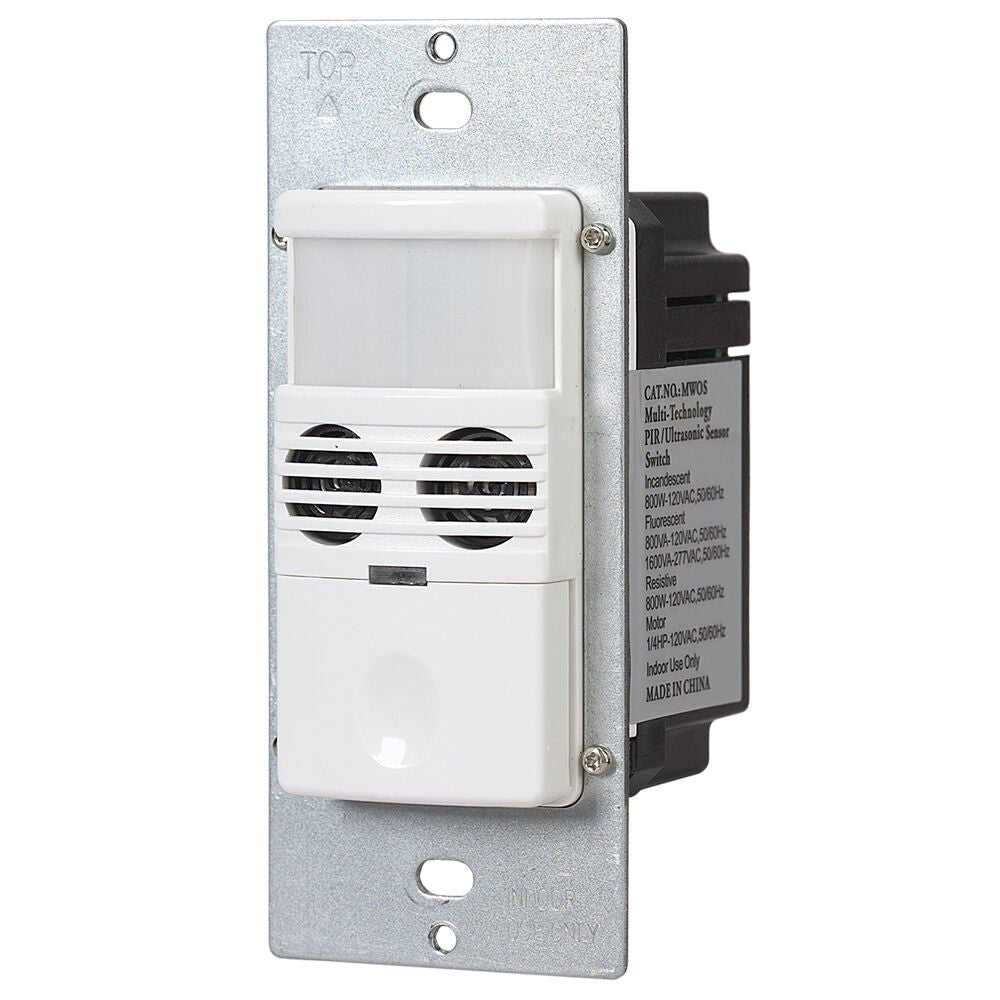

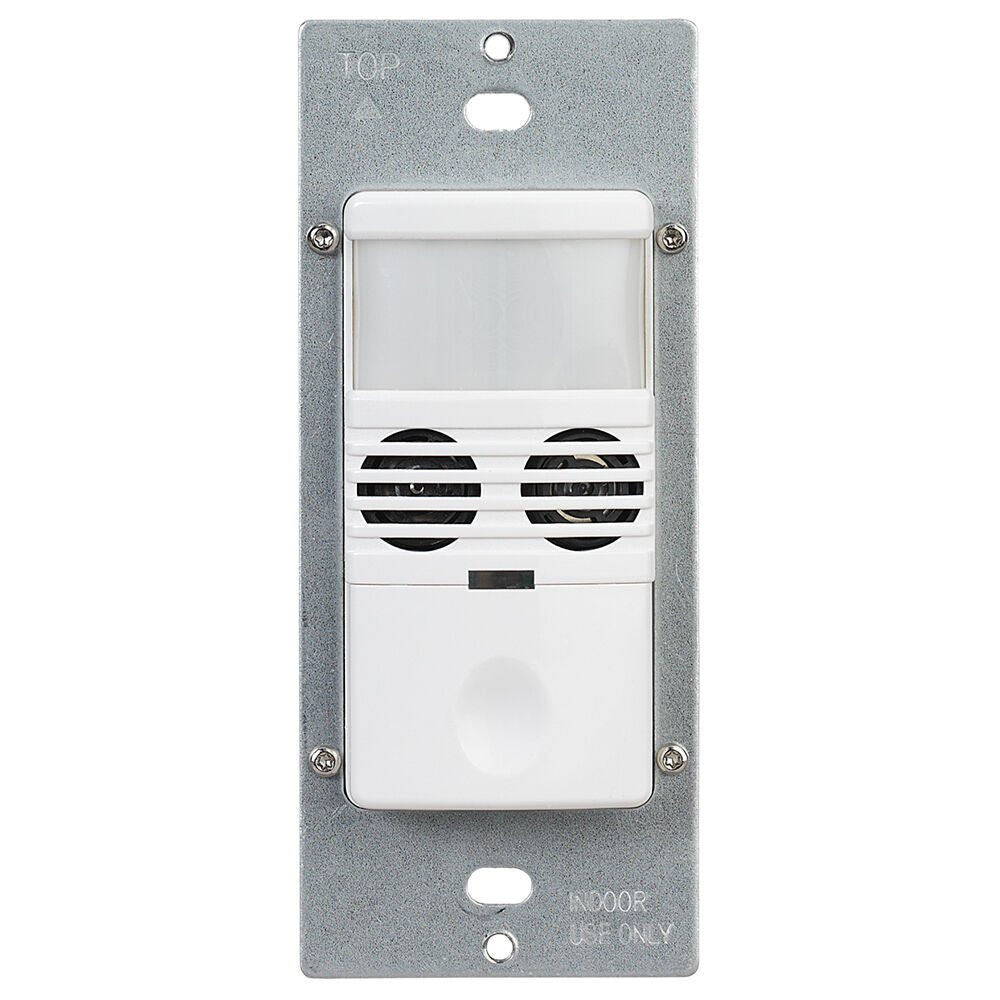

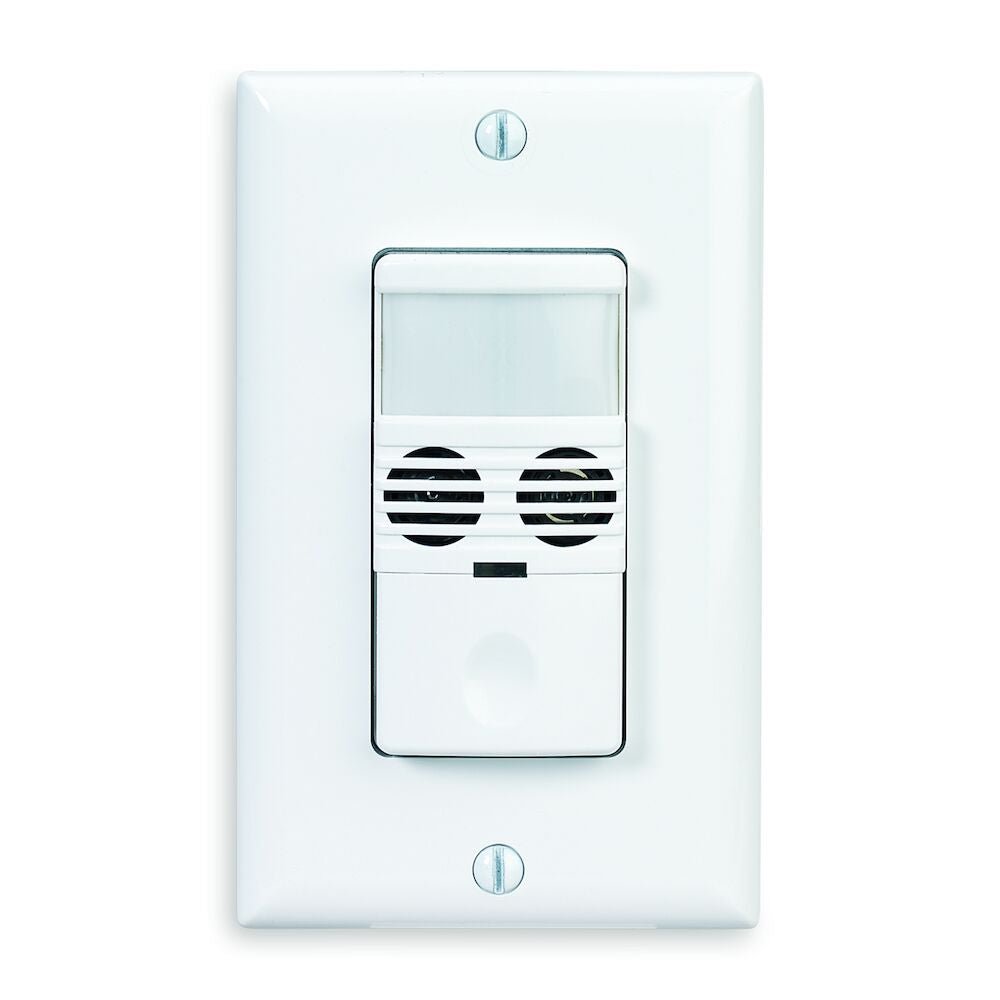

Intermatic IOS-DOV-DT In-Wall PIR/Ultrasonic Occupancy/Vacancy Sensor
Intermatic IOS-DOV-DT In-Wall PIR/Ultrasonic Occupancy/Vacancy Sensor
Regular price
$129.99
Regular price
$149.99
Sale price
$129.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Commercial Grade In-Wall Dual Tech Occupancy/Vacancy Sensor, White
The IOS-DOV-DT series Dual Technology Occupancy Sensors In-Wall sensor switch controls a load based on occupancy, vacancy and ambient light levels. It combines passive infrared (PIR) and ultrasonic technologies to help avoid false triggering while increasing presence detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either or both technologies detect occupancy. If no movement is detected for a user-specified time of 15 seconds to 30 minutes, the load is turned OFF. The sensor provides a 180° coverage pattern, up to 1200 ft2 (110m2) for PIR and 400 ft2 (37m2) for Ultrasonic sensor.
- Ultrasonic and Passive Infrared (PIR) sensing for presence detection, even in areas with partitions and/or with small movements
- Coverage: 180°, 1200 ft2 PIR, 400 ft2 Ultrasonic
- Zero-crossing technology for long life and performance
- Adjustable time delay
- Optional walk-through detection mode
- Adjustable ambient light sensor override
- Incandescent/Fluorescent/CFL/LED compatible
- Requires neutral connection
- Fits standard decorator wall plate (included)
- Adjustable Sensitivity Settings: 30% - 100%
Length (in.) | 2.625" |
Width (in.) | 1-5/16" |
Depth (in.) | 1.75" |
Lead Wire (In.) | 6.00" |
Weight (lbs) Each | .25 lbs |
Spec Sheet
Spec Sheet
Installation Instructions
Info
Type | Commercial Grade In-Wall Dual Tech Occupancy/Vacancy Sensor, White |
Senso/Switch type |
Occupancy; Vacancy |
Certifications | cULus Listed, Title 20 |
Technology | PIR (Passive Infrared); Zero-crossing |
Color | White (wall plate included) |
Adjustable Time Delay |
15 Sec-30 Min |
Ultrasonic Coverage Area (sq ft) | 400 |
PIR Coverage Area (sq ft) | 1200 |
Warranty | 5 Year Limited |
Additional Info
Load Type | Incandescent; Fluorescent; CFL; LED |
Mounting | In-Wall |
Maximum Mounting Height (ft) | 4 Feet |
PIR Coverage Pattern (degrees) | 180° |
Voltage | 120V |
Amp. Rating | 15 A |
Load Ratings
|
Electrical Specifications
|
