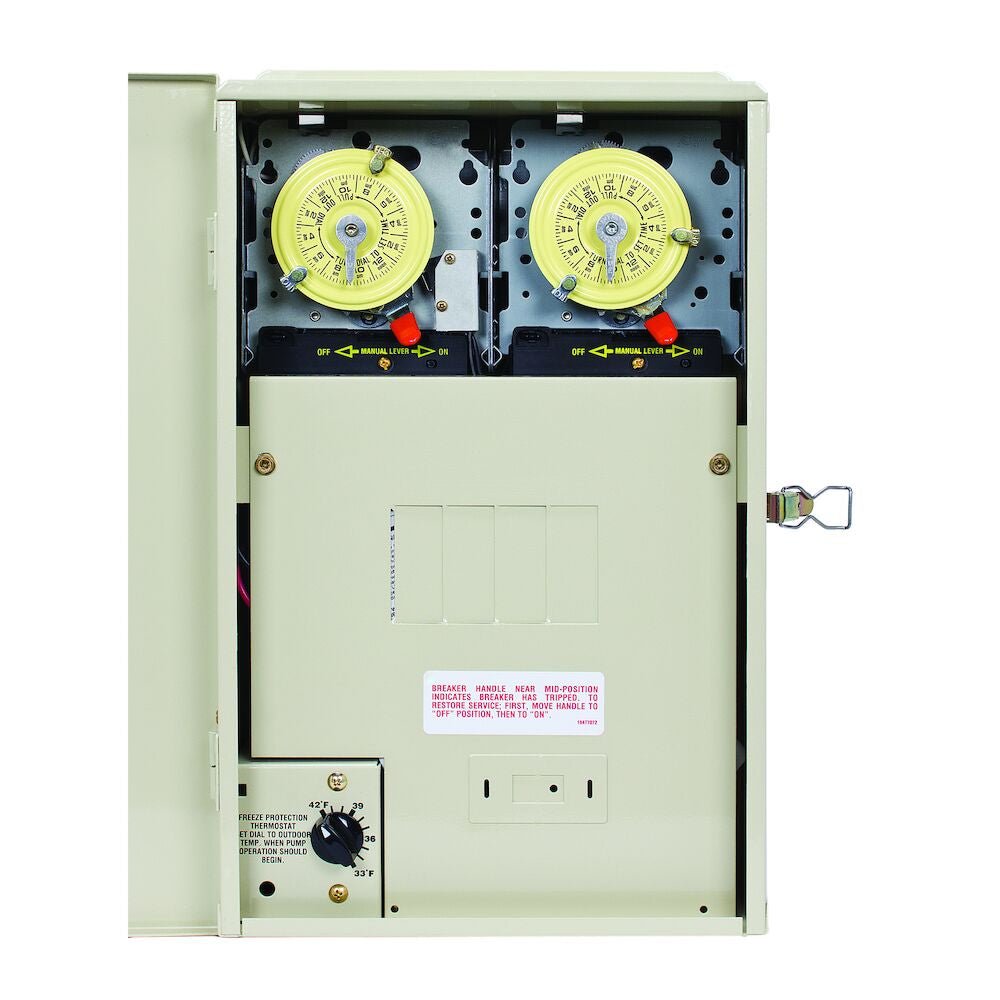

Intermatic PF1222TB1 2 Timer Freeze Protection 4/8 Breaker Base Panel and Thermostat 240V Cleaner Applications Heater Protection

Intermatic PF1222TB1 2 Timer Freeze Protection 4/8 Breaker Base Panel and Thermostat 240V Cleaner Applications Heater Protection

$599.99
$649.99 $599.99
Sale Sold out
Shipping calculated at checkout.

Freeze Protection 4/8 Breaker Base Panel with 2 Timers and Thermostat for 240V Cleaner Applications, Heater Protection, Type 3R Metal Enclosure

Protects pool/spa equipment against freeze damage

  • GFCI and switch mounting capabilities
  • Turns pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat
  • Heavy-duty Type 3R metal indoor/outdoor enclosure
    Height (in.) 16.875"
    Width (in.) 10.875"
    Depth (in.) 4.750"
    Weight (lbs) Each 18.8 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions


    Info
    Type Pool/Spa Freezing/Heating Protection
    Certifications cCSAus
    Operation Mode 24 Hour
    Enclosure Type Outdoor type 3R plastic
    Warranty 1 Year Limited


    Additional Info
     Load Ratings
    Motor 3 HP, 240 VAC, 60 Hz
    Load Center Rating Display 60 A Max, 120/240 VAC, Single Phase, 60 Hz
     Electrical Specifications
    Heater Protection Switch
    		Yes
    Number of Circuits  2
    Switch Type  DPST
    Maximum Power Consumption (W)  3 W
    Number of Receptacle/Switch Knockouts 1
    Number of Breaker Knockouts 4
