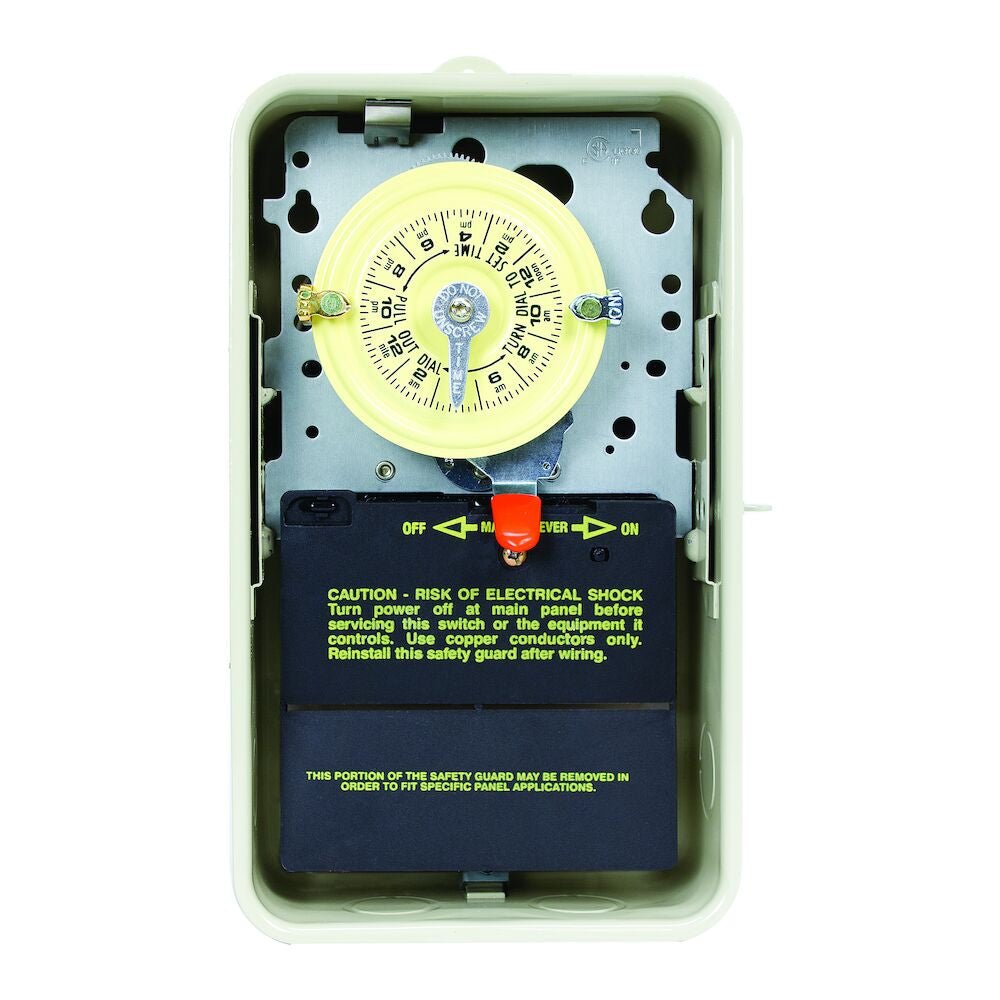

Intermatic T101R3 24-Hour 120V Mechanical Time Switch

Intermatic T101R3 24-Hour 120V Mechanical Time Switch

$149.99
$199.99 $149.99
Sale Sold out
Shipping calculated at checkout.

24-Hour 120V Mechanical Time Switch, SPST, Type 3R Metal Enclosure

Heavy-duty mechanical time switches control a single load

  • Highest motor load ratings in the industry
  • 12 ON/OFF operations per day
  • One ON and one OFF tripper included
  • Available with pool heater protection
  • Teeter-type terminals for multiple load connections
    Length (in.) 10.125"
    Width (in.) 6.50"
    Depth (in.) 3.265"
    Knockout Dimensions Bottom  (2) 1/2" and 3/4"
    Knockout Dimensions Back  1/2" and 3/4" combination
    Weight (lbs) Each 3.5 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions


    Info
    Type 24 Hour Mechanical Timer
    Certifications cULus Listed, cSA Certified
    Operation Mode 24 Hour
    Application Compatibilities  LED
    Enclosure Type Outdoor type  3R metal
    Warranty 1 Year Limited


    Additional Info
     Load Ratings
    Tungsten Range(s) 40 A, 120-240 VAC, 60 Hz
    Electronic Ballast Load Ratings Ranges  16 A, 120 VAC
    Inductive 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
    Motor 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz

     Electrical Specifications
    Heater Control Output
    		 10 A, 250 VAC MAX, 60 Hz
    Wiring Option Terminals
    Input Voltage Range(s) 120 VAC, 60 Hz
    Number of Circuits  1
    Switch Type  SPST
    Maximum Power Consumption (W)  3 W
