KICHLER 12V 1.5W/3W 100/200 Lumen LED Mini All-Purpose Recessed Light 27K/30K
KICHLER 12V 1.5W/3W 100/200 Lumen LED Mini All-Purpose Recessed Light 27K/30K
Couldn't load pickup availability

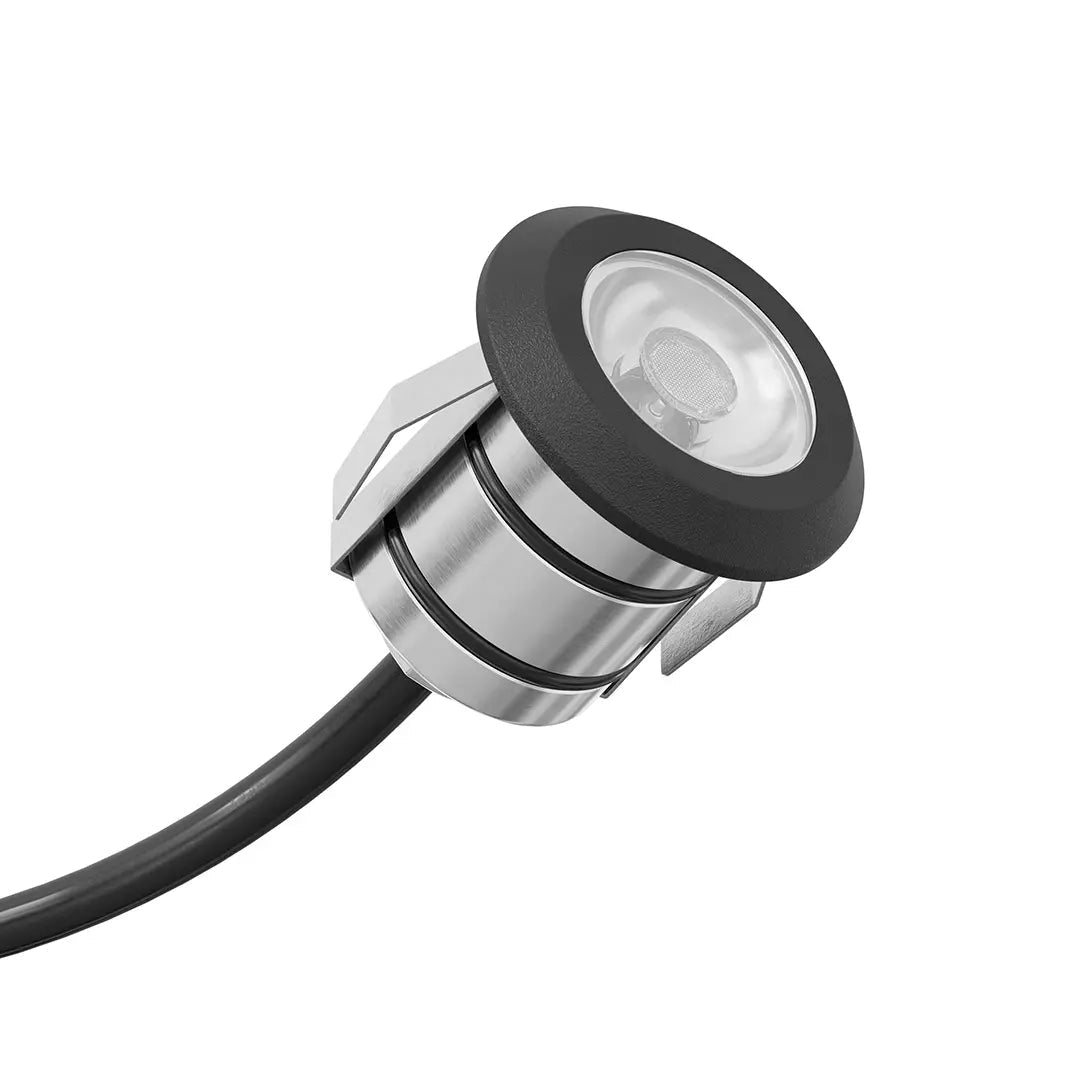

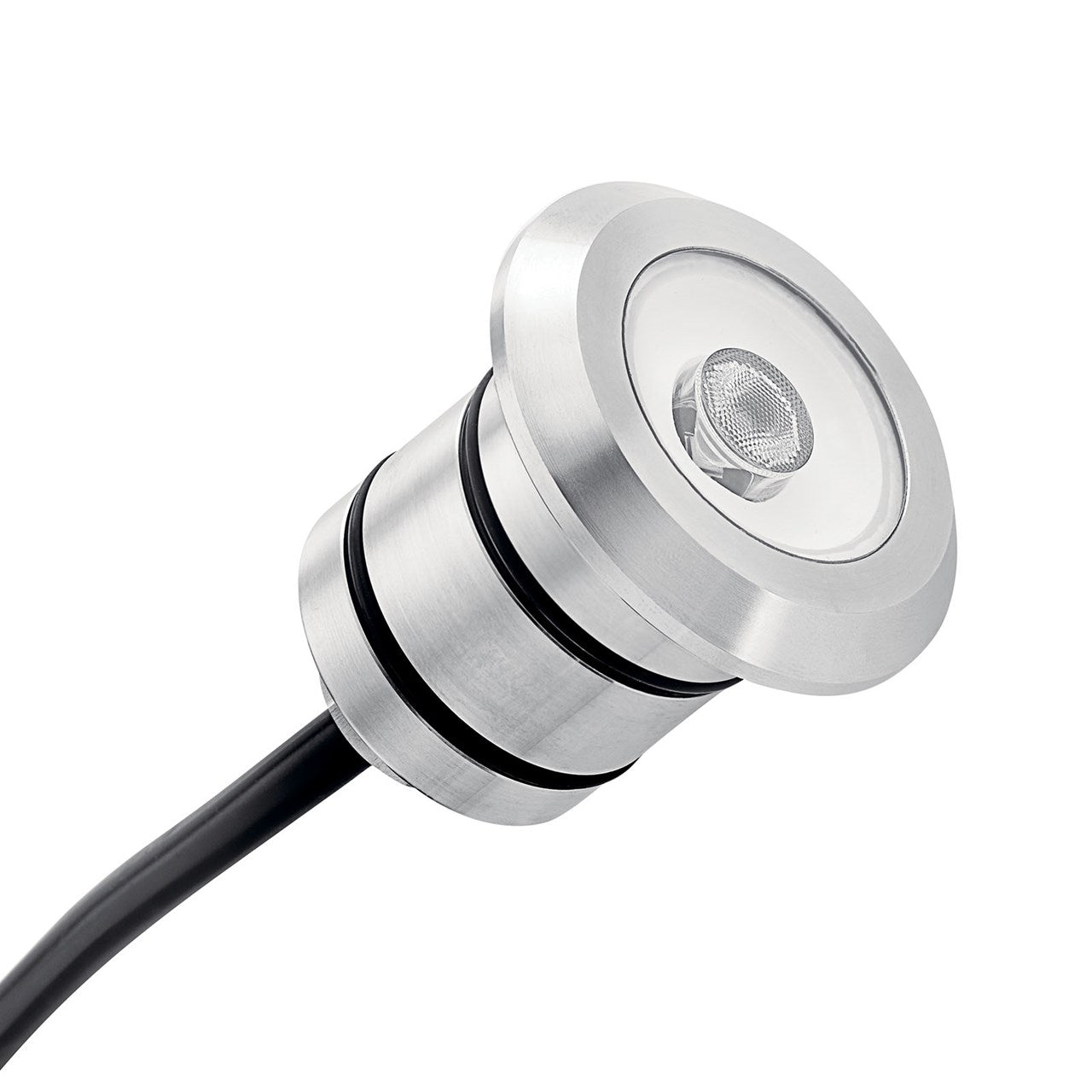

12V 27K/30K 100/200 Lumen LED Mini All-Purpose Recessed Light

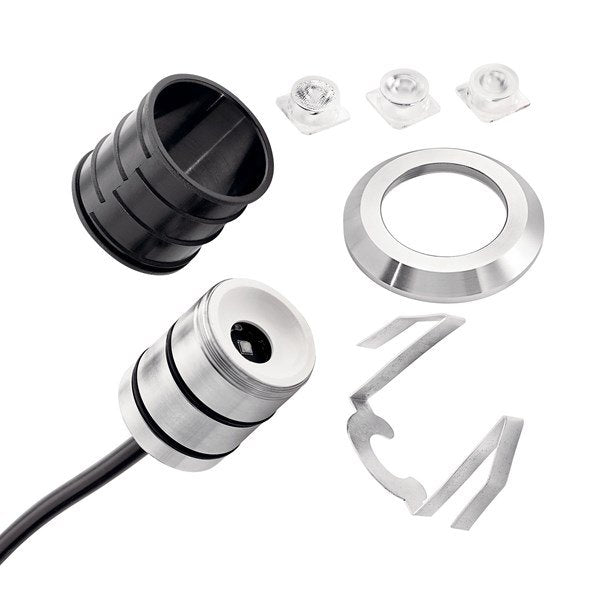

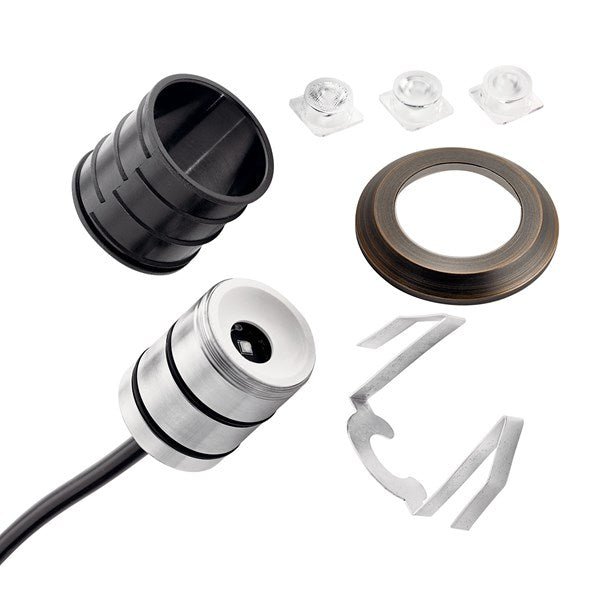

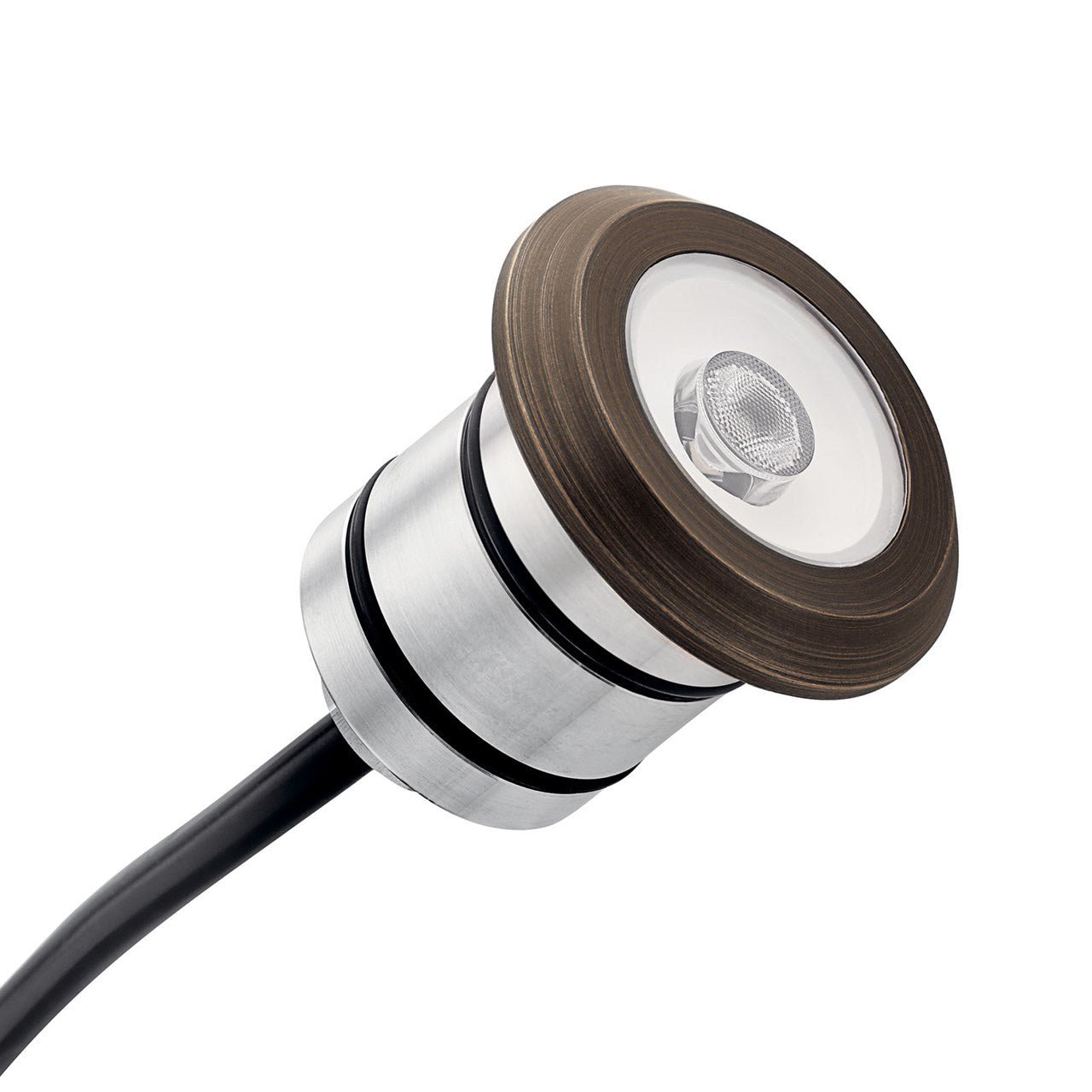

The 12V integrated LED All-Purpose Recessed fixture provides the performance and reliability you need for your next project or installation. This fully sealed and encapsulated fixtures have 100/200 lumen output with a 27K/30K CCT, and comes in a Centennial Brass (CBR) finish or a Stainless Steel (SS) finish. The three field changeable beam optics are included with each fixture: 20-, 40- (factory installed), and 75-degrees allow you to put light where you want it. A removable spring clip and compression sleeve adapt to a wide variety of applications for seamless installation. IP68 rated against dust and water ingression. Additional features include a 6000kV surge protection built-in to guard against power irregularities and a 9-15-volt operating range.

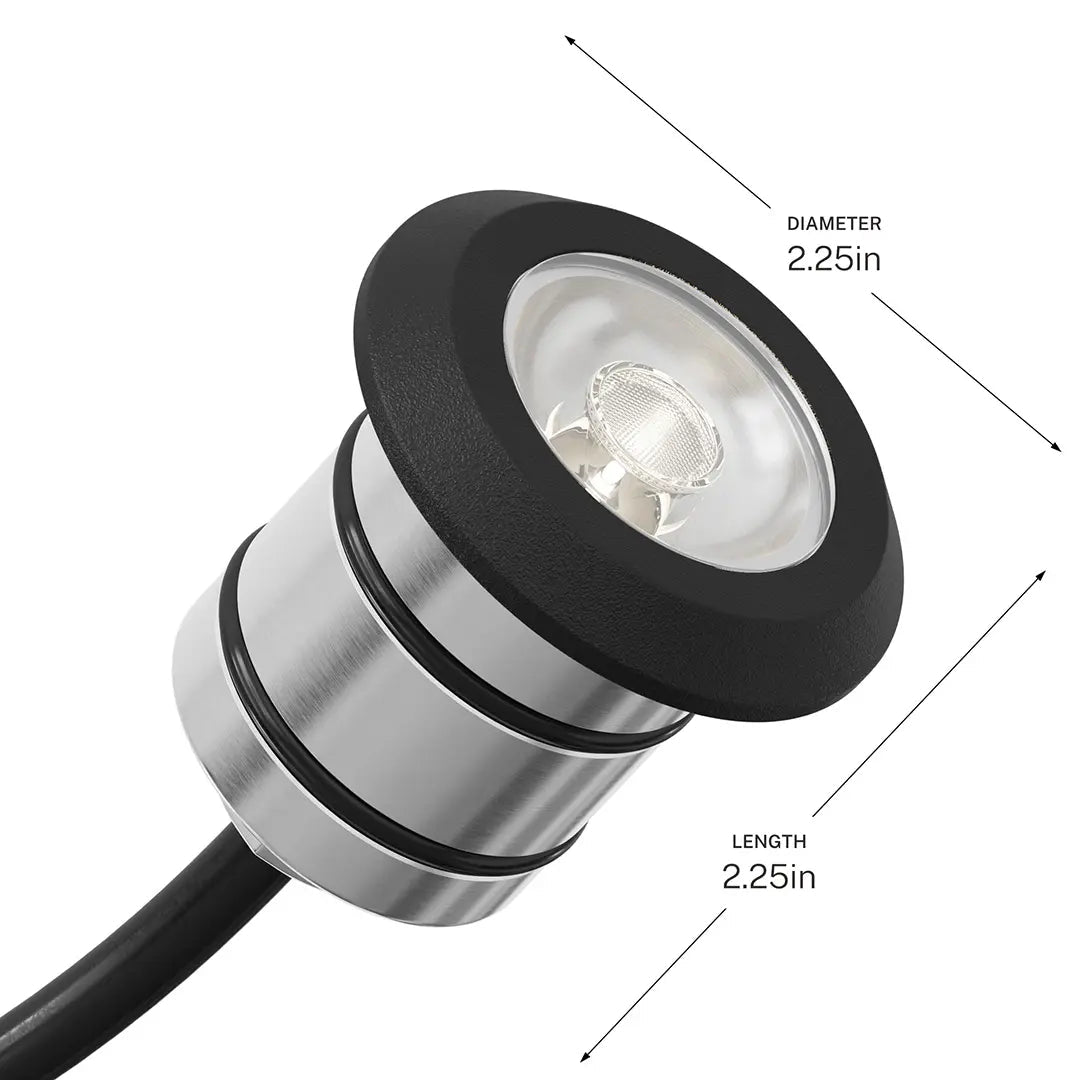

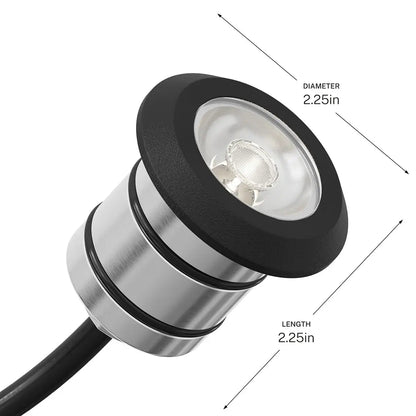

| Dimensions | |
|---|---|
| Height | 2.25" |
| Width | 2.25" |
| Electrical | |
| Operating Voltage Range | 9-15 VAC |
| Voltage | 12V |
Spec Sheets
| Spec Sheets |
||
|---|---|---|
| Color | 100 Lumen | 200 Lumen |
| 27K | Stainless Steel/Brass | Stainless Steel/Brass |
| 30K | Stainless Steel/Brass | Stainless Steel/Brass |
Installation Instructions
Info
| Housing | |
|---|---|
| Primary Material | Stainless Steel |
| Light Source | |
| Delivered Lumens | 100L/200L |
| Expected Life Span (Hours) | 50000 |
| Lamp Included | Integrated |
| Light Source | LED |
| # of Bulbs/LED Modules | 1 |
| Max Wattage/Range |
100L 1.5W 200L 3.3W |
| Volt-Amperes (VA) | 3.50 |
| Mounting/Installation | |
| Lead Wire Length | 72" |
| Location Rating | Wet |
| Wire Connectors | Wire Nuts |
| Photometrics | |
| Color Rendering Index | 80 |
| Kelvin Temperature | 27K/30K |
