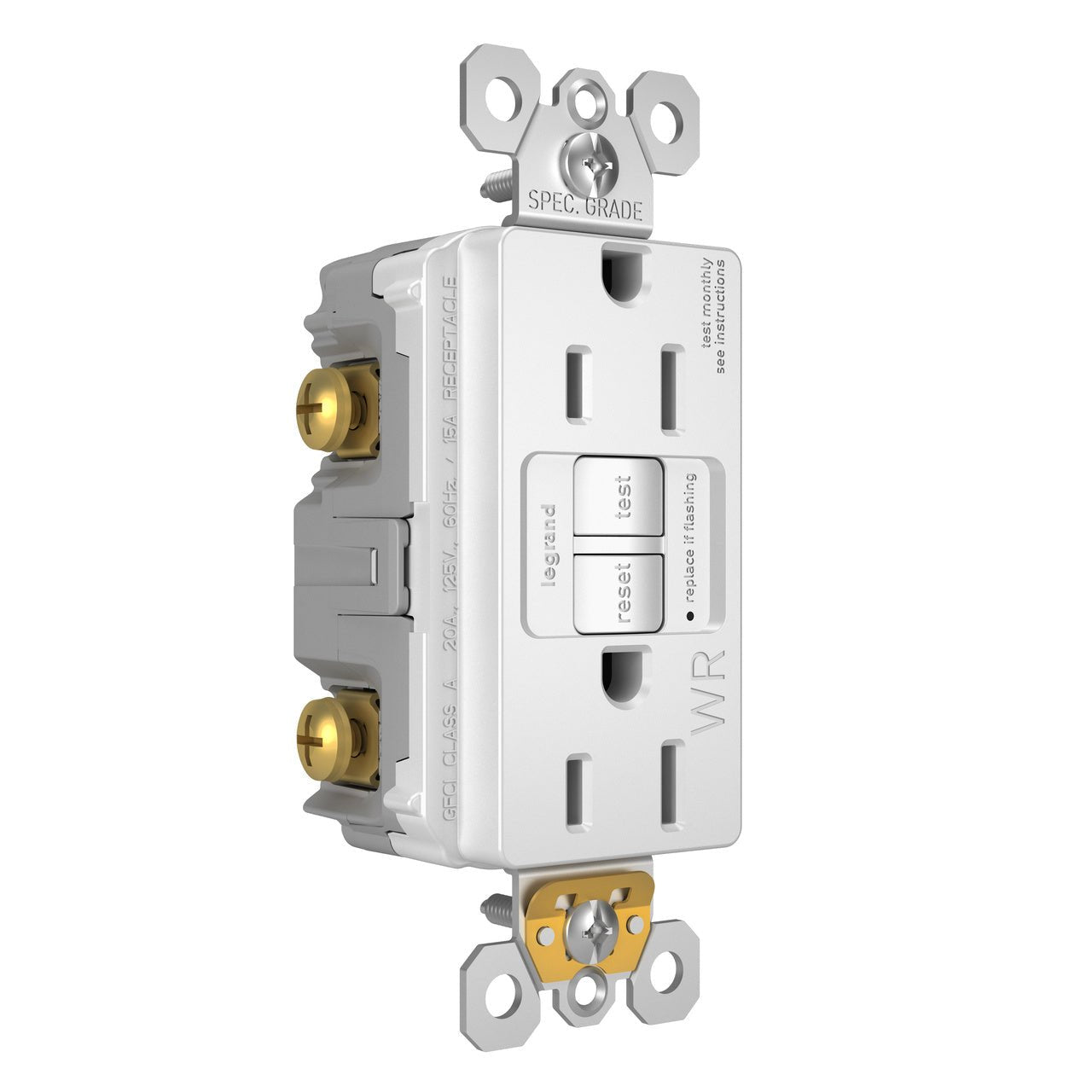

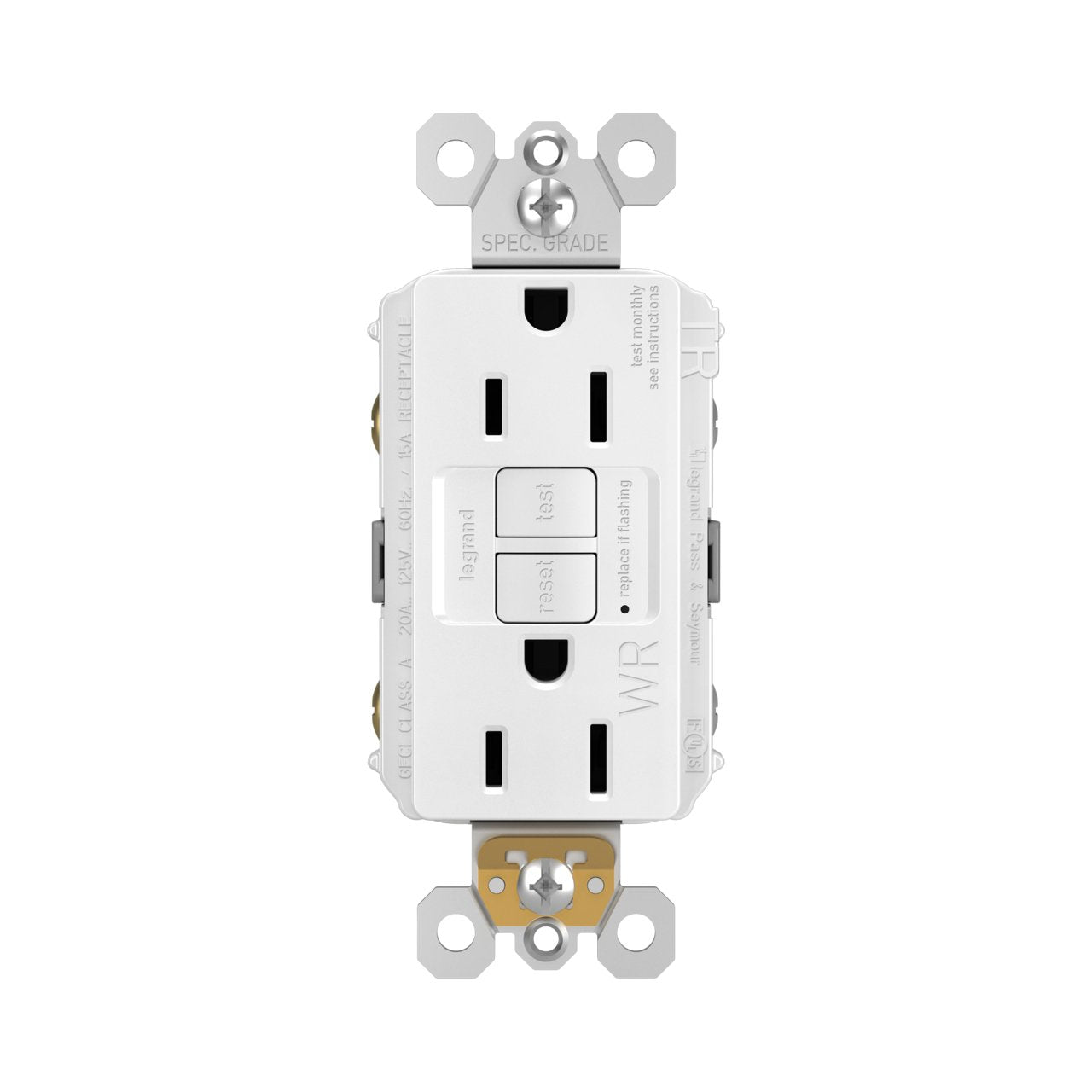

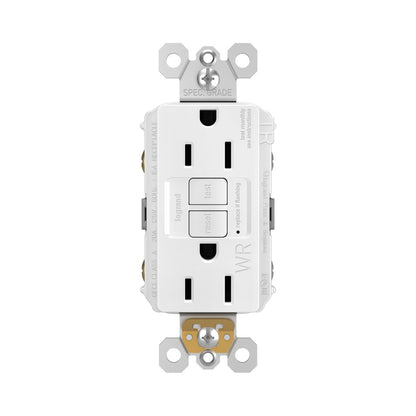

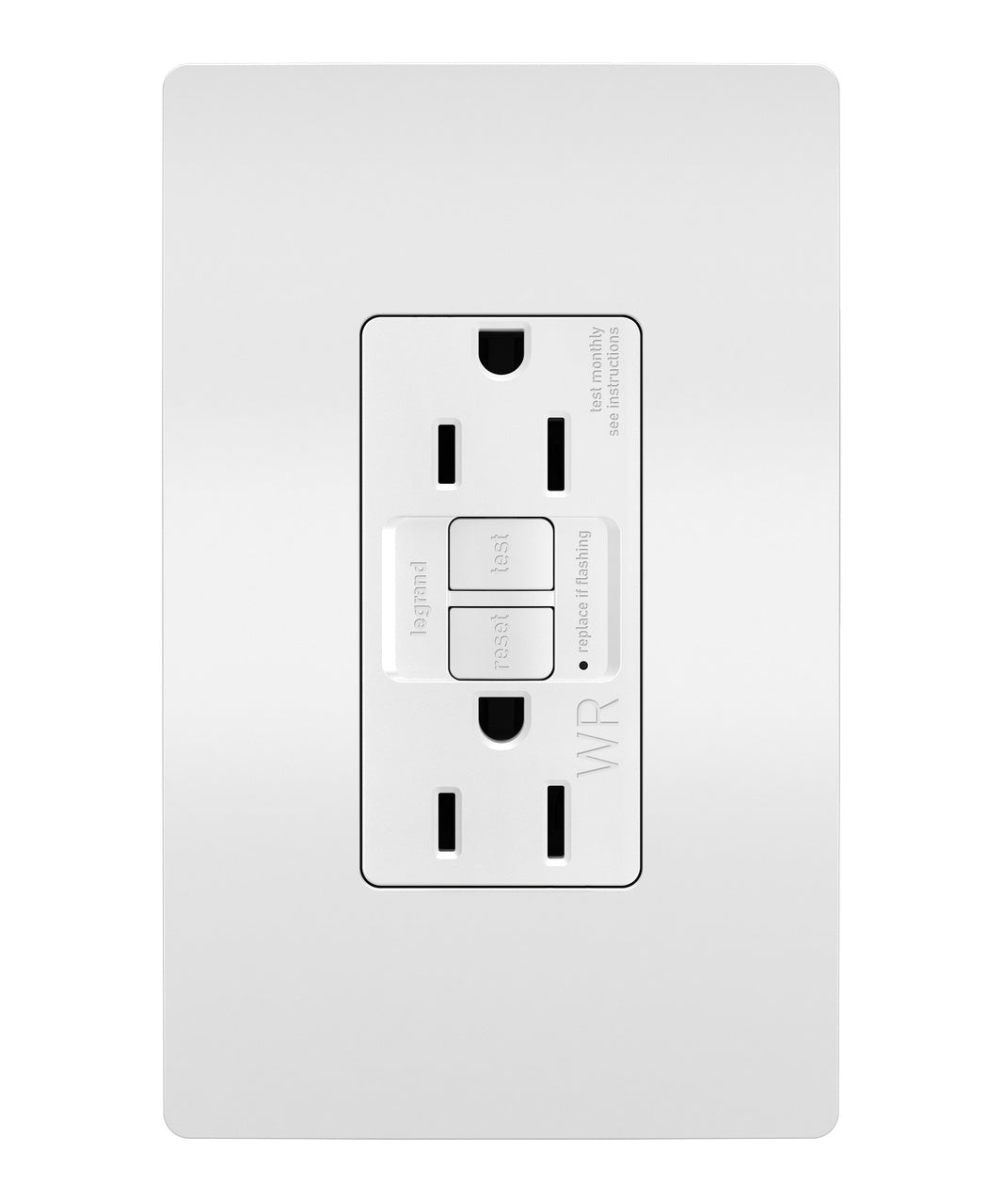

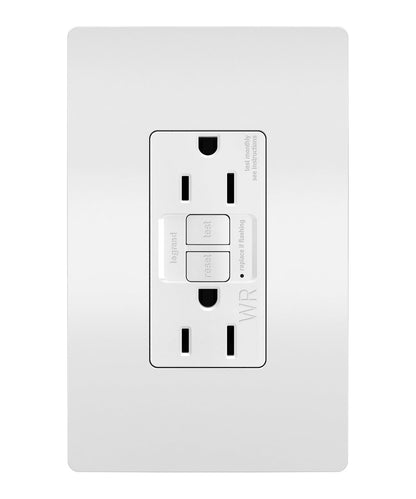

Legrand 1597TRWRW radiant® Spec Grade 15A Weather Resistant Self Test GFCI Receptacle

Legrand 1597TRWRW radiant® Spec Grade 15A Weather Resistant Self Test GFCI Receptacle

Regular price $27.99
Regular price $33.99 Sale price $27.99
Sale Sold out
Shipping calculated at checkout.

15A Tamper Weather Resistant Self Test GFCI Receptacle

Maximize safety & style with GFCI receptacles from the radiant® Collection. Ideal for outdoor areas like decks, patios & pool areas, each self-test every 3 seconds to ensure reliable protection from shock & ground fault. Meets National Electrical Code requirements for GFCI protection & tamper & weather resistance. Required by code for bathrooms, kitchens, garages, basements, & other spaces near sinks & water sources. Replace existing GFCI outlets safely with this spec-grade model, designed for use with screwless Wall Plates (sold separately).

  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to "downstream" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas. *Must be installed in weatherproof enclosure per NEC requirements.
  • Replaces any standard receptacle with ease, in as little as 10 minutes.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
Product Width US 1.73 in
Product Depth US 1.03 in
Product Height US 4.2 in
Spec Sheet

Spec Sheet

Product Line Pass & Seymour
Color White
Finish Matte
Number of Receptacles 2
Outlet Type Residential, Outdoor, GFCI, Weather-Resistant, Self-Test
Application Sector Residential/Commercial
Standard cULus, UL Listed, FSUL
Warranty Type 1-Year Limited Warranty
Type Outlet

Additional Info
cULus Listed  Yes
Interrupt Rating 4 A
Frequency Rating 60 Hz
Trip Range 4 to 6 mA
Number of Gangs 1
Amperage 15 A
Number of Poles Double Pole
Indoor/Outdoor Outdoor
NEMA Configuration Code 5-15R
Mounting Type Box
Voltage 125 VAC
Environmental Conditions 95% Humidity, UL 94 V2
