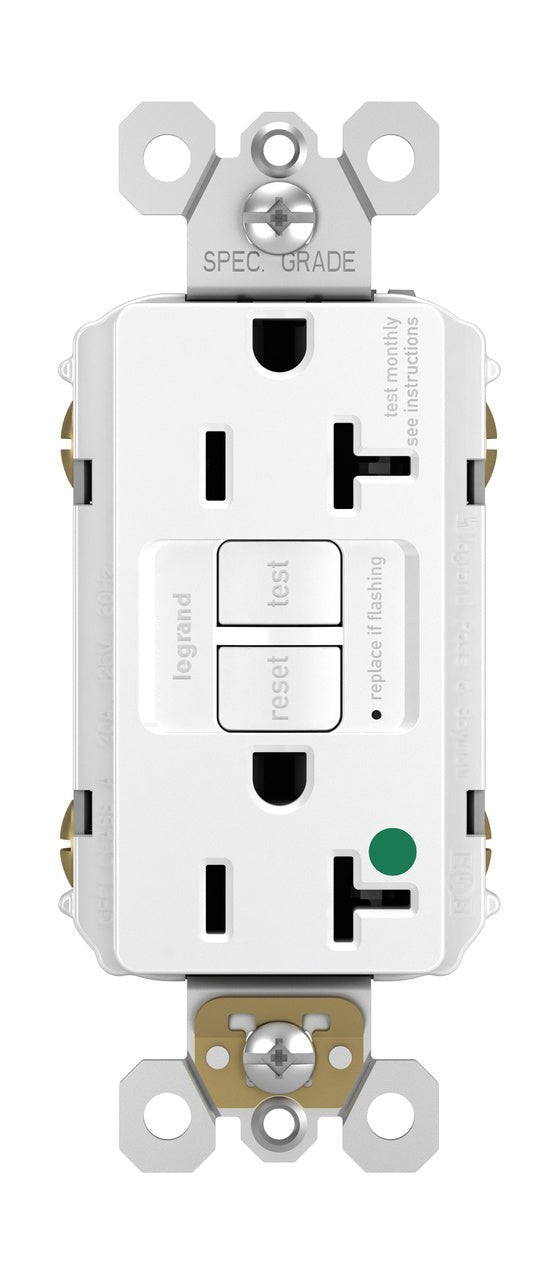

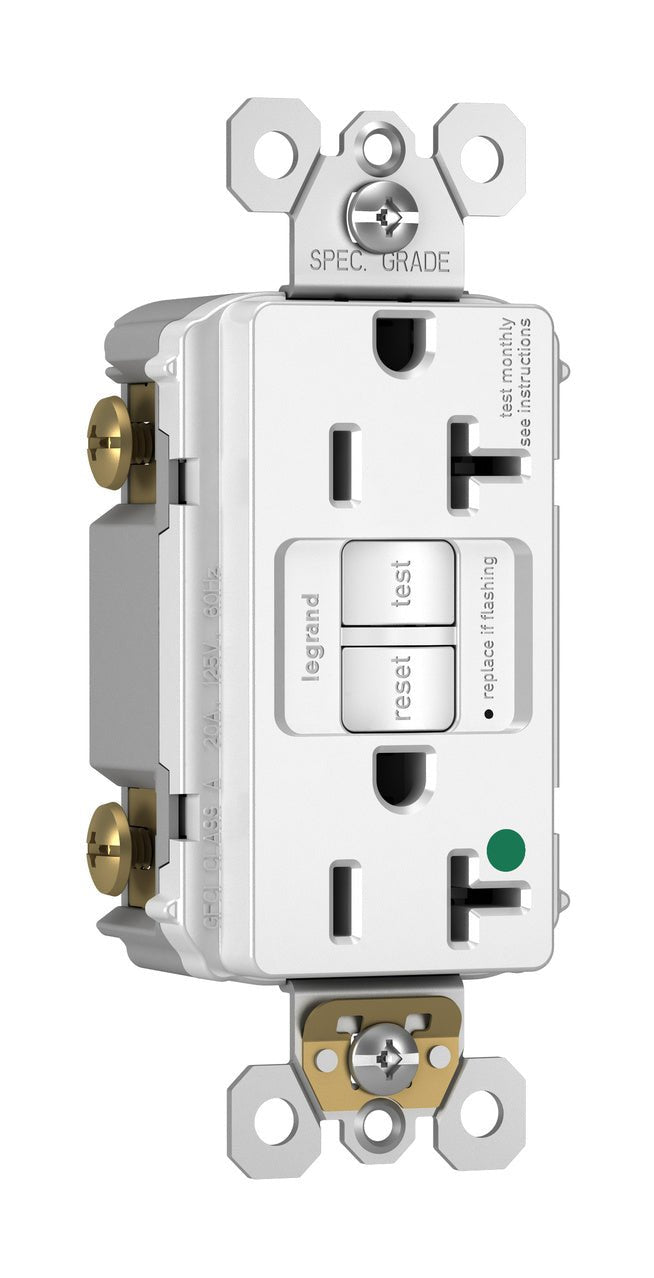

Legrand 2097HGW Hospital Grade 20A Duplex Self-Test GFCI Receptacle
Legrand 2097HGW Hospital Grade 20A Duplex Self-Test GFCI Receptacle
Regular price
$31.99
Regular price
$32.99
Sale price
$31.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Hospital Grade 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection,
Pass & Seymour® Hospital Grade Self-Test GFCI receptacle with SafeLock® Protection. Automatic three-second self-testing with indicator light alerts you to protection failures. SafeLock® automatically disconnects power if internal components are damaged, ensuring fail-safe operation. Tamper-resistant design protects children. Easy 10-minute installation. cULus and UL listed for residential and commercial applications.
- GFCI receptacles protect from shock due to ground-fault incidents, and feature a reset button for easy fix of trips. In contrast to circuit breakers, these are conveniently located on the device.
- The receptacle conducts a 3-second self-test, considered a gold standard in the industry, and its indicator light will flash to warn of failure..
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- GFCI protection extends to outlets in a feed-thru wiring configuration. Incorrect wiring will cut power to face and downstream outlets.
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect.
- Replaces any standard receptacle with ease, in as little as 10 minutes.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Spec Sheet
Spec Sheet
Info
| Width (In.) | 1.73 in |
| Depth (In.) | 1.03 in |
| Height (In.) | 4.2 in |
| Product Line | Pass & Seymour |
| Color | White |
| Finish | Matte |
| Number of Receptacles | 2 |
| Outlet Type | GFCI, Hospital Grade |
| Application Sector | Commercial, Healthcare |
| Standard | cULus, UL Listed, FSUL |
| Warranty Type | 1-Year Limited Warranty |
| Type | Outlet, Self-Test |
Additional Info
| cULus Listed | Yes |
| Interrupt Rating | 4 A |
| Frequency Rating | 60 Hz |
| Trip Range | 4 to 6 mA |
| Number of Gangs | 1 |
| Amperage |
20 A
|
| Number of Poles | Double Pole |
| Indoor/Outdoor | Indoor |
| NEMA Configuration Code | 5-20R |
| Mounting Type | Box |
| Voltage | 125 VAC |
