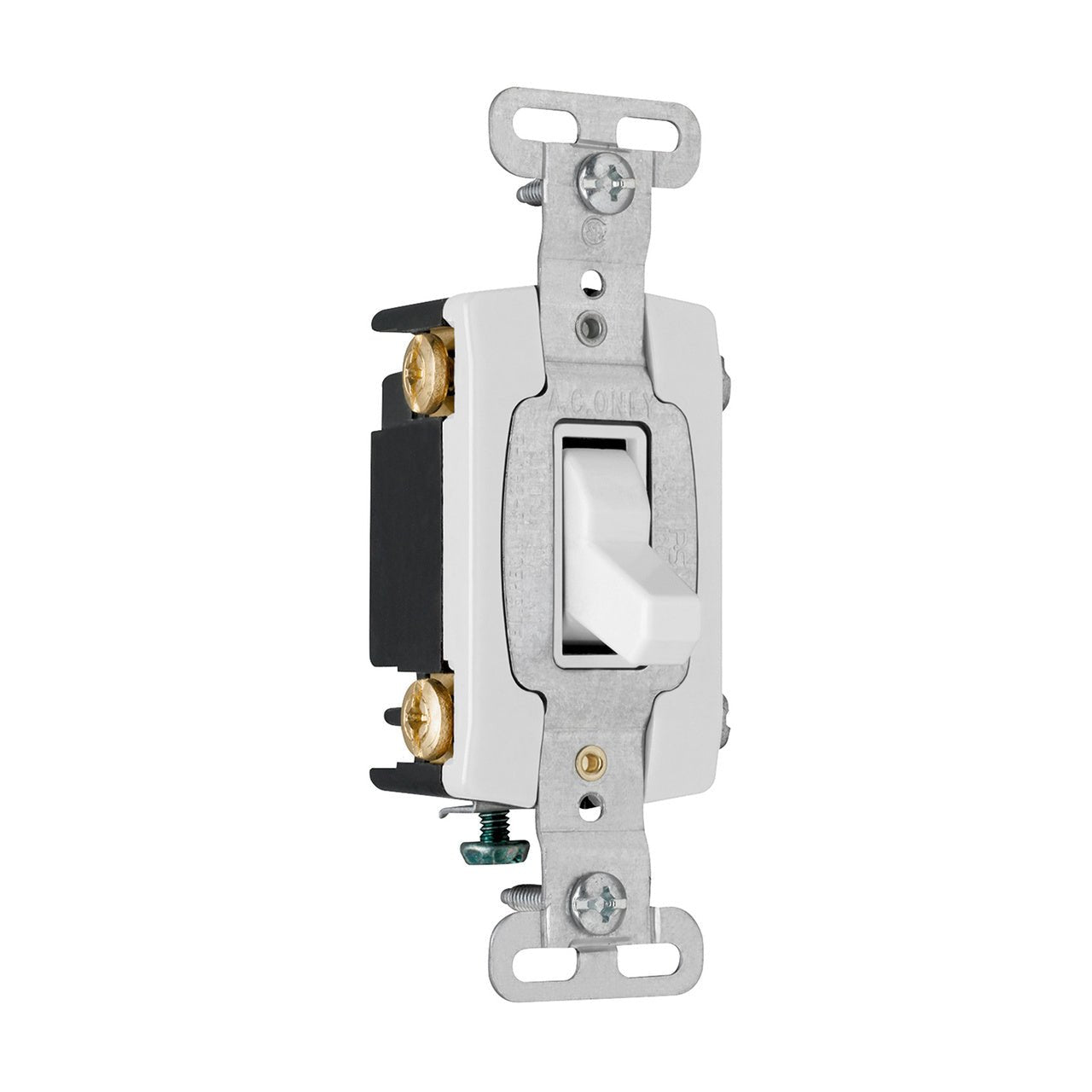

Legrand CSB20AC4W Commercial Specification Grade Switch 4-Way

Legrand CSB20AC4W Commercial Specification Grade Switch 4-Way

Regular price $19.99
Regular price $23.99 Sale price $19.99
Sale Sold out
Shipping calculated at checkout.

Construction 4-Way Switch, Back and Side-Wire, 20A 120/277V

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see
Spec Sheet

Spec Sheet

Product Line Pass & Seymour
Color White
Application Sector Commercial
Standard UL 498/20

Additional Info
Actuator Toggle
Contact Rating 20Amp, 120/277Vac
Amperage 20 A
Action Four pole
Number of Poles 4-Way
Voltage 120 V
