Legrand Wiremold 20GB606 6' Plugmold Multioutlet System

Legrand Wiremold 20GB606 6' Plugmold Multioutlet System

Regular price $119.99
Regular price $74.99 Sale price $119.99
Sale Sold out
Shipping calculated at checkout.

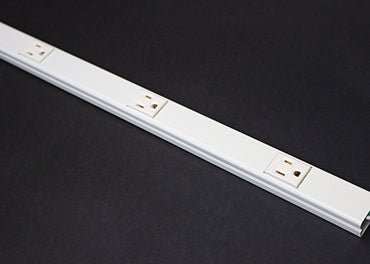

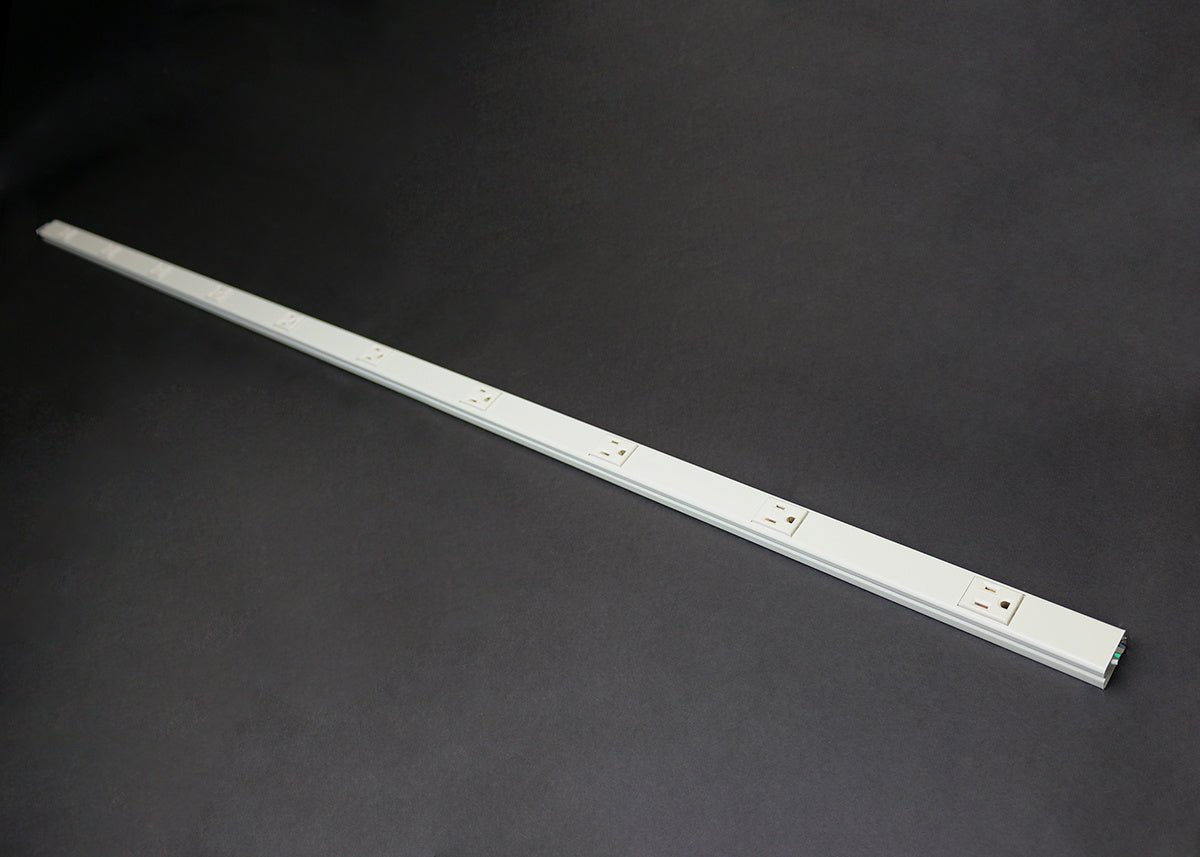

6' Plugmold® Multioutlet System

The Wiremold 2000 Series raceway offers a variety of steel, aluminum, and nonmetallic raceways, providing a flexible solution for multiple uses. Plugmold sections feature both single and alternating circuits, and come in standard or isolated ground receptacles. With its ScuffCoat finish, this system is tough against scratches and chips, ensuring long-lasting color durability.

  • Steel Raceway. Provides superior strength for any dry location installation.
  • Compact, low profile appearance. Requires minimal space.
  • Available in Ivory ScuffCoat or gray baked enamel finish. The durable ScuffCoat provides a durable, scratch-resistant finish while the gray baked enamel compliments the décor or can be painted.
  • Full range of fittings. Provides a complete wiring solution.
  • Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
  • Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 15A receptacles installed in cover. Ideal for short runs requiring additional outlets in electrically busy areas.
  • Single, alternating circuit, and isolated ground receptacles. Meets virtually any job requirement.
  • Choice of receptacle spacing. Center spacing between receptacles of 6'', 9'', 12'', and 18''.
  • Snapicoil harnesses of prewired receptacles in 48’ and 50’. Eliminates multiple splicing, speeding up installation on long runs.
  • Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12'', 18'' and 30''.
  • Customization available. All products can be modified to accommodate virtually any application.
  • This product meets the material restrictions of RoHS..
Product Height US 1.63"
Product Depth US 0.75"
Product Length US 72.00"

Spec Sheet

Cut Sheet

Installation Instructions


Product Line Wiremold
Color White
Country Of Origin United States
Number of Receptacles 12
Application Sector Residential/Commercial
Standard cULus Listed Multioutlet Assembly: File E15191 Guide PVGT/PVGT7
Type Plugmold

Additional Info
cULus Listing Number  E15191
cULus Listed  Yes
RoHS Conformant Yes, This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Product Environmental Profile Yes
Frequency Rating 60 Hz
Amperage 15 A
Enclosure Type Steel
Voltage 125 V
Environmental Conditions Dry interior locations
