Lithonia Lighting

Lithonia ESXF1 LED Floodlight Knuckle/Yoke Mount Selectable CCT/Lumen Output

Lithonia ESXF1 LED Floodlight Knuckle/Yoke Mount Selectable CCT/Lumen Output

Regular price $99.99
Regular price Sale price $99.99
Sale Sold out
Shipping calculated at checkout.
Color
Color Temperature
Mount

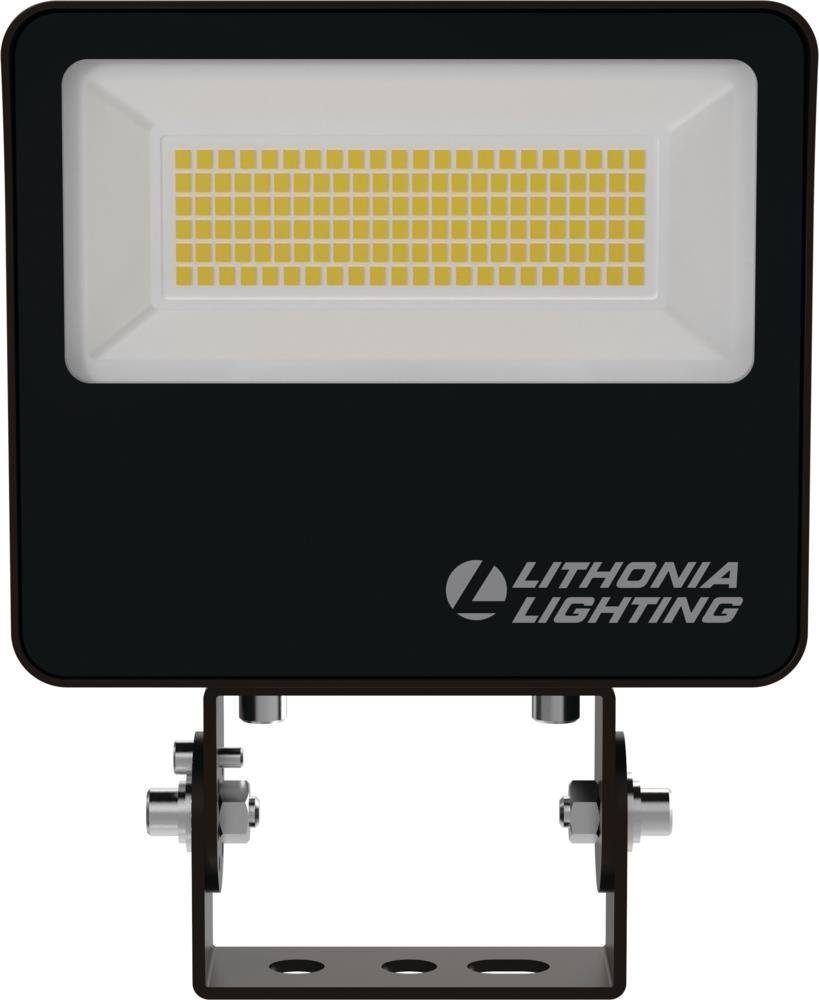

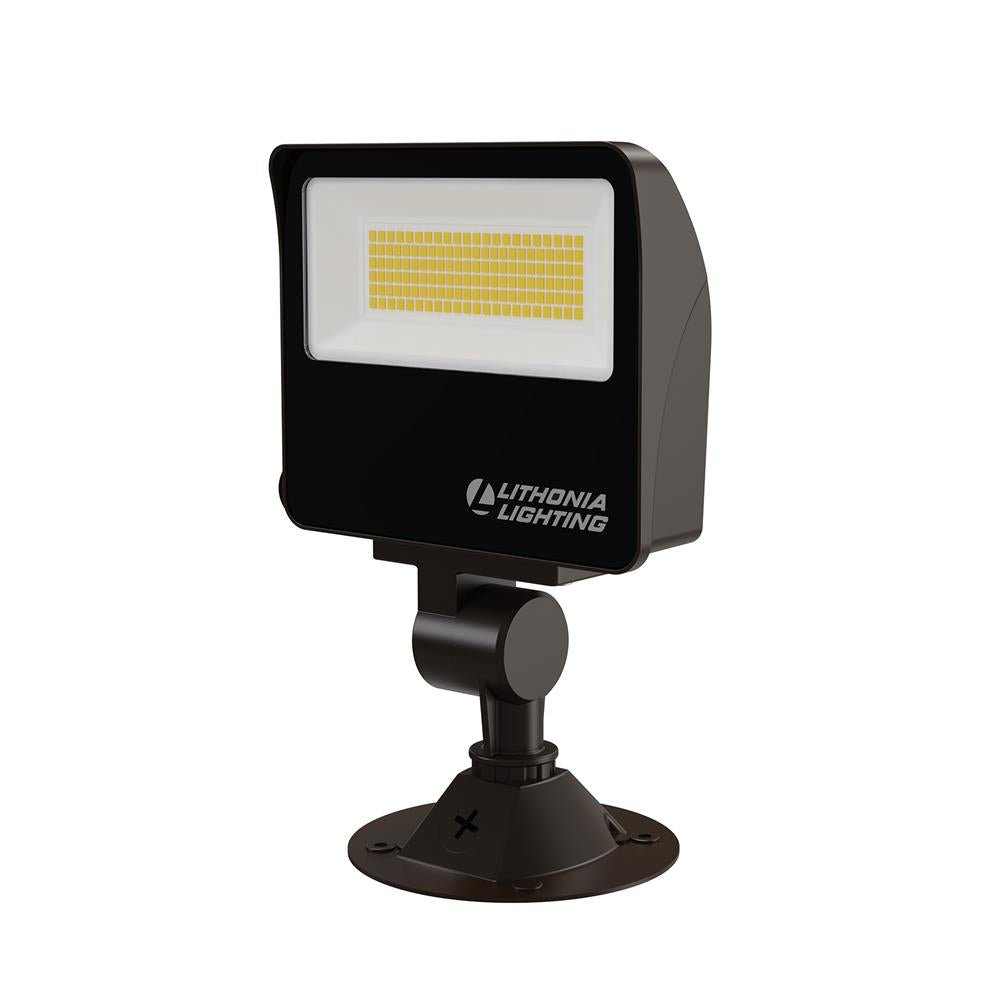

ESXF1 LED Floodlight

The Lithonia Lighting® ESXF1 LED floodlight is an all-in-one flood that gives ultimate versatility by offering 36 configurations in one product. Delivering superior illumination and also offers easy access to controls for color switching, lumen switching and selectable photocell. ESXF1 comes with the two most common mountings already included in the box, making on-the-spot reconfiguring quick and easy. No more go-backs!

The ESXF family has five sizes with lumen packages ranging from 1,500 to 50,000 lumens and are designed to replace 150W to 500W Quartz or 75W to 1000W HID floodlights. Suitable for both professionals and DIYers, these floodlights offer a wide flood distribution (7x7) and DLC Premium performance, making it a one-stop-shop for all floodlighting needs.
  • 1,500 to 5000 lumens
  • Three power levels of adjustable lumen output.
  • Switchable CCT(30K/40K/50K) offers warm, cool and daylight in a single fixture
  • Standard photocell can be turned on or off
  • IP66 rated, Die-cast aluminum housing
  • Two popular mounting options included
  • Up to 171 LPW
  • Very wide 7H x 7V NEMA distribution
  • Low profile and lightweight
Dimensions
Yoke Mount Knuckle Mount
Width 1.86" 1.86"
Length 7.65" 8.77”
Height 6.04" 6.04"
Spec Sheet

Spec Sheet

Installation Instructions

Info
Product Type  Floodlight
Selectable Wattage 9W/19W/34W
Switchable Lumen 3500-7500
Selectable CCT 3000K 4000K 5000K
CRI 80
L70 Lifespan 50,000
Housing Material Die-cast aluminum
Finish  Bronze, White
Mounting Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.
Style Knuckle, Yoke
Lens Tempered glass
Beam Angle NEMA Beam Spread of 7H x 7V
Additional Info



                                                Compliance
UL Listed IP66, Wet Location, cULus Listed
DLC Listed DLC Premium
                                                  Electrical
THD <20%.
Power Factor >90%
Dimming 0-10V
Voltage
120-277
