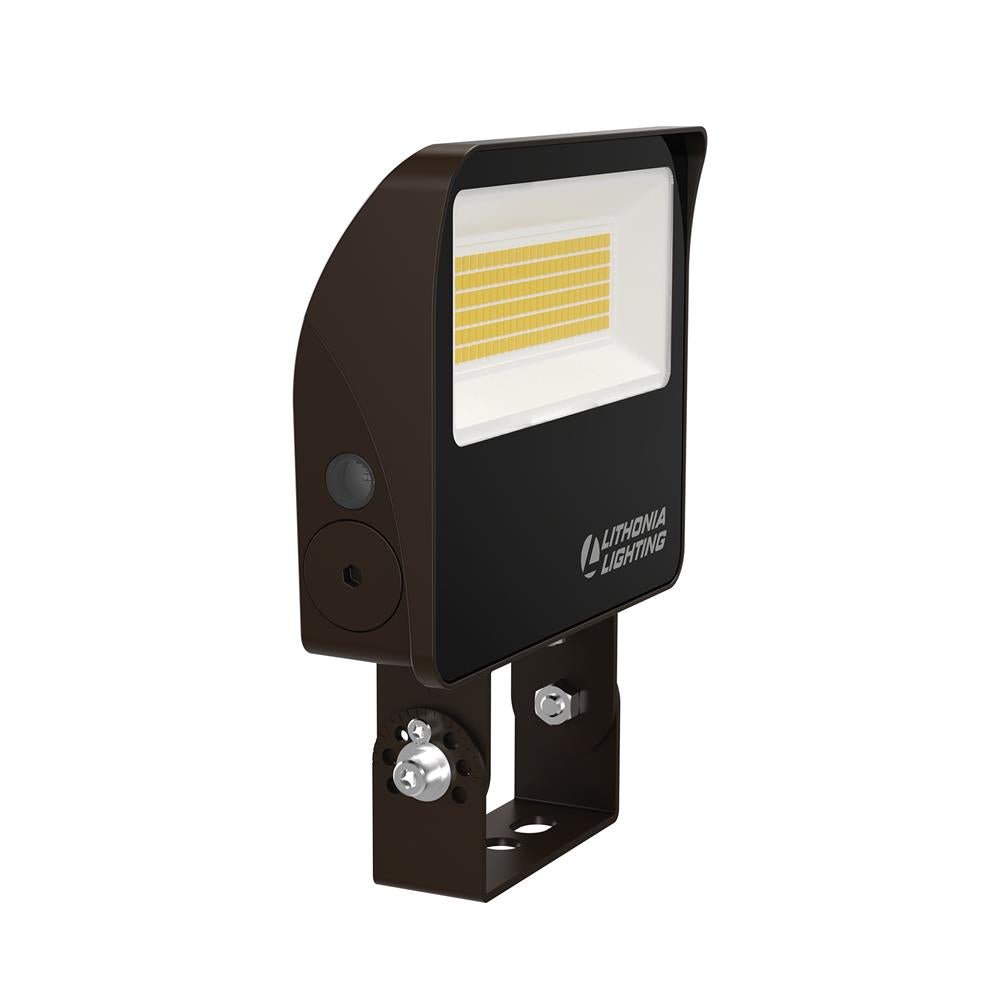

Lithonia ESXF2 LED Flood Light Knuckle/Yoke Mount Selectable CCT/Lumen Output
Lithonia ESXF2 LED Flood Light Knuckle/Yoke Mount Selectable CCT/Lumen Output
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
ESXF2 LED Floodlight
The Lithonia Lighting® ESXF2 LED Floodlight is an all-in-one flood that gives ultimate versatility by offering 36 configurations in one product. Delivering superior illumination and also offers easy access to controls for color switching, lumen switching and selectable photocell. ESXF2 comes with the two most common mountings already included in the box, making on-the-spot reconfiguring quick and easy. No more go-backs!
The ESXF family has five sizes with lumen packages ranging from 1,500 to 50,000 lumens and are designed to replace 150W to 500W Quartz or 75W to 1000W HID floodlights. Suitable for both professionals and DIYers, these floodlights offer a wide flood distribution (7x7) and DLC Premium performance, making it a one-stop-shop for all floodlighting needs.
The ESXF family has five sizes with lumen packages ranging from 1,500 to 50,000 lumens and are designed to replace 150W to 500W Quartz or 75W to 1000W HID floodlights. Suitable for both professionals and DIYers, these floodlights offer a wide flood distribution (7x7) and DLC Premium performance, making it a one-stop-shop for all floodlighting needs.
- 3,500 to 7,500 lumens
- Three power levels of adjustable lumen output.
- Switchable CCT(30K/40K/50K) offers warm, cool and daylight in a single fixture
- Standard photocell can be turned on or off
- IP66 rated, Die-cast aluminum housing
- Two popular mounting options included
- Up to 171 LPW
- Very wide 7H x 7V NEMA distribution
- Low profile and lightweight
| Dimensions |
Yoke Mount | Knuckle Mount |
| Width | 6.75" | 6.75" |
| Length | 8.64" | 9.75” |
| Height | 6.16" | 6.16" |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Product Type | Floodlight |
| Selectable Wattage | 22W/37W/56W |
| Switchable Lumen | 3500-7500 |
| Selectable CCT | 3000K 4000K 5000K |
| CRI | 80 |
| L70 Lifespan | 50,000 |
| Housing Material | Die-cast aluminum |
| Finish | Bronze, White |

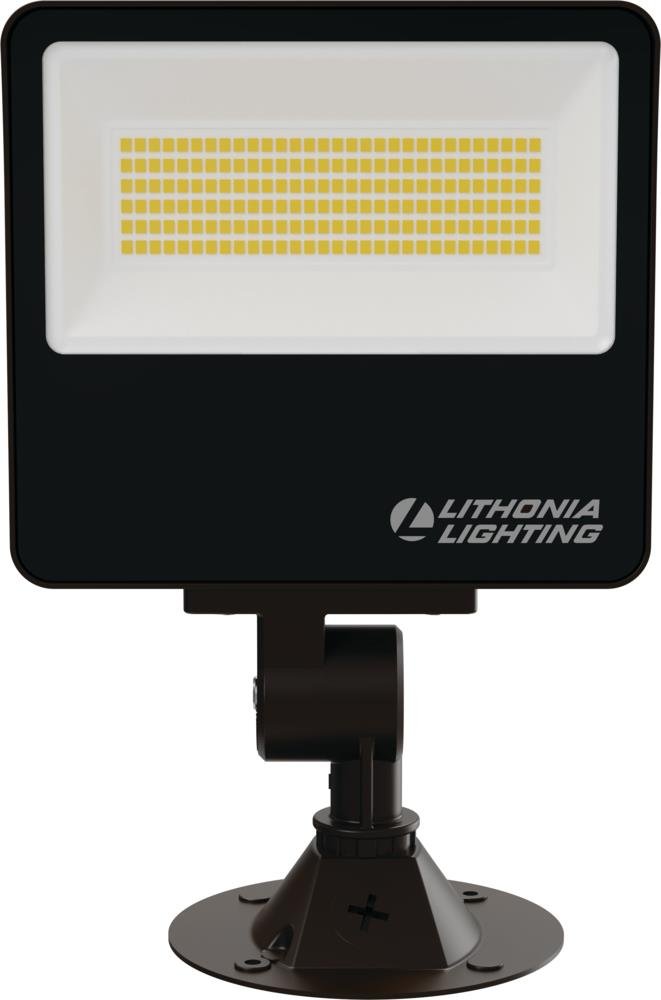

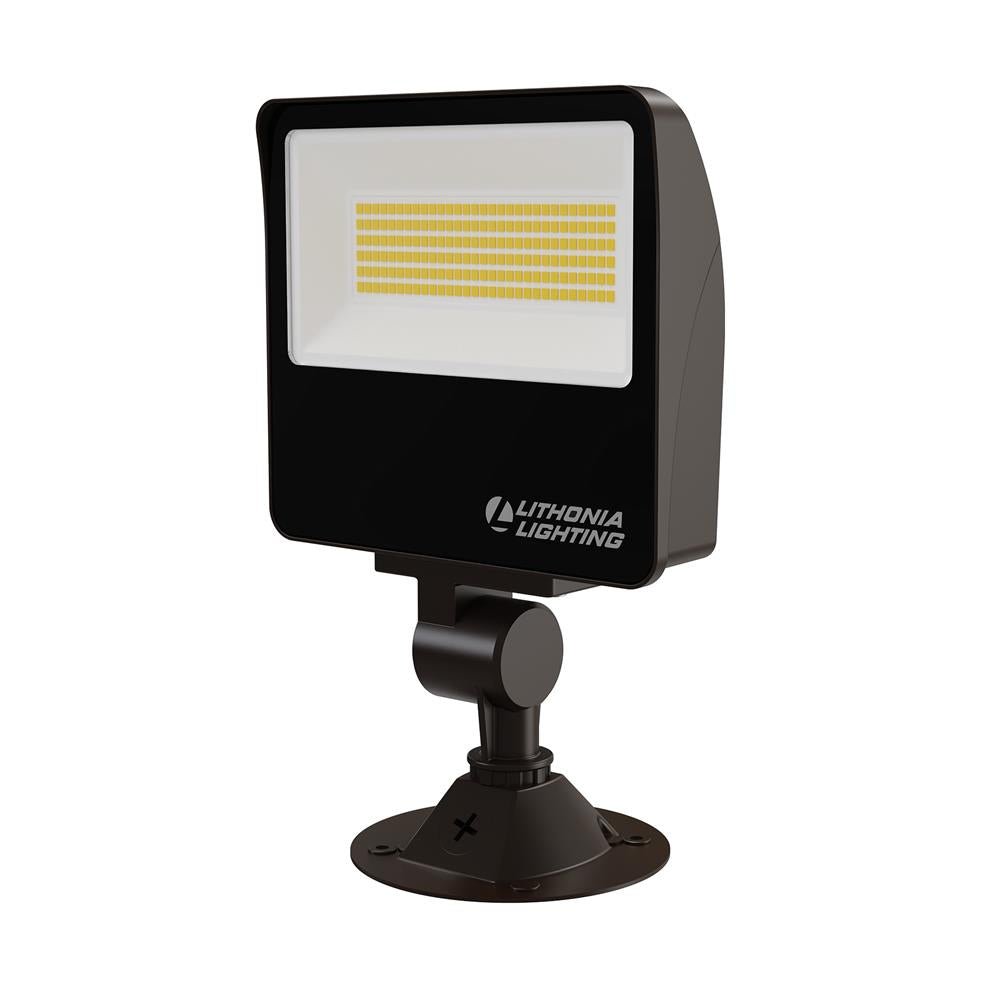

| Mounting | Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. |
| Style | Knuckle, Yoke |
| Lens | Tempered glass |
| Beam Angle | NEMA Beam Spread of 7H x 7V |
