Lithonia Lighting

Lithonia WF4 10.5W LED 4" Round Wafer Selectable CCT 27K/30K/35K

Lithonia WF4 10.5W LED 4" Round Wafer Selectable CCT 27K/30K/35K

$22.99
$22.99
Sale Sold out
Shipping calculated at checkout.
Size
Wattage
Color Temperature

WF4 4"  Canless Wafer Selectable CCT 27K/30K/35K

This item has been discontinued and is no longer available. Click Here for the updated product.

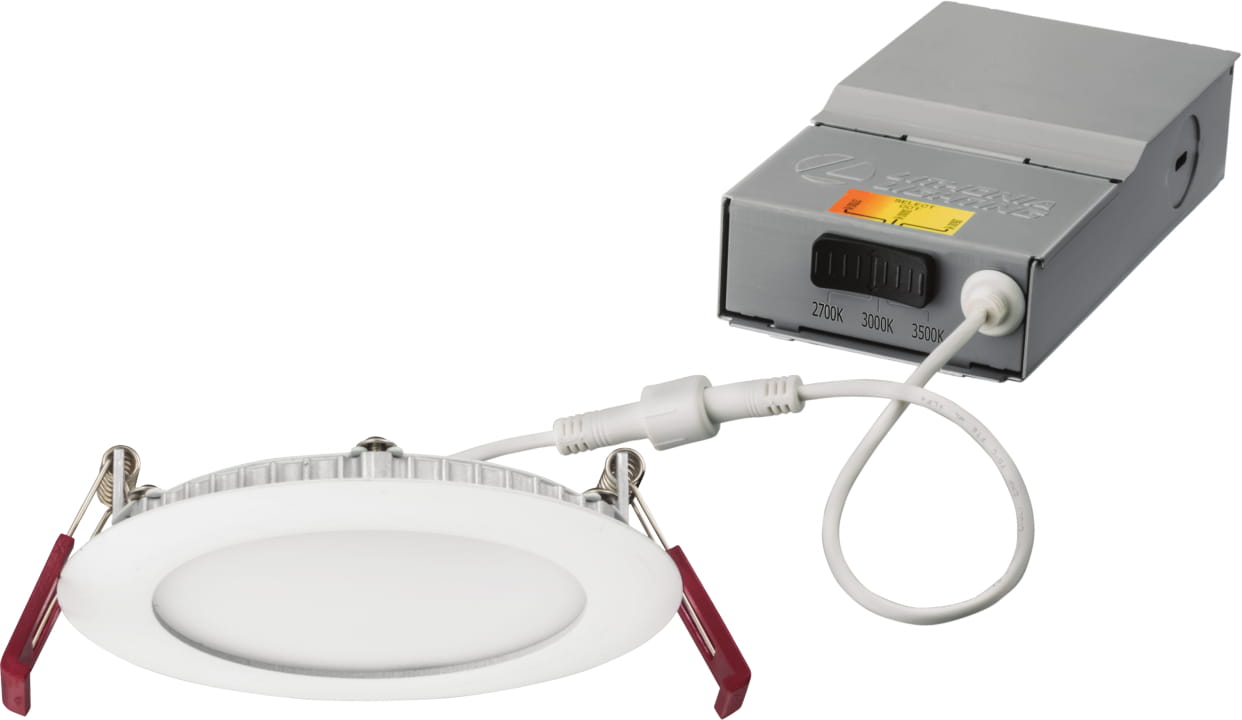

The 4" Wafer™ LED Downlight with Switchable White provides high-quality light output and efficiency featuring a switch for easy color temperature adjustment - while eliminating the need for recessed housings. The innovative, slim design allows for easy retrofit, remodel or new construction installation from below the ceiling. The Wafer LED downlight is wet location listed – making it ideal for use in a breadth of outdoor residential, hospitality, commercial and multifamily applications. The LED module maintains at least 70% light output for 50,000 hours

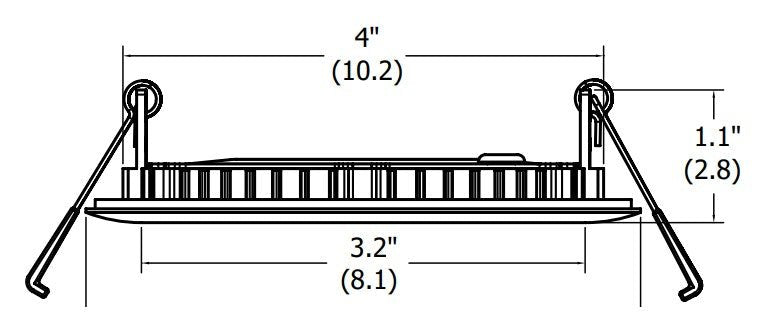

 Dimensions
Trim Width (In.) 4.70"
Aperture Width (In.) 3.20"
Height (In.) 1.10"
Cutout (In.) 4.20"

Click Here for new construction plate

Spec Sheets

Spec Sheet

Installation Instructions

Info
 Product Type  Wafer direct mount
Wattage 10.5W
Lumen 730-800
Color Temp. Field Adjustable 27K/30K/35K
CRI 90
L70 Lifespan 50,000
Housing Material Plastic Housing
Finish  White Trim
Style Smooth
LED Edge-lit LED technology
Mounting Steel spring clip for easy installation. 4" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim. Size of hole should not exceed 4 1/4 inches for this product. Suitable for installation in t-grid and drop ceiling applications
Remote Driver Box 3" plenum space required for installation of the remote driver box.
Construction Aluminum die cast outer frame. Durable, powder coat paint to prevent rust. FT4 plenum rated cable connector to connect from module to remote driver box. IC rated driver with convenience and value remote selectable color temperature options, a setting choice to chose 2700K, 3000K, and 3500K  using the switch. The isolated driver integrated inside steel remote box with four 7/8" knockouts with slots for pryout. Suitable for pulling wires with the 12 cubic-inch wiring compartment to accommodate up to (6) 14 gauge insulated conductors; making the Wafer LED Downlights much easier to wire in 2in/2out (plus ground) daisy-chain applications and contractor friendly
Additional Info
                                               Compliance
Safety Listing UL Listed, CSA Certified
Environment/Fixture Rating Wet Location
T24 JA8 Compliant Yes
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
                                               Electrical
Power Factor ≥0.9
Input Voltage 120V
Operating Temperature -40°C to 40°C
Dimming Yes
