Lotus LED

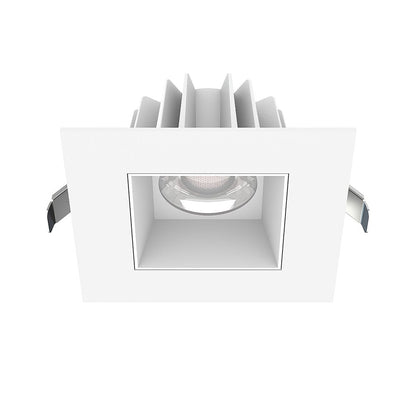

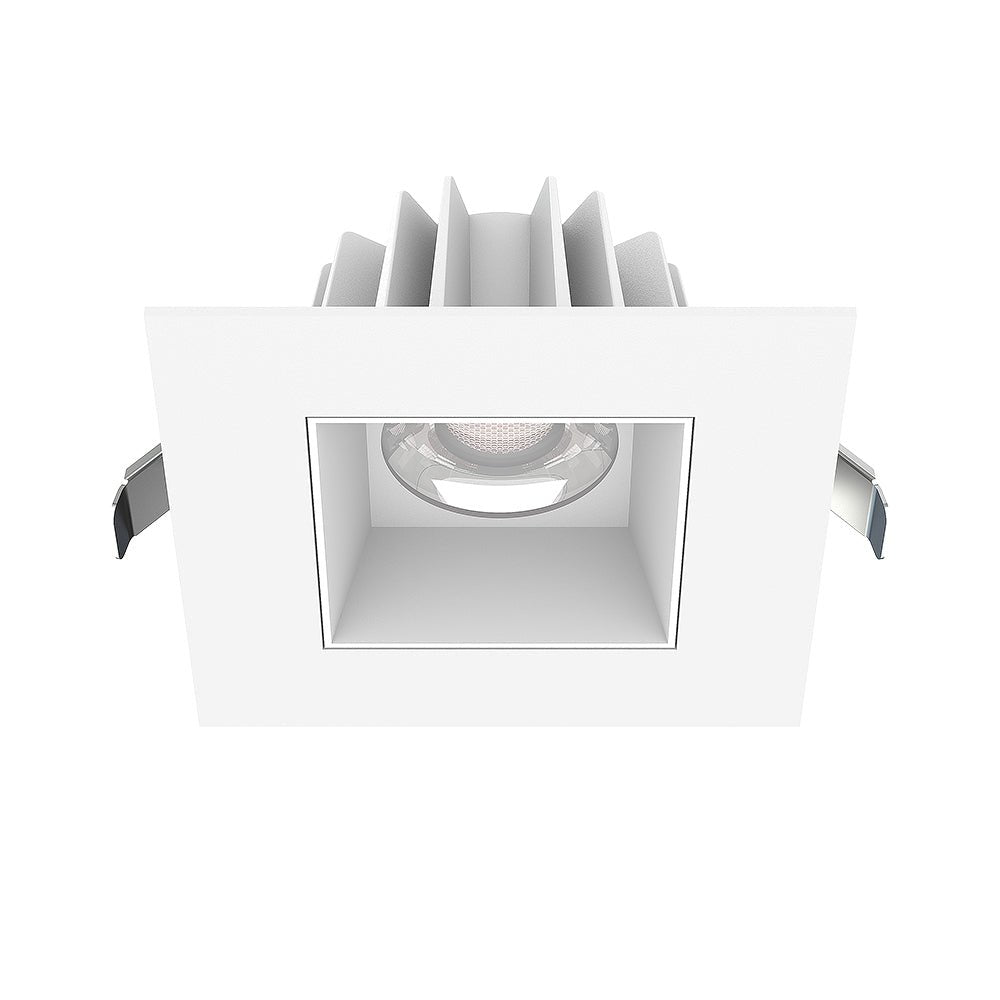

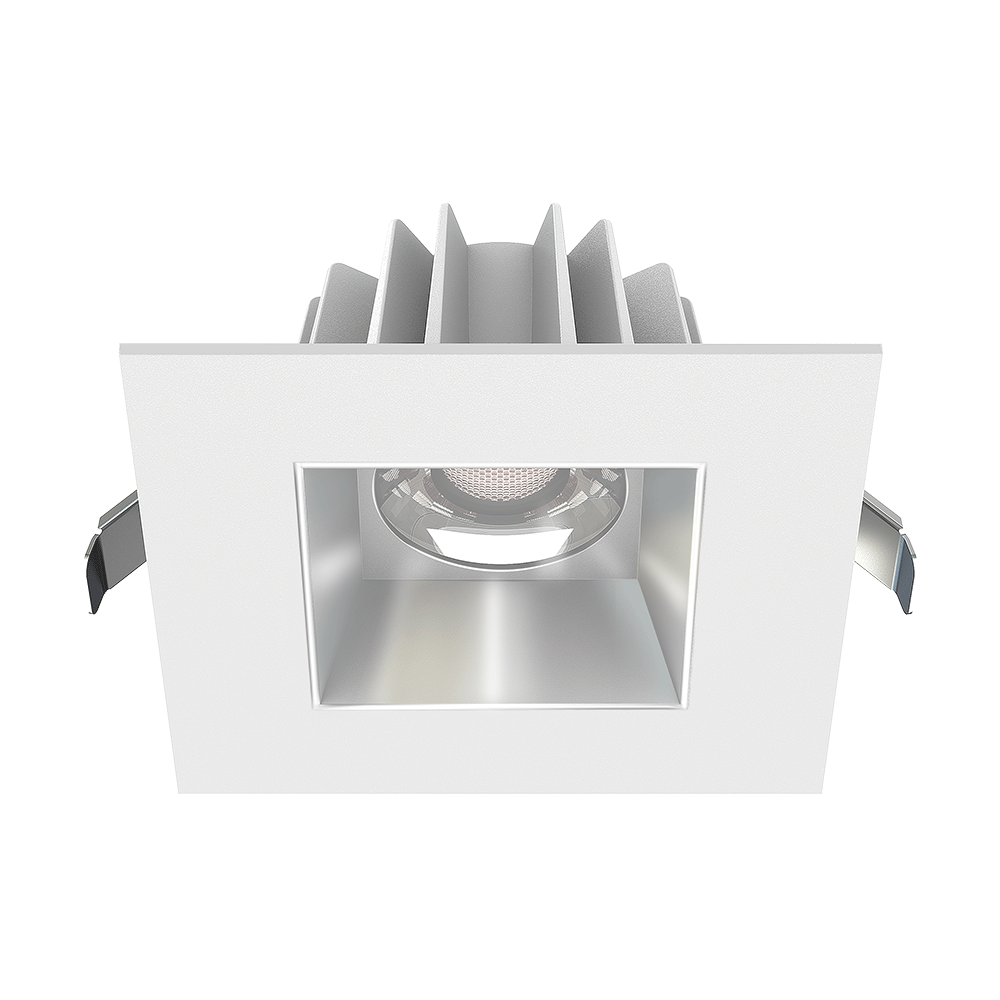

Lotus JXL-COB04-S15W 4" 15W LED Square Regressed Downlight Selectable CCT
Lotus JXL-COB04-S15W 4" 15W LED Square Regressed Downlight Selectable CCT
Regular price
$53.10
Regular price
Sale price
$53.10
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
4" 15W Square LED Regressed Downlight Selectable CCT
The JXL-COB04-S15W-5CCT model offers user-selectable color temperatures ranging from 2700K to 5000K with a high CRI of 90+ for accurate color rendering. This IC-rated downlight requires no housing and includes a 120V triac dimmable driver for smooth lighting control. Its compact 3-inch depth makes it ideal for tight ceiling spaces, while installation is quick and simple, reducing labor costs. Choose from white or black trims and multiple reflector options. The driver is housed inside the connection box, eliminating the need for a separate junction box.
- Model JXL-COB04-S15W-5CCT
- User Selectable 27K-30K-35K-40K-50K
- CRI 90+ for True Color Rendering
- Type IC Rated – No Housing Required
- 120V Triac Dimmable Driver Included
- Fast and Easy To Install – Save On Labor
- 3″ Deep – Install Where Ceiling Space Is Limited

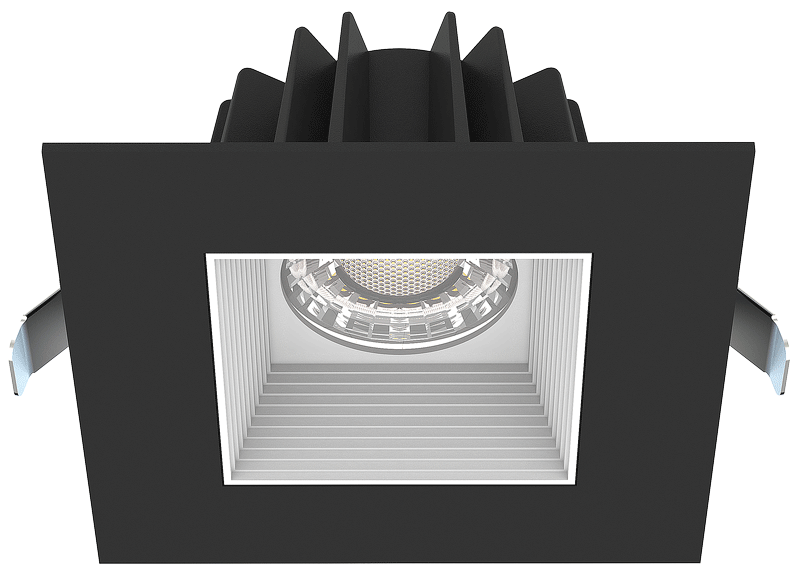

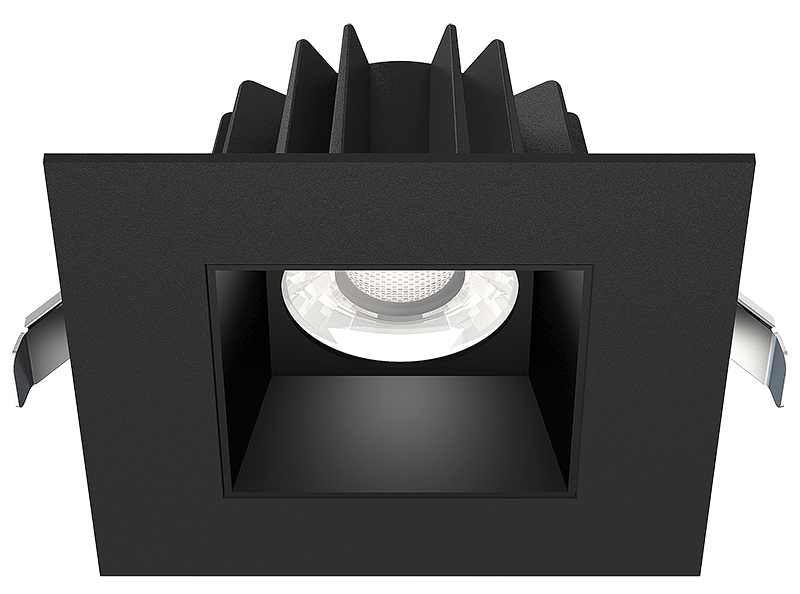

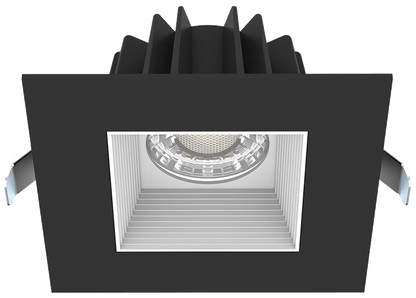

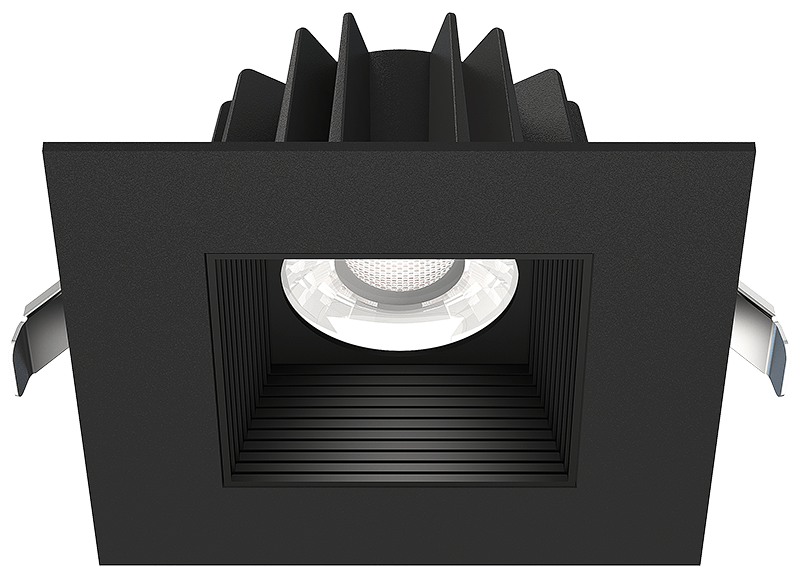

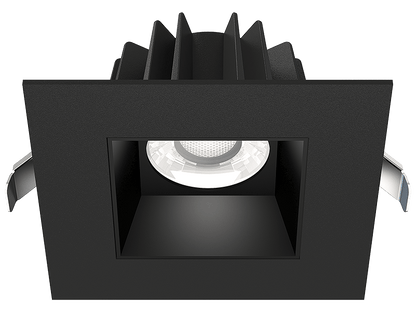

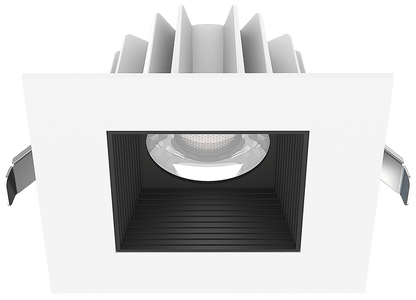

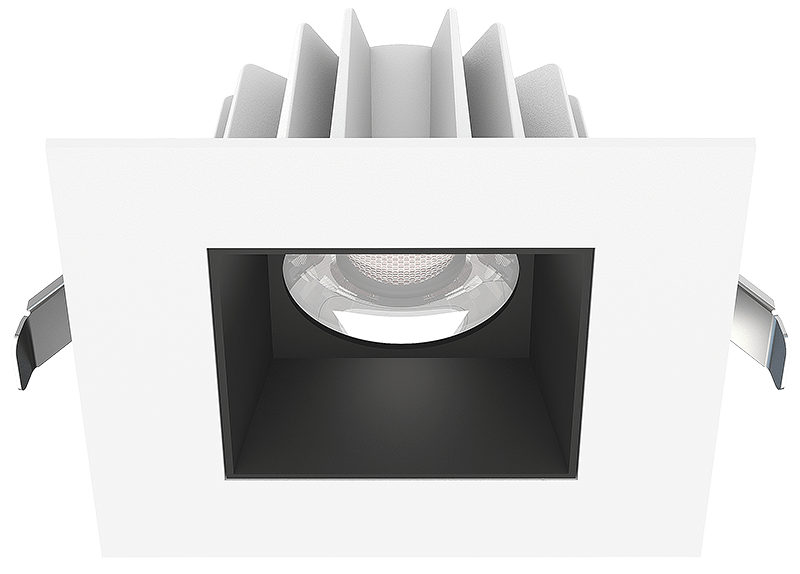

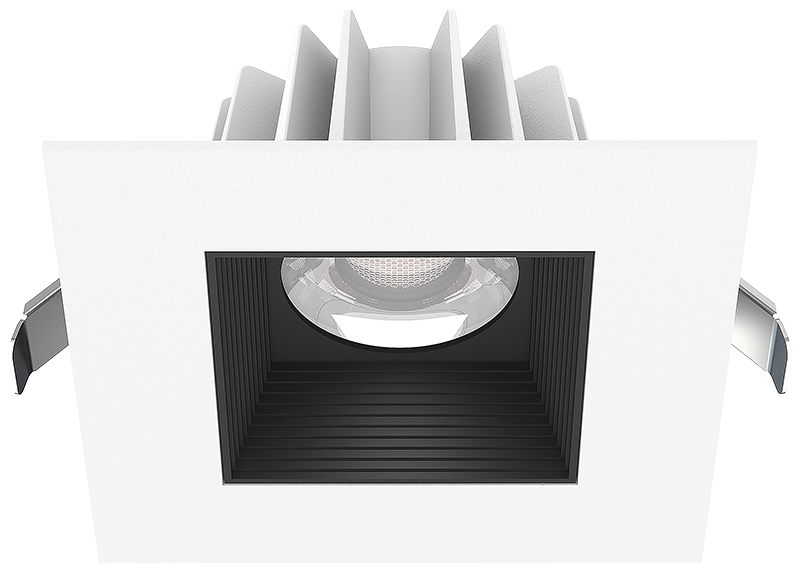

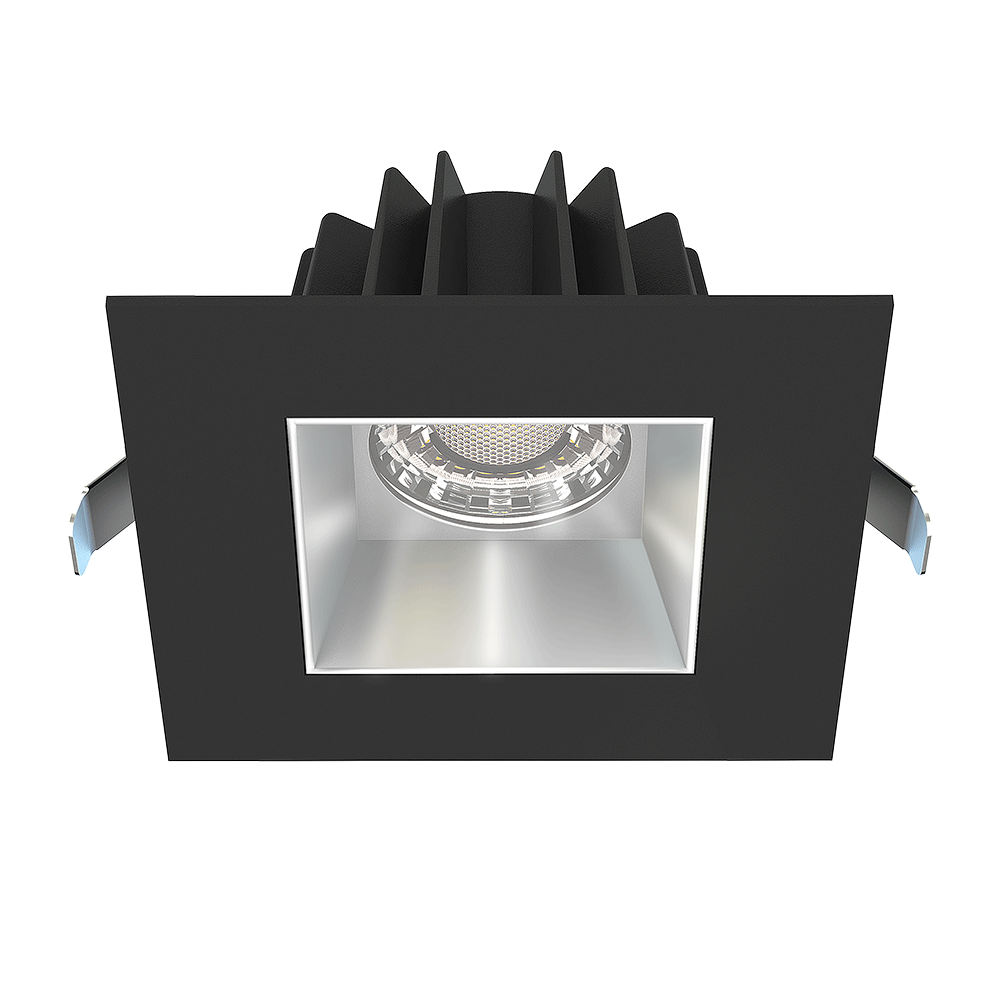

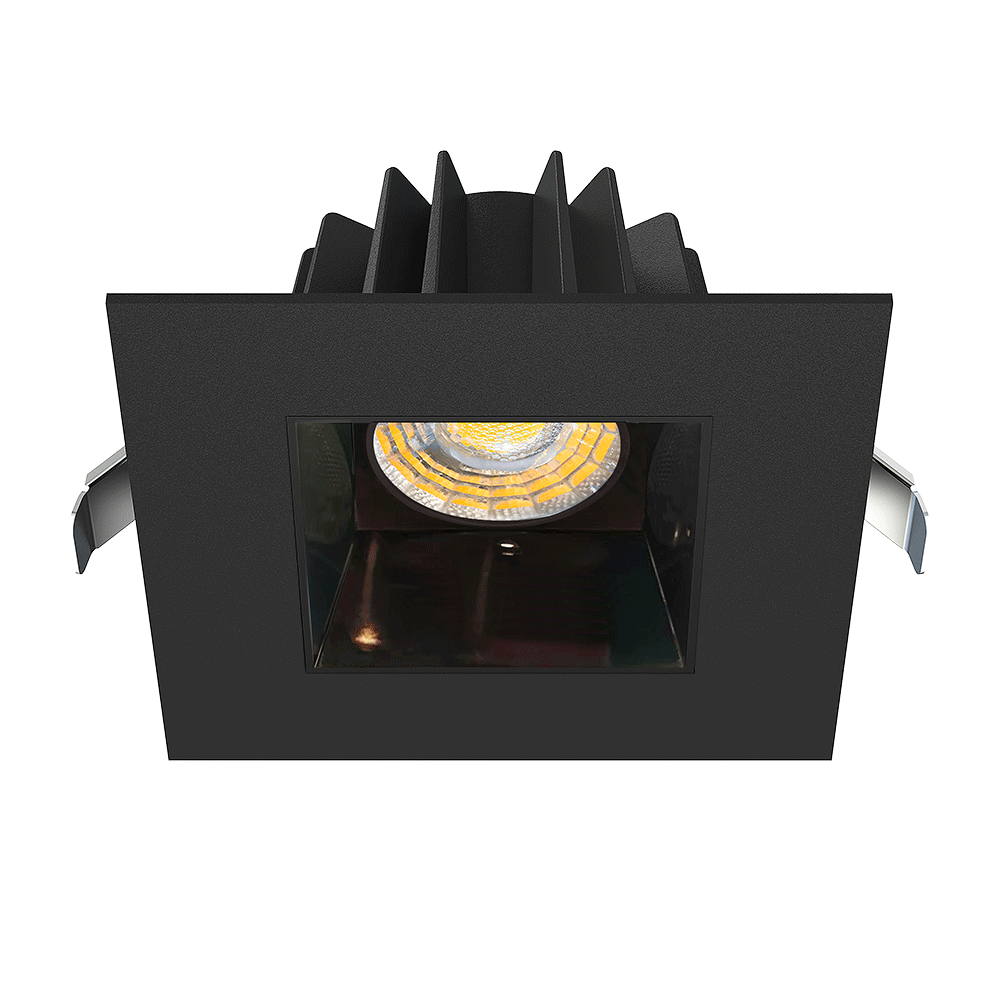

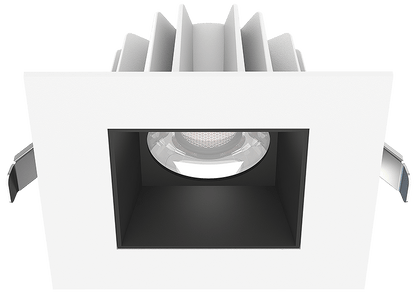

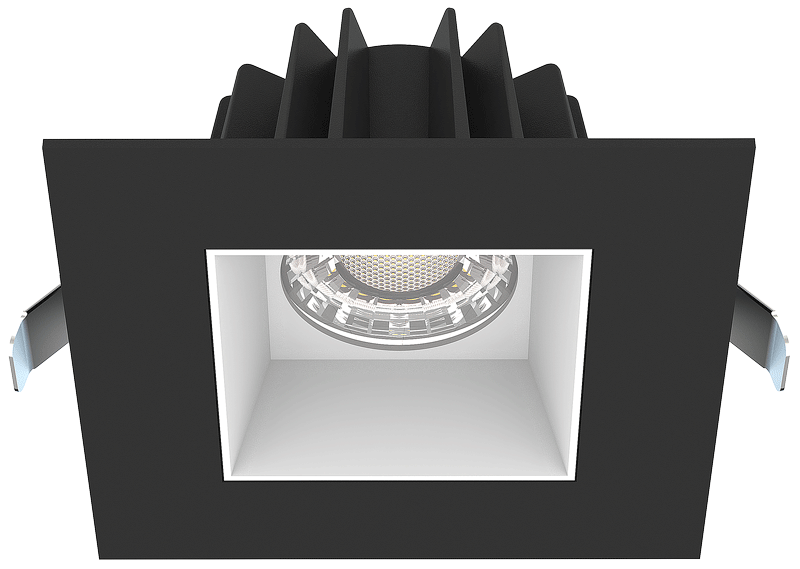

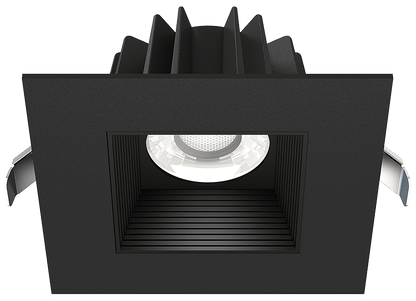

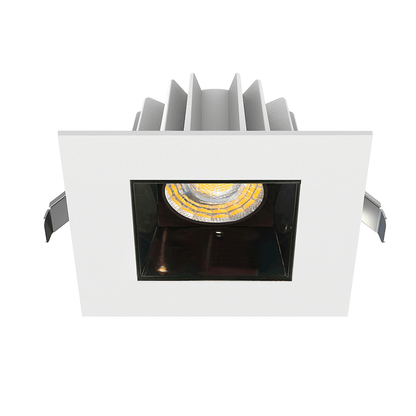

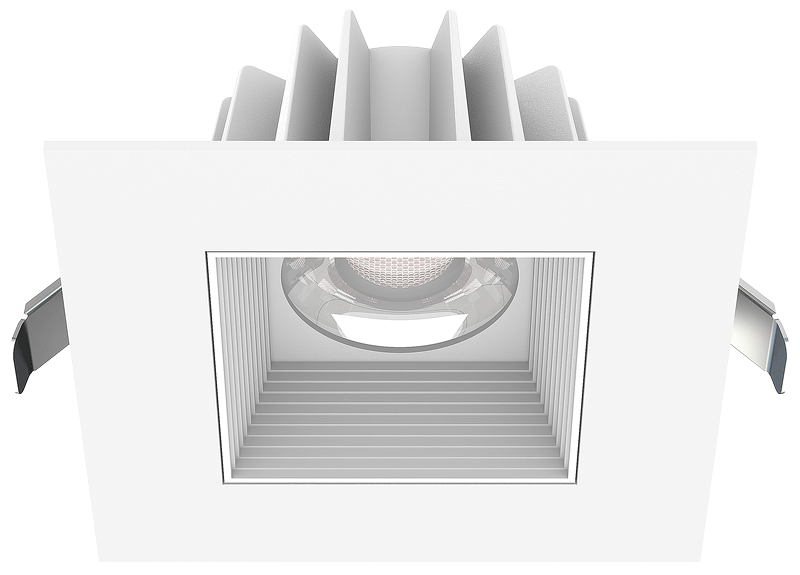

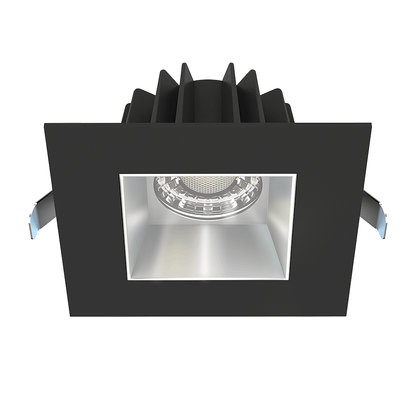

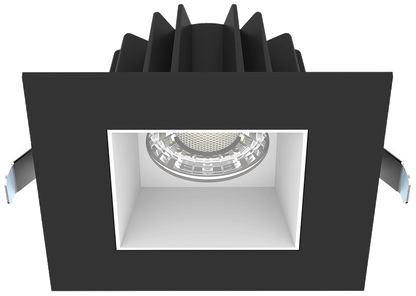

- Available with White & Black trims and 4 Smooth & 2 Baffle Reflectors
- Driver Inside Connection Box – No Junction Box Needed
Spec Sheet
Spec Sheet
Installation Instructions
Info
Applications | Residential Recessed |
Wattage | 15W |
Lumen | 1300L |
CRI | 90+ |
CCT | 27K-50K |
Votage | 120V |
Beam Angle | 36° |
Dimming | TRIAC 20% - 100% |

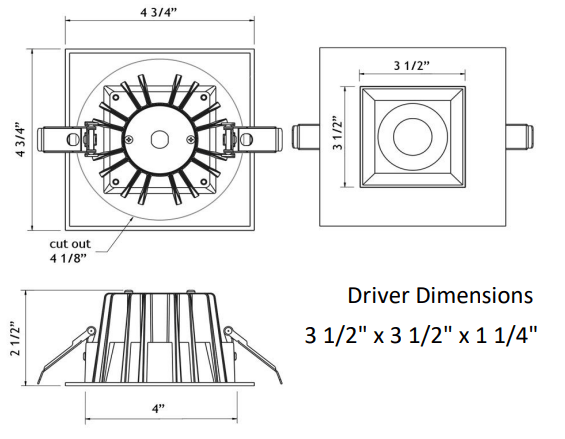

Dimensions | W/L 4.75" H 2.50" |
Cutout | 4.25" |
Additional Info
Airtight | Yes |
Location Rating | Insulated Ceiling & Damp Locations |
IC Rated | Yes |
Certifications | cETLus |
Warranty | 3 Years |
