Lotus LED

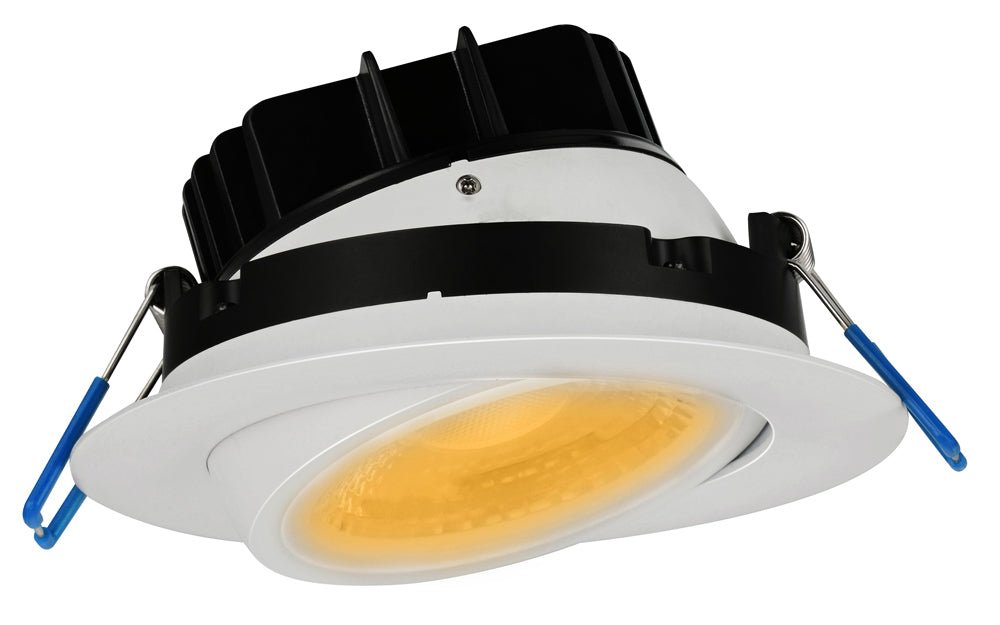

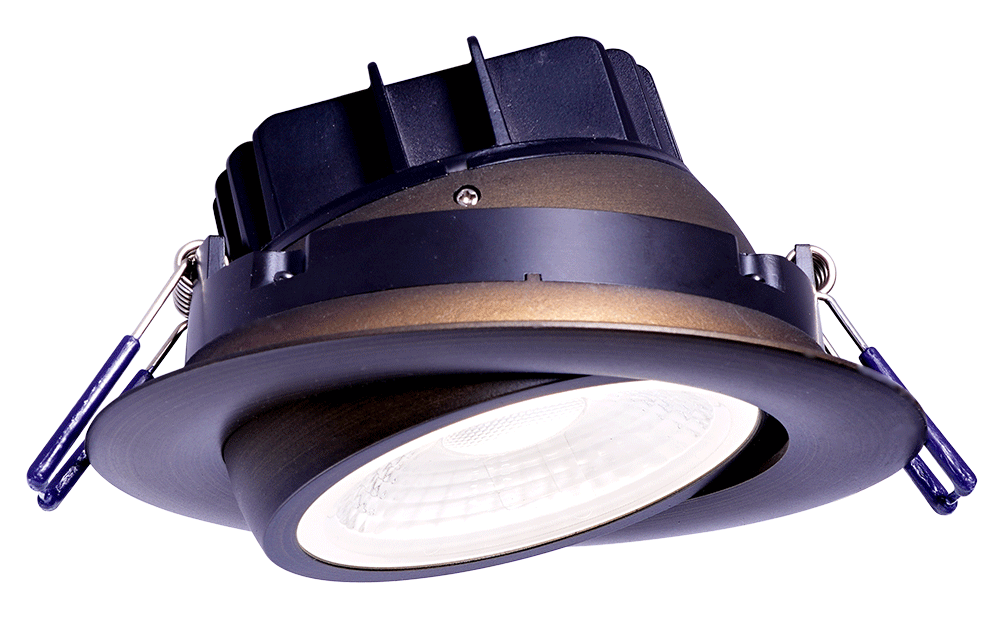

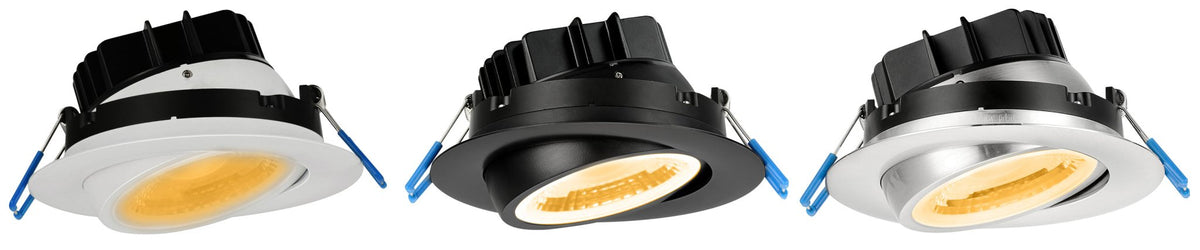

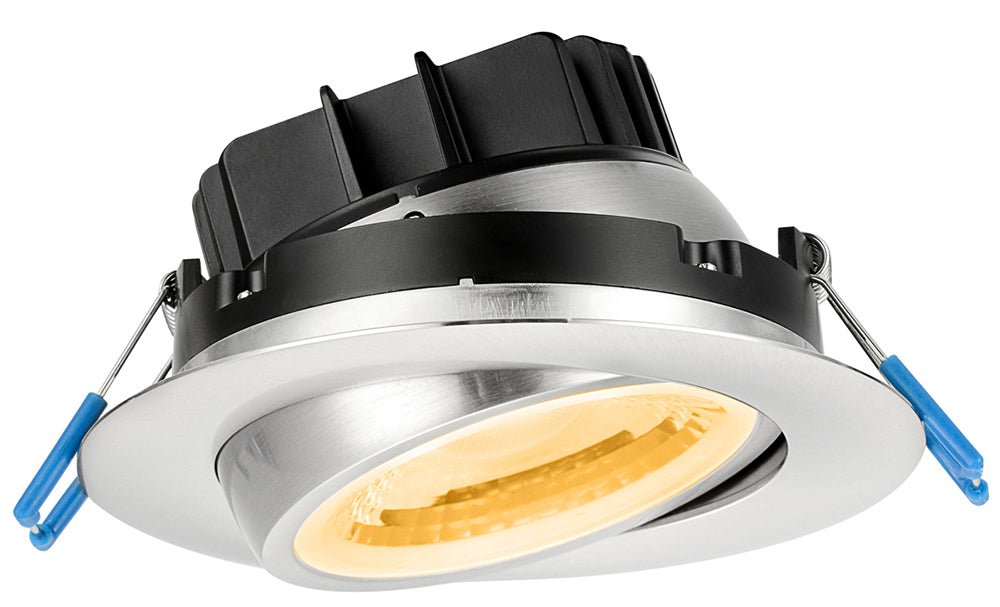

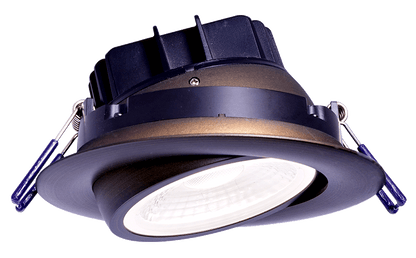

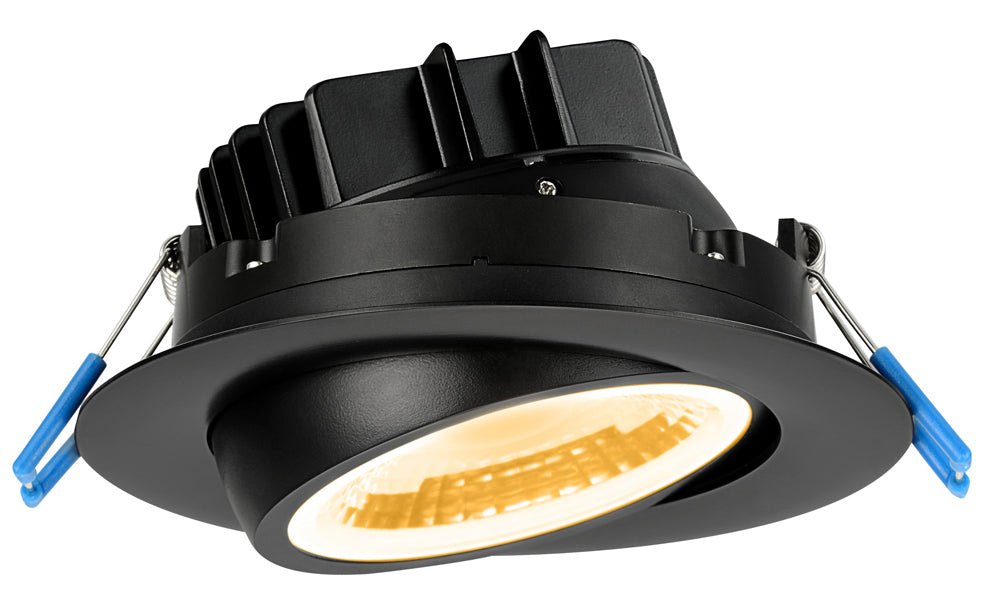

Lotus LL4G-5CCT 4" 11W LED Gimbal Downlight Selectable CCT/DTW
Lotus LL4G-5CCT 4" 11W LED Gimbal Downlight Selectable CCT/DTW
Regular price
$75.40
Regular price
Sale price
$75.40
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
4" 11W Gimbal LED Selectable CCT
The Lotus LL4G 4" 11W LED Gimbal offers versatile lighting with selectable color temperatures ranging from 2700K to 5000K, including Dim to Warm options for a cozy ambiance. Designed for direct contact with insulation, it’s air-tight and suitable for wet, insulated, and non-insulated ceilings. Featuring a high CRI of 90+ for vibrant color accuracy, it supports Triac dimming with most Community Lighting dimmers and offers an optional 0-10V dimming with wide voltage input. With an external driver inside the connection box, no junction box is required. Backed by a 10-year residential and 5-year commercial warranty, it’s a reliable, high-quality lighting solution.
- Models: 11W LL4g
- Type IC Rated – Approved for Direct Contact with Insulation
- Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
- LL4G light options: 5CCT, Dim To Warm 3000K to 2000K, Dim To Warm 3000K to 1800K
- CRI 90+ for True Color Rendering
- Triac Dimmable with most CL dimmers 120V input
- 0-10V Dimmable Option with 120V to 347V input
- External Driver Inside Connection Box – No Junction Box Needed
- Warranty: 10 Year on Residential, 5 Year on Commercial Installations
- cULus Listed
Spec Sheet
Spec Sheet
Info
| Applications | Sloped Ceilings, Highlighting Artwork |
| Wattage | 11W |
| Lumen | 1080 |
| CRI | 90+ |
| CCT | 27K-50K DTW 30K-18K, DTW 30K-20K |
| Voltage | 120V |
| Beam Angle | 38° |
| Tilt Angle | 20° tilt and 360° rotation |
| Dimming | TRIAC 10% - 100% |

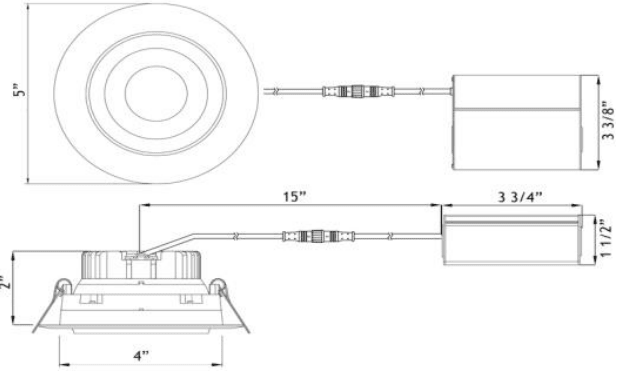

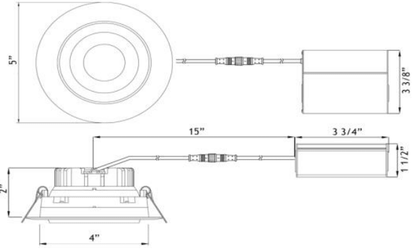

| Dimensions | W 5" H 2.00" |
| Cutout | 4.00-4..50" |
Additional Info
| Airtight | Yes |
| Location Rating | Insulated Ceiling & Wet Locations |
| IC Rated | Yes |
| Certifications | cETLus |
| Warranty | 10 Year Residential / 5 Year Commercial |
