Lotus LED

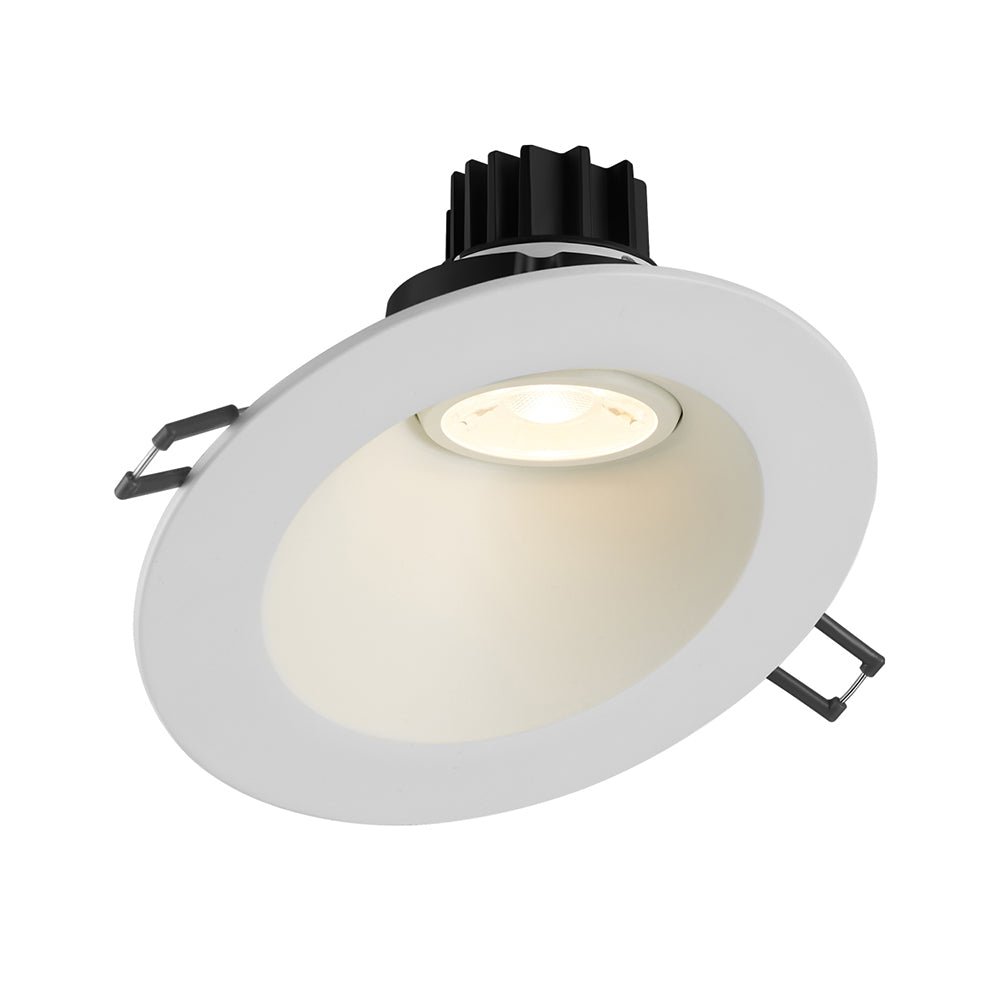

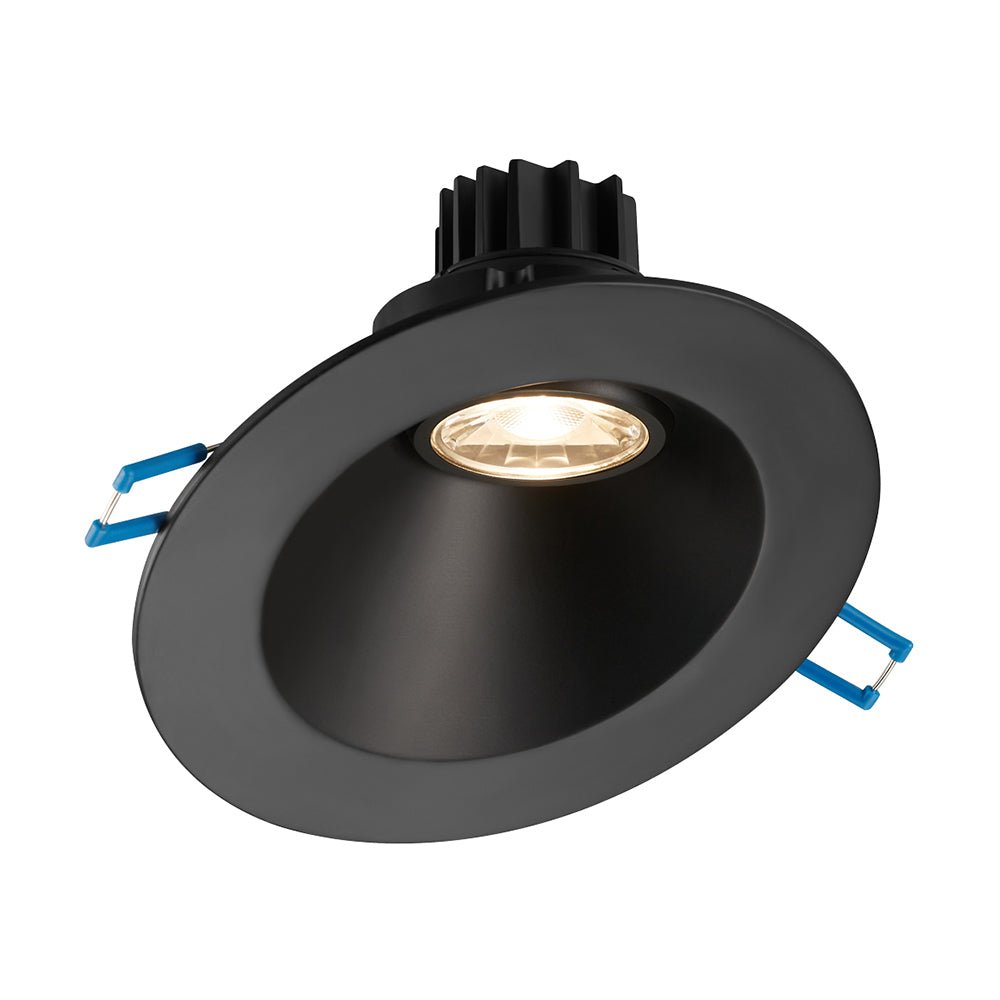

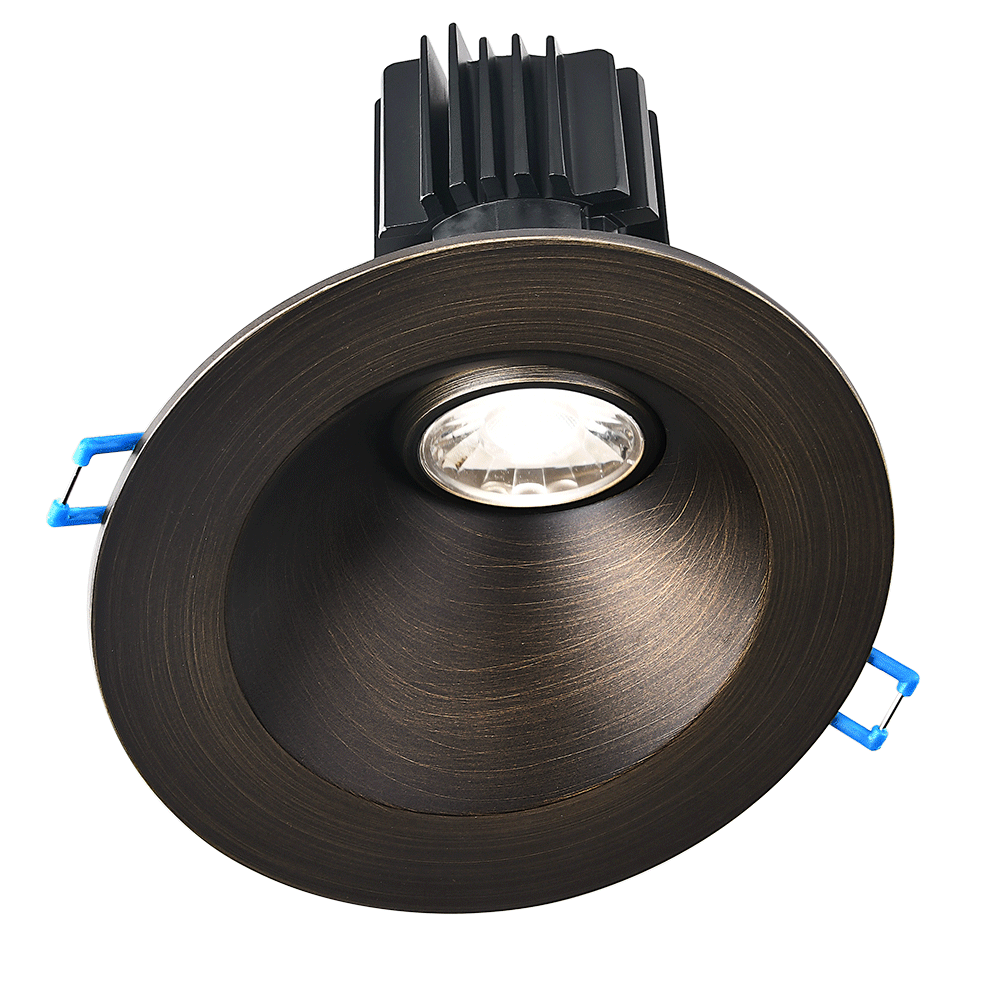

Lotus LRG3-HO-4RSL 4" 11W 30° Sloped LED Recessed Gimbal Selectable CCT/DTW
Lotus LRG3-HO-4RSL 4" 11W 30° Sloped LED Recessed Gimbal Selectable CCT/DTW
Regular price
$103.40
Regular price
Sale price
$103.40
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
4" 11W 30° Sloped Gimbal LED Selectable CCT/DTW
The Lotus LRG3-HO-4RSL is a versatile 11W 4" LED recessed gimbal light designed for sloped ceilings and wall washing, featuring a 30° sloped trim and 20° tilt with a 5° to 55° pitch range. It’s Type IC rated for direct insulation contact and suitable for air-tight, wet, insulated, and non-insulated ceilings. Offering exceptional color accuracy with a CRI of 90+, it provides selectable color temperatures from 2700K to 5000K or a dim-to-warm option. Compatible with most CL dimmers and available with a 0-10V dimming option, it includes an external driver inside the connection box, eliminating the need for a junction box. Backed by a 10-year residential and 5-year commercial warranty, this cULus listed fixture ensures reliable, high-quality lighting for your space.
- Models: 11W- LRG3-HO-4RSL
- 30° Sloped Trim & 20° Tilt – Ideal for Wall Washing & Sloped Ceilings with 5° to 55° Pitch
- Type IC Rated – Approved for Direct Contact with Insulation
- Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
- CRI 90+ for True Color Rendering
- 7.5W model light options: 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT
- 11W model light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
- Triac Dimmable with most CL dimmers 120V input
- 0-10V Dimmable Option with 120V to 347V input

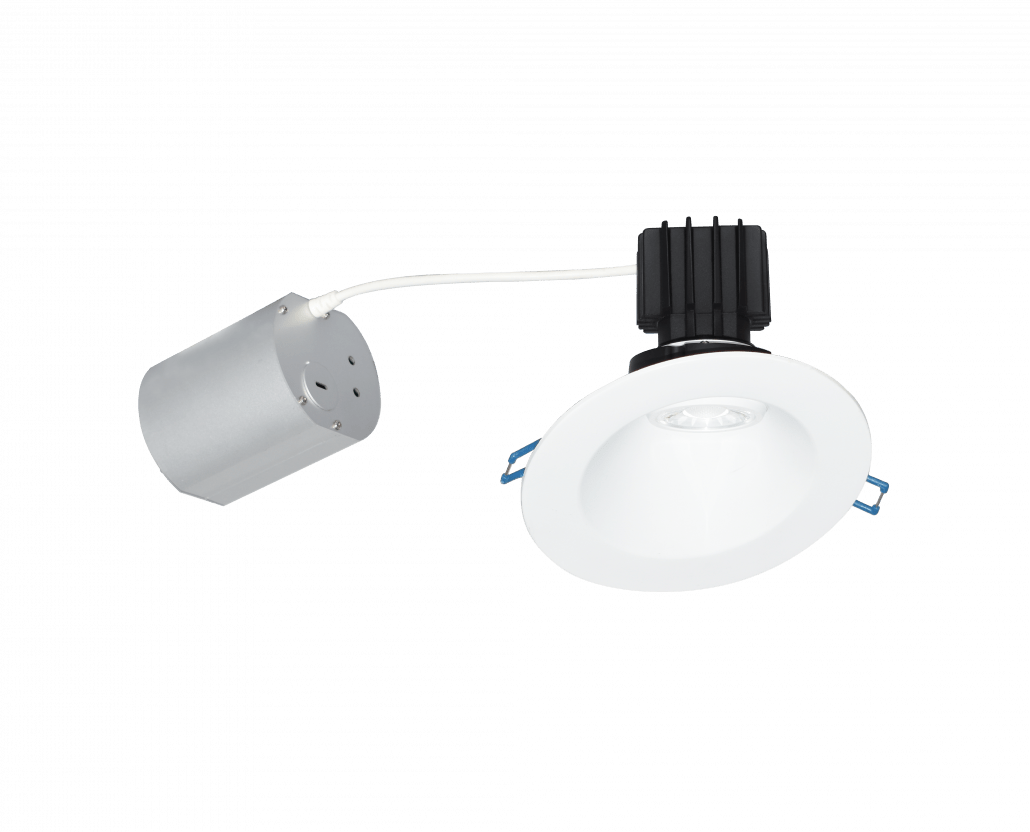

- External Driver Inside Connection Box – No Junction Box Needed
- Warranty: 10 Year on Residential, 5 Year on Commercial Installations
- cULus Listed
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Applications | Sloped Ceilings 5° to 55°, Wall Washing |
| Wattage | 11W |
| Lumen | 5CCT 1120 / 760DTW |
| CRI | 90+ |
| CCT | 27K-50K / DTW |
| Votage | 120V |
| Beam Angle | 38° |
| Tilt Angle | 20° tilt and 360° rotation |
| Dimming | TRIAC 10% - 100% |

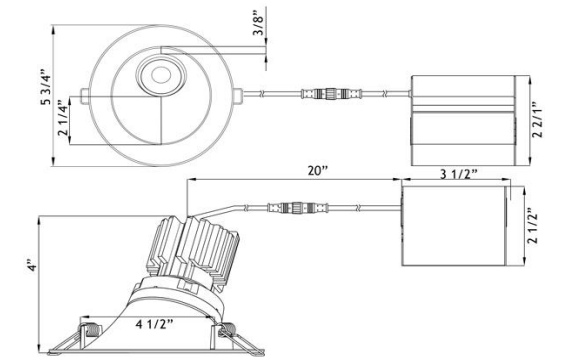

| Dimensions | W 5.75" H 4.00" |
| Cutout | 4.50" |
Additional Info
| Airtight | Yes |
| Location Rating | Insulated Ceiling & Wet Locations |
| IC Rated | Yes |
| Certifications | cETLus |
| Warranty | 10 Year Residential / 5 Year Commercial |
