Lotus LED

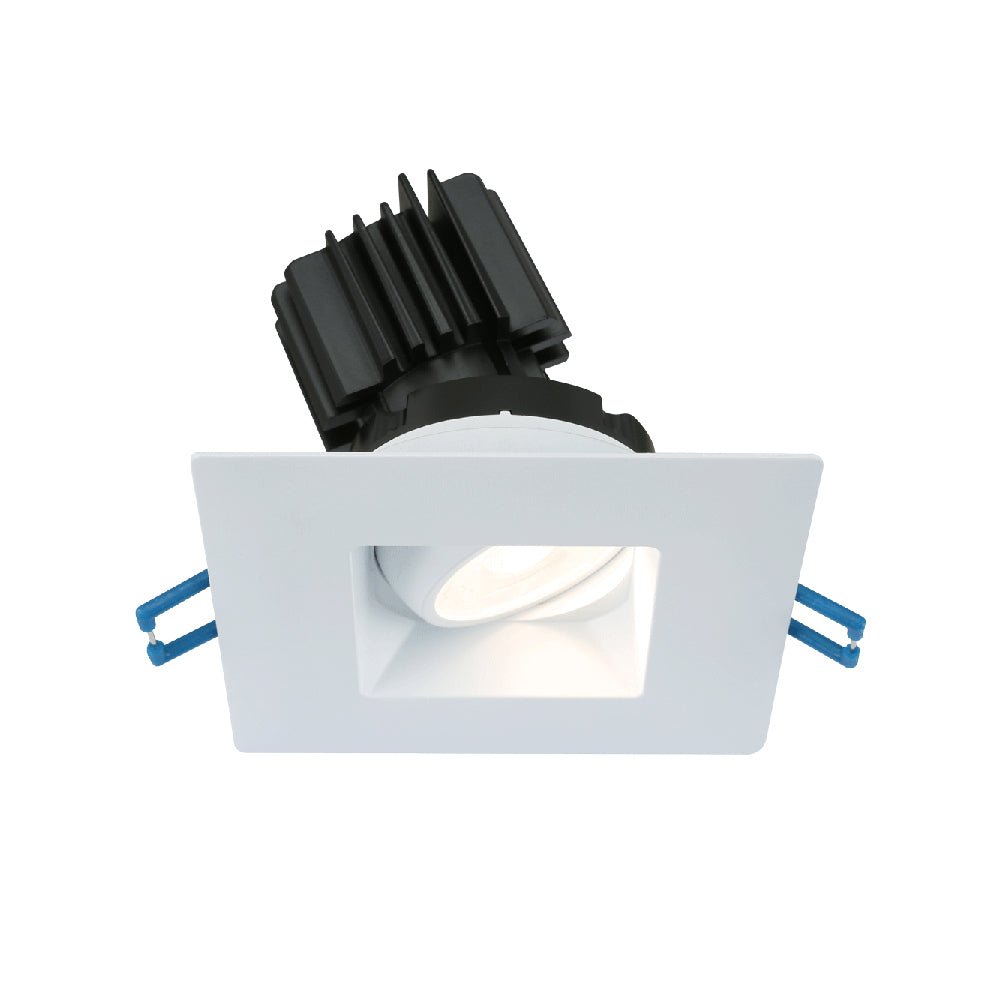

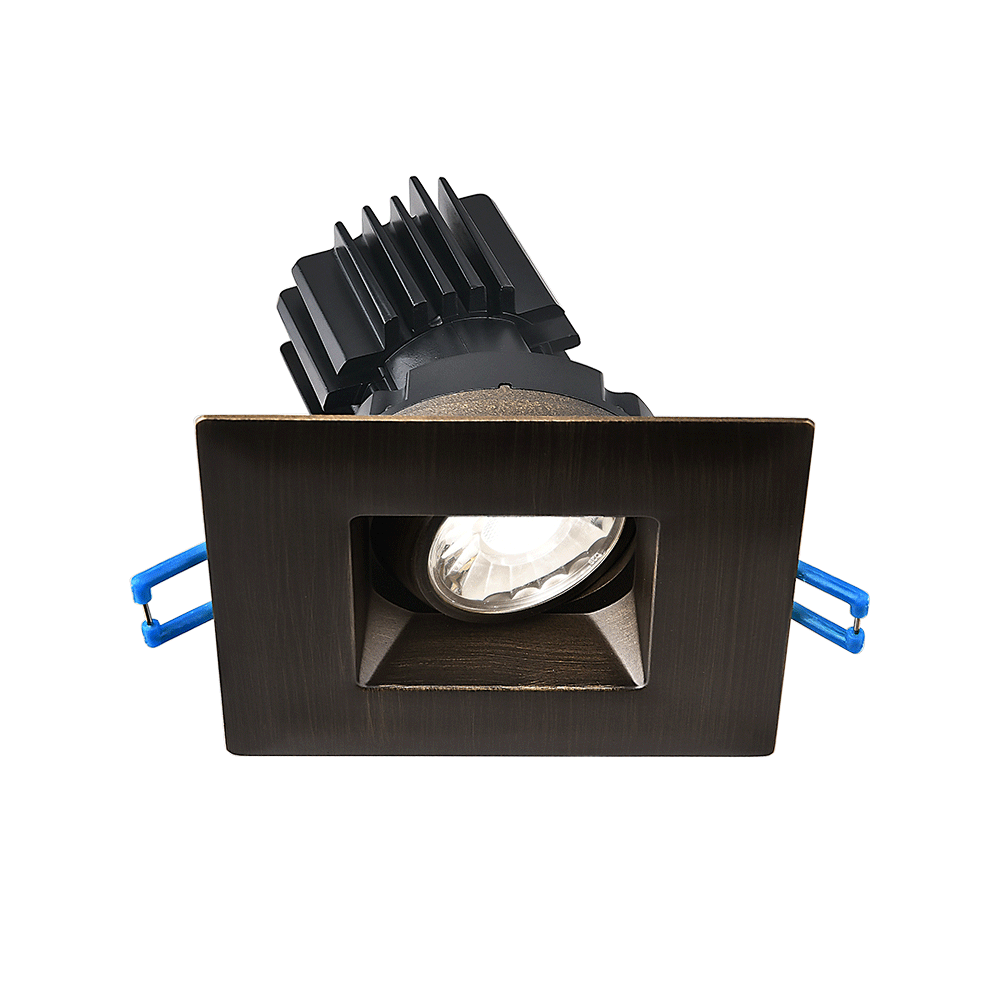

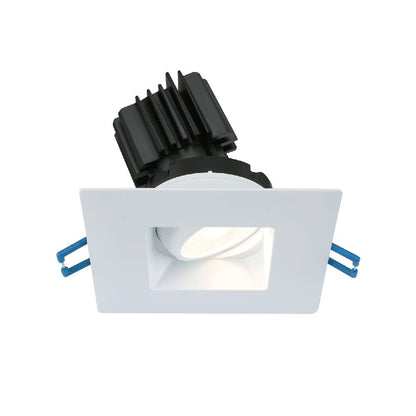

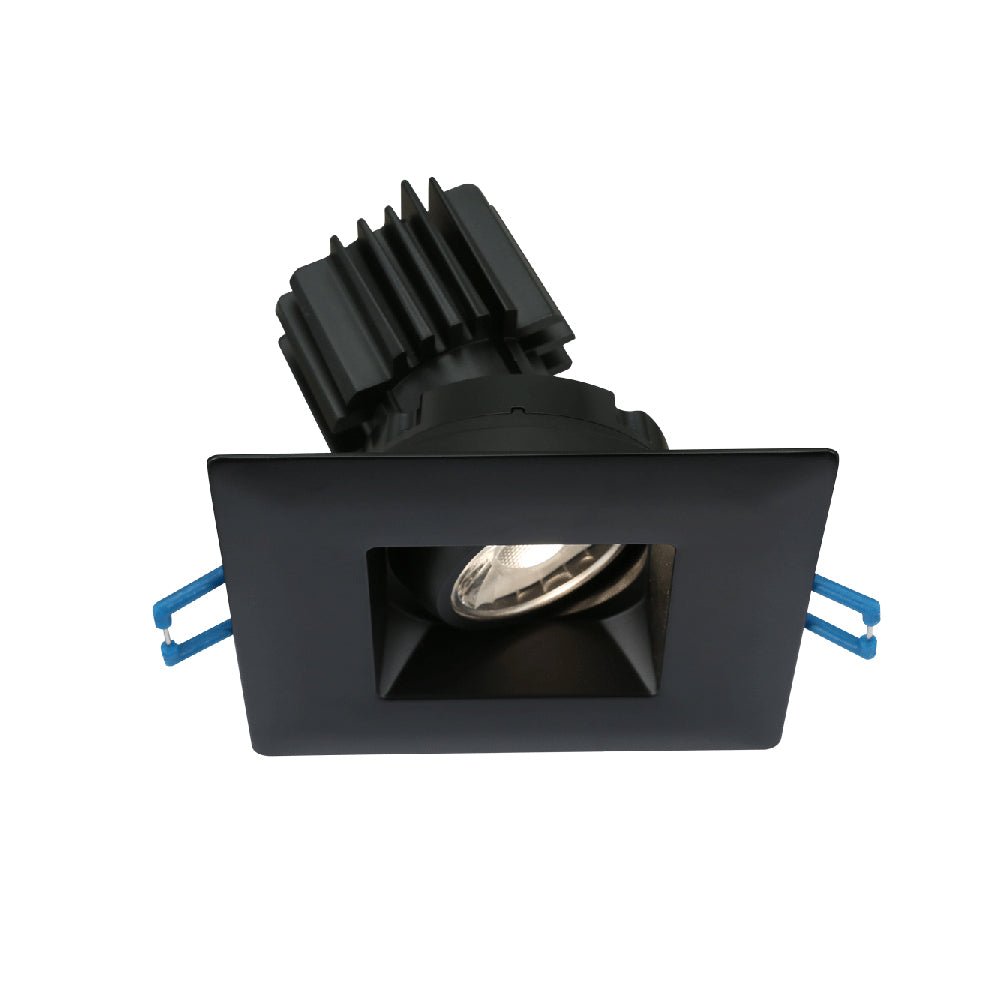

Lotus LSG3-HO 3" 11W LED Square Recessed Gimbal Selectable CCT/DTW
Lotus LSG3-HO 3" 11W LED Square Recessed Gimbal Selectable CCT/DTW
Regular price
$80.08
Regular price
Sale price
$80.08
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
3" 11W Gimbal LED Selectable CCT
The Lotus LSG3-HO 3" 11W LED Square Recessed Gimbal offers versatile lighting with selectable color temperatures ranging from 2700K to 5000K, including Dim to Warm options for a cozy ambiance. Rated for direct contact with insulation and suitable for wet locations, it fits both insulated and non-insulated ceilings. Featuring a high CRI of 90+ for vibrant color accuracy, it supports Triac dimming with most CL dimmers and offers an optional 0-10V dimming with wide voltage input. With an external driver inside the connection box, no junction box is required. Backed by a 10-year residential and 5-year commercial warranty, this cULus listed fixture ensures reliable, high-quality performance.
- Models: 11W LSG3-HO
- Type IC Rated – Approved for Direct Contact with Insulation
- Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
- LSG3 light options: 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT
- LSG3-HO light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
- CRI 90+ for True Color Rendering
- Triac Dimmable with most CL dimmers 120V input
- 0-10V Dimmable Option with 120V to 347V input
- External Driver Inside Connection Box – No Junction Box Needed
- Warranty: 10 Year on Residential, 5 Year on Commercial Installations
- cULus Listed
Spec Sheet
Spec Sheet
Info
Applications | Sloped Ceilings up to 20°, General Lighting |
Wattage | 11W |
Lumen | 1000 |
CRI | 90+ |
CCT | 27K-50K |
Votage | 120V |
Beam Angle | 38° |
Tilt Angle | 20° tilt and 360° rotation |
Dimming | TRIAC 10% - 100% |

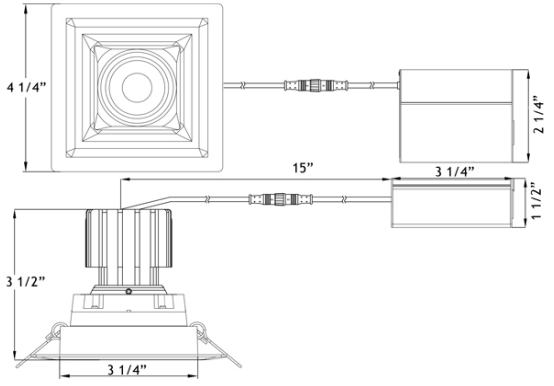

Dimensions | W/L 4.25" H 3.5" |
Cutout | 3.5" |
Additional Info
Airtight | Yes |
Location Rating | Insulated Ceiling & Wet Locations |
IC Rated | Yes |
Certifications | cETLus |
Warranty | 10 Year Residential / 5 Year Commercial |
