Lotus LED

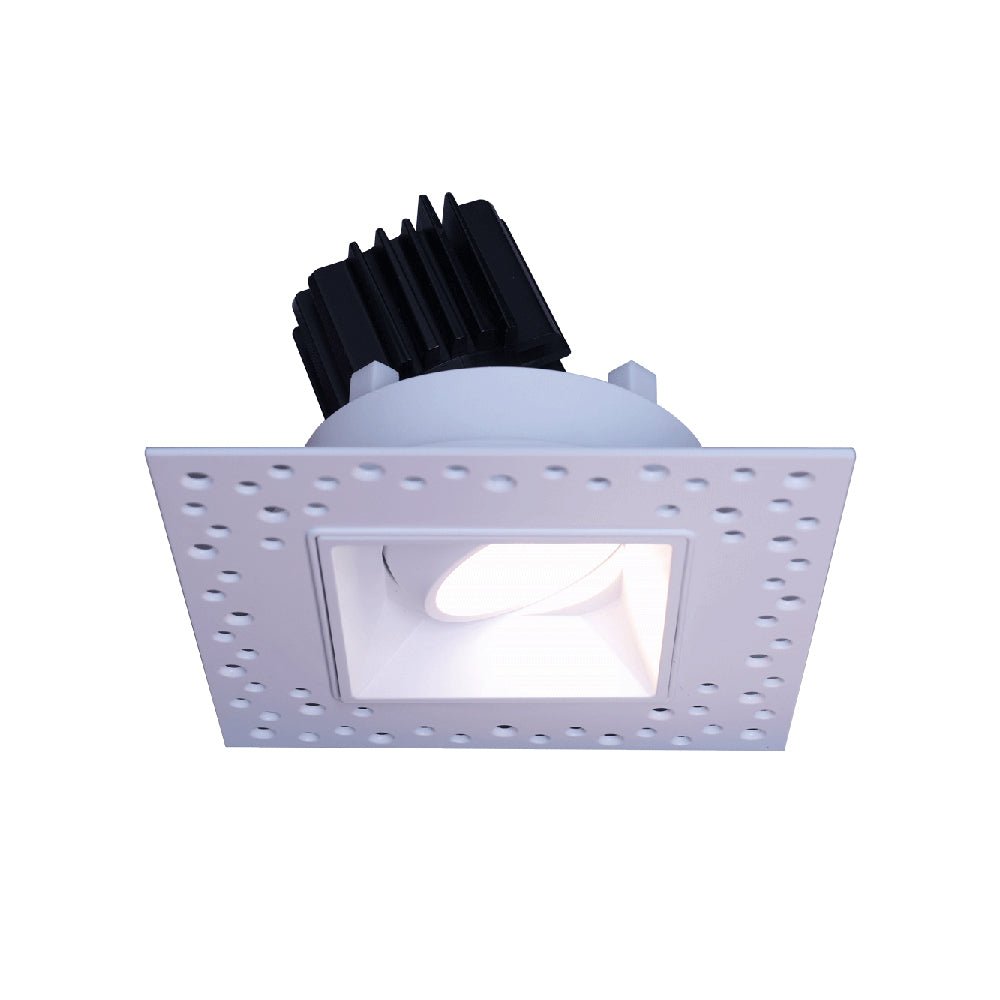

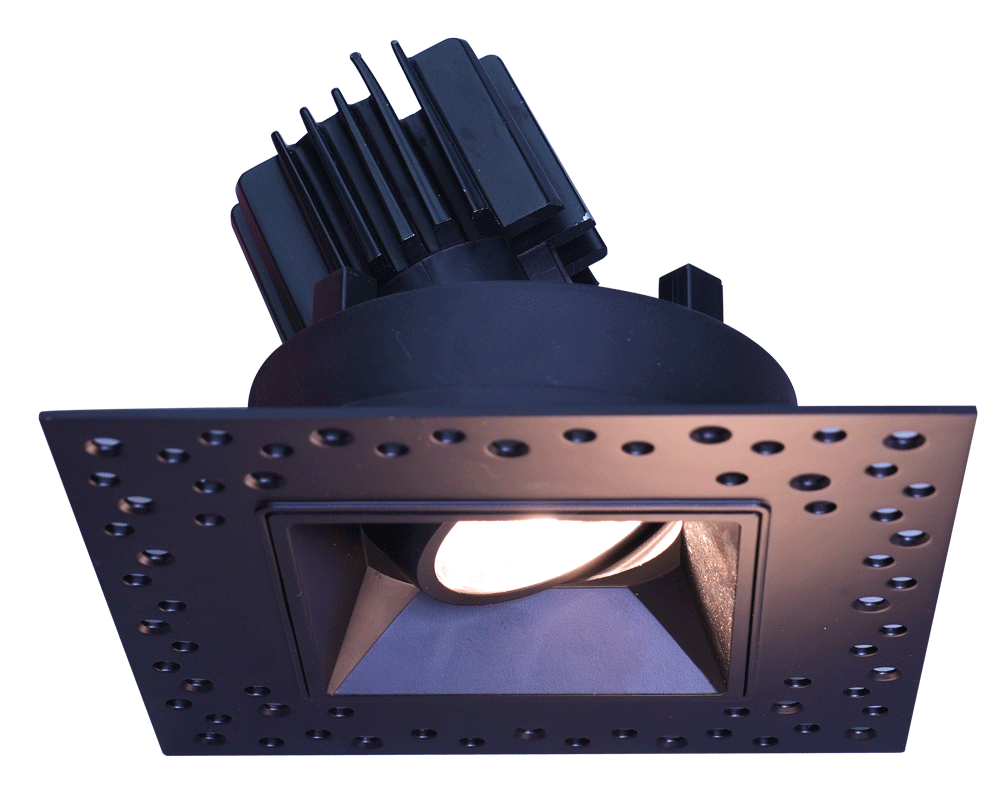

Lotus LSG3-HO-IT 3" 11W LED Square Trimless Recessed Gimbal Selectable CCT/DTW
Lotus LSG3-HO-IT 3" 11W LED Square Trimless Recessed Gimbal Selectable CCT/DTW
Regular price
$109.34
Regular price
Sale price
$109.34
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
3" 11W Trimless Gimbal LED Selectable CCT/DTW
The Lotus LSG3-HO-IT is a sleek, trimless recessed gimbal light designed for modern spaces with limited ceiling depth of just 3 1/2”. It’s IC rated for safe direct contact with insulation and suitable for airtight, wet, insulated, or non-insulated ceilings. Choose from five selectable color temperatures (2700K to 5000K) or a dim-to-warm option for cozy ambiance. With a high CRI of 90+, it delivers vibrant, true-to-life colors. Compatible with most forward phase dimmers and available with 0-10V dimming, it offers versatile control. Installation is simplified with an external driver inside the connection box, and it’s backed by a 10-year residential and 5-year commercial warranty. UL listed for safety and reliability.
- Model LSG3-HO-IT
- Trimless High-End Contemporary Installations
- 3 1/2” Deep – Install Where Ceiling Space Is Limited
- Type IC Rated – Approved for Direct Contact with Insulation
- Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
- Light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
- CRI 90+ for True Colour Rendering
- Triac Dimmable with most forward phase dimmers 120V input
- 0-10V Dimmable Option with 120V to 347V input
- External Driver Inside Connection Box – No Junction Box Needed
- Warranty: 10 Year on Residential, 5 Year on Commercial Installations
- cULus Listed
Spec Sheet
Spec Sheet
Info
| Applications | Sloped Ceilings up to 20°, General Lighting Trimless |
| Wattage | 11W |
| Lumen | 1000 |
| CRI | 90+ |
| CCT | 27K-50K |
| Votage | 120V |
| Beam Angle | 38° |
| Tilt Angle | 20° tilt and 360° rotation |
| Dimming | TRIAC 10% - 100% |
| Dimensions | W 4.25" H 3.5" |
| Cutout | 4.00" |
Additional Info
| Airtight | Yes |
| Location Rating | Insulated Ceiling & Wet Locations |
| IC Rated | Yes |
| Certifications | cETLus |
| Warranty | 10 Year Residential / 5 Year Commercial |
