Lotus LED

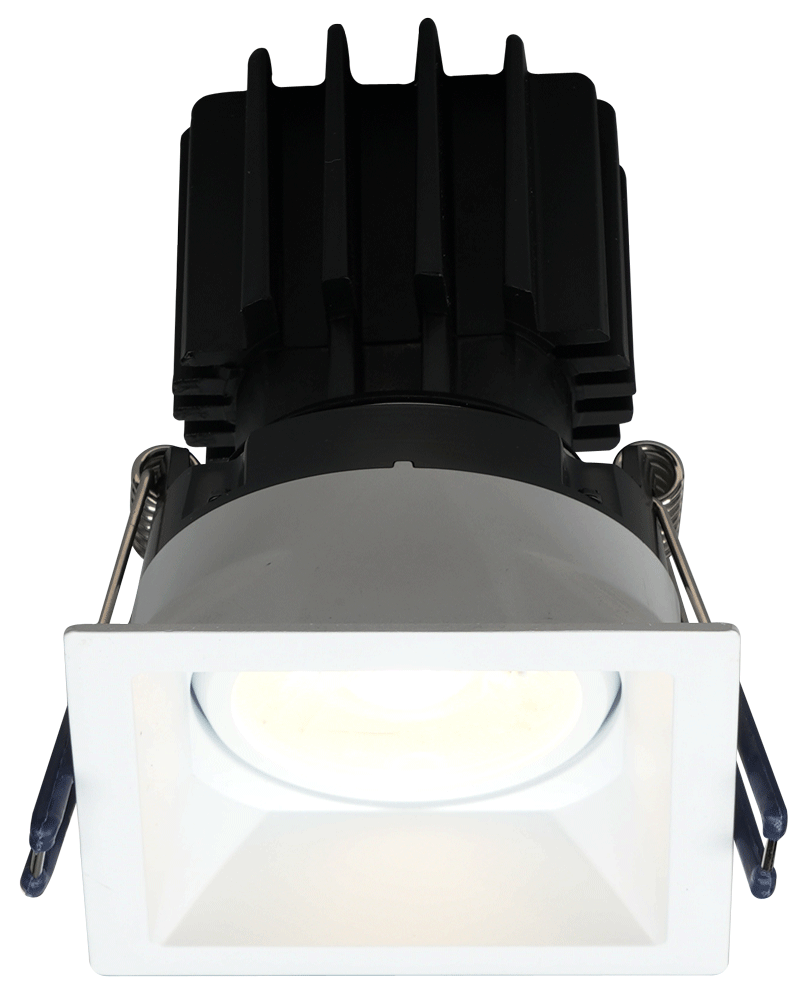

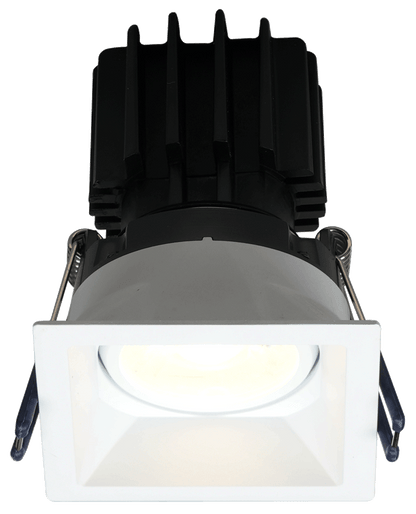

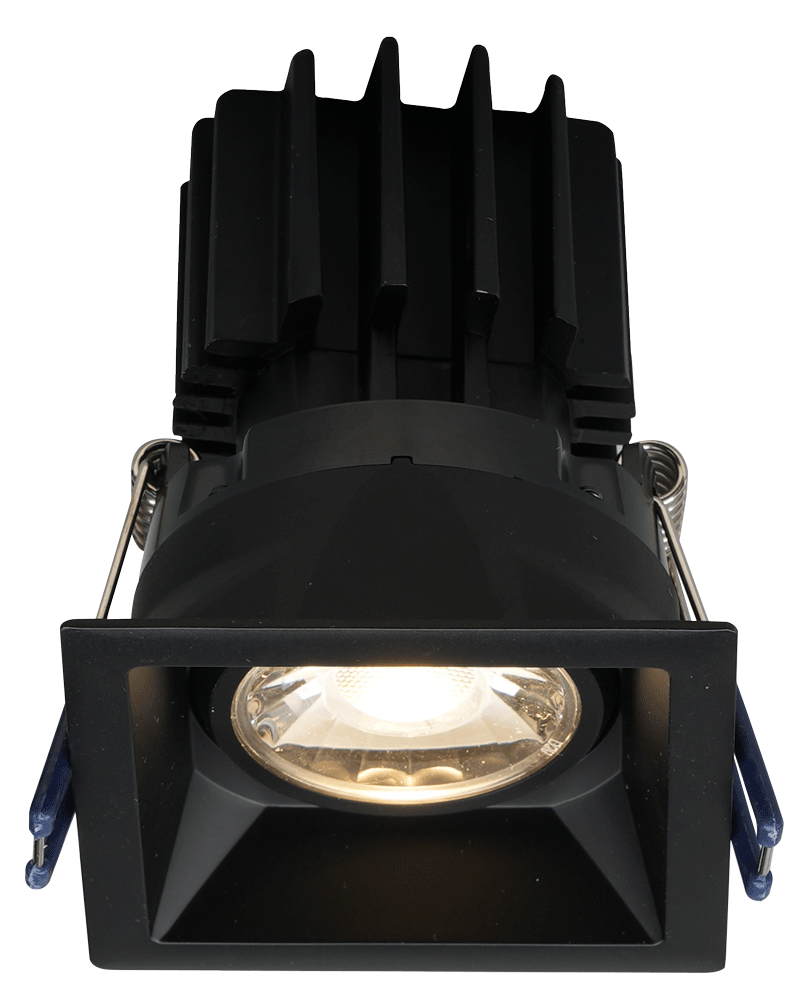

Lotus LSG3-HO-TT 3" 11W LED Square Regressed Gimbal Thin Trim Selectable CCT/DTW

Lotus LSG3-HO-TT 3" 11W LED Square Regressed Gimbal Thin Trim Selectable CCT/DTW

Regular price $80.08
Regular price Sale price $80.08
Sale Sold out
Shipping calculated at checkout.
Color: White
Color Temperature
Size

3" 11W Thin Trim Gimbal LED Selectable CCT/DTW

The Lotus LSG3-HO-TT features a sleek 1/4” trim designed for sophisticated, modern spaces with limited ceiling depth of just 3 1/2”. This IC-rated fixture safely contacts insulation and suits both wet and dry environments, including insulated and non-insulated ceilings. Choose from five selectable color temperatures (2700K to 5000K) or enjoy a dim-to-warm option that shifts from 3000K to 1800K, all with excellent CRI 90+ for vibrant, true-to-life colors. Compatible with most CL Triac dimmers and available with 0-10V dimming for 120V to 347V inputs, it includes an external driver inside the connection box—eliminating the need for a junction box. Backed by a 10-year residential and 5-year commercial warranty, this cULus-listed light combines style, flexibility, and reliability.
  • Model LSG3-HO-TT
  • 1/4” Trim for High-End Contemporary Installations
  • 3 1/2” Deep – Install Where Ceiling Space Is Limited
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • CRI 90+ for True Colour Rendering
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option with 120V to 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed
  • 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed
Spec Sheet

Spec Sheet


Info
Applications  Sloped Ceilings up to 20°, General Lighting Trimless
Wattage 11W
Lumen 1000
CRI 90+
CCT 27K-50K
Votage 120V
Beam Angle 38°
Tilt Angle 20° tilt and 360° rotation
Dimming TRIAC 10% - 100%
Dimensions W 3.00" H 3.5"
Cutout 2.50"



Additional Info
Airtight Yes
Location Rating Insulated Ceiling & Wet Locations
IC Rated Yes
Certifications cETLus
Warranty 10 Year Residential / 5 Year Commercial
