Luxrite LR23310 2″ Regressed Recessed Gimbal – 5 CCT Selectable

The Luxrite LR23310 is a compact yet high-performance 2″ regressed recessed gimbal downlight designed for modern and flexible lighting applications. With selectable color temperatures (2700K / 3000K / 3500K / 4000K / 5000K) and a crisp 90 CRI, it offers accurate, vibrant colour rendering perfect for retail, hospitality, accent, or general lighting.

• Ultra-low wattage: just 6 W while delivering approximately 400 lumens.

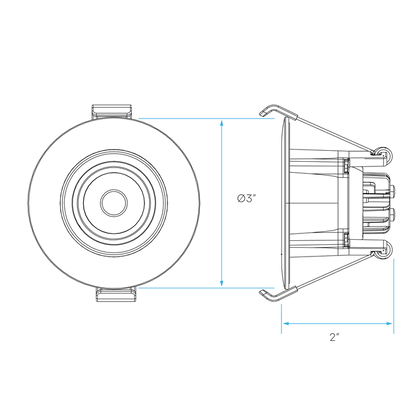

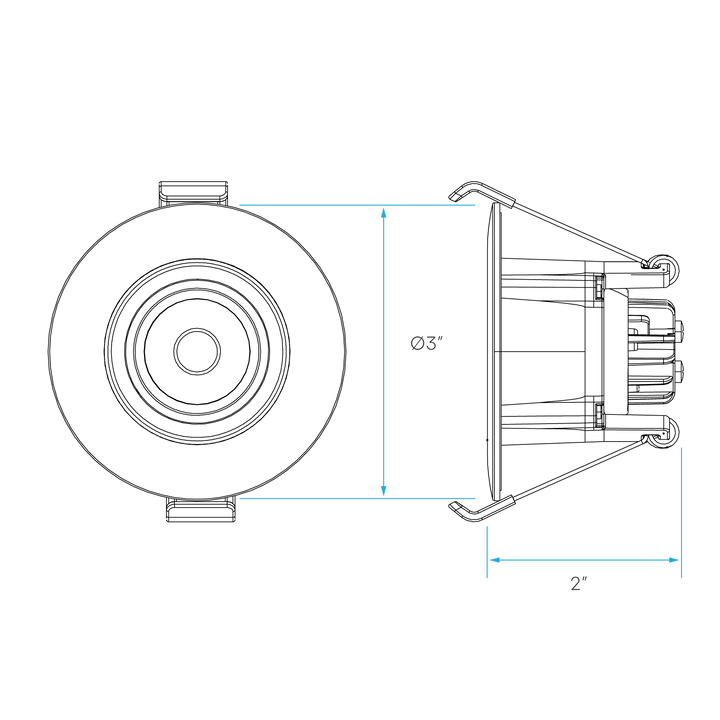

• Compact size: 3″ width, 2″ depth, cut-out 2.16″ — ideal for tight ceiling spaces.
• Beam angle: 38°, offering focused light in a small form factor.
• Dimmable via standard Triac controls, input 120 V, lifetime rated at 50 000 hours.
• Power factor ~0.9, operating temperature from -13 °C to 104 °F (approx. -13 °C to 40 °C).

Why choose the LR23310? Its ability to adapt onsite via CCT switching means it can be installed now and tuned later as finish or lighting needs evolve—great for contractors and specifiers who want flexibility. The regressed gimbal design reduces glare and offers adjustable aim within the housing, giving control over beam direction for accent or display lighting.
