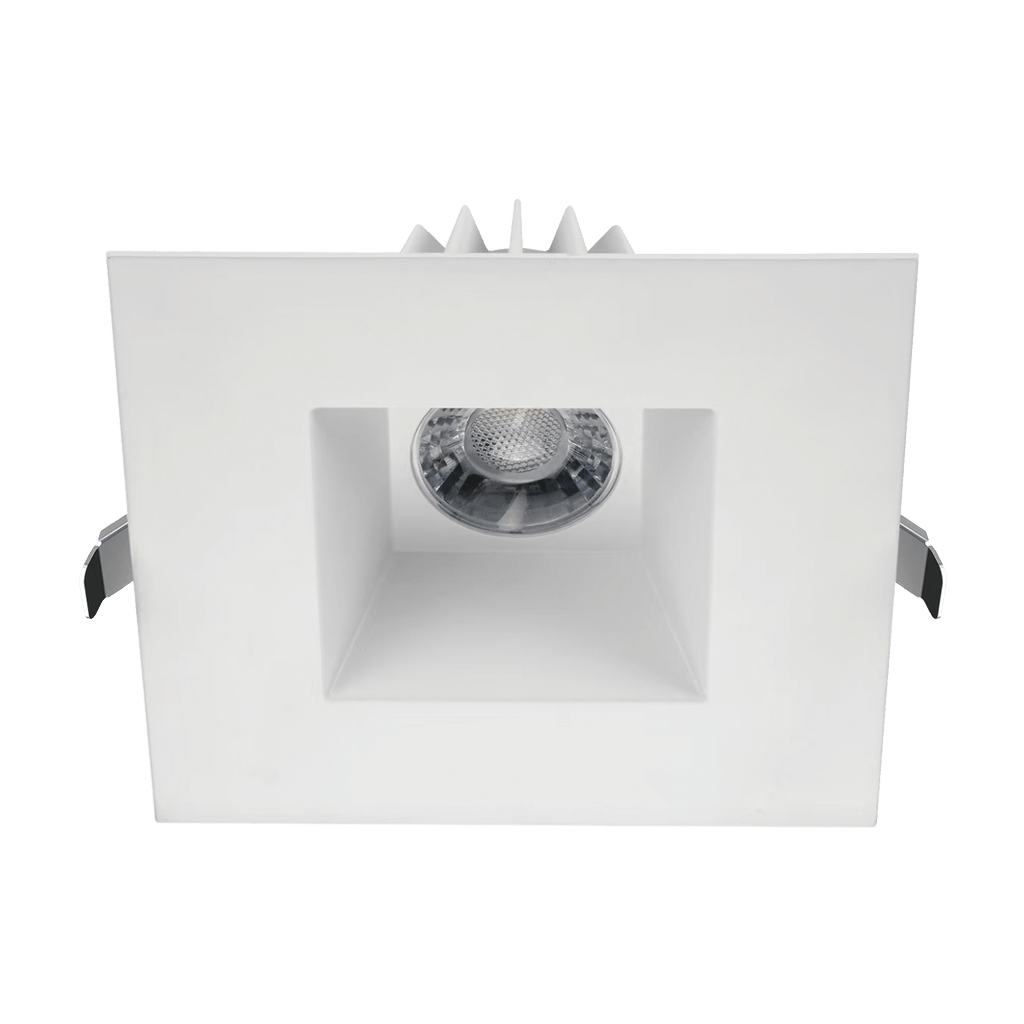

Luxrite LR23317 6" Regressed Square Canless Spotlight Selectable CCT + Wattage
Luxrite LR23317 6" Regressed Square Canless Spotlight Selectable CCT + Wattage
Regular price
$65.99
Regular price
Sale price
$65.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
LR23317 6" Regressed Square Canless Spotlight Selectable CCT + Wattage
A 6 inch square canless spotlight that sits recessed in the ceiling, so the glare stays out of your eyes. Pick 10, 15, or 20W and one of five color temperatures at install, and it works for new construction or a remodel.
- Selectable wattage: 10W / 15W / 20W (800 / 1200 / 1600 lumens)
- 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI 90, 36° beam
- TRIAC dimmable, 5-100%
- IC rated and airtight
- Damp location rated, IP44
- 5.5" cutout, remote driver included
- ETL listed, 50,000-hour rated life, 3-year warranty
Spec Sheets
Spec Sheet
Family Spec Sheet
Installation Instructions
Info
| Aperture | 6" |
| Shape | Square regressed |
| Finish | White |
| Dimensions | 6.77" L x 6.77" W x 3.26" H |
| Cutout | Ø5.5" |
| Wattage | 10 / 15 / 20W selectable |
| Lumens | 800 / 1200 / 1600 lm |
| Efficacy | 80 lm/W |
| Color Temp. | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Beam Angle | 36° |
| Input Voltage | 120V, 50/60Hz |
| Input Current | 167mA |
| Dimming | TRIAC, 5-100% |
| L70 Lifespan | 50,000 Hours |
| Mounting | Recessed, new construction or remodel |
| Location Rating | Damp, IP44 |
| IC Rated / Airtight | Yes / Yes |
| Materials | Die-cast aluminum heat sink, aluminum trim, PC acrylic lens |
| Driver | Included, remote, 3.5" x 3.5" x 1.25" |
| Compatible Plates | LR41002, LR41006, LR41010 (sold separately) |
| Listing | ETL |
| Warranty | 3 Years |
