LR24164 2X2 Frame Panel Selectable CCT + Wattage

A 2x2 lay-in LED frame panel with a switch on the driver for both wattage and color temperature. Set 20, 30, or 40W and one of five color temperatures at install, so one SKU fits offices, classrooms, and other grid-ceiling jobs.

  • Selectable wattage: 20W / 30W / 40W (2600 / 3900 / 5200 lumens)
  • 5CCT selectable: 3000K / 3500K / 4000K / 5000K / 6500K
  • 0-10V dimmable
  • 130 lumens per watt, CRI 80, 120° beam
  • 100-277V input
  • Damp location rated, IP40
  • ETL and DLC Premium listed
  • 50,000-hour rated life, 5-year warranty
  • Slim 0.5" profile
  • Emergency battery backup version available (LR24164+EM)
Spec Sheets

Spec Sheet

Installation Instructions

Info
Size 2' x 2'

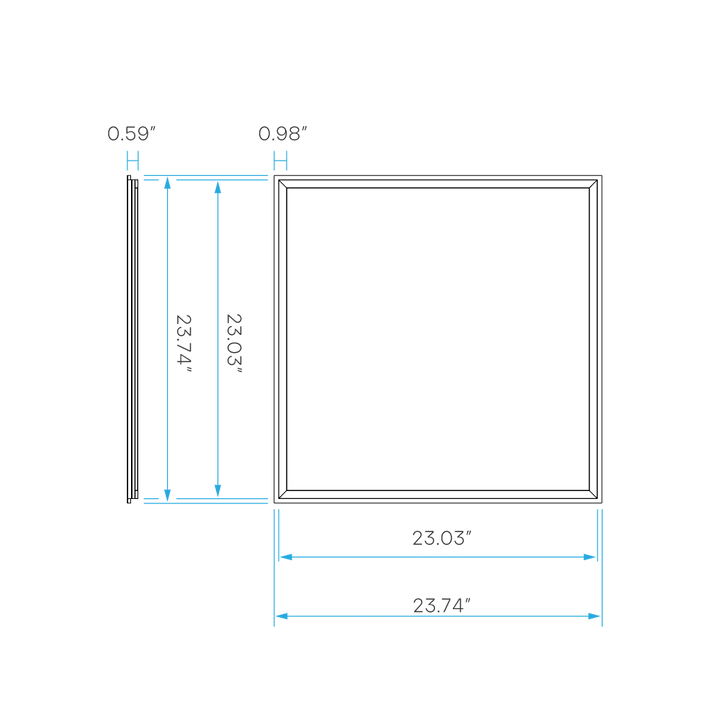

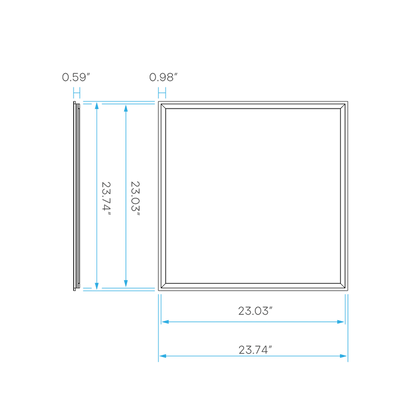

Dimensions 23.7" L x 23.7" W x 0.5" H
Finish White
Wattage 20 / 30 / 40W selectable
Lumens 2600 / 3900 / 5200 lm
Efficacy 130 lm/W
Color Temp. Selectable 3000K / 3500K / 4000K / 5000K / 6500K
CRI 80
Beam Angle 120°
Input Voltage 100-277V, 50/60Hz
Input Current 0.45A max
Power Factor >0.95
Dimming 0-10V
L70 Lifespan 50,000 Hours
Operating Temp. -4°F to 113°F
Location Rating Damp, IP40
Listing ETL, DLC Premium
Warranty 5 Years
Compatible With LR35126 emergency driver, LR24183 4' cable extender, LR24184 canopy (sold separately)
