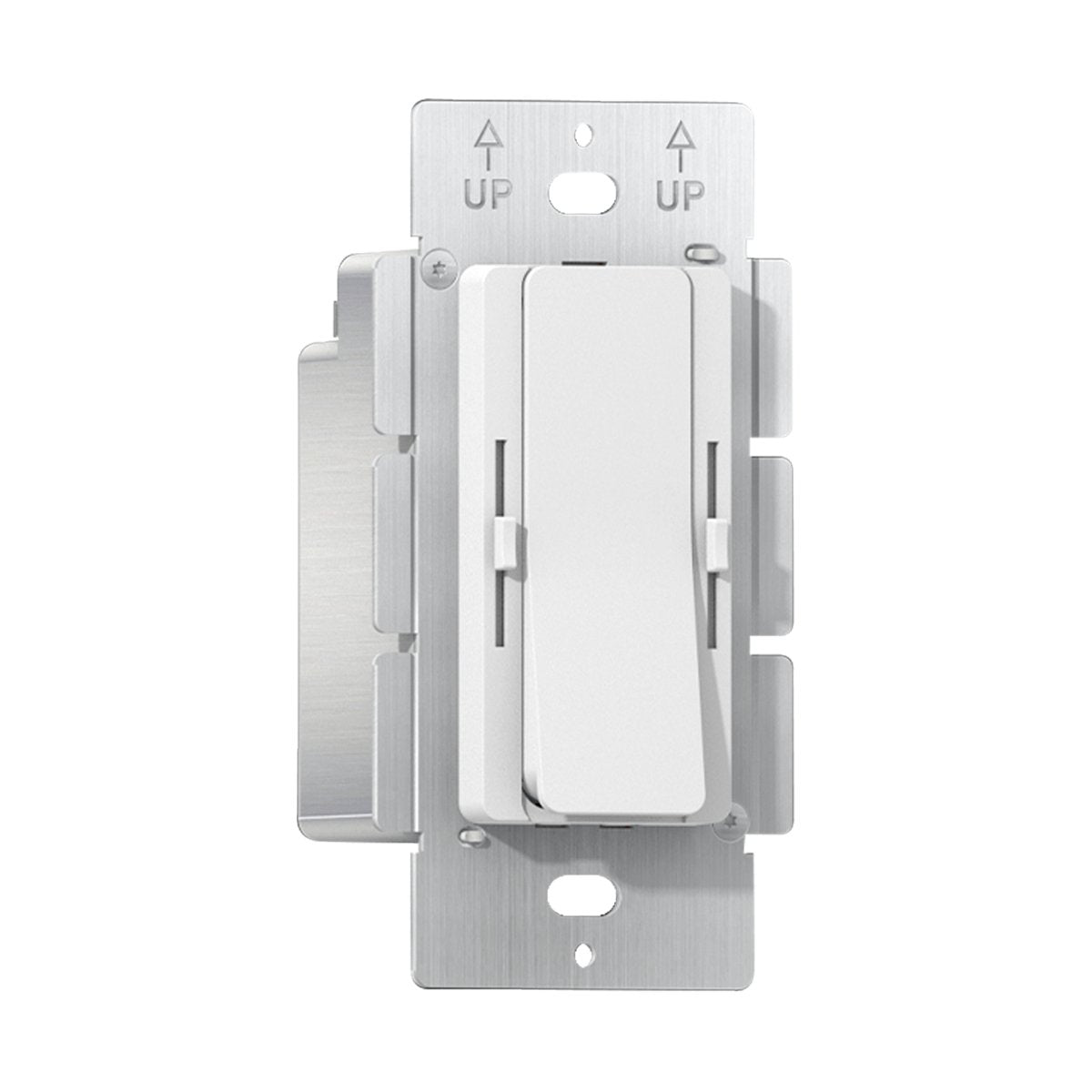

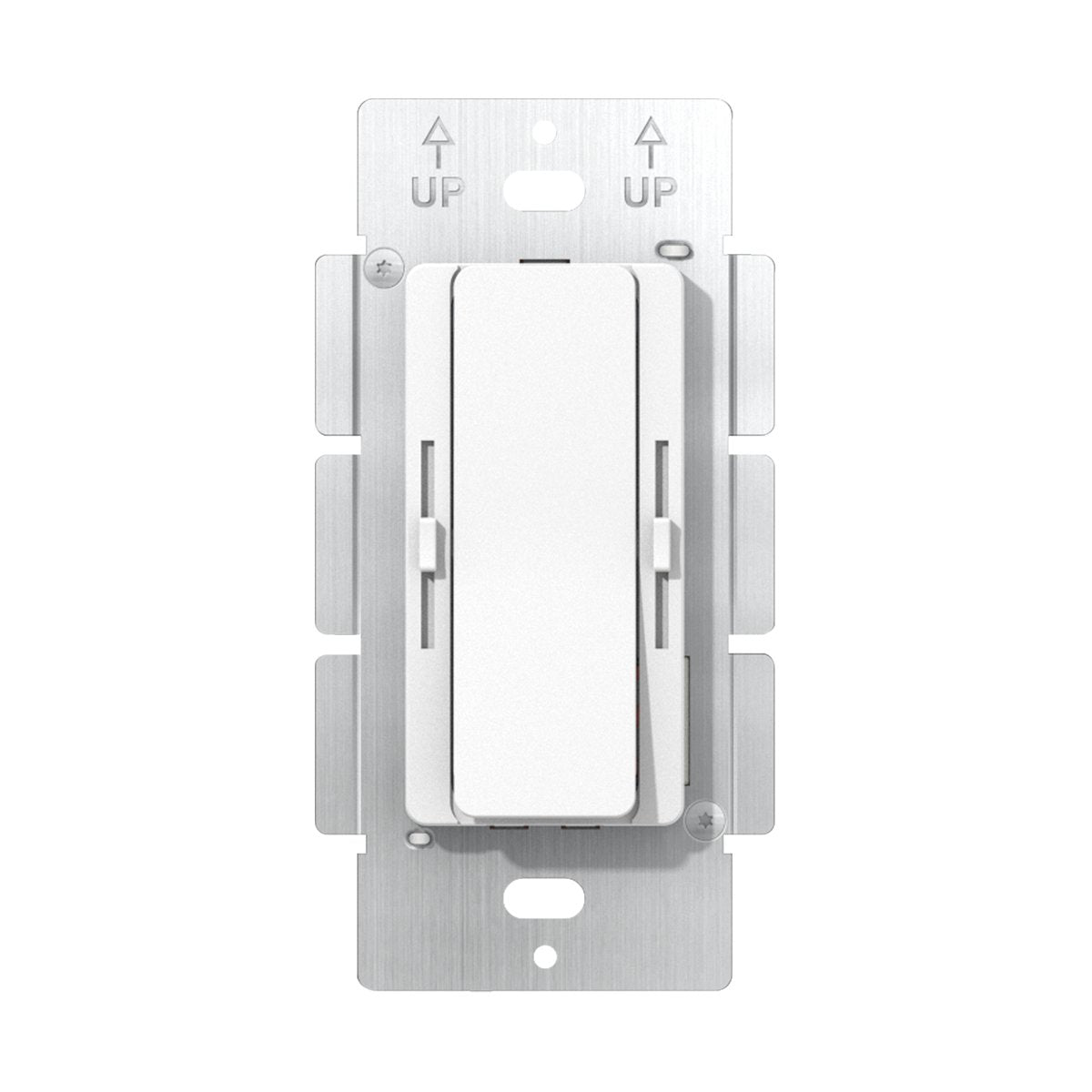

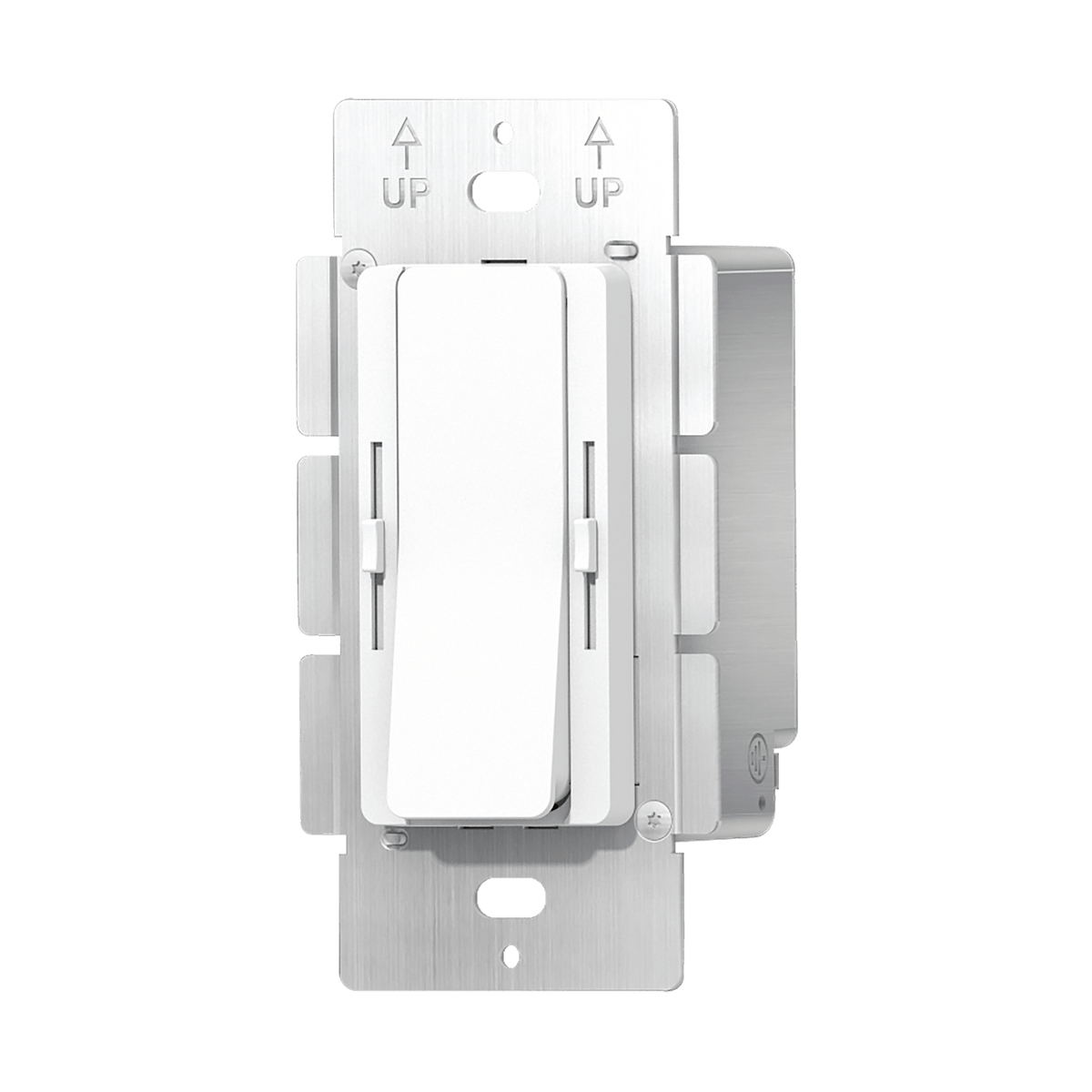

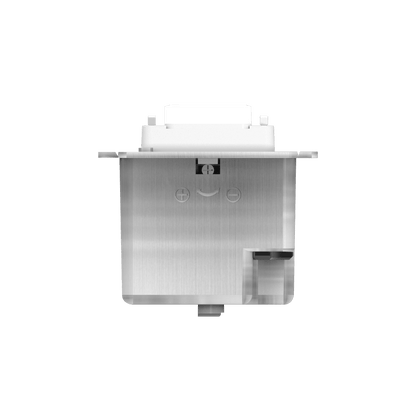

96W Smart WiFi & Bluetooth LED Driver, Dimmer & Color Temperature Controller

The Luxrite LR36145 LuxSmart micro driver + dimmer + CCT combines a 96W Class 2 constant voltage LED driver, a full-range dimmer, a CCT (color temperature) slider and built-in WiFi + Bluetooth control in one wall-box unit. Control it from the wall, from your phone with the app, or by voice, with no hub required. It delivers smooth, flicker-free 24VDC output for LED tape light and other low-voltage LED lighting.

• Built-in WiFi + Bluetooth: app control and voice control, no hub required
• 96W Class 2 constant voltage driver built in (24VDC output, 4A)
• Full-range 0.3%–100% dimming, flicker-free PWM with gamma 2.2 dimming curve
• CCT slider for tunable white / color temperature control of 3-wire CCT LED strip light
• Dimming slider and on/off switch on the wall unit
• Single pole or 3-way (with external push dimmer)

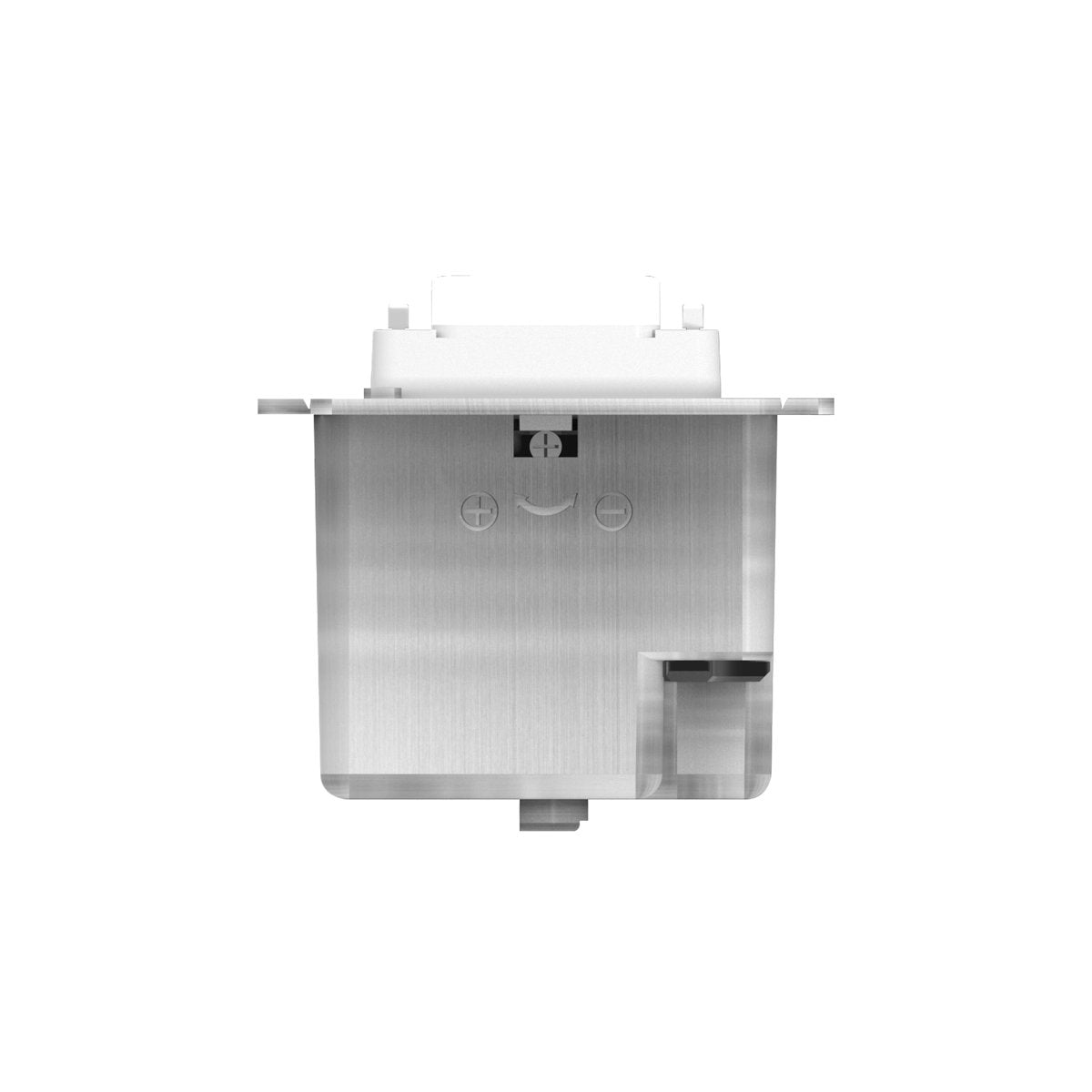

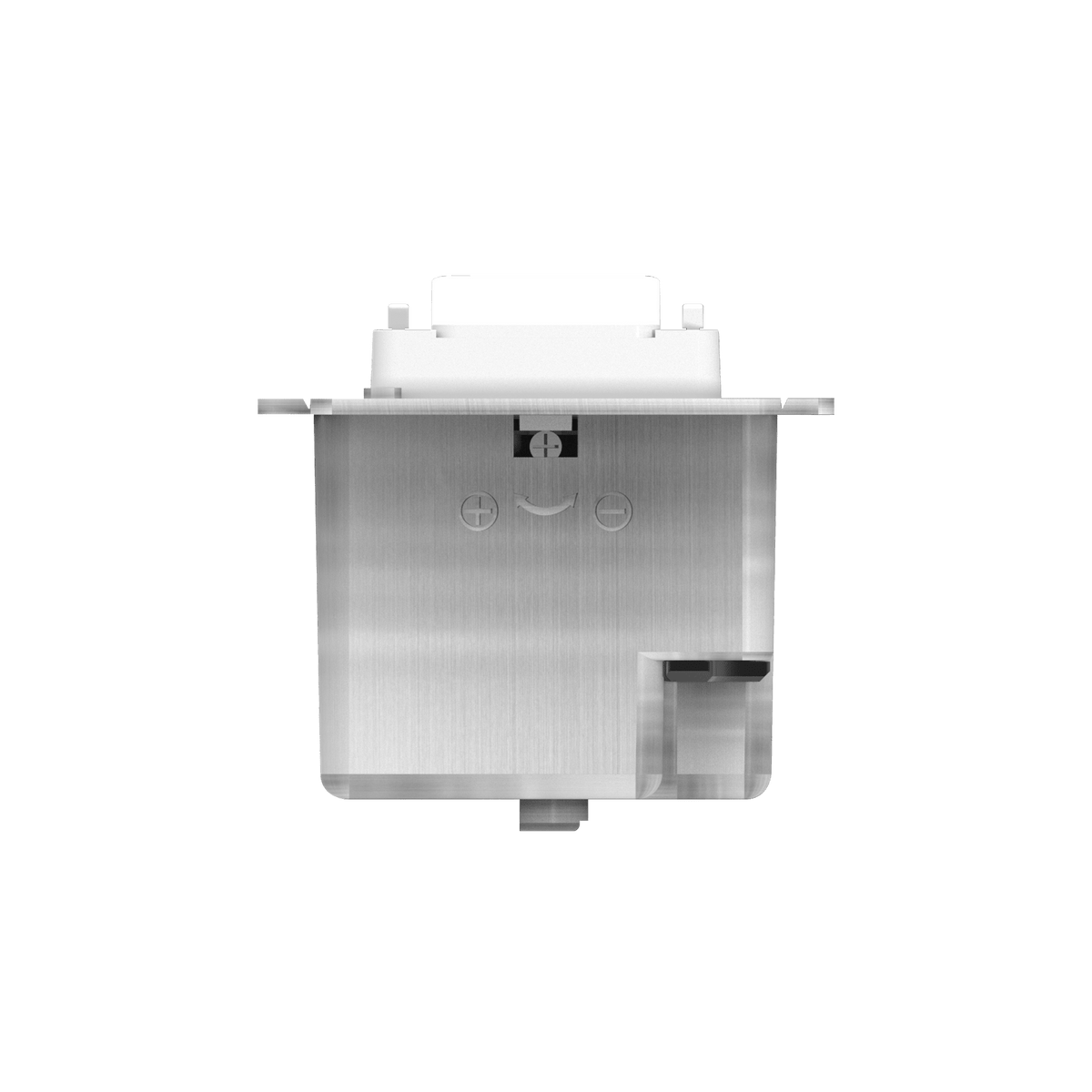

• Manual voltage tuning knob (24V–26V) for output optimization
• Built-in active PFC, power factor ≥0.99
• Short circuit, overload and over temperature protection
• Eliminates compatibility issues between drivers and switches
• For dry and damp locations
