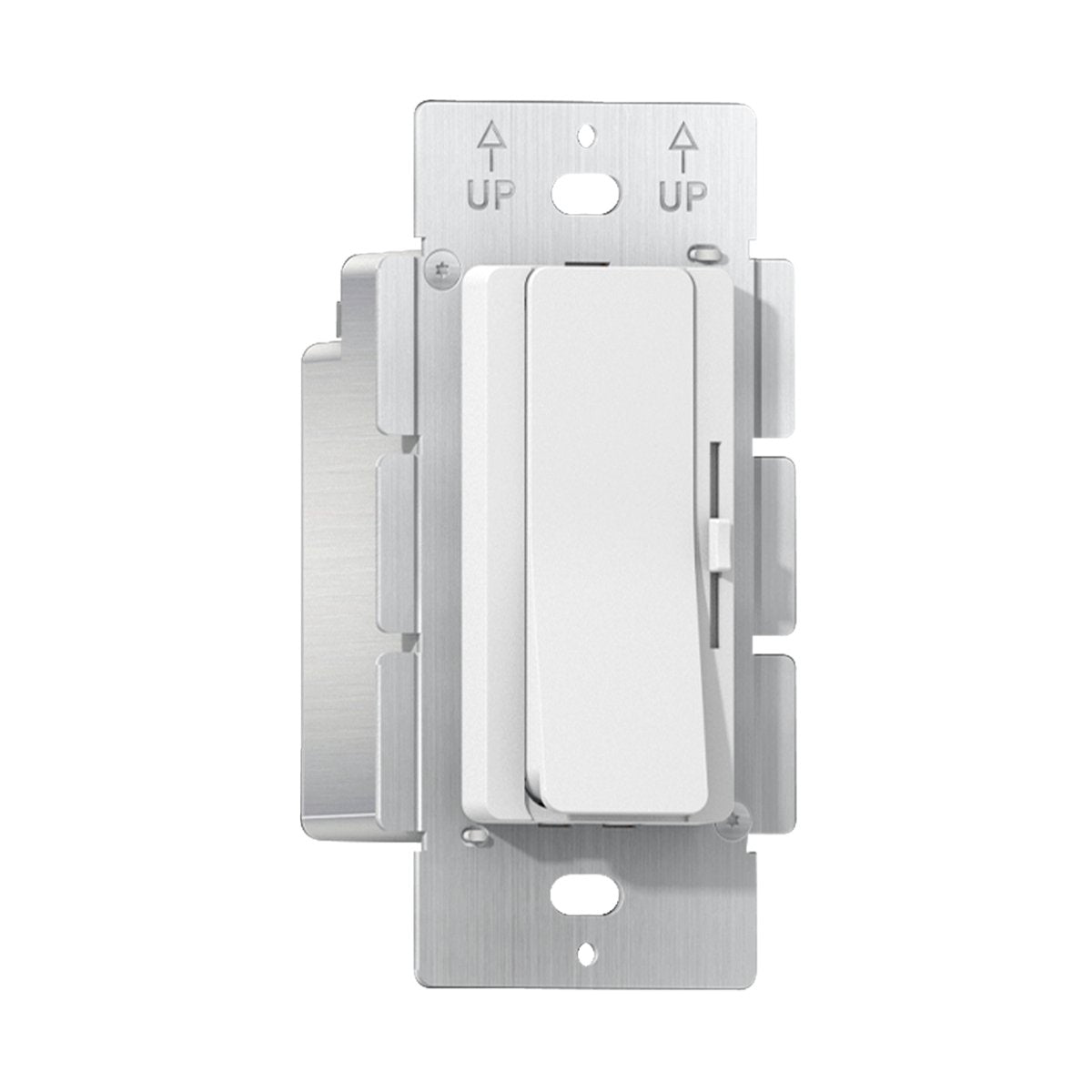

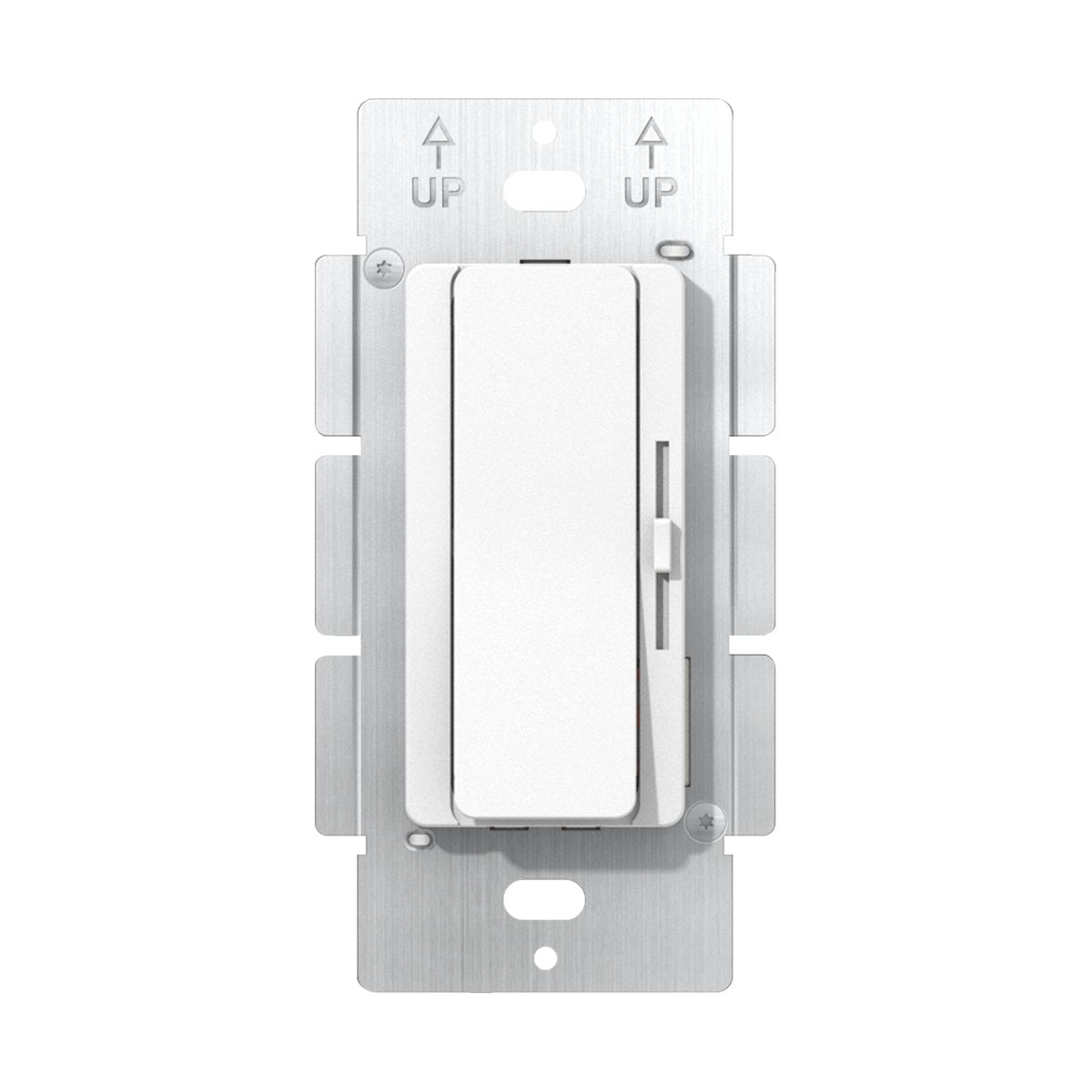

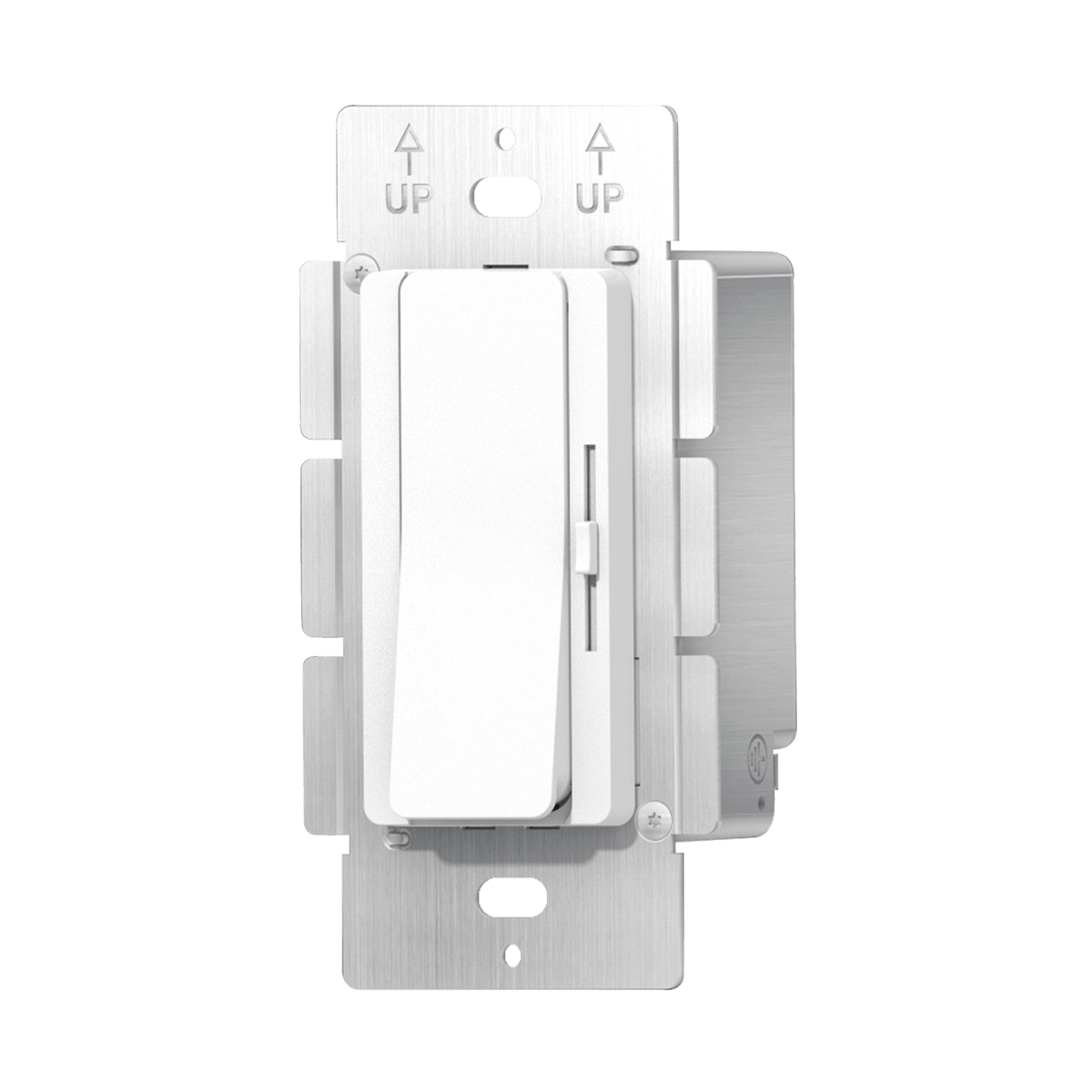

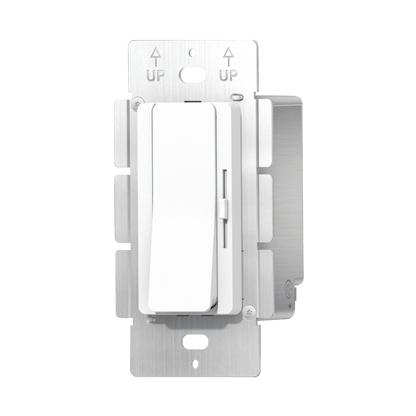

Luxrite LR36146 160W Smart WiFi & Bluetooth Electronic Driver + Dimmer

Luxrite LR36146 160W Smart WiFi & Bluetooth Electronic Driver + Dimmer

$379.99
$379.99
Sale Sold out
Shipping calculated at checkout.
Wattage
Type

160W Smart WiFi & Bluetooth LED Driver, Dimmer

The Luxrite LR36146 LuxSmart micro driver + dimmer combines a 160W Class 2 constant voltage LED driver, a full-range dimmer and built-in WiFi + Bluetooth control in one wall-box unit. Control it from the wall, from your phone with the app, or by voice, with no hub required. It delivers smooth, flicker-free 24VDC output for LED tape light and other low-voltage LED lighting.

  • Built-in WiFi + Bluetooth: app control and voice control, no hub required
  • 160W Class 2 constant voltage driver built in (24VDC output, 6.67A)
  • Full-range 0.3%–100% dimming, flicker-free PWM with gamma 2.2 dimming curve
  • Dimming slider and on/off switch on the wall unit
  • Single pole or 3-way (with external push dimmer)

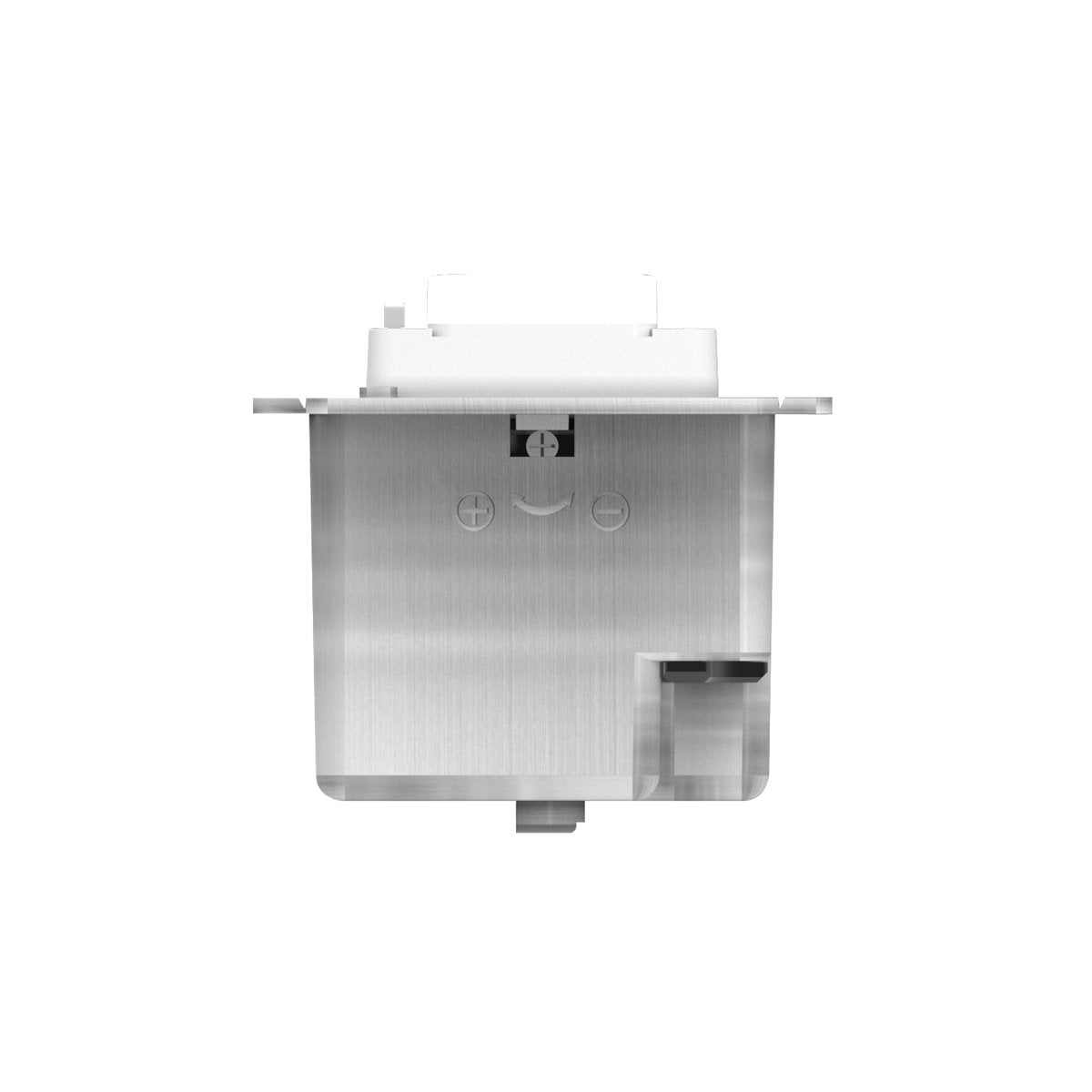

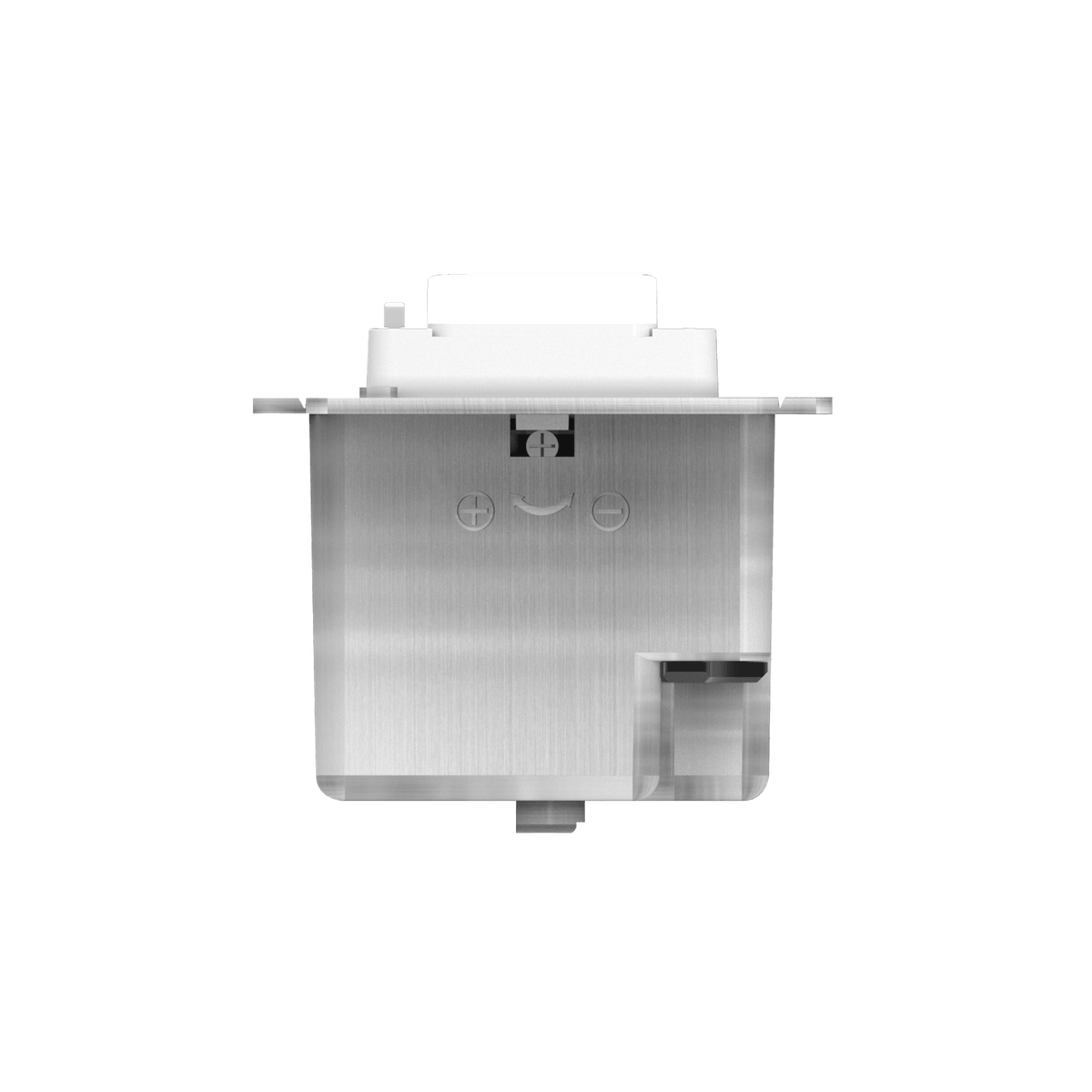

  • Manual voltage tuning knob (24V–26V) for output optimization
  • Built-in active PFC, power factor ≥0.99
  • Short circuit, overload and over temperature protection
  • Eliminates compatibility issues between drivers and switches
  • For dry and damp locations
Spec Sheet

Spec Sheet

Installation Instructions

Info
Wattage 160W
Input Voltage 120VAC, 60Hz
Output Voltage 24VDC (adjustable to 26V)
Output Current 6.67A
Efficiency 94.5% @ full load
Dimming Range 0.3% – 100%
Wireless Control WiFi + Bluetooth (app and voice control, no hub required)
Certifications UL/cUL, FCC, Class P, SELV, RoHS
Environment Dry/damp location, -40°F to 140°F
Protection Short-circuit, overload, overheat

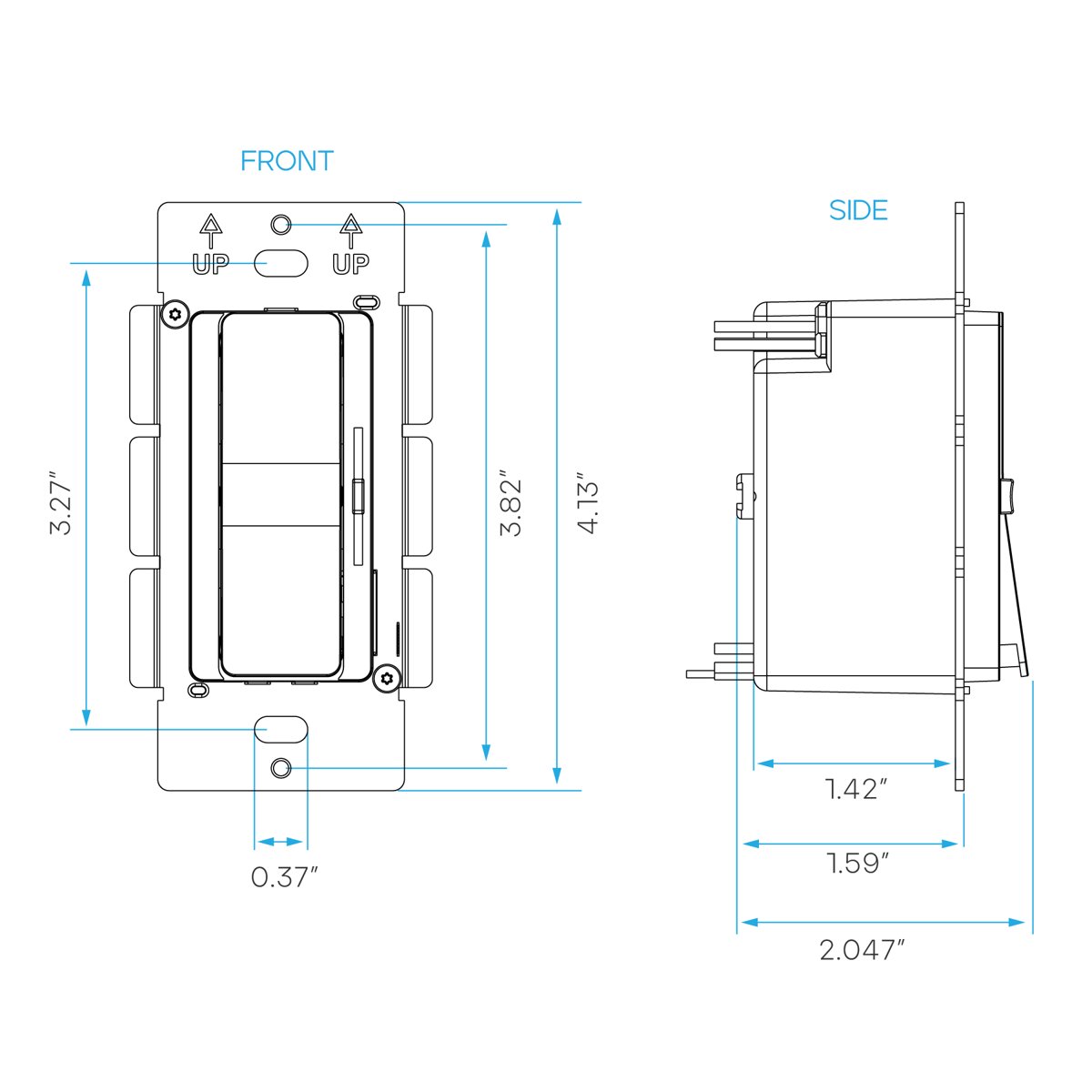

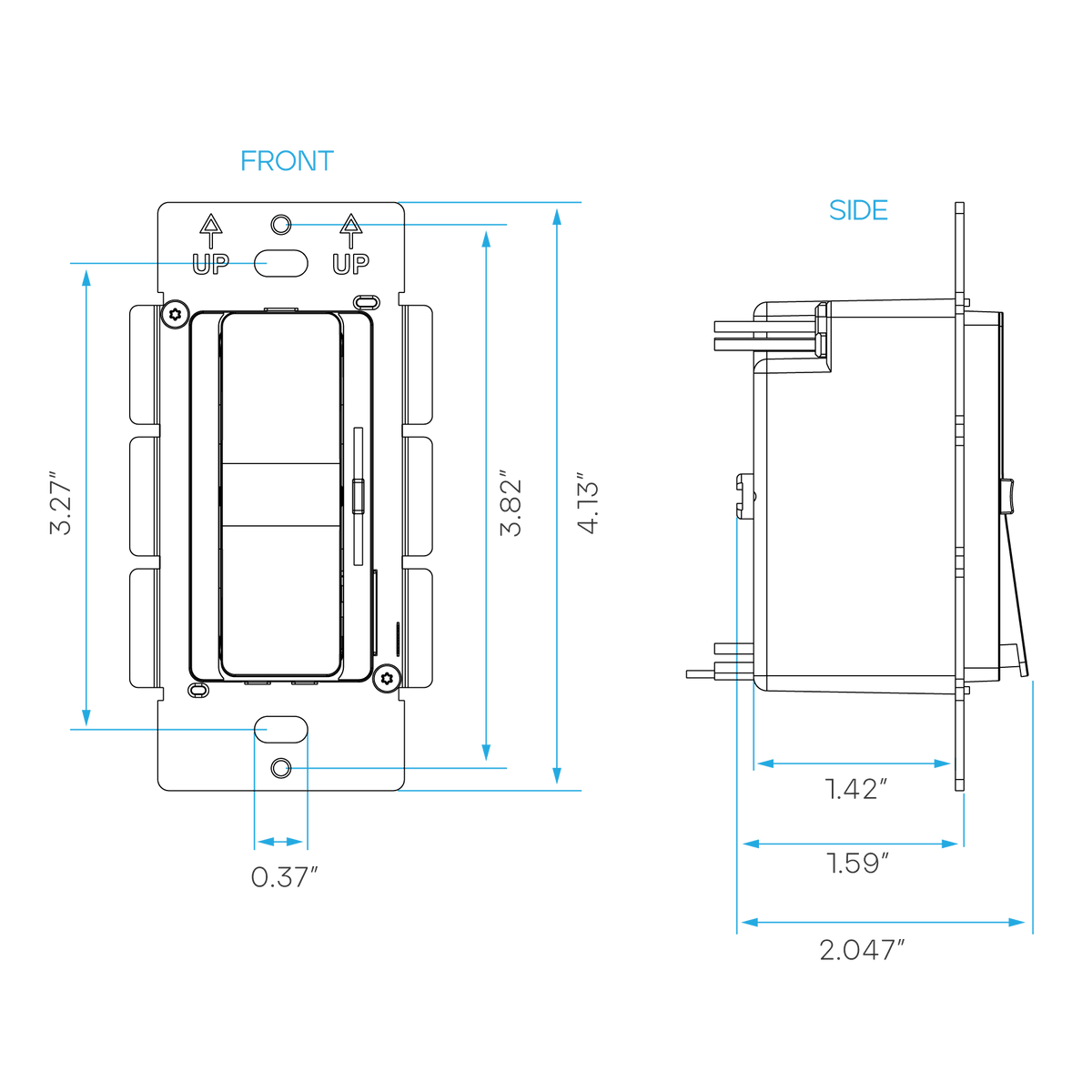

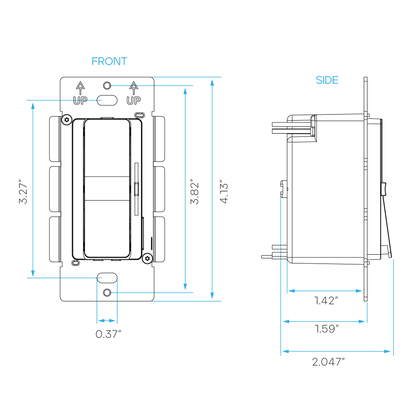

Dimensions 4.13" x 2.13" x 2.00"
Warranty 5 Years
