Nora Lighting

NORA NLOPAC-R4TW 4" 10W LED Dimmable Surface Mount Selectable CCT

NORA NLOPAC-R4TW 4" 10W LED Dimmable Surface Mount Selectable CCT

$16.11
$19.99 $16.11
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Color
Wattage

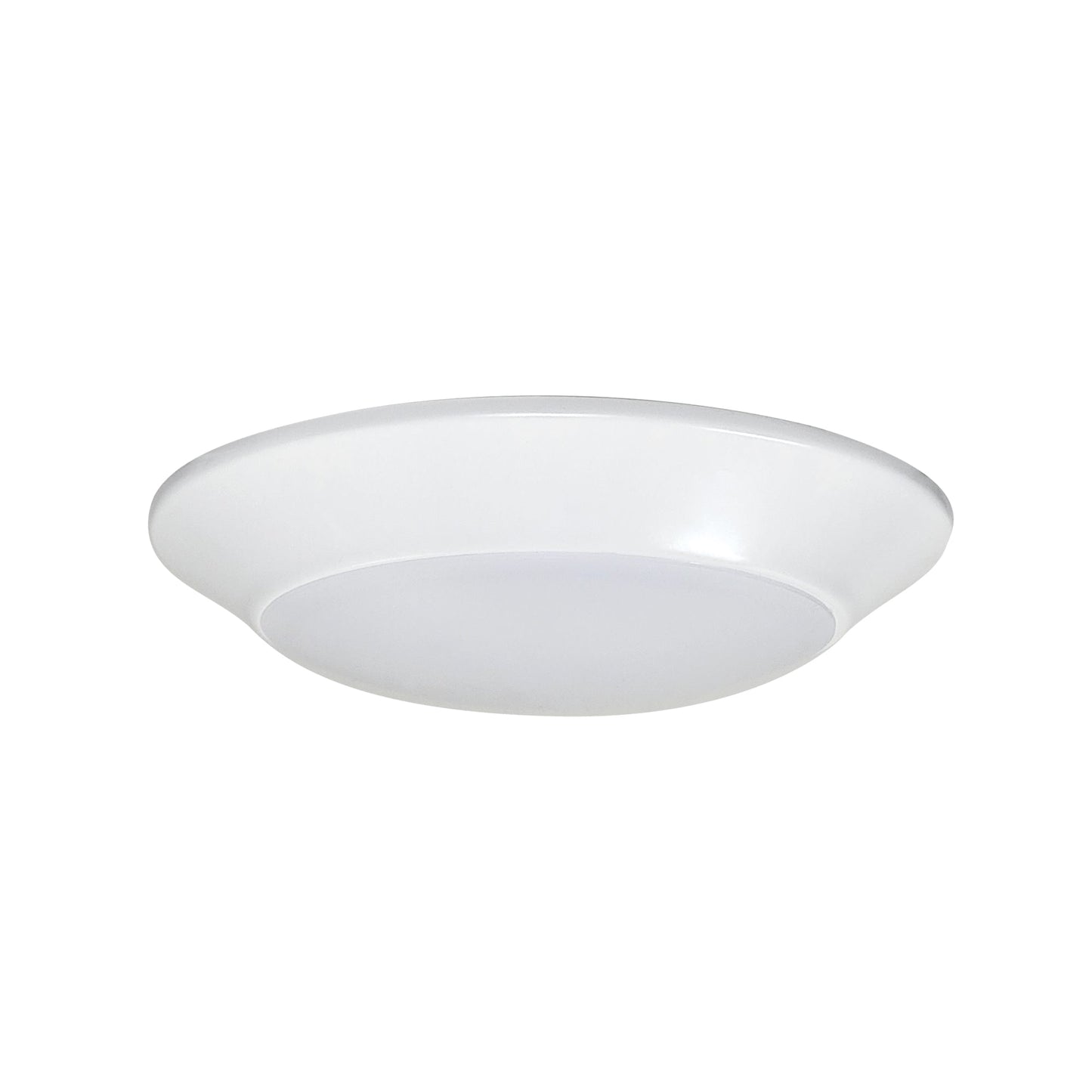

4" AC Opal with Selectable CCT

The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.

  • AC LED (No Driver)
  • Dimmable
  • Five color temperatures in each fixture
  • Mount on standard junction box
  • ENERGY STAR certified
  • Suitable for use in closets when installed in accordance to NEC® Section 410.16 (A)(1) and 410.16 (C)(1)
  • Certified to the high efficacy requirements of California Title 24 JA8-2022

Dimensions
Width (In.)  6.50"
Height (In.) 1.25"
Aperture Size (In.) 4.25"

    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
    Type Disk Light
    Watt 10W
    Lumen 700L
    Color Temp. Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
    Finish White
    CRI 90+
    L70 Hours 50,000
    Dimmable Yes 5% with Triac or 10% with ELV
    Mounting Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 5" or 6" recessed housings with retrofit kit (included).
    Warranty 5 Year Limited
    Additional Info
    Construction One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life
    Optics Nora specified and designed precision molded lens for optimal lumen output and even distribution.
    Retrofits Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement
    Ratings IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.



     cETLus Listed for wet locations
    cETLus classified for retrofit
    ENERGY STAR certified
    Certified to the high efficacy requirements of California Title 24 JA8-2022
    Suitable for use in closets when installed in accordance to NEC Section 410.16
    FCC Compliant
