RAB Lighting

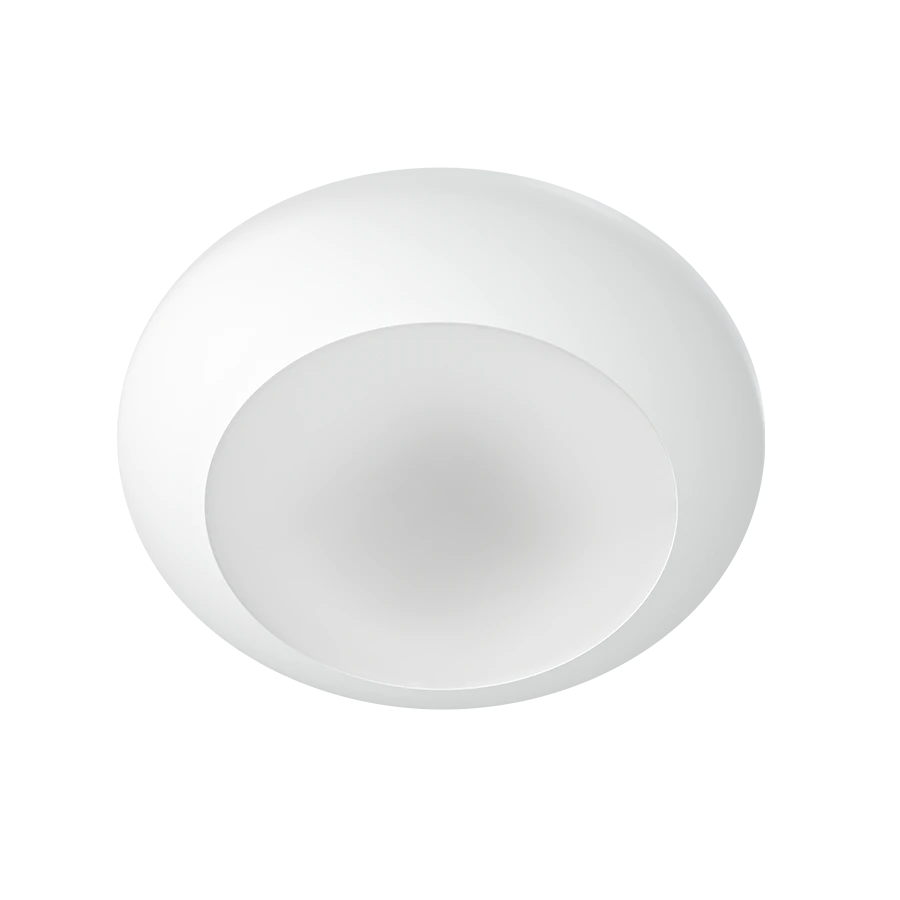

RAB 11W LED 6" Disk Surface Mount Selectable CCT

RAB 11W LED 6" Disk Surface Mount Selectable CCT

$22.80
$22.80
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature

11W 6" Disk Surface Mount Field Adjustable

Discontinued. Click Here for updated product.

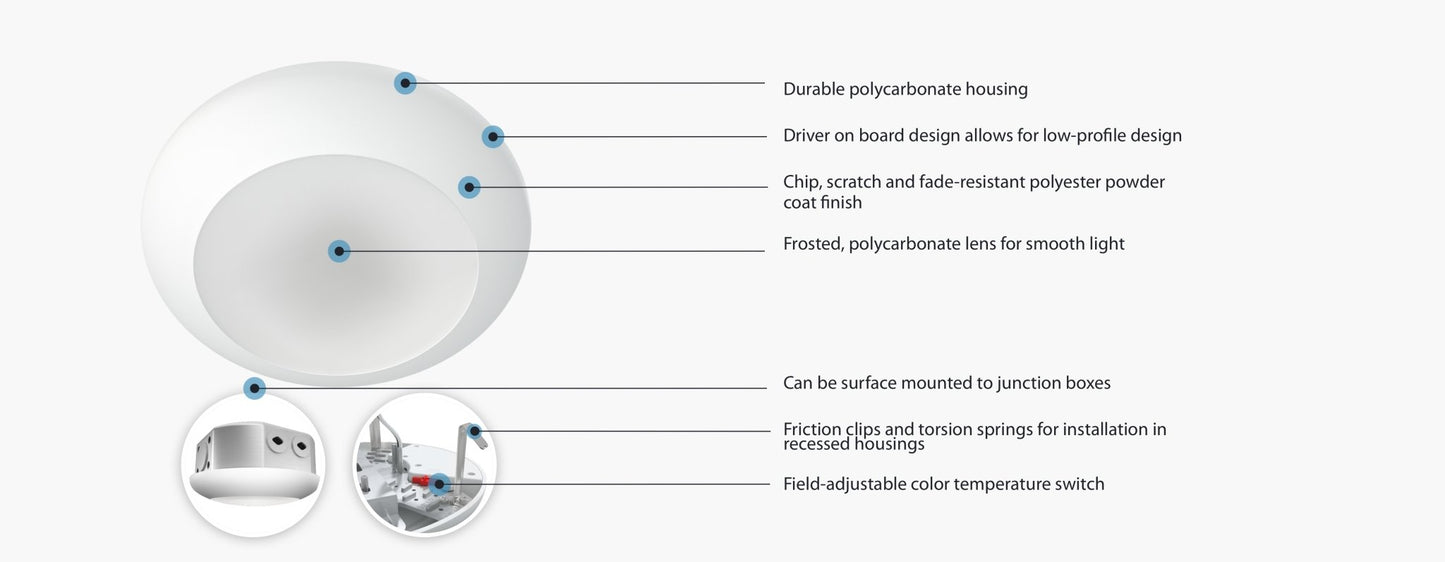

  • Low profile back-lit design
  • Durable thermoplastic housing with frosted lens
  • New construction or retrofit applications
  • Installs on standard junction boxes
    DSK4 3"/4" DSK6 3"/4"/5"/6" junction boxes
  • Suitable for wet locations
  • Suitable for use in closets when installed in accordance with NEC guidelines
  • Dimmable down to 5% on compatible dimmers
  • 5-Year, Limited Warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info
Product Type  Disk Surface Mount / Retrofit
Wattage 11W
Lumen 1000lm
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Plastic Housing
Housing Finish  White
Style Smooth
LED Back-lit LED technology utilizes high performing LEDs with 90+ CRI and an R9 > 50
Beam Angle 110°
Base Type E26 Socket with ideal connector and wire leads included
Lens Frosted convex plastic diffuser provides uniform light without hotspots

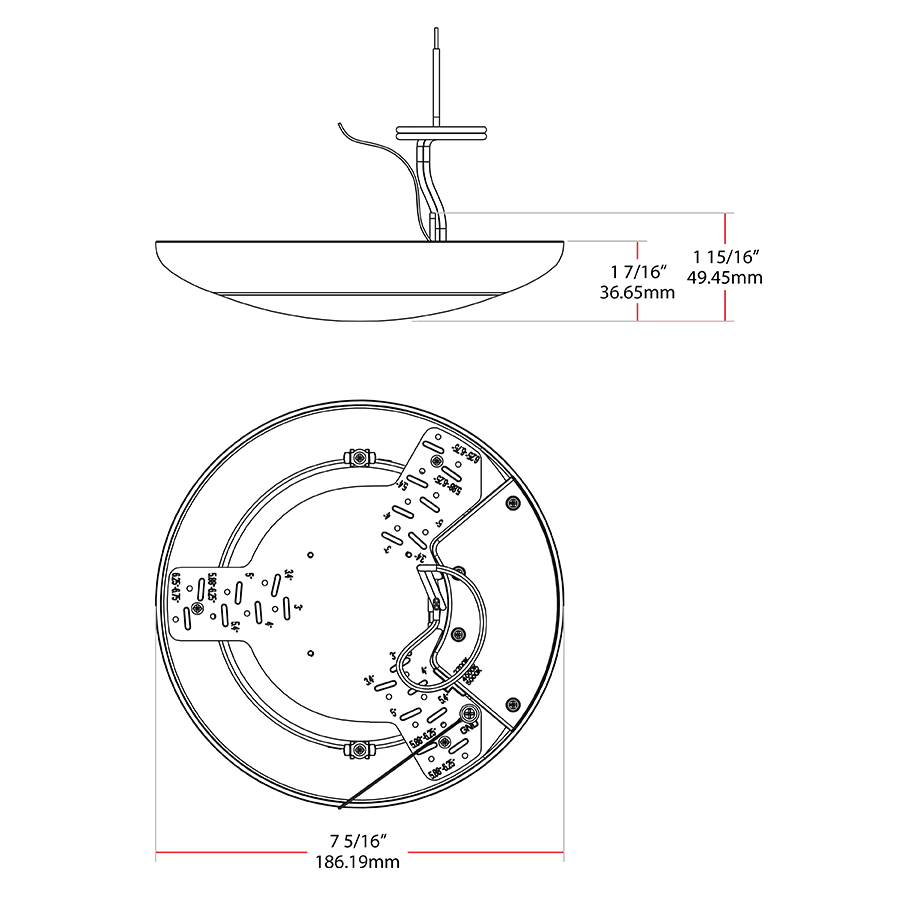

Mounting Mounts on 3"/4" standard junction boxes. Does not mount on pancake-style junction boxes Fixture snaps into place on included mounting bracket E26 screw-base connector included
Additional Info
                                               Compliance
 Safety Listing UL Classified, UL Recognized
 Environment/Fixture Rating Wet Location
T24 JA8 Compliant Only 90CRI models can be used to conform with the requirements of California Title 24 Part 6
T20 Compliant California Title 20 certified LED Tier 2 Lamp
Lawful for sale in California Yes
IC Rated Yes
FCC Complies with Part 15 of the FCC Rules
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
THD ≤20%
 Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming TRIAC and ELV dimming compatibility

  Note All values are typical (tolerance +/- 10%)
