RAB Lighting

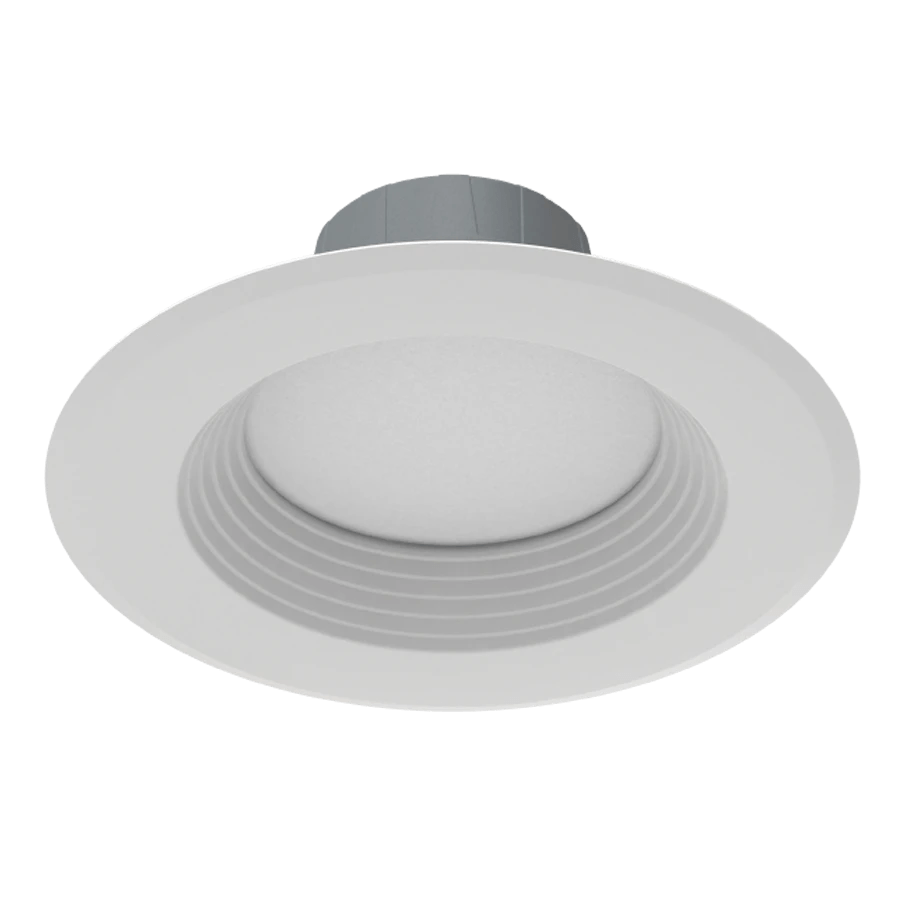

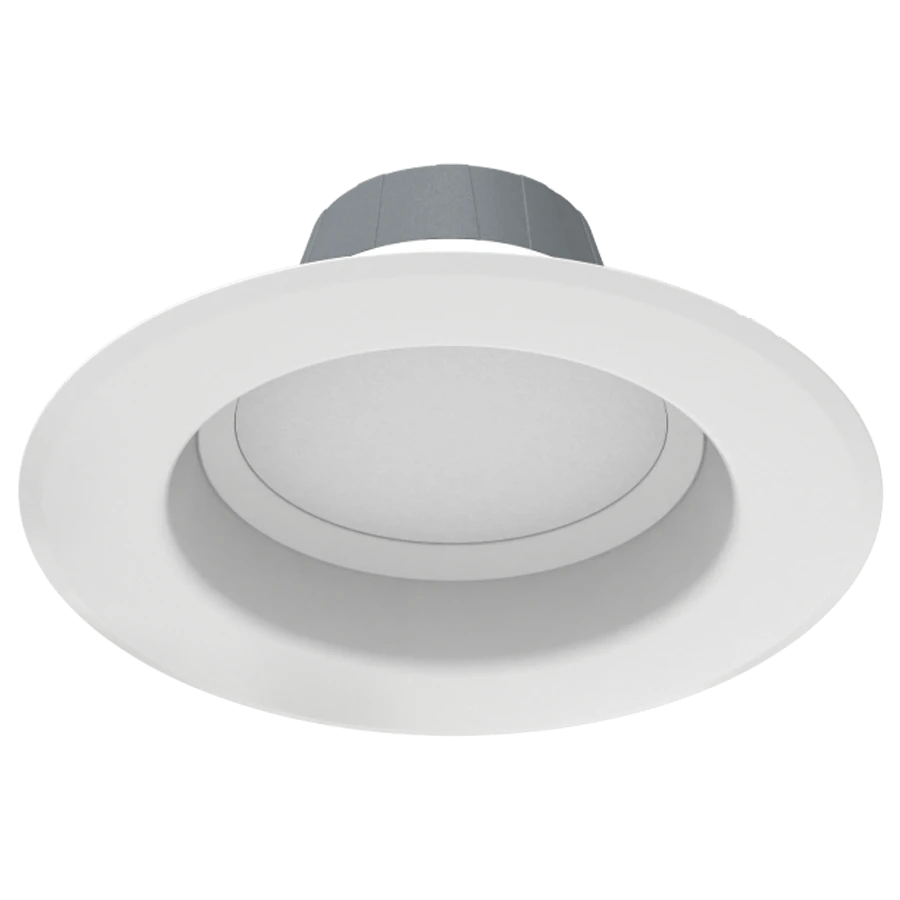

RAB 14W LED 6" Round Retrofit Downlight Selectable CCT

RAB 14W LED 6" Round Retrofit Downlight Selectable CCT

Regular price $18.57
Regular price $19.99 Sale price $18.57
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

6" Retrofit Downlight - Field Adjustable

Contractor-grade retrofit downlights offered with up to 5 field selectable color temperatures in 1 model. Color trims sold separately

  • Use to replace up to 75W traditional light sources
  • Durable metal construction: dent and scratch resistant
  • 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
  • Compatible with most standard recessed housings
  • Dimmable down to 5% on compatible dimmers, see Dimmer Compatibility List
  • 5 year warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info
 Product Type  Recessed Retrofit
Wattage 14W
Lumen 1200
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Constructed from durable steel sheet metal
Finish  White Trim
Style Smooth | Baffle
LED Long-life, high-efficacy, surface-mount LEDs
Socket Adapter Edison 26 Medium Base Socket adapter included in box
Beam Angle 95°±10°
Lens Frosted polycarbonate diffusion lens
Mounting Easy installation with friction clips (4") and torsion springs (5"/6")
Additional Info
                                               Compliance
 Safety Listing UL Listed
 Environment/Fixture Rating Wet Location
T24 JA8 Compliant Can be used to conform with the requirements of California Title 24 Part 6.
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
FCC Complies with Part 15 of the FCC Rules
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
THD ≤20%
Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -20°C (-4°F) to 40°C (104°F)
Dimming TRIAC compatible dimmer with dimming as low as 10%.

  Note All values are typical (tolerance +/- 10%)
