RAB Lighting

RAB 20W LED Surface Mount 1FT X 1FT Selectable CCT

RAB 20W LED Surface Mount 1FT X 1FT Selectable CCT

$66.20
$79.99 $66.20
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

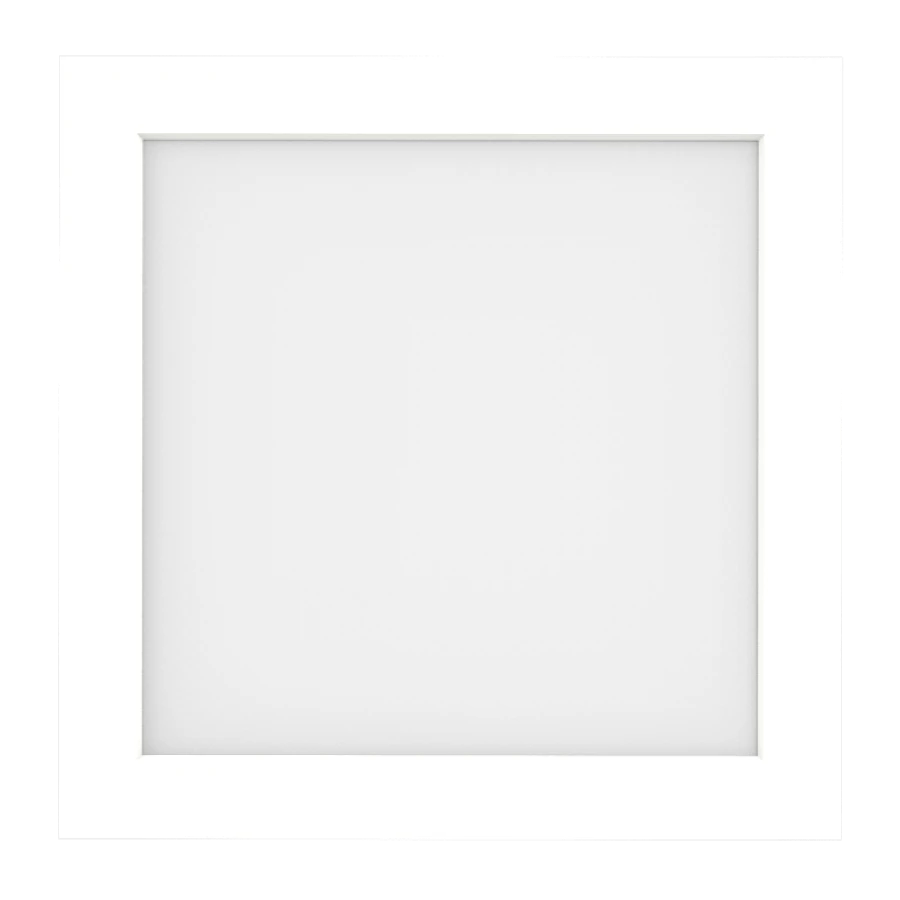

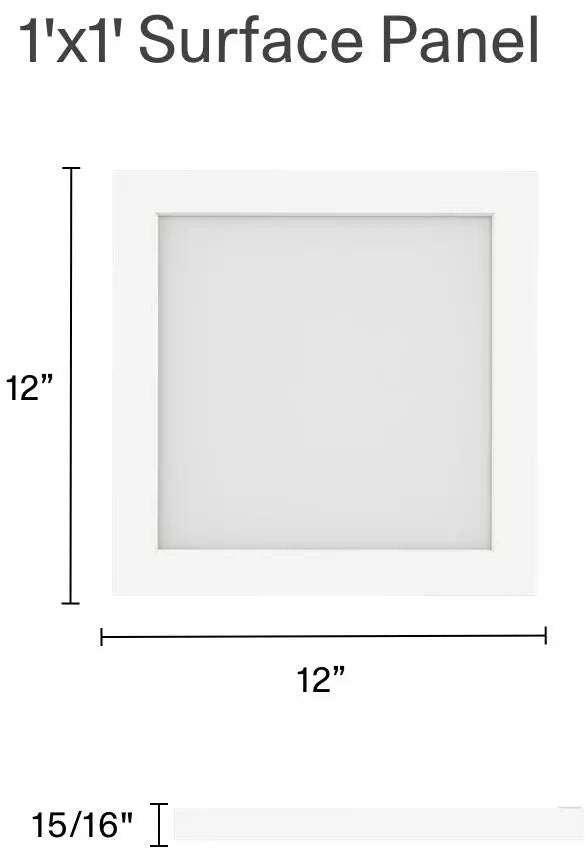

1X1 Surface Mount Panel

This surface panel downlight offers a sleek, modern look for any application. Offered in various unique form factors, 5 color temperatures to choose from, universal voltage (120-277V) and dimming options available.

  • Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K
  • Suitable for indoor applications in dry and damp environments
  • Dimmable, see Dimmer Compatibility List
  • Meets California Title 24 requirements
  • 50,000 life hours
  • 5-Year, no compromise warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info


Wattage 45W
Lumen 1,700-1,850
Color Temp. 27K-50K
Efficacy 88-93 lm/W
CRI 90
L70 Lifespan 50,000
Mounting Surface mount
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Fixture Rating Damp Location
ENERGY STAR V2.2 ENERGY STAR® Version 2.2 Certified
Energy Star ID 2396875




Electrical
THD ≤30%
Power Factor ≥0.9
Operating Temperature -20°C - 40°C (-4°F - 104°F)
Dimming Yes, See Dimmer Compatibility List
